Professional 8.3m Heavy-Duty Patrol RIB Boat|Fast-Response,12-Person,CE Certified

Professional 8.3m Heavy-Duty Patrol RIB Boat|Fast-Response,12-Person,CE Certified

⚡Engineered for critical, time-sensitive operations,

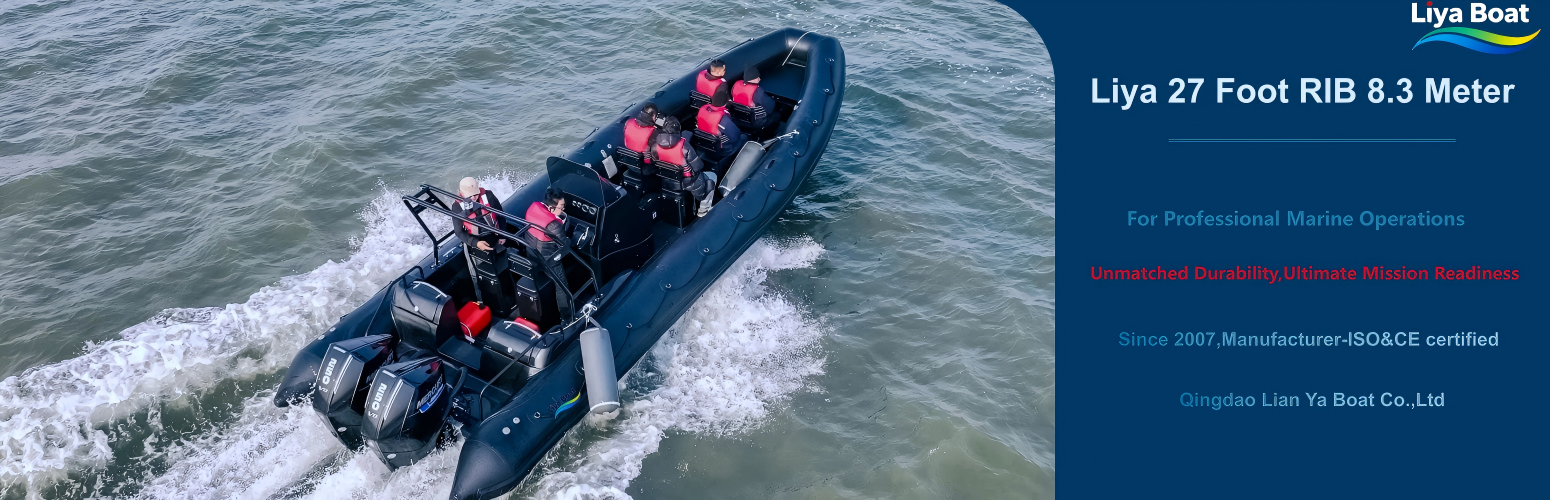

The Liya 8.3m (27FT) Heavy-Duty Patrol RIB is a professional-grade fast-response vessel.
Combining a high-performance stepped deep-V fiberglass hull with premium ORCA Hypalon tubes, this CE B/C certified craft delivers exceptional speed, sea-keeping, and durability.
Designed for law enforcement, emergency rescue, and coastal security tasks, it offers unparalleled configuration flexibility for up to 12 personnel, ensuring readiness for any mission profile.

Model：
RIB830
Brand：
Liya Boat
Code：
8903.190000
Capacity：
6-12 seats
Engine shaft：
XL 25''

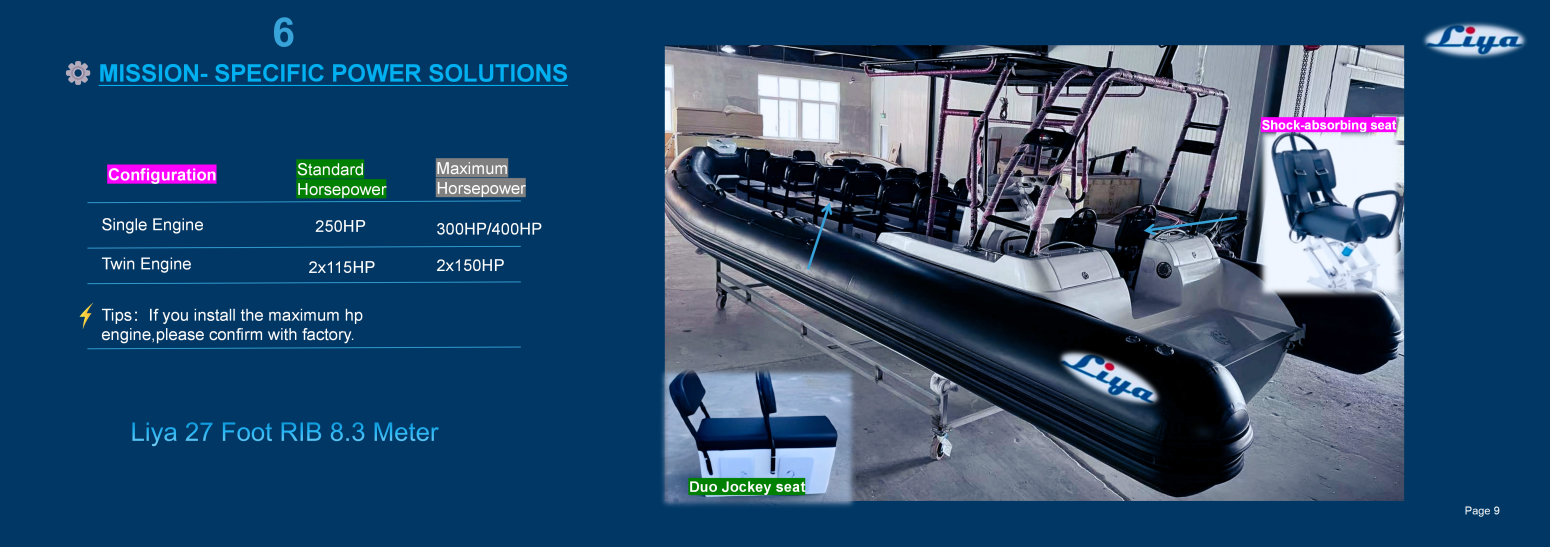

Recommended power：
250HP(single)/2x115(twin)
Max power：
400HP(single)/ 2x200(twin)

库存： 0

Inquire

▍Mission-Specific Design for Professional Maritime Operations

The Liya 8.3m Heavy-Duty Patrol RIB is purpose-built to excel in demanding roles including law enforcement patrols, swift emergency rescue (SAR), personnel transport, and various coastal security operations. Its robust design prioritizes rapid deployment, operational flexibility, and crew safety.

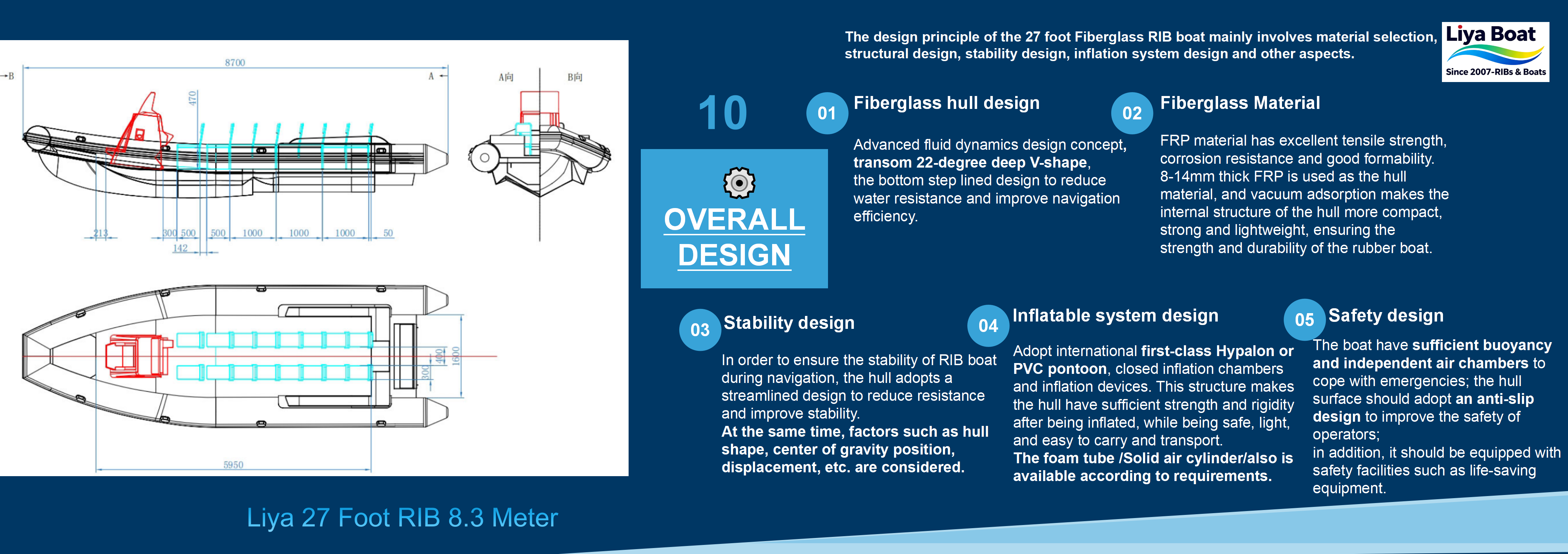

Unmatched Performance & Hull Technology

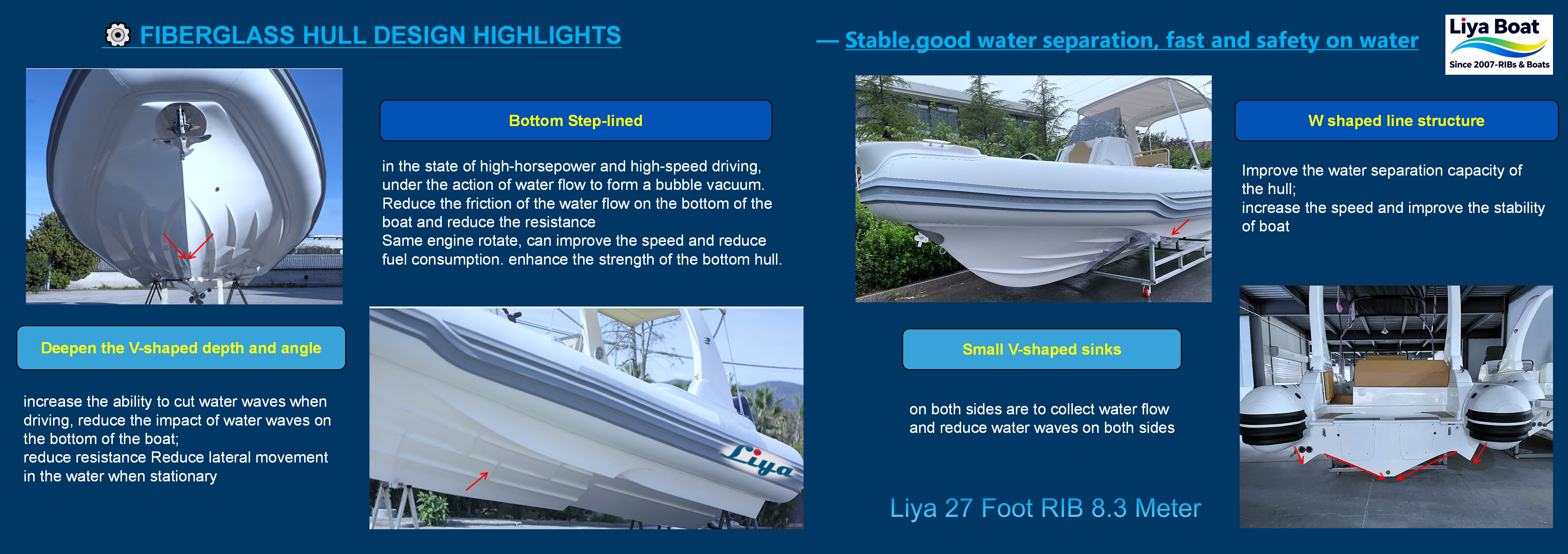

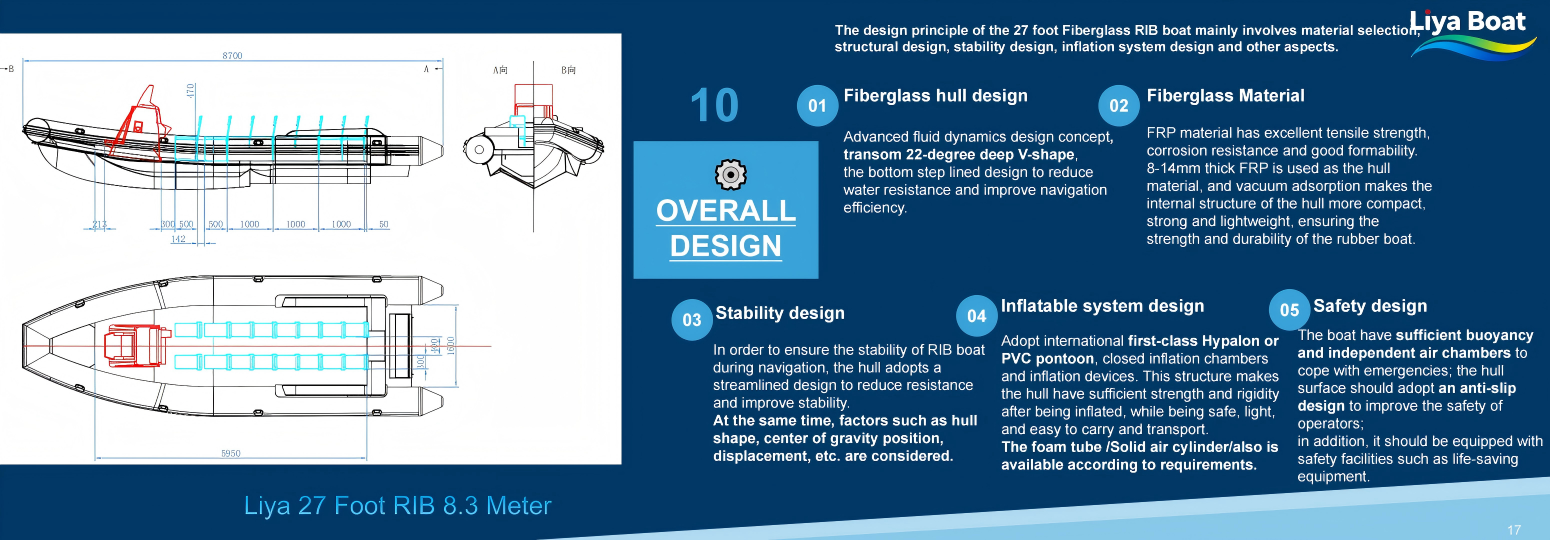

Advanced Stepped Deep-V Hull:

Featuring a 22-degree deep-V design with an integrated step.

This innovative technology creates an air lubrication effect at high speed, significantly reducing hydrodynamic drag and friction for maximum velocity and fuel efficiency without compromising stability.

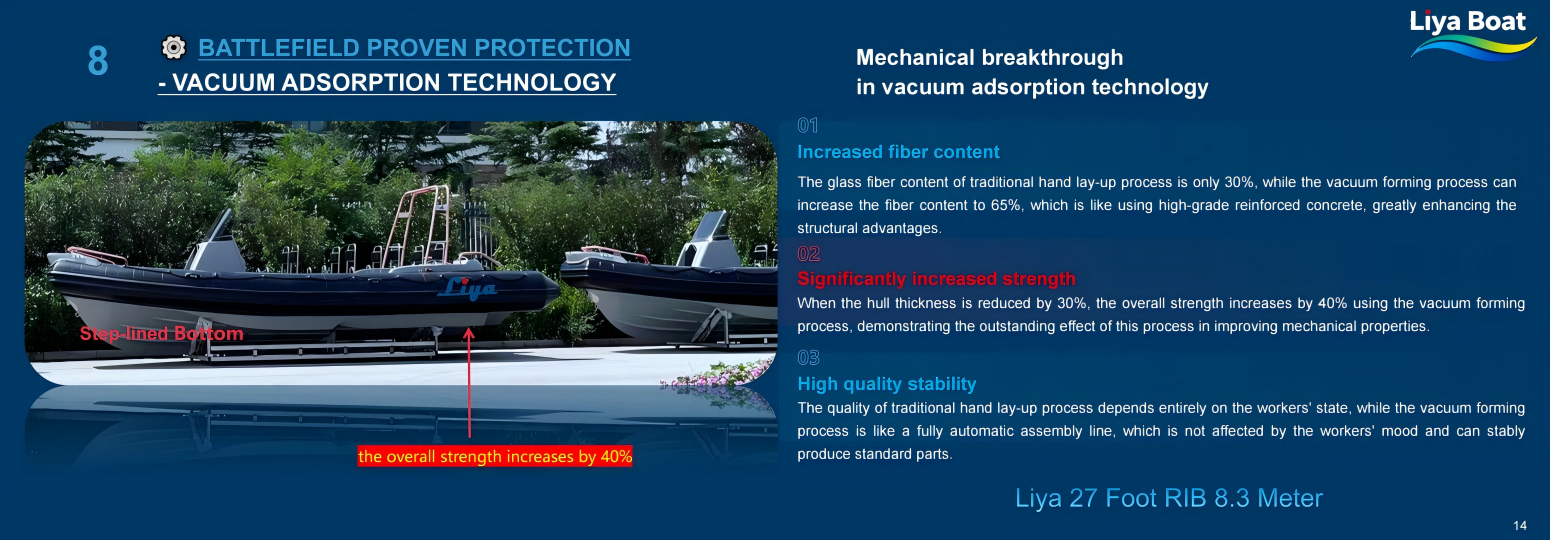

Superior Construction:

The fiberglass hull utilizes vacuum absorption technology, resulting in a stronger, lighter, and more resilient structure compared to traditional methods, backed by a 5-year warranty.

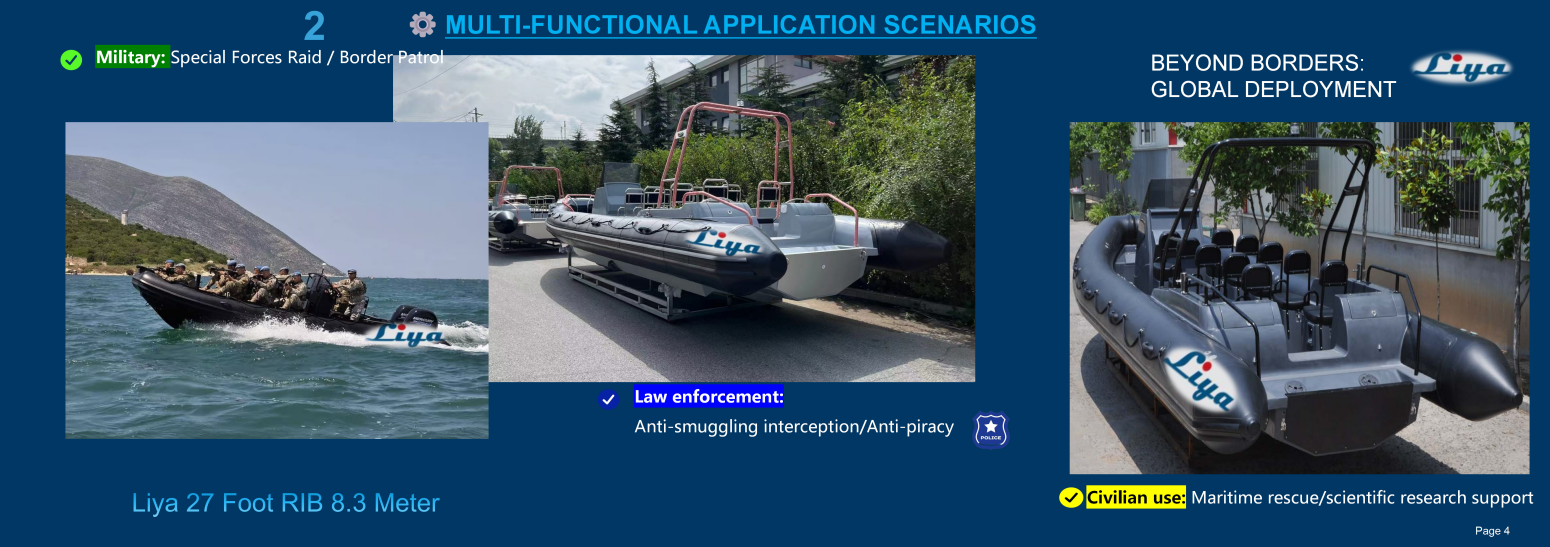

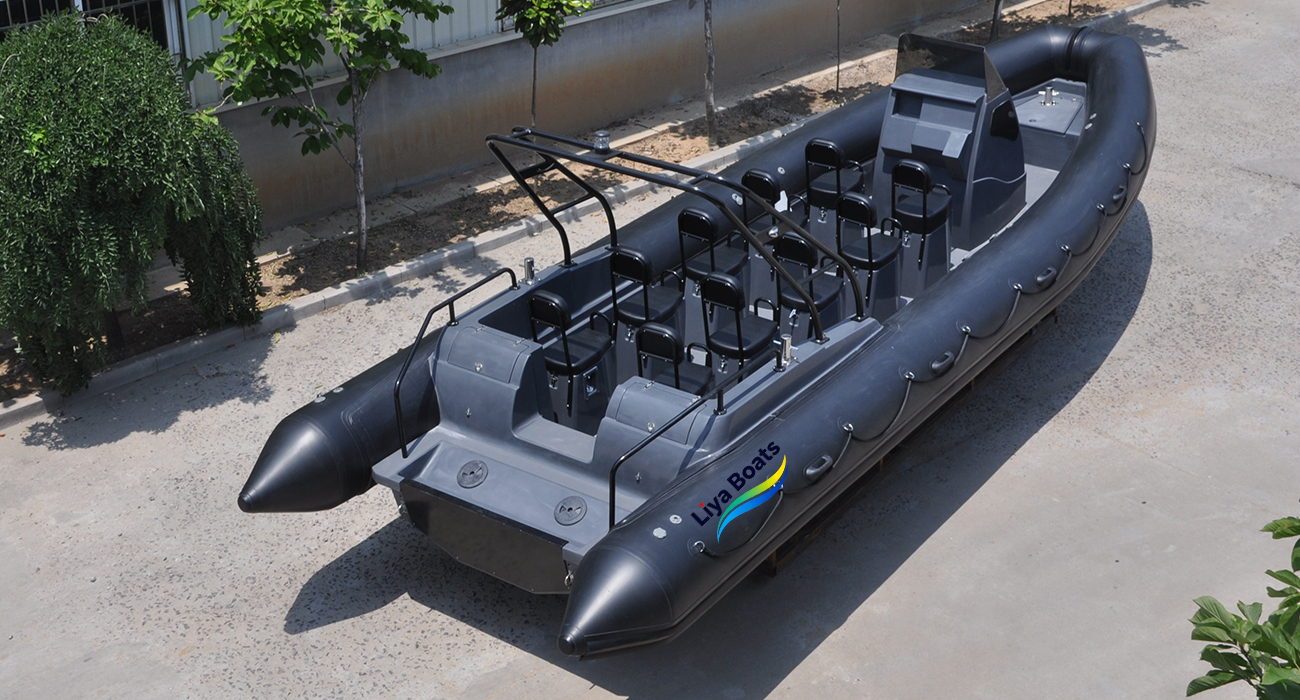

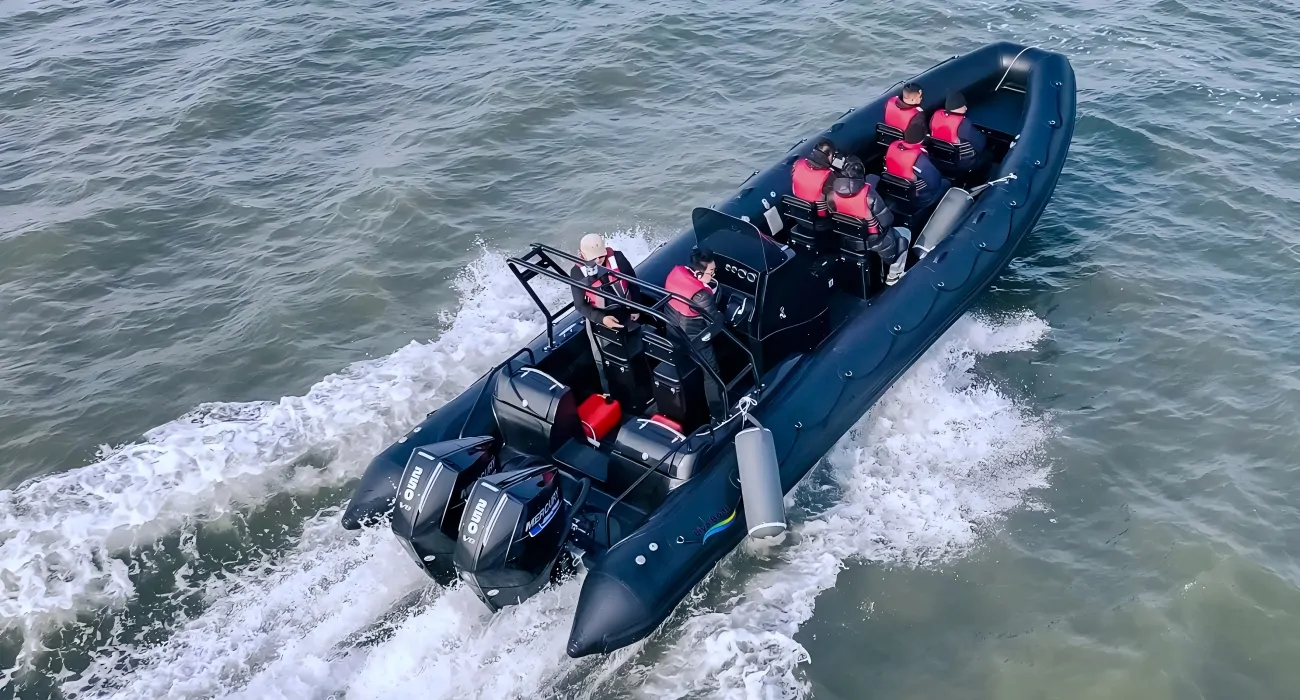

Liya 27FT Heavy Duty Patrol RIB 12 person

Mission-Ready Configuration & Customization

Flexible Crew Layout:

Accommodates 6 to 12 personnel with a fully customizable mix of Shock-absorbing seats, Single or Double Jockey seats, and ergonomic bench seats.

This allows optimal weight distribution and crew comfort for short or long-duration tasks.

Adaptable Control Stations:

Multiple console options can be positioned to suit operational workflows, all designed for excellent visibility and instrument housing.

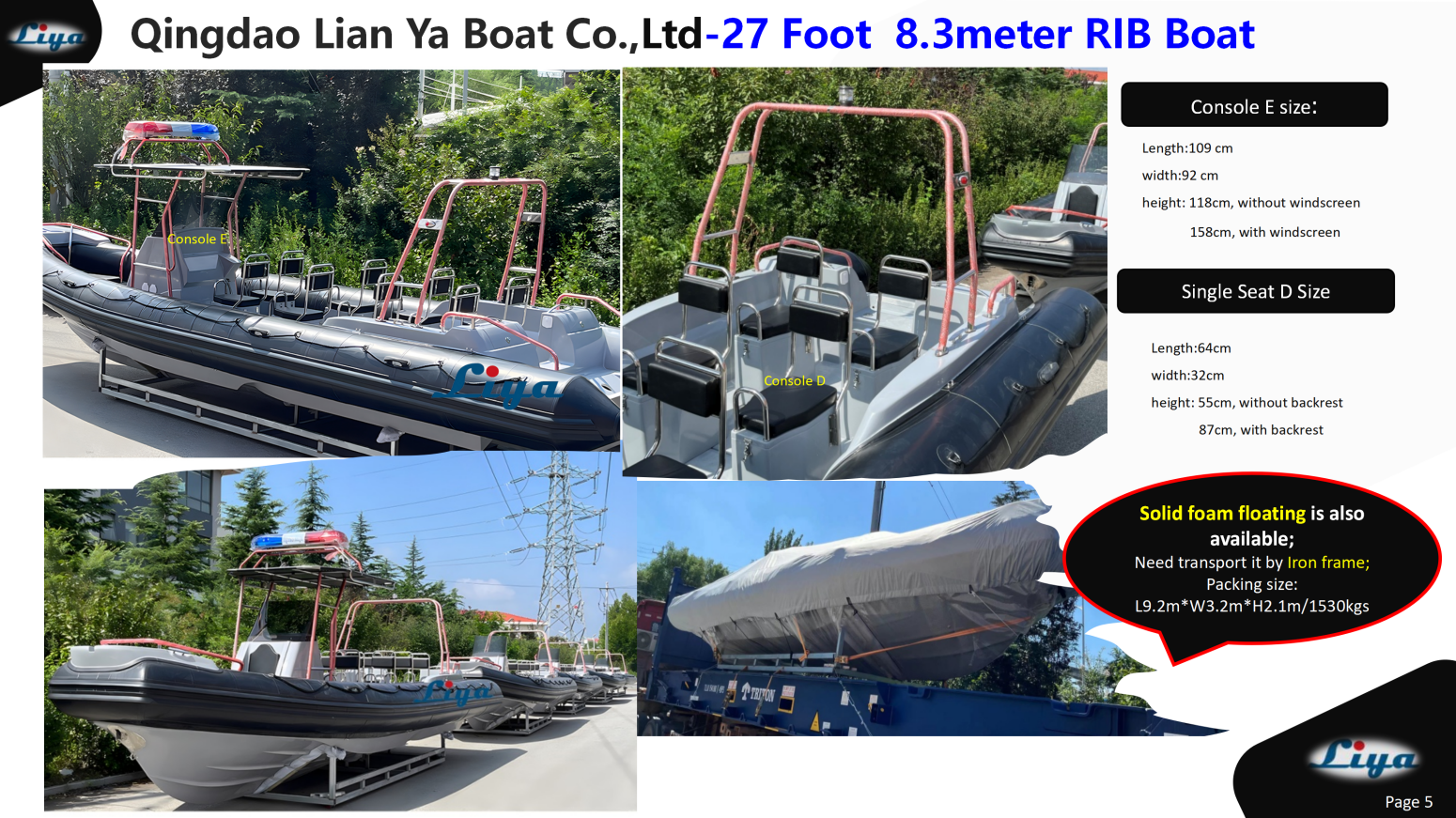

Liya military rib-Fiberglass hull with console and seat

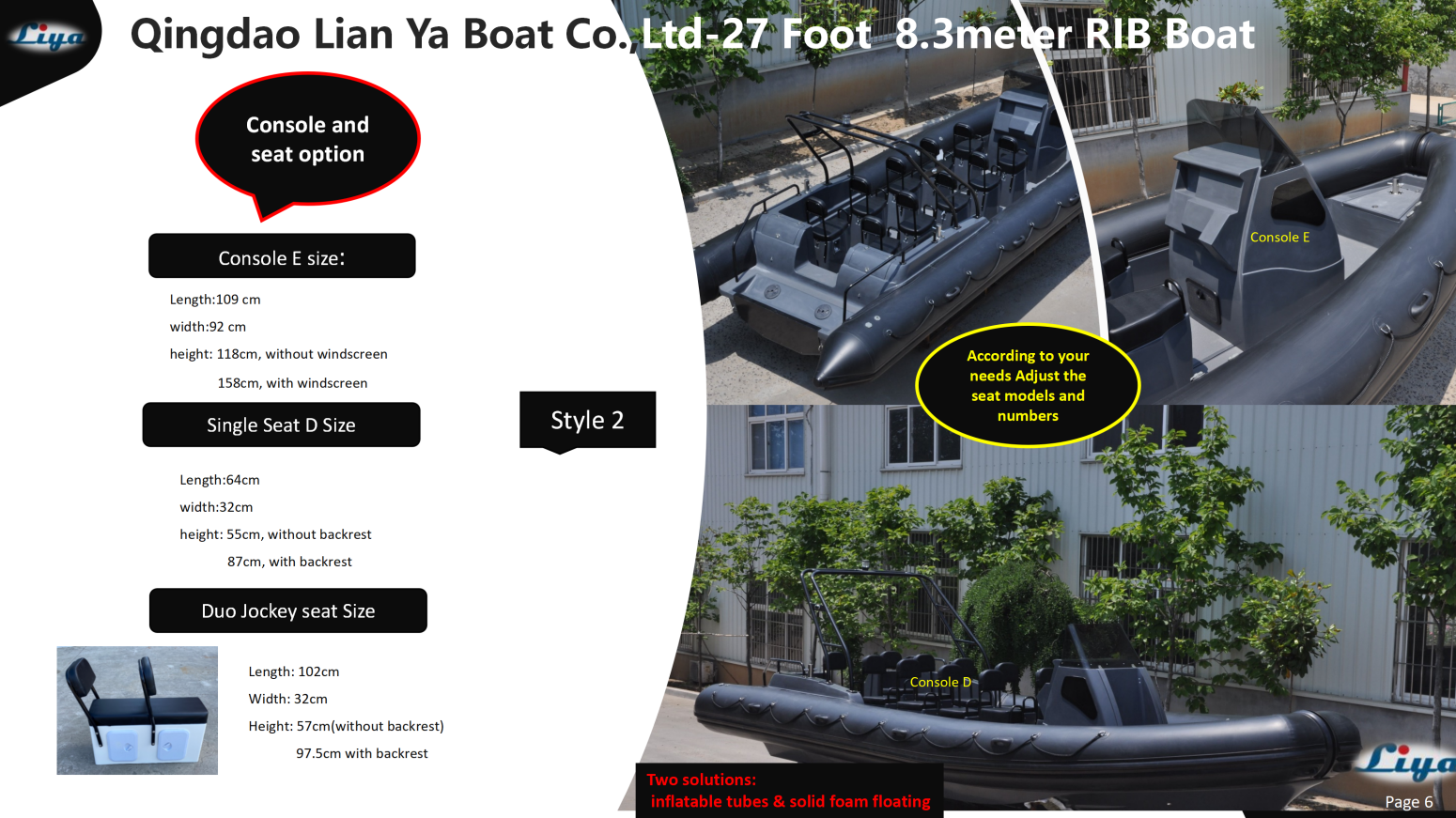

Liya 27 foot patrol rib console arrangment

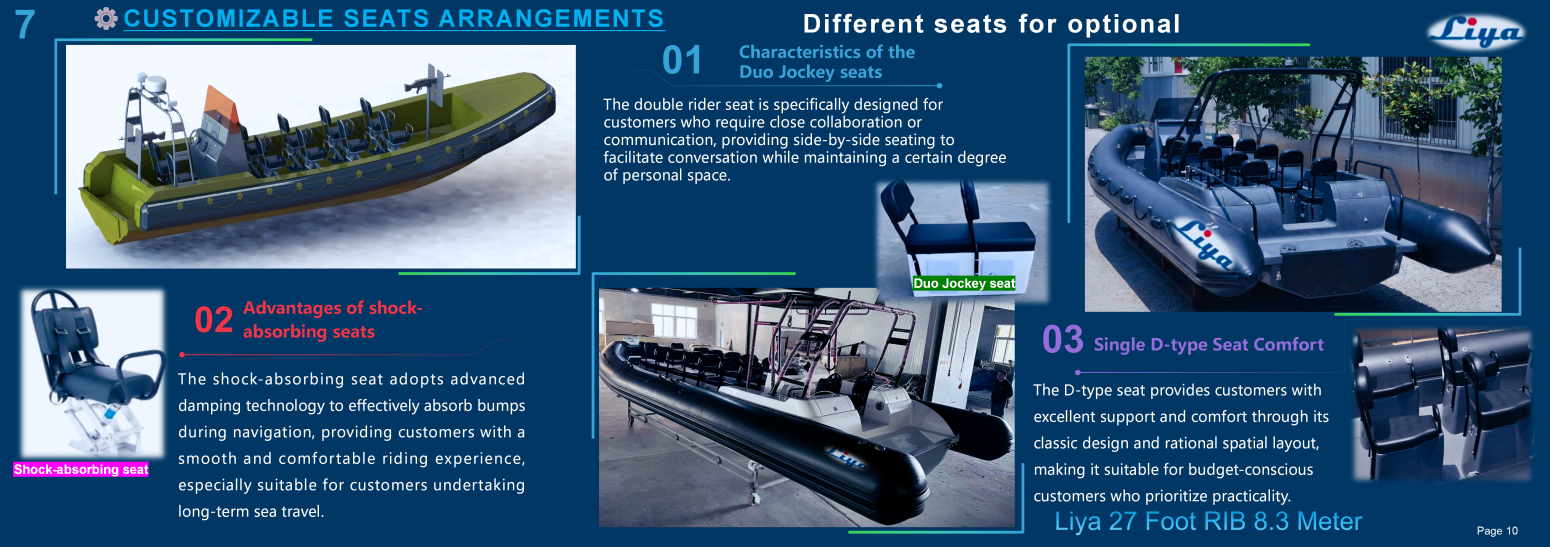

Liya Military 27 Foot RIB_10

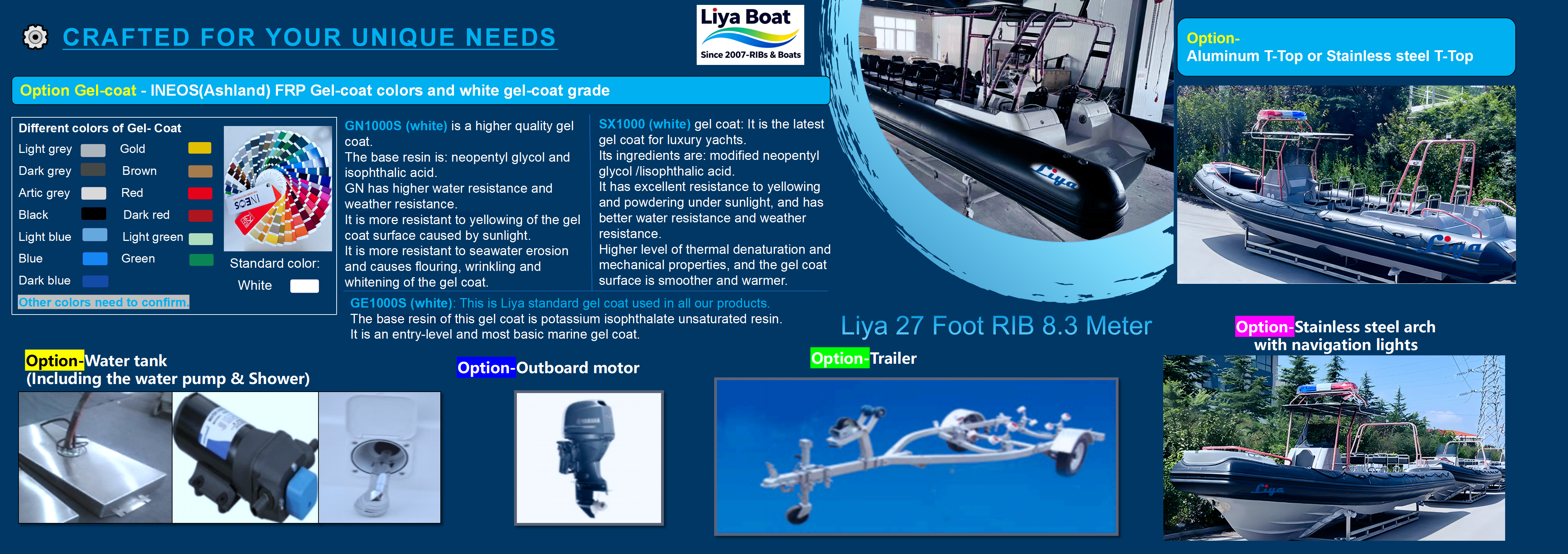

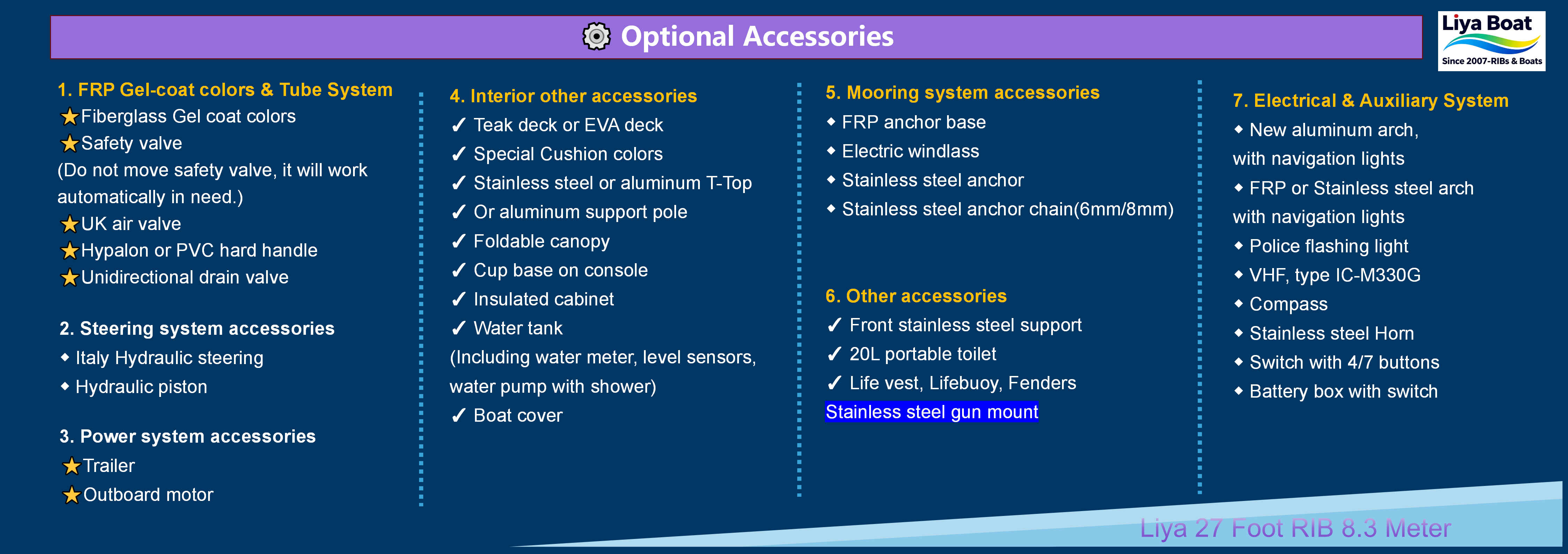

Tactical & Functional Accessories:

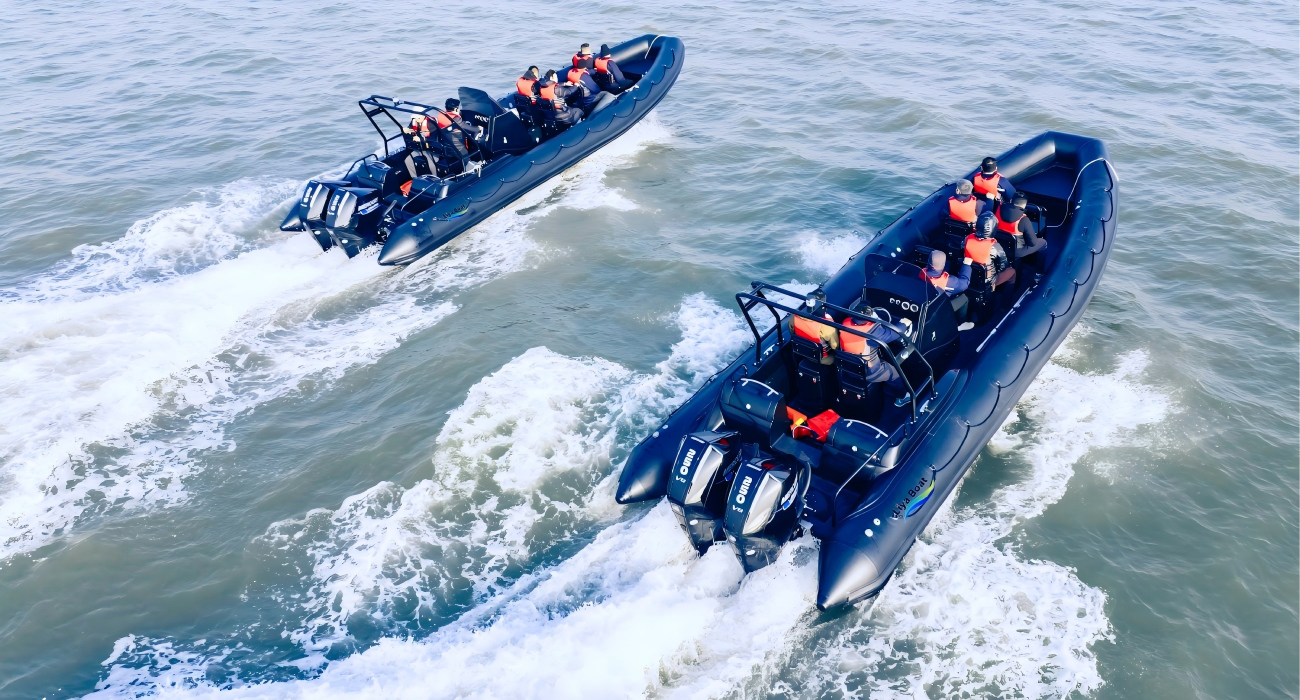

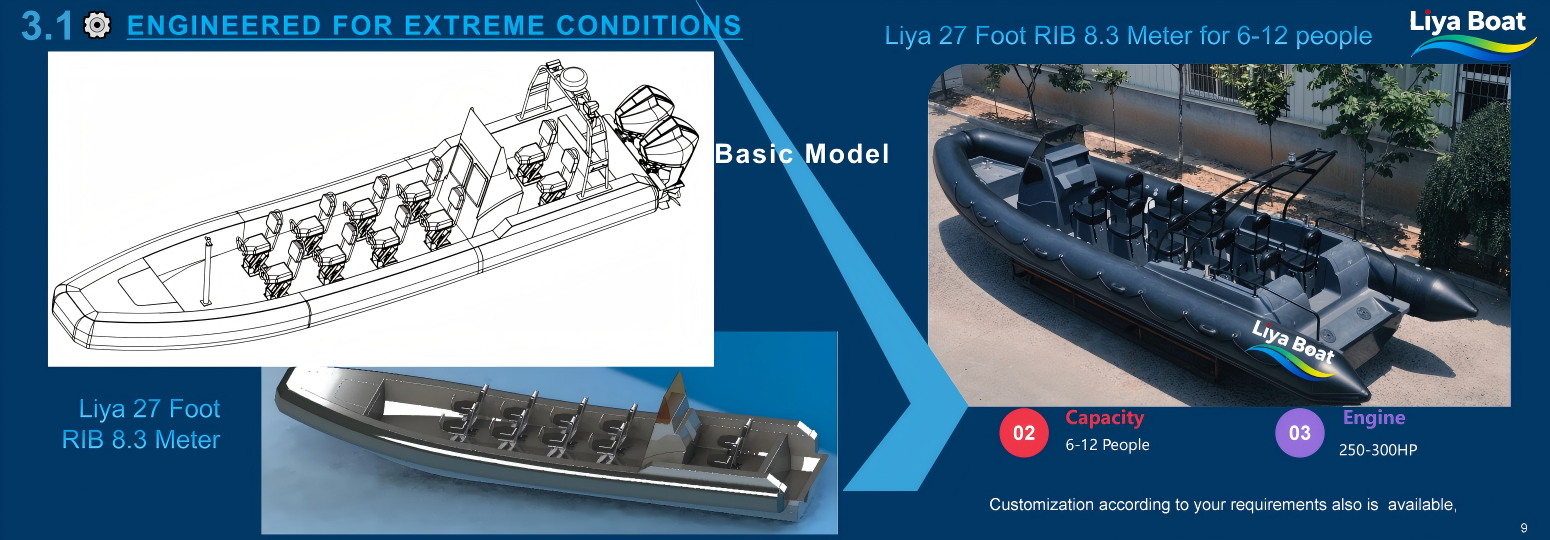

Bow Options: Heavy-duty anchoring bollard, removable gun rack, and stainless-steel boarding ladder.

Stern & Aft Options: Robust T-Top for mounting warning beacons, communication gear, and lighting. Choice of stainless steel or aluminum wings with navigation lights. Optional dive platform/transom ladder.

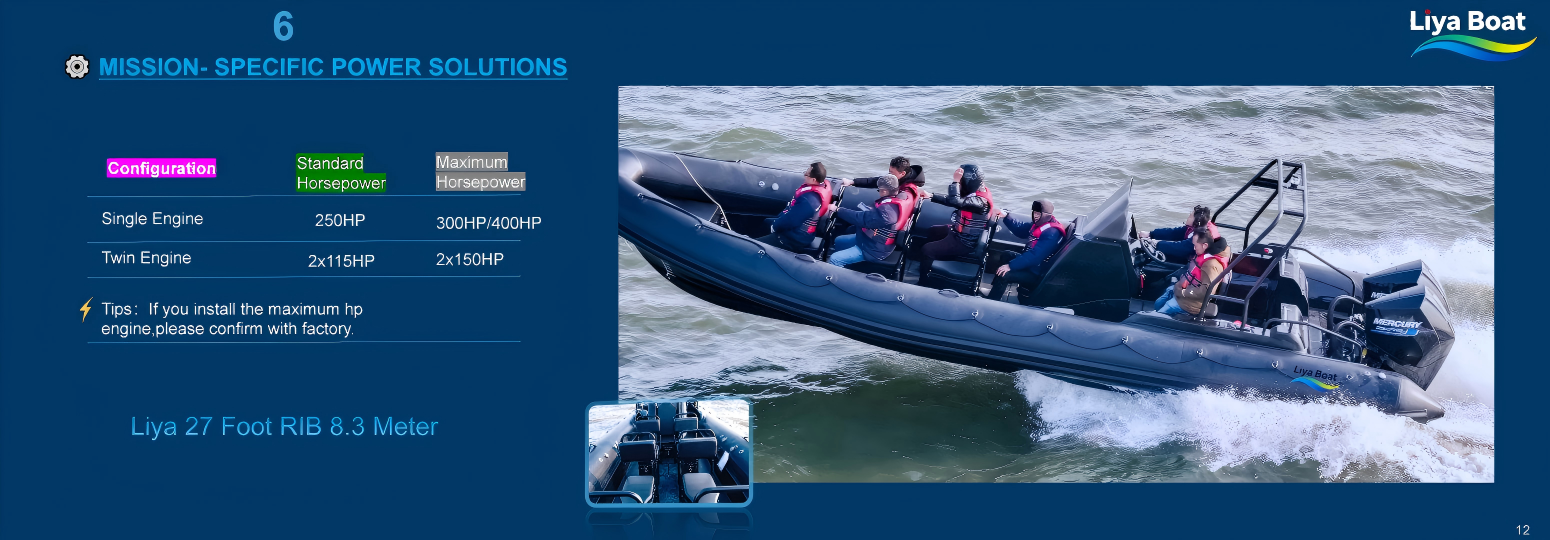

Fuel & Power: Standard 410L fuel capacity. Engine options support powerful single (250-400 HP) or efficient twin outboard configurations (recommended 2x115-150 HP, max 2x200 HP), ensuring the perfect balance of speed and torque.

Premium Construction & Materials

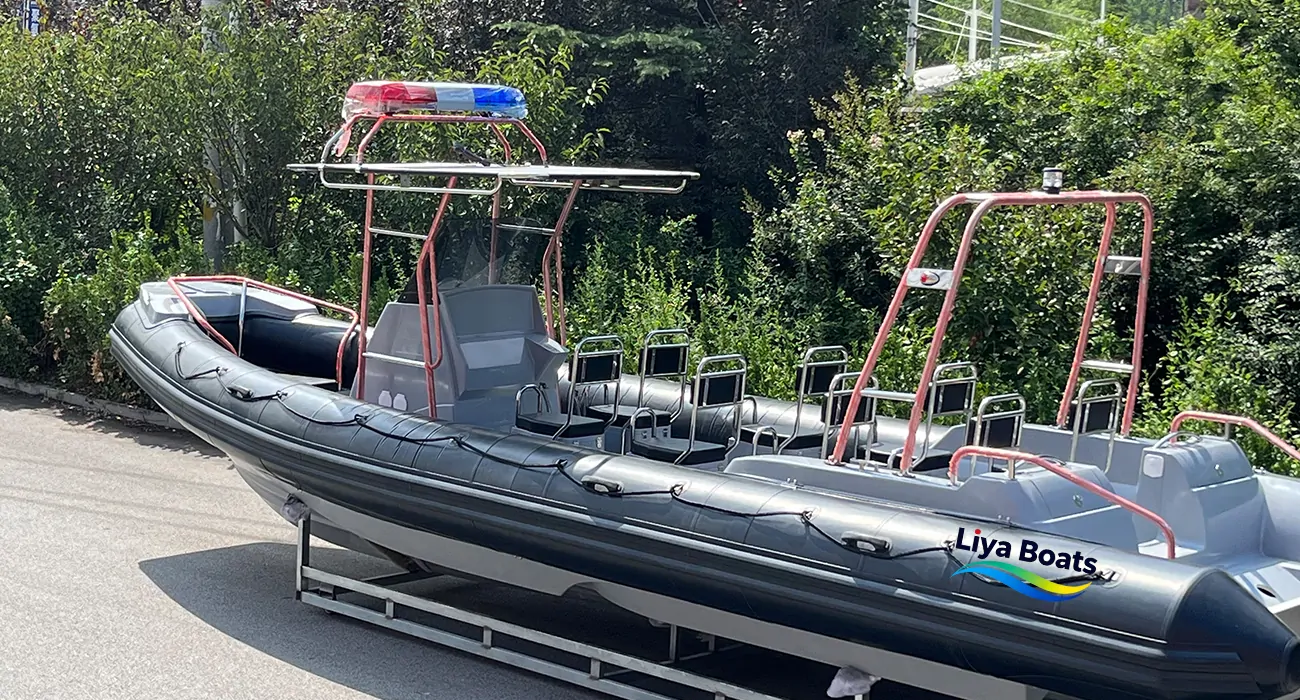

Tube System: Equipped with top-tier ORCA Hypalon fabric tubes, renowned for longevity and resistance to UV, salt, and abrasion. Options for solid or removable foam collar tubes are available.

Deck Engineering: The deck utilizes a lightweight, fully waterproof PVC core, replacing traditional wood, to eliminate rot, reduce overall weight, and enhance performance.

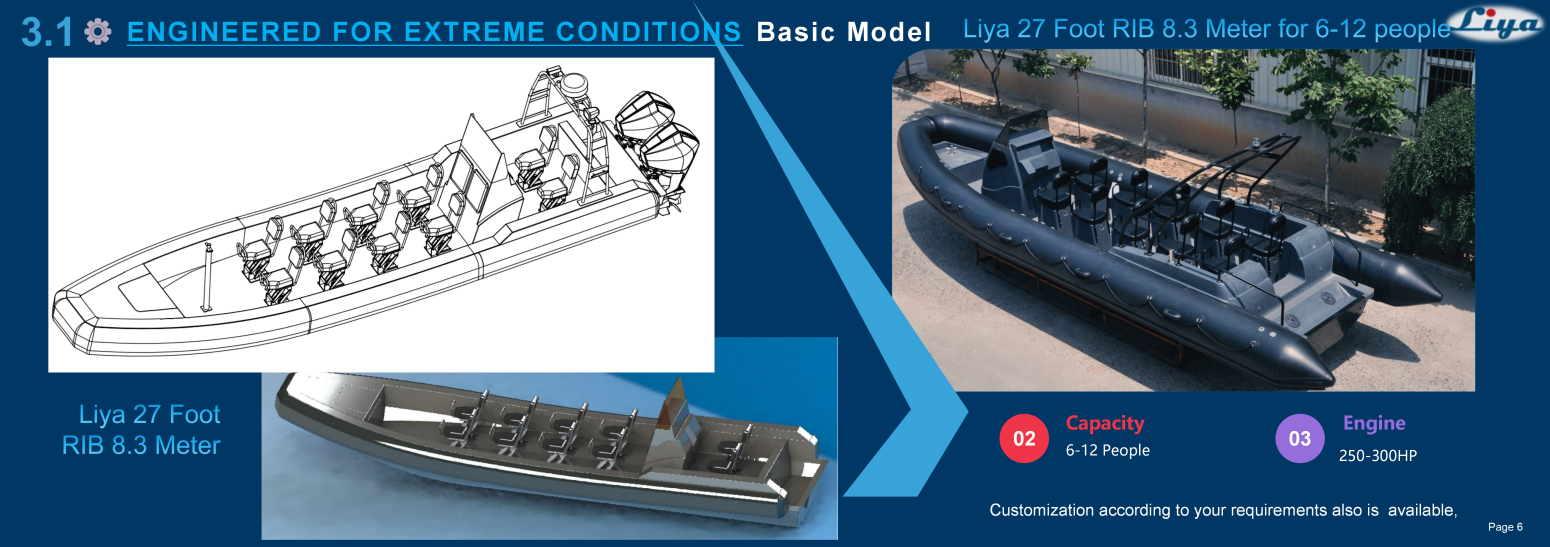

Liya Military 27 Foot RIB_06

Designed for Demanding Professional Operations

This 8.3m RIB is not just a boat; it's a scalable operational platform.

From its customizable layout to its high-speed hull and professional-grade components, every detail is engineered to provide reliable, effective performance for agencies that cannot afford compromise.

▍Main configuration

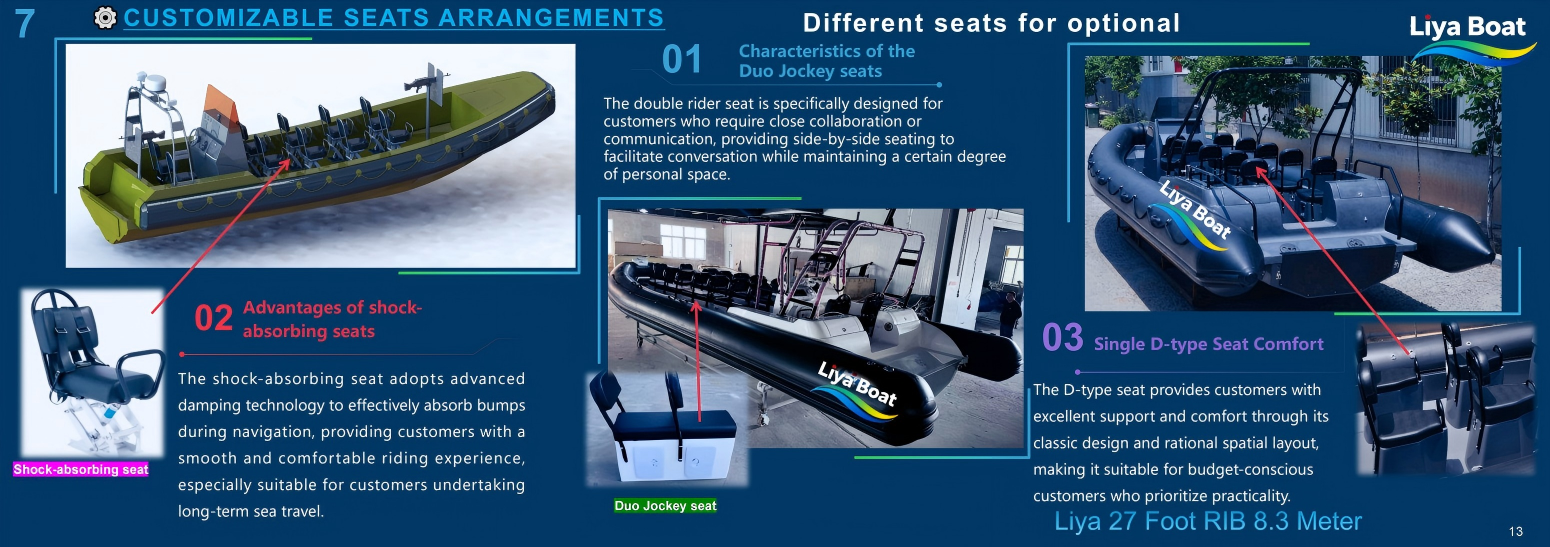

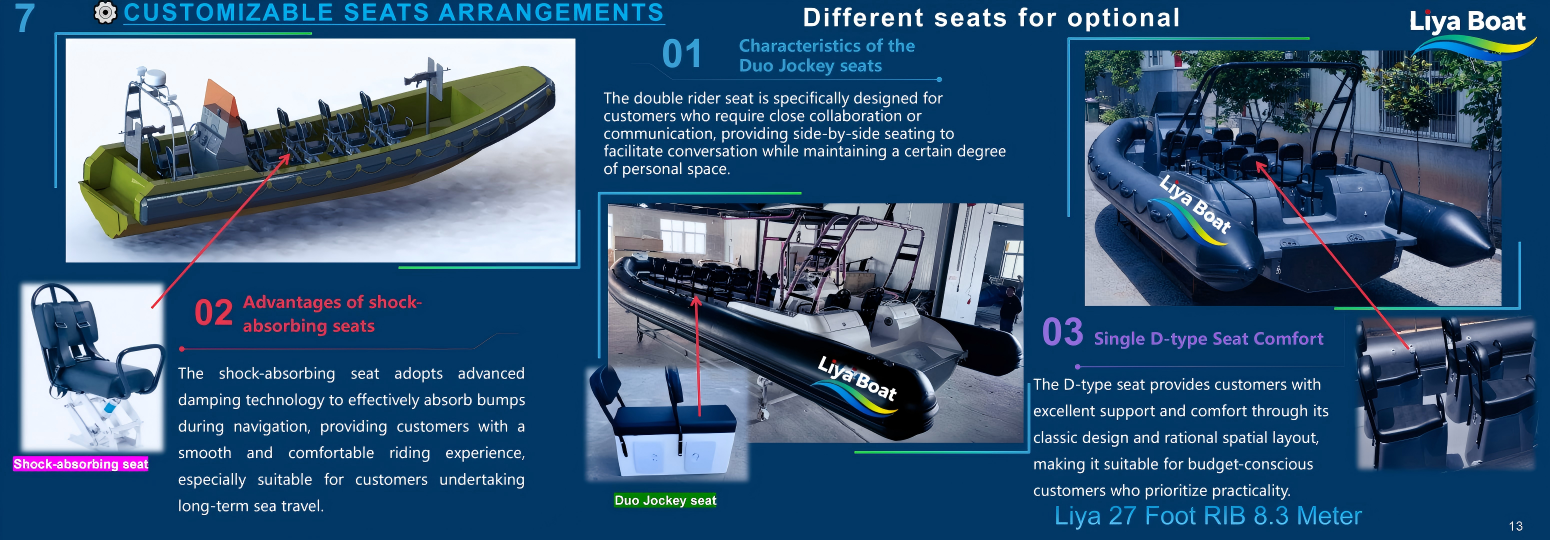

Multiple seating options are available, including shock-absorbing seats, dual-rider seats, and seats with handles.
These seat designs fully consider the needs and usage scenarios of different users.
Multiple control panels can be flexibly adjusted to suit different needs; shock-absorbing seats effectively alleviate fatigue from long drives,
providing a more comfortable riding experience; dual-rider seats are suitable for scenarios requiring multiple people to operate the vehicle, enhancing collaboration and safety;
seats with handles allow users to quickly grasp the handles when needed, further improving passenger safety.
Stainless steel gun mounts can be installed at both the bow and stern, accommodating up to 10 seats.
The stern can be equipped with a stainless steel or aluminum alloy tail fin with navigation lights.

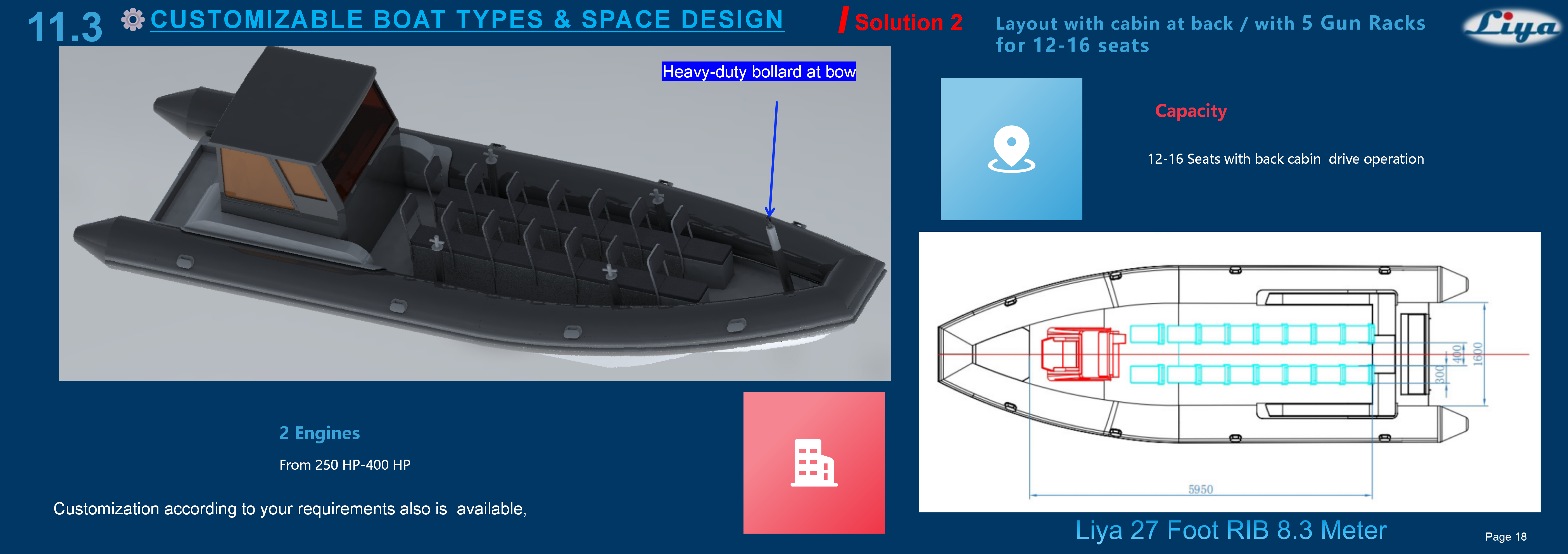

A heavy-duty anchor bolt can be customized at the bow, and a cabin is located at the stern.

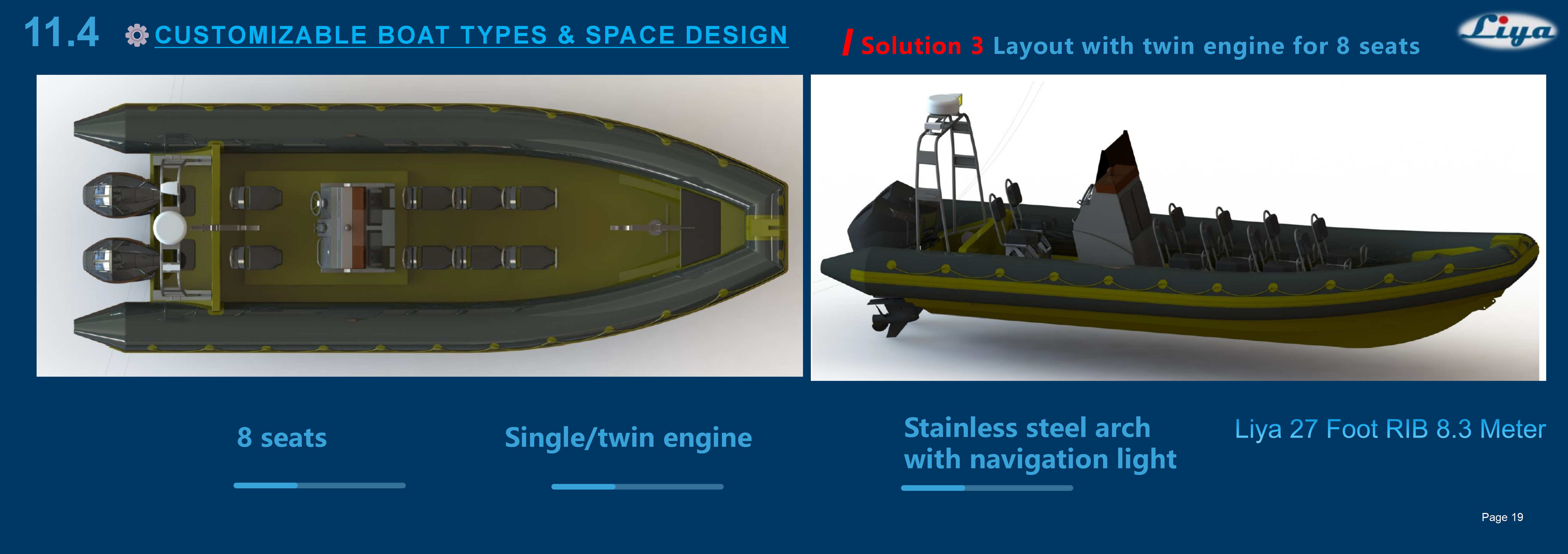

The stern can be equipped with either a twin-engine or single-engine configuration, and can be fitted with a stainless steel or aluminum alloy tail fin with navigation lights.

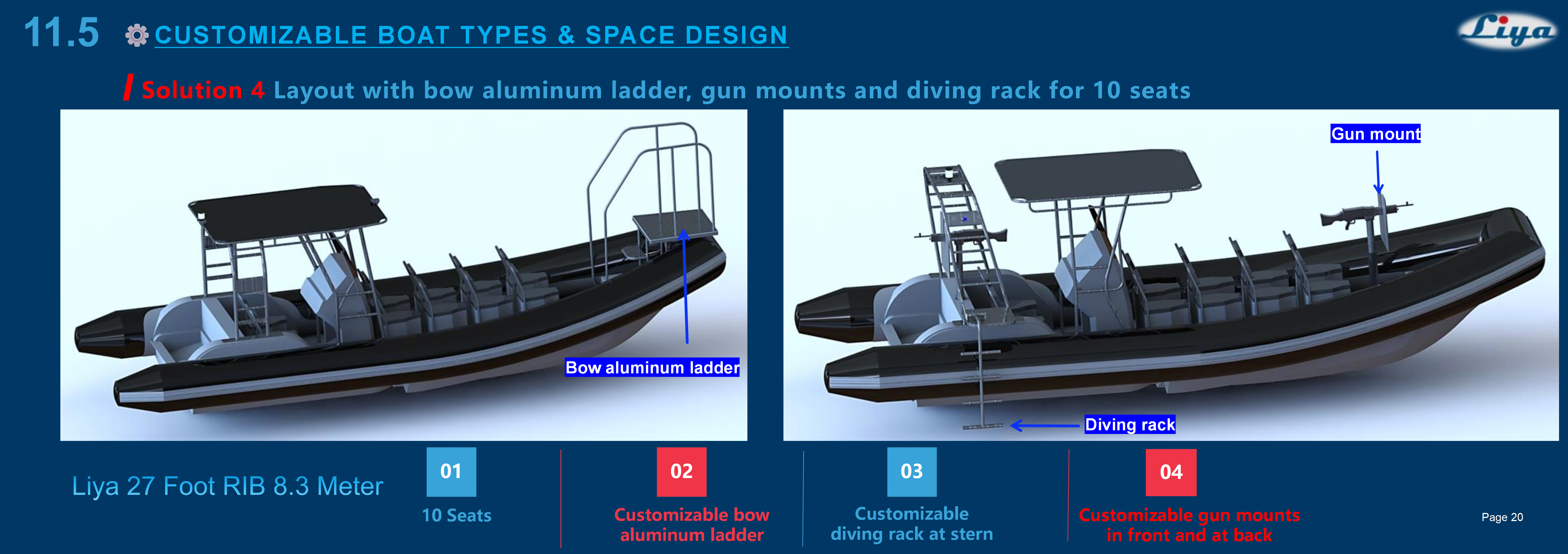

A stainless steel ladder and gun mount can be installed at the bow, and a diving ladder can be customized at the stern.

▍Customization by some clients

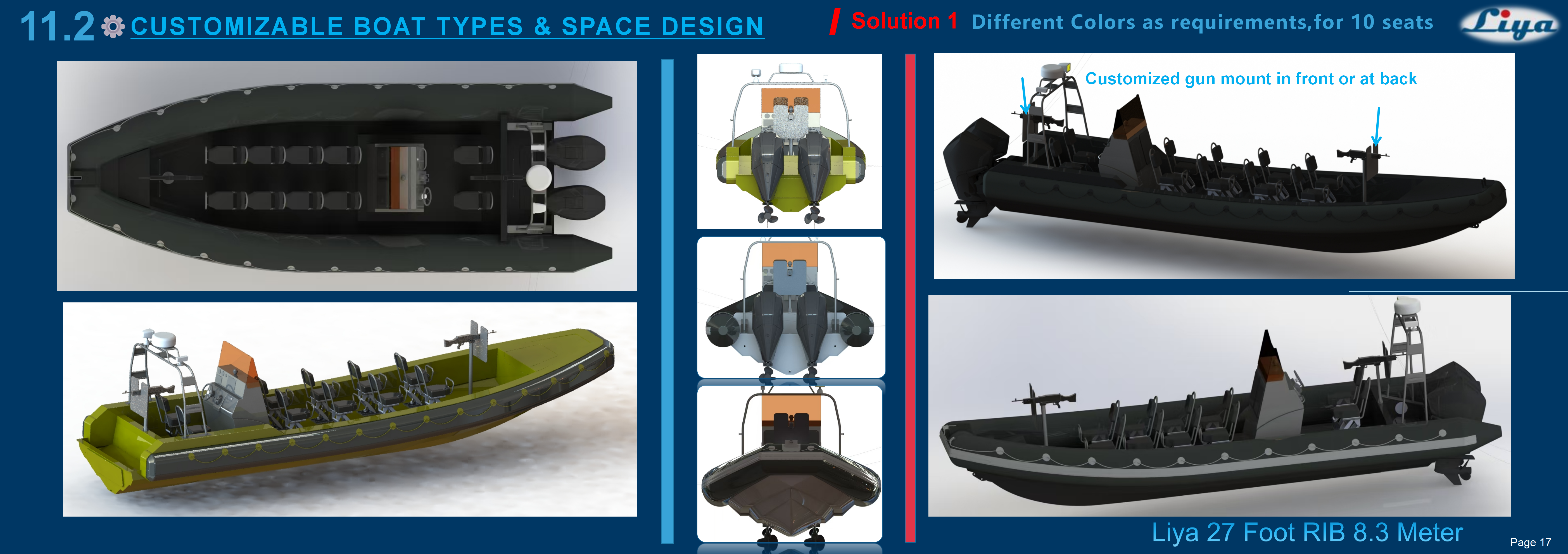

Multi-Agency Graphics Showcasing Versatility of Liya 27FT as Police, Military, and Rescue RIB Boat.

▍World-class Materials & Craftsmanship

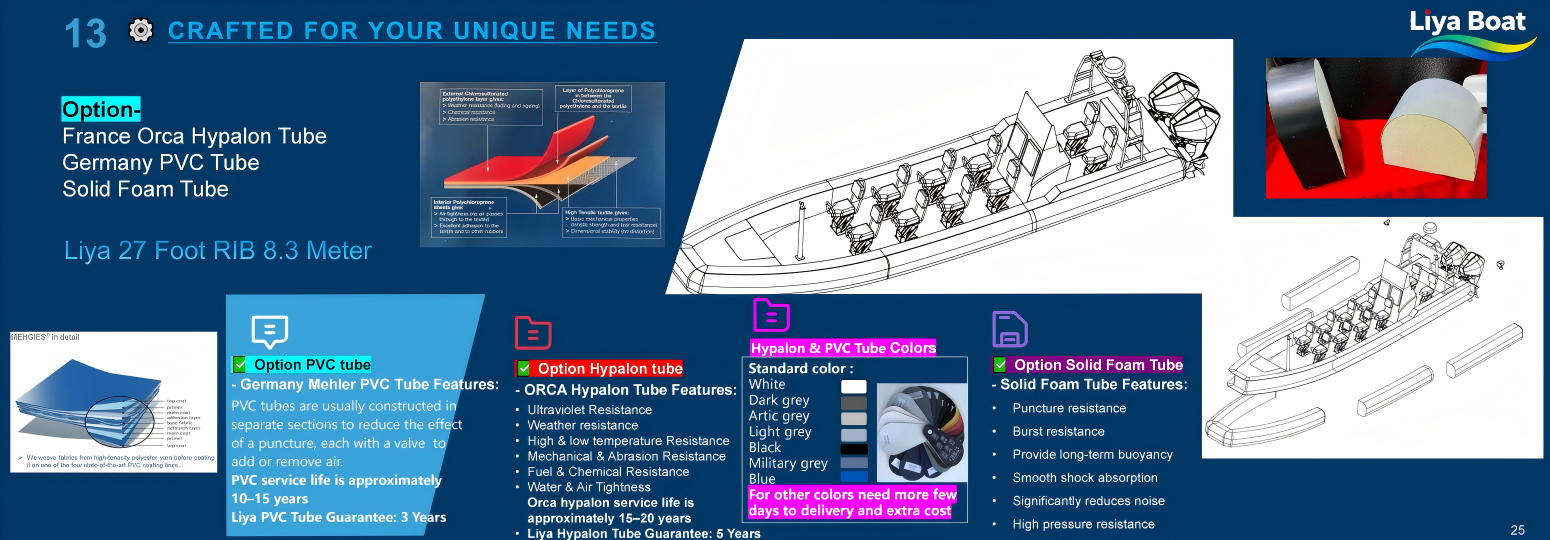

Tube material:
Uses world-class air tank materials, France ORCA Hypalon and Germany Mehler PVC inflatable tube, with the option to upgrade to solid foam tube.

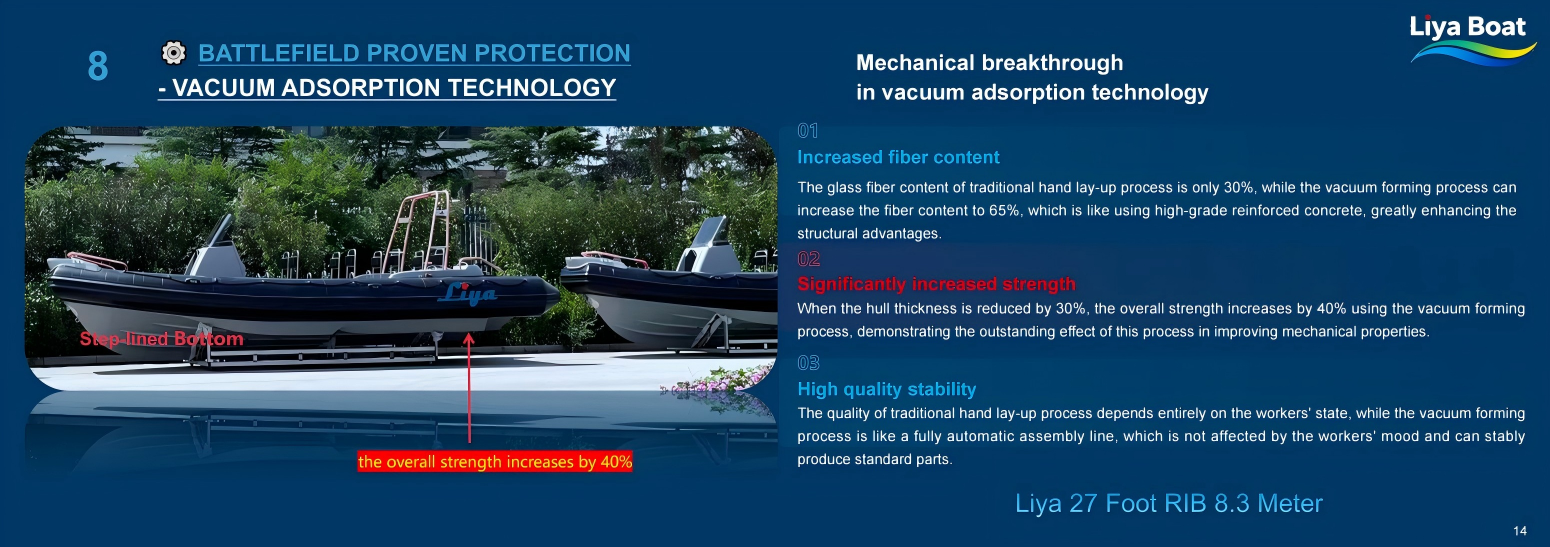

Technology:
By vacuum adsorption technology makes the fiberglass bottom stronger and lighter, and provides a 5-year warranty.

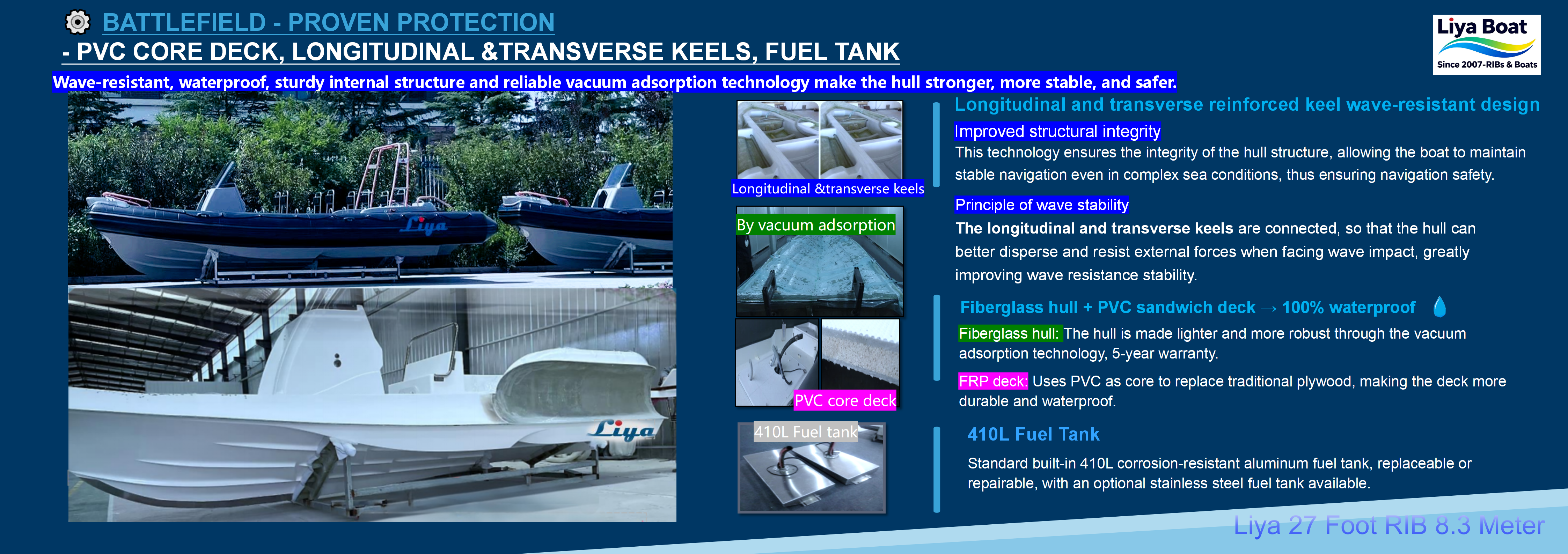

Fiberglass deck:
PVC core is used inside the deck instead of traditional wooden planks, making the boat lighter and more waterproof.

| Operation & Maintenance- Liya 27ft Heavy Duty RIB Boat

Operational Profile & Core Principles

Core Operational Principles

Pre-Mission Planning: No mission commences without analyzing weather, sea state, and crew readiness against the vessel's certified limits.
Crew Proficiency: All operators must be trained in high-speed RIB handling, mission-specific procedures (patrol, intercept, rescue), and emergency responses.
Situational Dominance: The vessel's speed and agility are tools to establish control, not substitutes for constant vigilance and sound judgment.
Log Accountability: Meticulous completion of Patrol Reports, Incident Reports, and an IRB (Inflatable Rescue Boat) Operating Log is mandatory for accountability and operational analysis.

Safety Operation & Handling Procedures

Pre-Departure & Crew Briefing (MUST BE COMPLETED)

Crew & Load: Verify crew (6-12) and equipment are within safe limits. Distribute weight to optimize the hull's performance.

Mandatory Safety Gear (Per Crew Member):

Life Jacket (PFD): Properly fitted, mission-appropriate type.
Kill Cord (Engine Safety Cut-Off Lanyard): TESTED. Must be attached to the helmsman's body before engine start.
Communications & Navigation: Ensure VHF radio, GPS/chart plotter, and mission systems are functional.

Boat Systems Check (Use a checklist):

Hull & Tubes: Visually inspect for integrity; confirm tubes are at specified pressure.
Engine & Fuel: Check fuel levels/oil; inspect for leaks; ensure cooling water intake is unobstructed.
Drain & Bilge: Confirm automatic bilge pump operation and manual backup is ready.
Steering & Controls: Check for full, unrestricted movement.
Mission Equipment: Verify all mission-specific gear (rescue, tactical, medical) is secured.

Starting, Maneuvering & High-Speed Operation

Engine Start: Always start in NEUTRAL. Immediately verify a strong water tell-tale (cooling flow).
Stepped Hull Handling: Accelerate smoothly to allow the hull to "lift" onto the step. Maneuvering at high speed requires smaller, more precise steering inputs.
Wake & Sea State: Cross large wakes or waves at a 45-degree angle where possible to reduce slamming and maintain control.
Passenger Safety: All personnel must be seated and holding on during high-speed transit.

Critical Emergency Drills

Man Overboard (MOB):

Shout "MAN OVERBOARD!" and designate a spotter.
Immediately deploy marker buoy/dan buoy.
Execute a controlled turn (preferably a Williamson Turn) to approach from downwind/downsea.
Kill the engine well before reaching the person.
Rapid Ingress/Water Rescue: Use the vessel's stability and low freeboard to advantage. Approach cautiously, kill engine, and use onboard assists.

Engine Failure at Speed:

Immediately engage NEUTRAL.
Deploy a sea anchor (if carried) to maintain bow-into-waves and prevent broaching.
Troubleshoot (fuel, kill cord, fouled propeller) only if conditions are safe.
Taking on Water: Identify the source. If severe, head for shore immediately. Use manual pumps. The deep-V hull's shape provides inherent buoyancy reserve.

Maintenance Schedule

Adherence to a rigorous, documented maintenance schedule is non-negotiable for mission reliability. This schedule supplements the engine manufacturer's specific maintenance manual

Frequency Key Tasks & Inspections

Before/After Every Use

Hull & Structure: Inspect tubes for pressure, abrasions, or UV damage. Rinse entire boat with fresh water. Check hull for impact damage.
Engine & Systems: Check engine oil level, fuel system for leaks, and cooling water flow. Verify all navigation lights and communications equipment are functional.
Safety Gear: Inspect fire extinguisher gauge. Confirm all mandatory safety gear is present and undamaged.

Weekly / 50 Hours

Engine: Check and clean engine air filter. Inspect propeller for damage and secure mounting. Lubricate steering system and control linkages.
Electrical: Check battery terminals for corrosion and secure connections. Test automatic bilge pump and manual backup.

Monthly / 150 Hours

Engine: Change engine oil and oil filter. Inspect fuel filters/water separators; replace as needed. Check drive shaft bellows and trim/tilt fluid.
Detailed Inspection: Thoroughly inspect all tube seams, D-rings, and lifting points. Check all through-hull fittings and seals. Test all emergency equipment (flares, EPIRB).

Annually / 300 Hours

Major Service: Perform all engine manufacturer's annual service requirements.This typically includes changing gear oil, spark plugs, and inspecting the water pump impeller.
Hull & Tubes: Conduct a detailed hull inspection. Professionally clean and apply UV protectant to tubes. Check and torque all major structural fasteners.
System Overhaul: Pressure test the fuel system. Service steering system. Inspect and test all electrical wiring for chafing.

Post-Operation in Severe Conditions or Saltwater

Flush Engine: Connect freshwater flush muffs and run the engine as per manual to clear saltwater from the cooling system.
Complete Washdown: Wash with fresh water and mild soap. Dry thoroughly, especially all controls, switches, and crevices.
Inspection: Perform an even more detailed inspection for stress or wear after heavy use.

Long-Term Storage (30+ Days)

Engine: Perform full fogging and stabilization per manufacturer's instructions.
Fuel System: Top off fuel tank with stabilized fuel or drain completely.
Boat: Clean, wax hull, apply tube protectant. Deflate tubes slightly (to ~50%) to relieve seam stress. Store in a cool, dry, covered location.

Professional 8.3m Heavy-Duty Patrol RIB Boat|Fast-Response,12-Person,CE Certified

Close Model Selection

This image includes all accessories. Click on "Non-Required Fields" to deselect the options you don't need,Thanks

Back

Continue

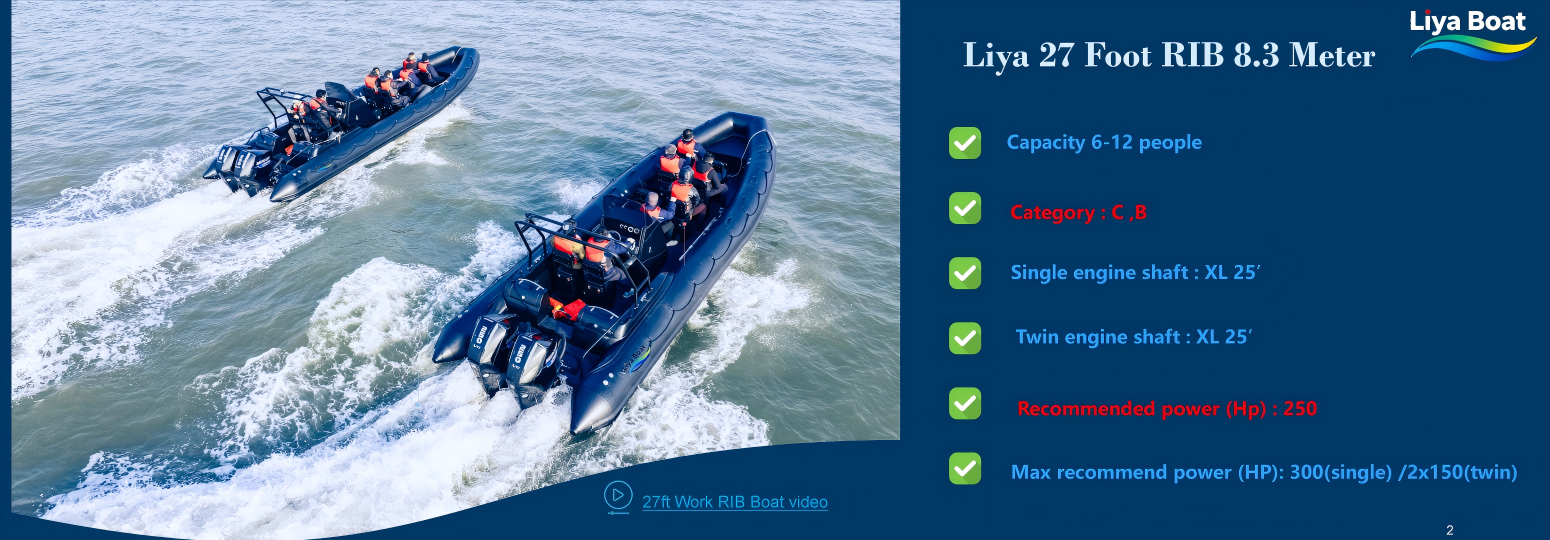

Model	patrol HYP830
Length overall	8.30Meter / 27 Foot
Inside length	8.10Meter /26 Foot
Width overall	3.00 Meter /9.9 Foot
Inside width	1.75Meter/5.8 Foot
Tube diameter	55-60cm /1.8 Foot
The above data may have slight errors due to variations in the degree of inflation.
No. of Chambers	8 Pcs
Maximum inflation pressure	0.25 Bar
V shape degree	22°

Capacity	6-12 people
Max loading	1700kg
Net weight	1600kg
The net weight means boat with console,seat, canopy, A bar /Arch etc ,empty feul tank,no engine. The net wight also may change slightly depending on the different console, seat or other configuration etc

Single engine shaft	XL 25’’
Twin engine shaft	XL 25’’
Fuel Tank	410 Liters
Water Tank ( Option)	100 Liters
Recommended power	250HP / about 232kg-252kg
Max recommended power	300HP(single)/ 2x150(twin) / about 239kg-259kg
Max power in additional cost	400HP / about 316kg
If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.
