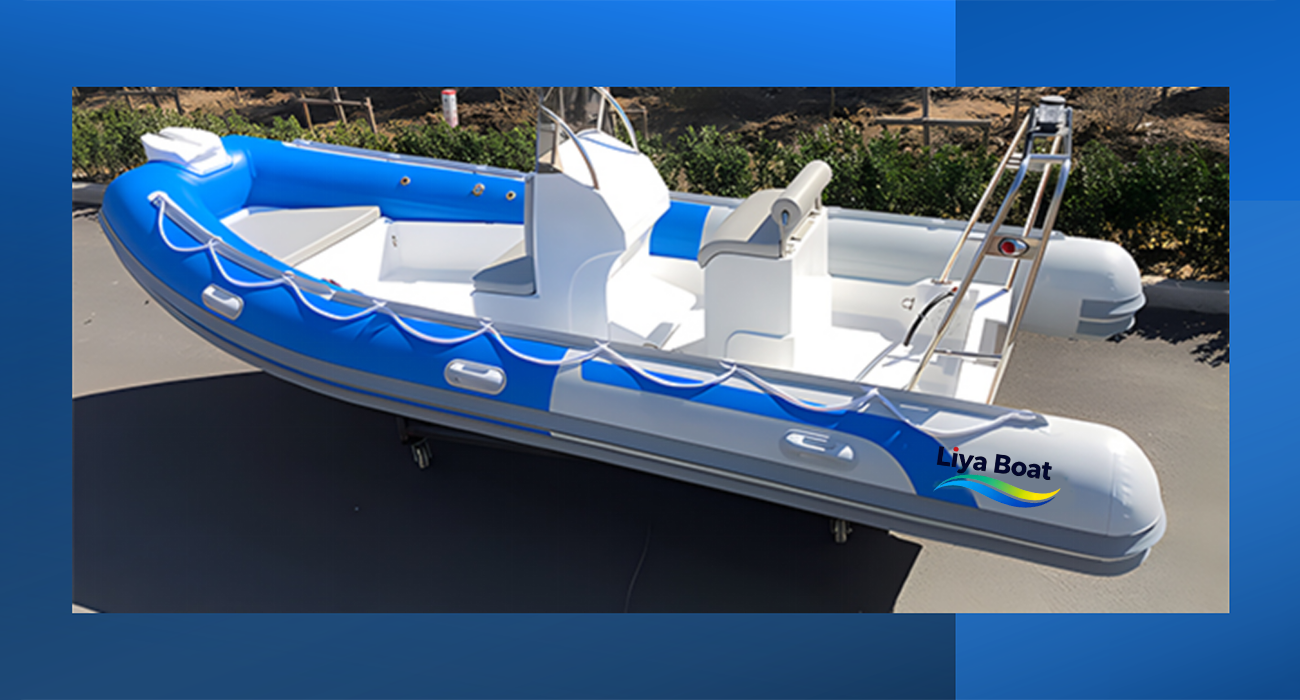

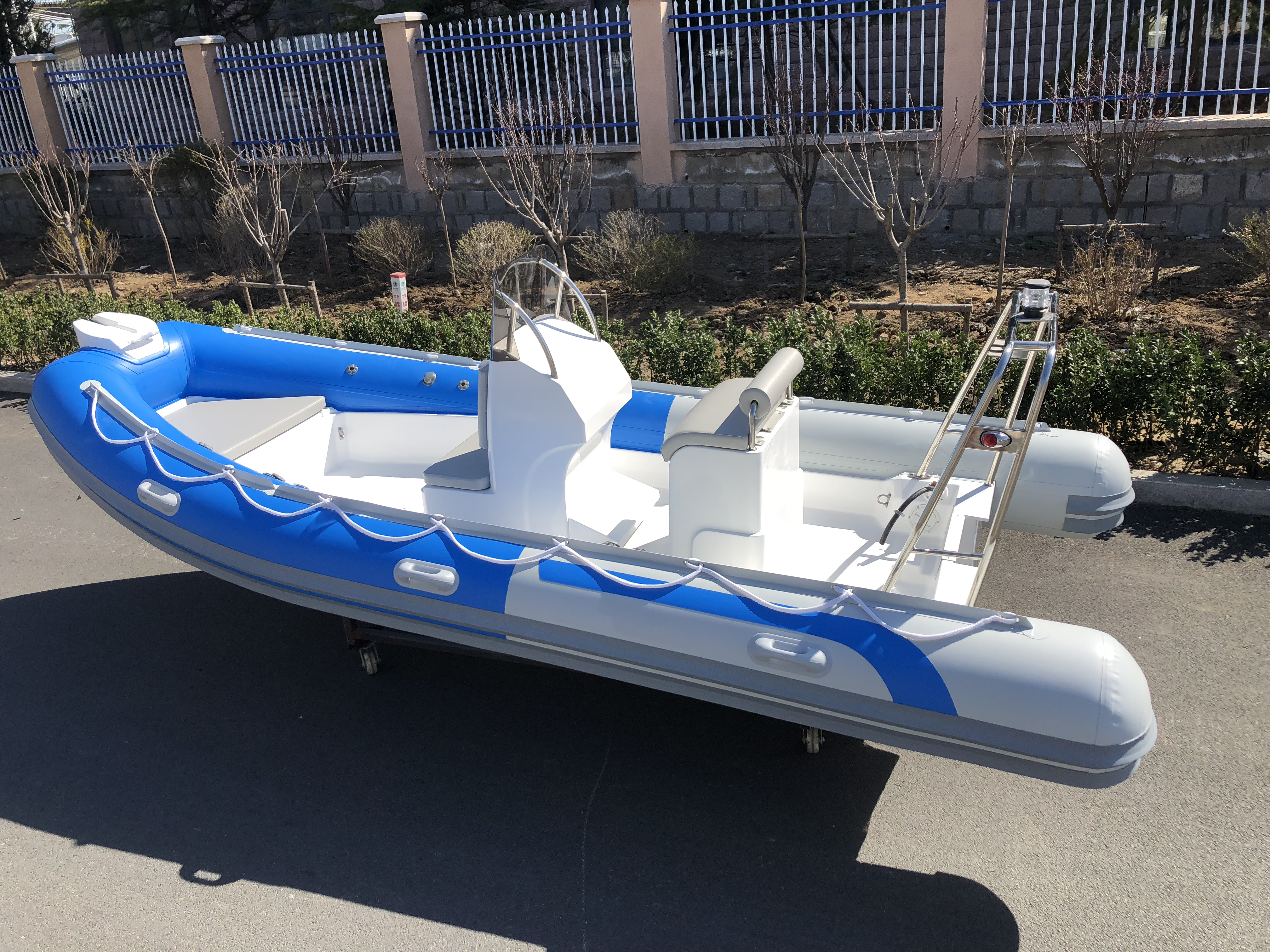

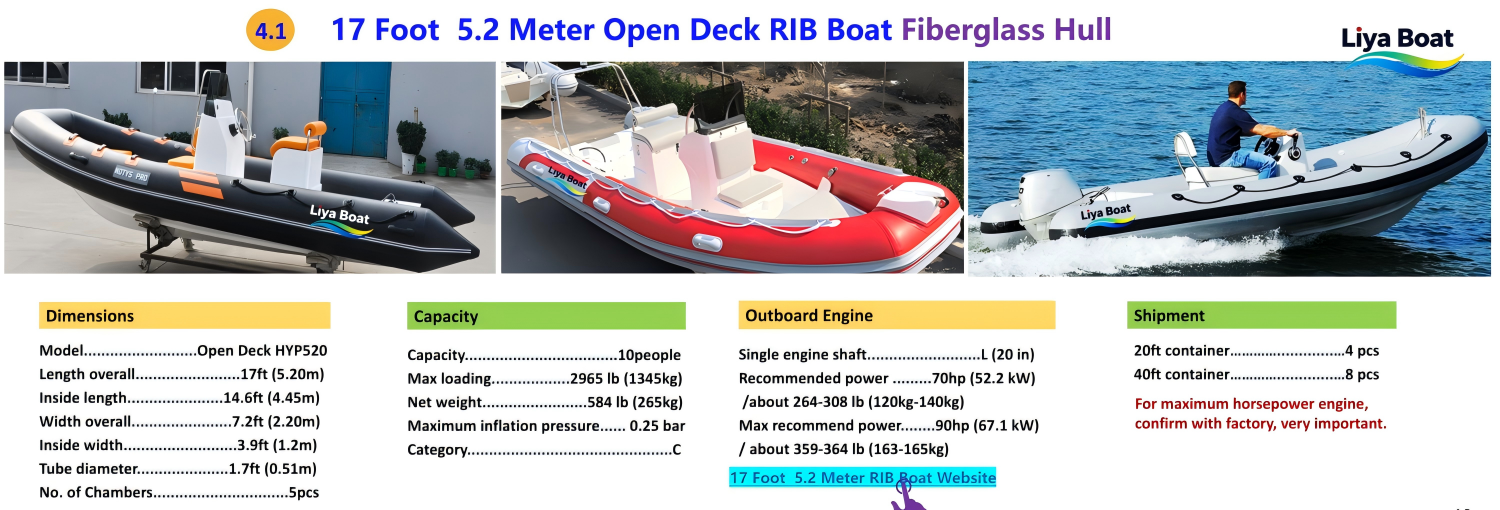

Liya 17 Foot Fiberglass Bottom RIB

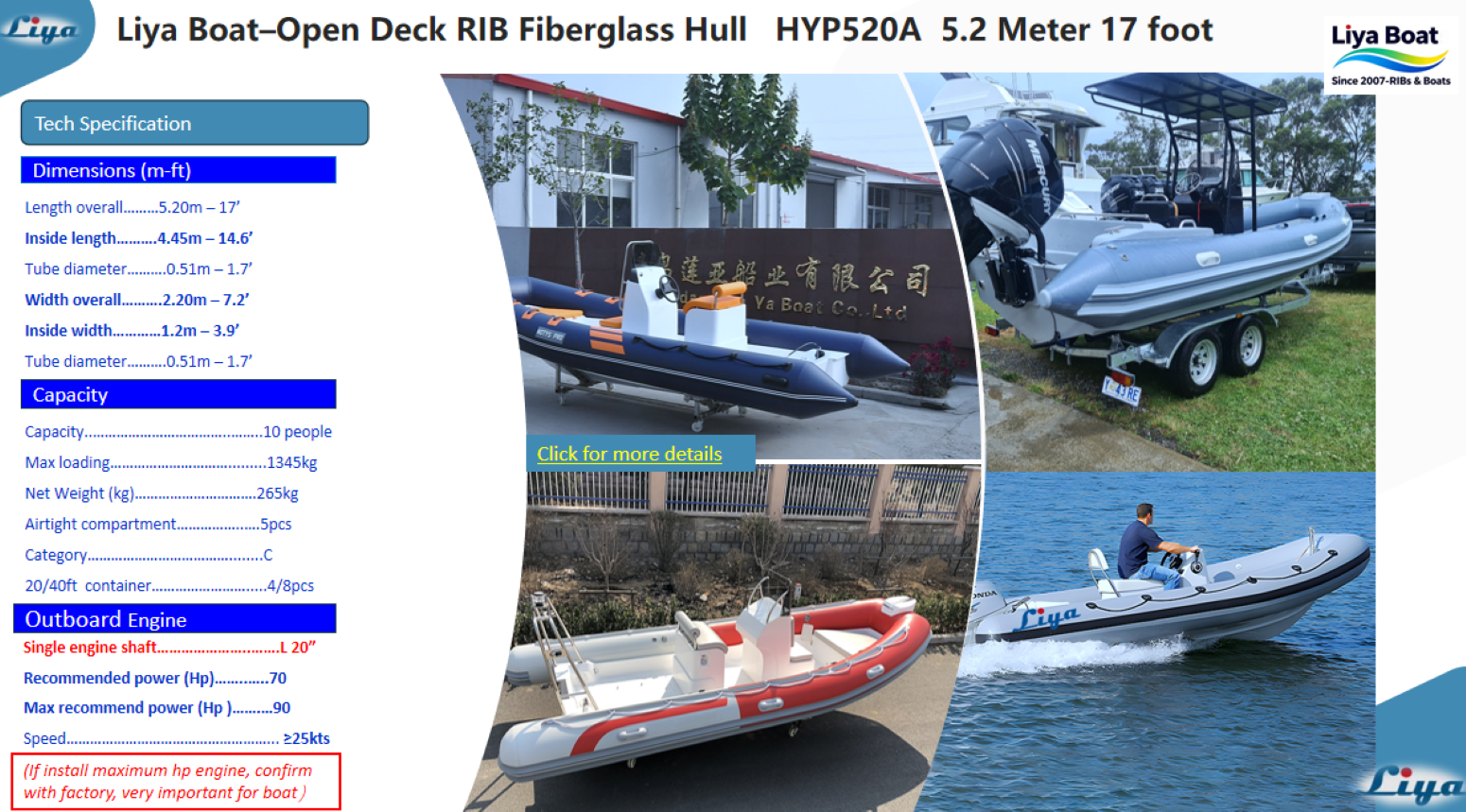

Length overall………5.20m – 17’

Inside length……….4.45m – 14.6’

Tube diameter……….0.51m – 1.7’

Width overall……….2.20m – 7.2’

Inside width…………1.2m – 3.9’

Tube diameter……….0.51m – 1.7’

Airtight compartment……………..….5pcs

( The above data may have slight errors due to variations in the degree of inflation.）

Maximum inflatation pressure: 0.25 Bar

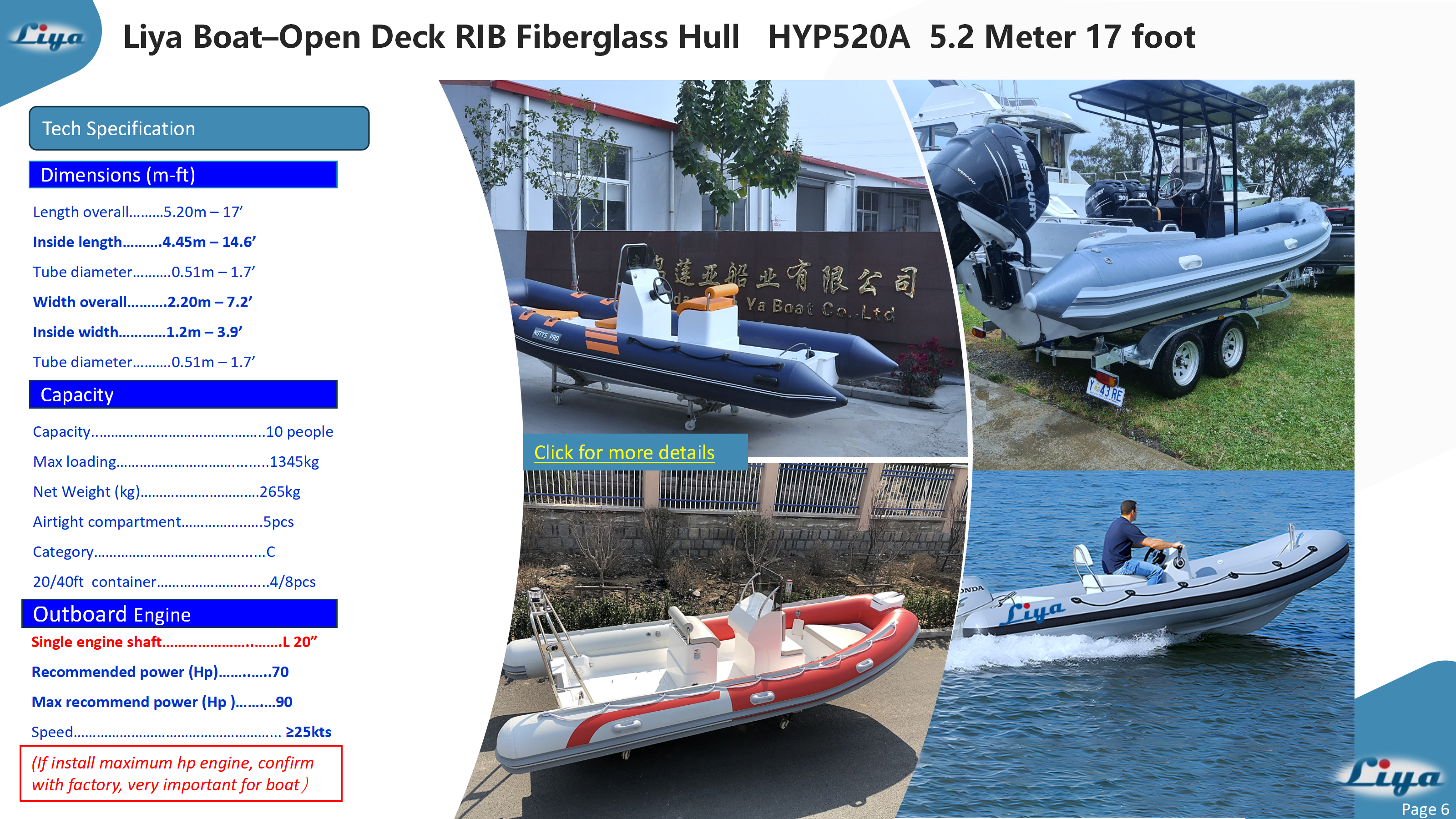

Max loading………………………….........1345kg

Net Weight (kg)………………………….265kg

The net weight menans boat with console, seat, canopy, A bar/ Arch etc, empty fuel tank, no engine.

The net weight also may change slightly depending on the different console, seat or other configuration etc.

Category………………………………........C

Recommended power (Hp)……..…..70HP/about 120kg-140kg

Max recommend power (Hp )…….…90HP/about 163kg-165kg

Speed……………………………………………... ≥25kts

(If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.)

▍Shipment

20/40ft container…………………….....4/8pcs

FAQ

Q1: Is this RIB boat suitable for commercial passenger transport?

A: Absolutely. The Liya 17ft RIB is CE certified and built with a high load capacity (10 persons/1345kg), making it an excellent and economical choice for commercial operations like passenger transport, water taxis, and guided tours.

Q2: How does the open deck benefit me?

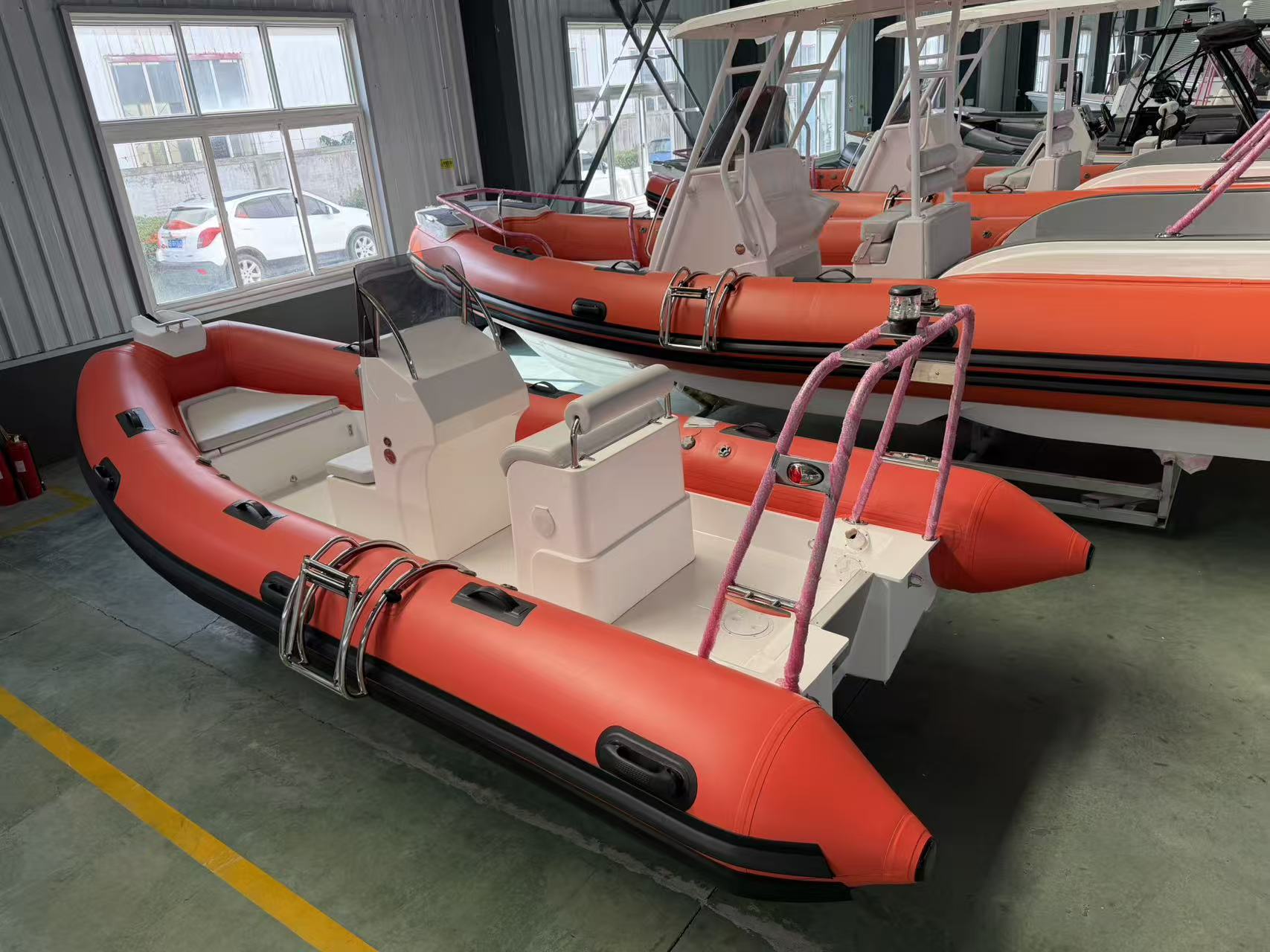

A: The spacious open deck offers maximum layout flexibility. You can customize it with different consoles and seating arrangements to perfectly match your specific use case, whether it's for maximized passenger seating, gear storage, or dive operations.

Q3: What is the difference between Hypalon and PVC tube materials?

A:Hypalon (like our French ORCA option) is renowned for superior resistance to UV rays, saltwater, and extreme weather, offering the longest lifespan (with a 60-month warranty). PVC (like German Mehler) is a robust and more economical alternative with good durability (36-month warranty). The choice depends on your budget and intended usage intensity.

Q4: What engine size is recommended, and what is the fuel consumption?

A: We recommend a 70HP outboard for an ideal balance of power, speed, and fuel efficiency. The boat can handle up to 90HP. Fuel consumption depends on engine brand, load, and conditions, but the optional 80L built-in fuel tank provides excellent range for most day-trip operations.

Q5: Can you customize the boat with specific colors or logos?

A:Yes. We offer a range of customization options, including tube colors and the application of your company logo or graphics, helping you create a professional brand presence on the water.

Q6: What is included in the standard package, and what are the delivery terms?

A: The standard package includes the complete RIB boat with hull, inflatable tubes, and basic fittings (as listed in specifications). Consoles, seats, engine, and accessories are typically optional. We ship worldwide FOB from our port; our team provides a clear freight quotation and handles all export documentation.

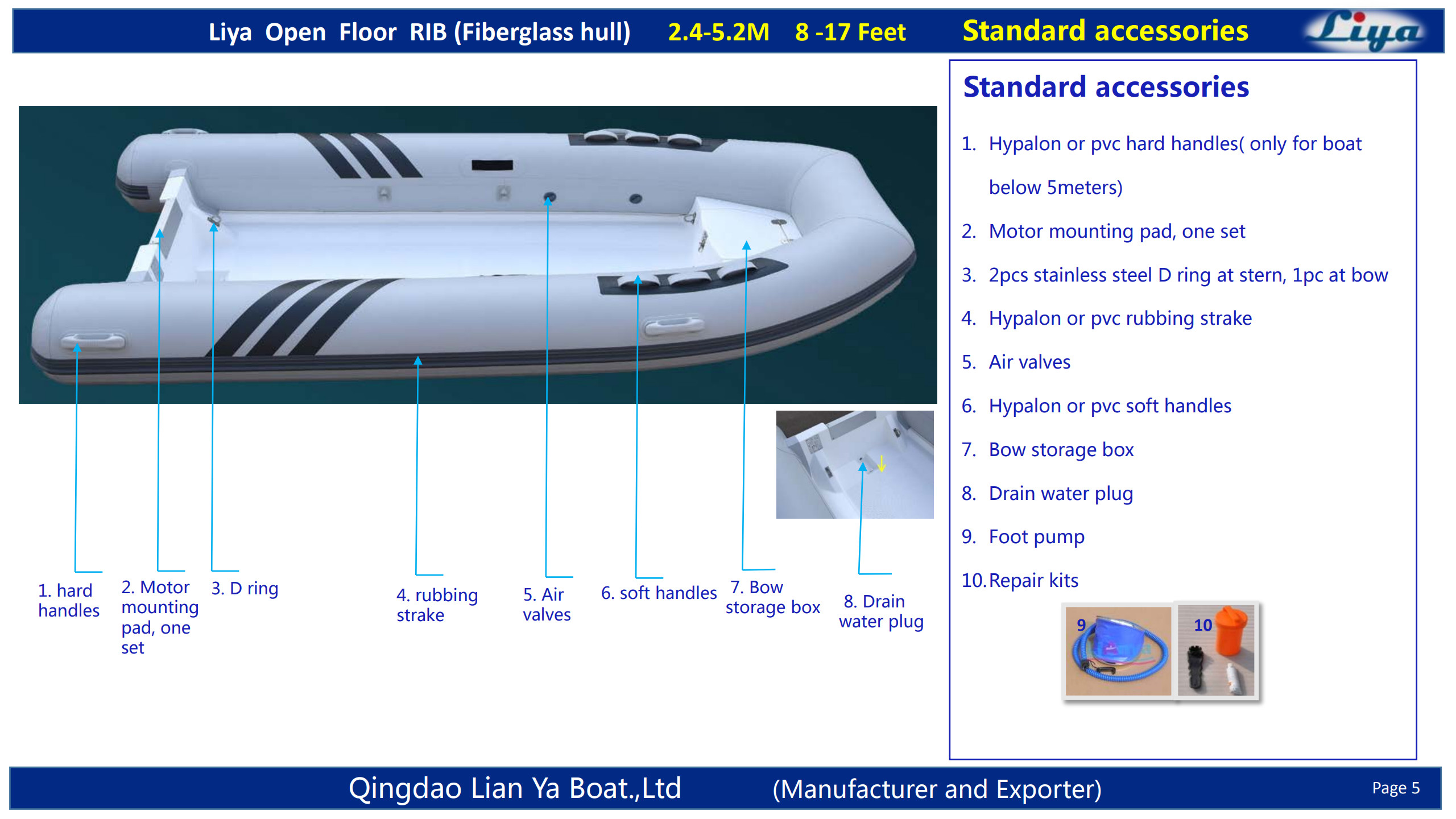

Liya 17 Foot Work RIB Boat Standard And Optional Accessories

• Main Features:

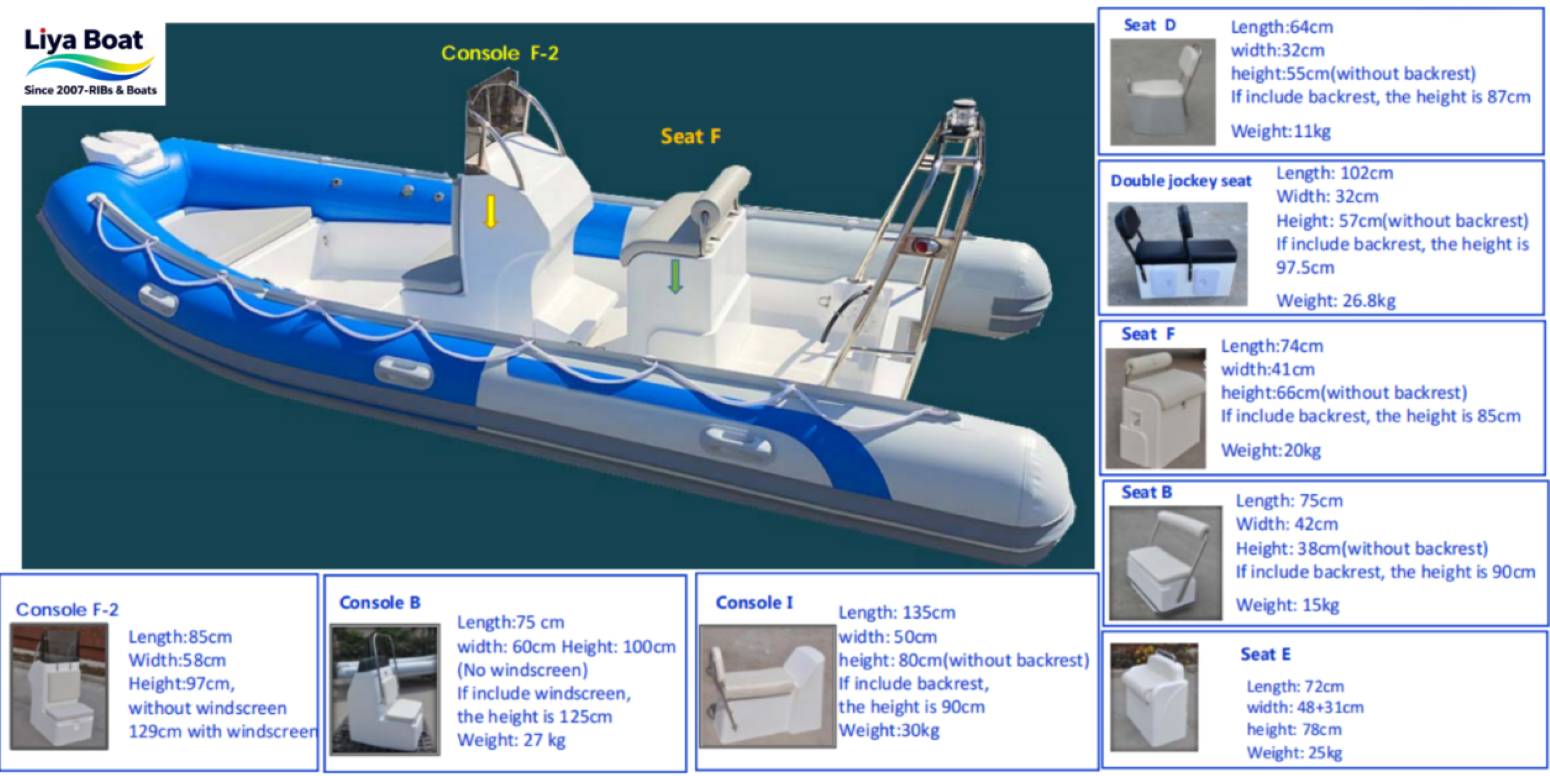

• Multiple control consoles and driver's seats available.

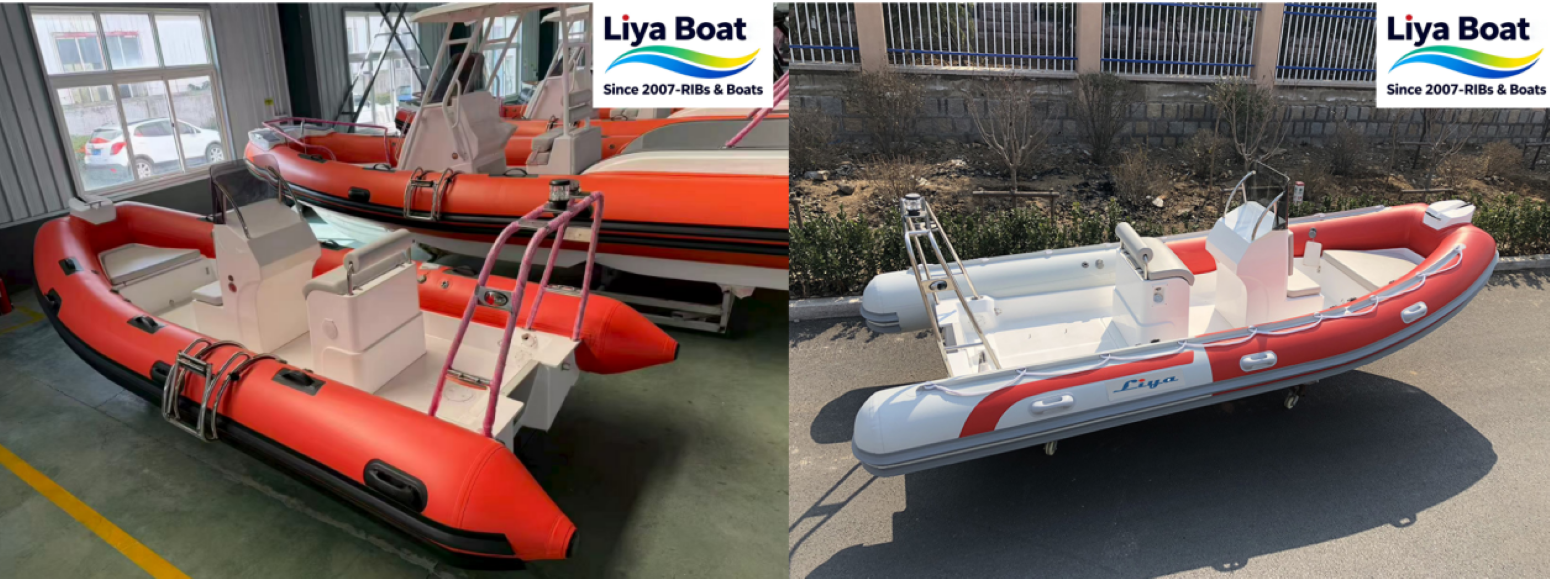

• Bow equipped with a storage box; optional stern with a stainless steel or aluminum alloy tail fin featuring navigation lights.

• Stern barrel shape can be round or pointed.

• Handles or safety ropes on both sides of the air pump for improved crew safety.

• Hypalon or PVC crash bars on the air pump for protection.

• Stern: Two D-rings at both the bow and stern for hoisting the boat.

• Stern equipped with an engine mount.

• Can be equipped with internal fuel tanks of varying capacities.

Quality Assurance-Liya 17 Foot CE Certified Work RIB Boat

-Designed base on international stanard ISO6185- CE certificate & Produced by ISO Manufactuer

Features:

• Flexible and spacious deck with optional control panels and seating; bow storage compartment; optional stern fin with navigation lights.

• V-shaped fiberglass bottom, corrosion-resistant, impact-resistant, robust, durable, and safe.

  Bow storage space; self-draining deck; 80L internal fuel tank and bilge pump can be installed below deck.

  Air tube material options:

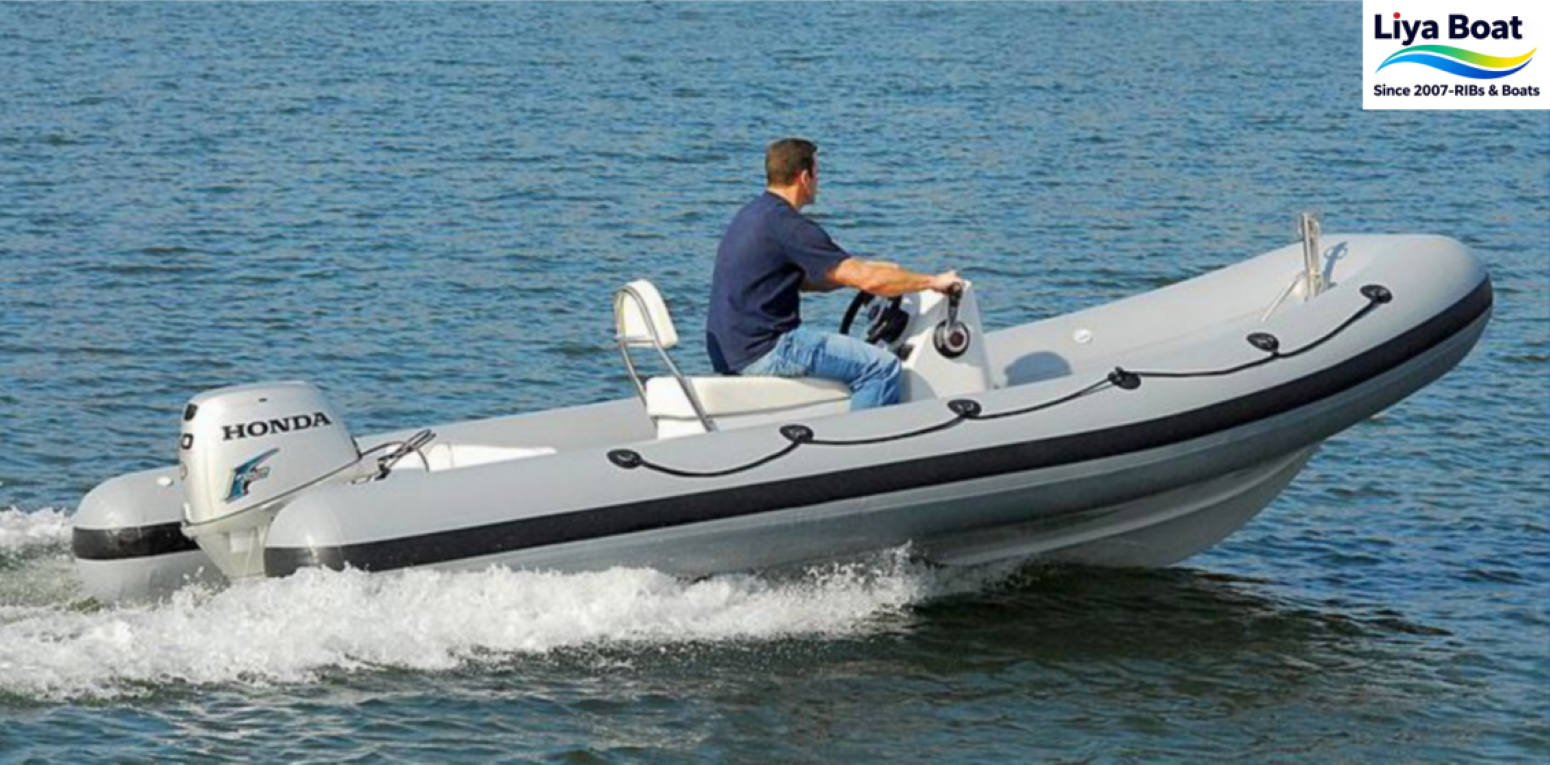

  French ORCA Hypalon pumps, corrosion-resistant, weather-resistant, UV-resistant, with a 60-month warranty; also available are Taiwanese Hypalon pumps with a 40-month warranty; and German Mehler PVC pumps with a 36-month warranty.

  Single engine capacity:

  Recommended 70 hp, maximum 90 hp.




▍ Fiberglass Hull, deck features & Vacuum absorption technology

｜Line classification system & Certificates double insurance

Safety & Maintenance Guide for 5.2m Open Deck RIB

SAFETY OPERATION

• Pre-Departure: Verify weather, fuel, hull, engine, and all CE-mandated safety gear are present and functional. This includes life jackets for all, fire extinguisher, VHF radio, and navigation lights (especially on stern wings).

• Loading & Stability: NEVER exceed the 1345kg maximum load capacity. Distribute weight evenly across the open deck to maintain stability. Secure all cargo and equipment.

• Key Rules: The kill cord must be attached to the driver at all times. Maintain a safe speed and course.

MAINTENANCE

• After Each Use: Rinse the entire boat with fresh water, especially the fiberglass hull and tubes, to remove salt and debris.

• Regular Checks: Frequently inspect the fiberglass hull for cracks or damage and check inflatable tube pressure. For the engine, follow the manufacturer's strict service schedule for oil, filters, and impeller changes.

• Commercial Standards: As a open deck work rib boat, implement a formal, logged maintenance schedule. This is critical for safety, compliance, and insurance.
