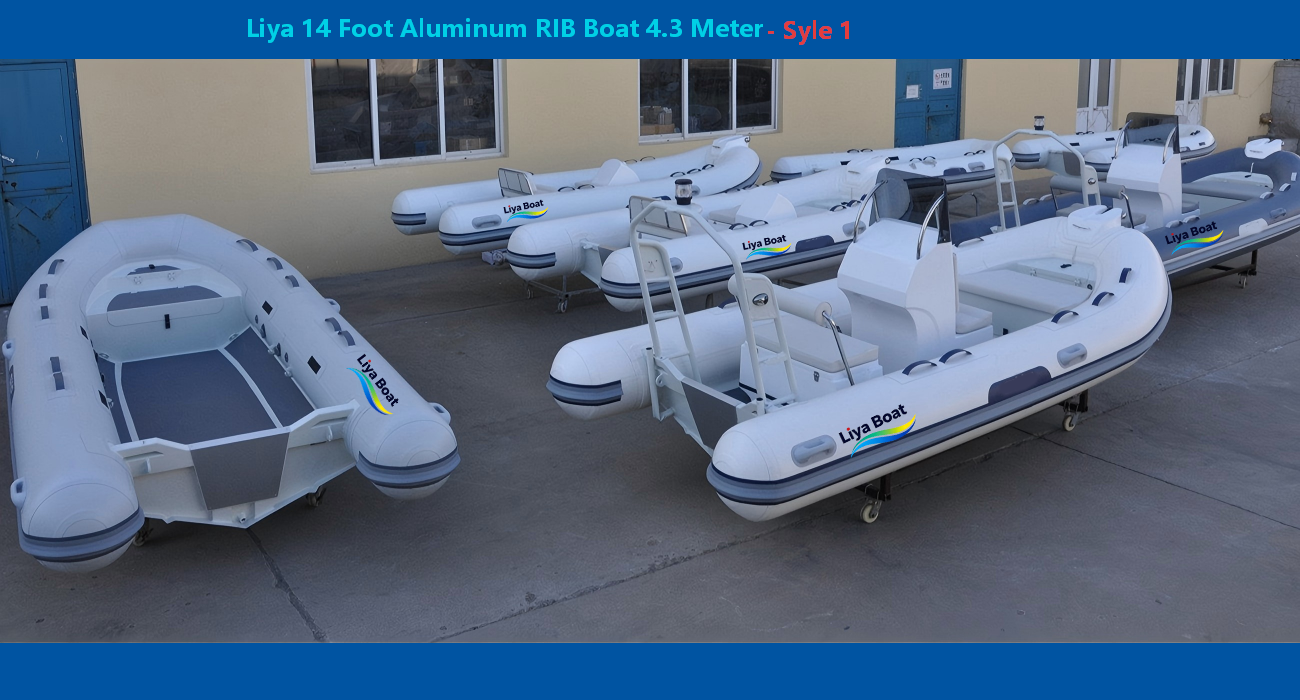

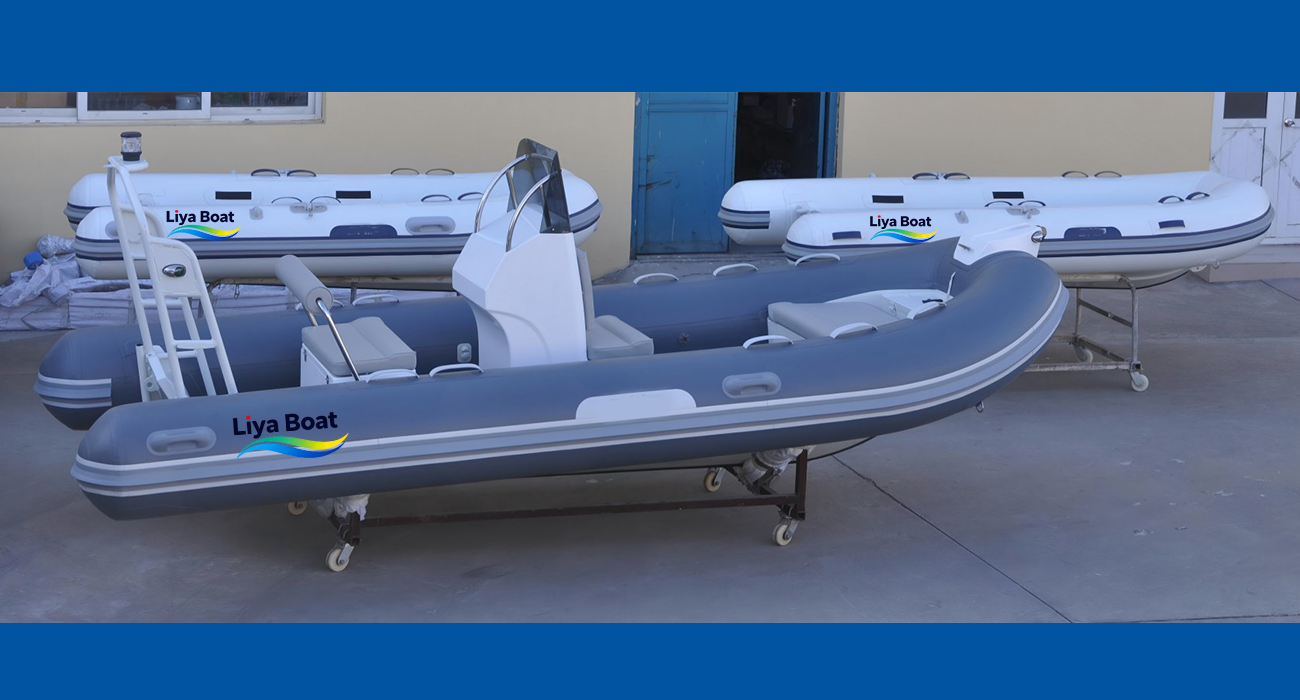

Liya 4.3m (14ft) Hard Bottom Inflatable Dinghy Technical Parameter

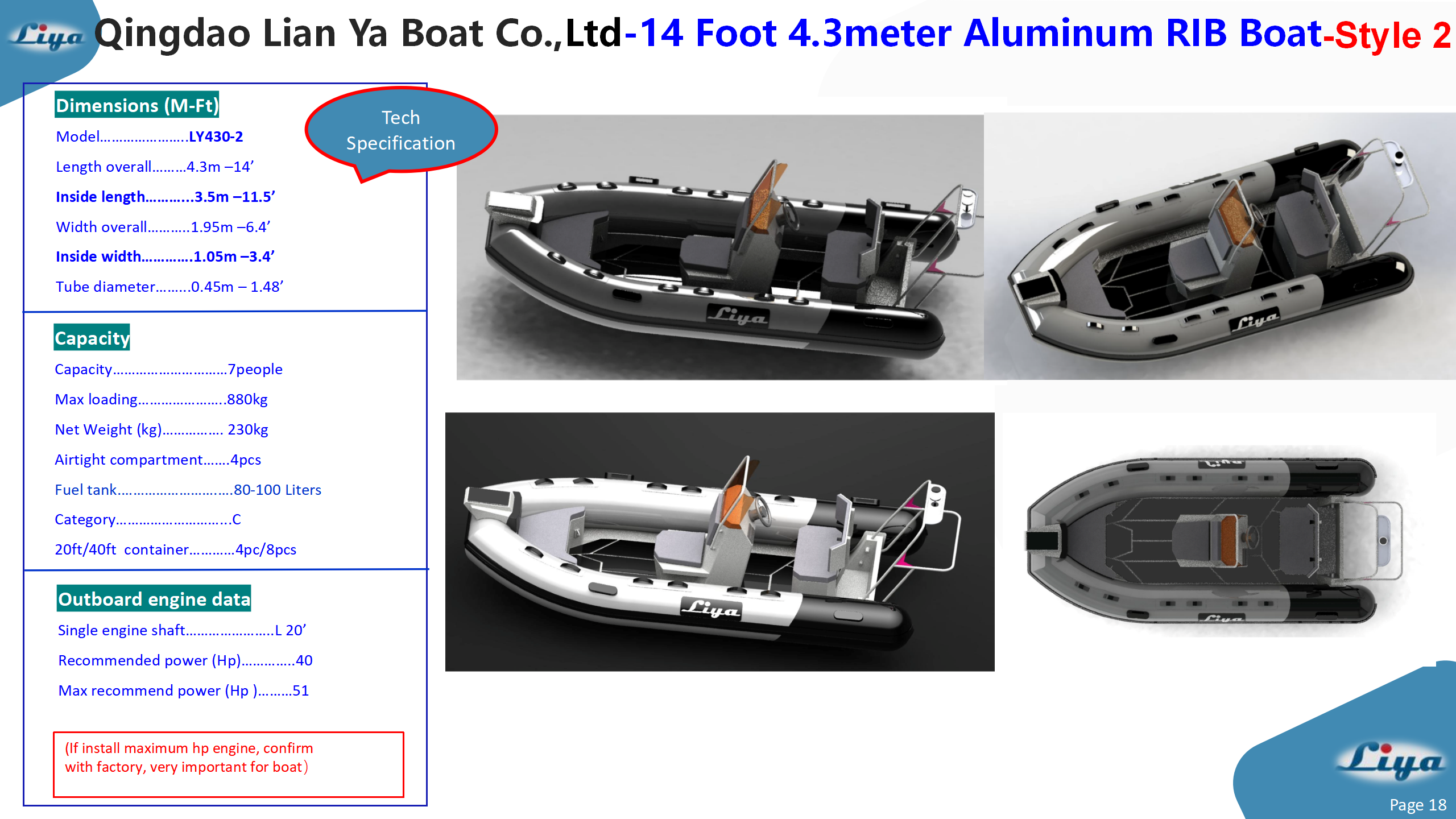

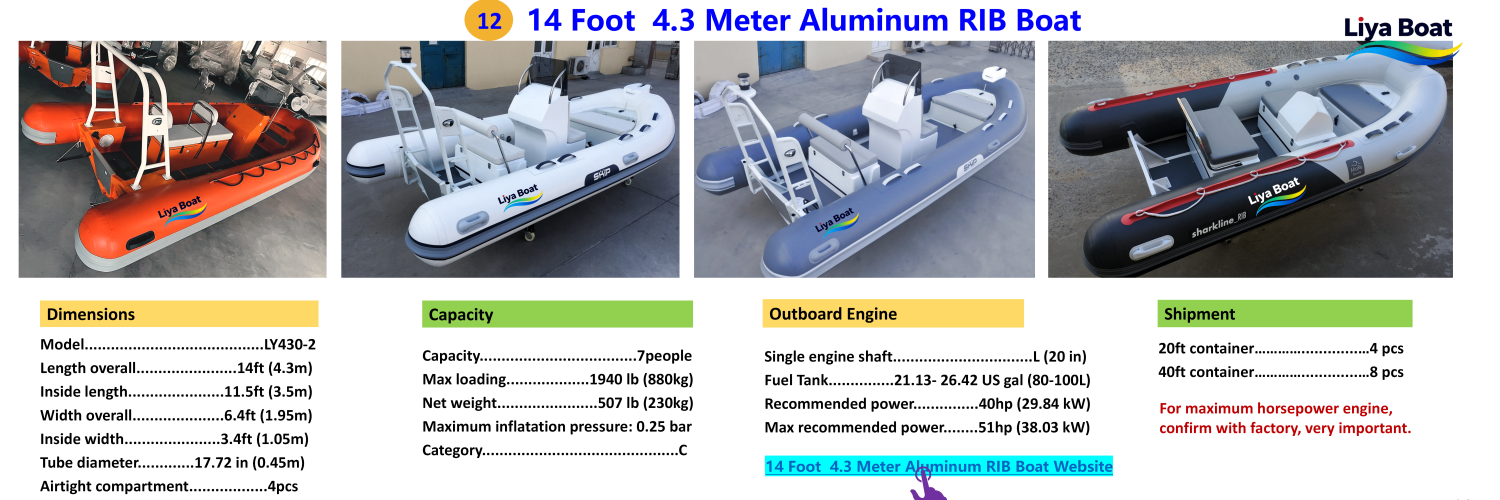

▍Dimensions

Model…………………LY430-2

Length overall………4.3m –14’

Inside length…………3.5m –11.5’

Width overall…………1.95m –6.4’

Inside width………… 1.05m –3.4’

Tube diameter……… 0.45m – 1.48’

Airtight compartment……4pcs

( The above data may have slight errors due to variations in the degree of inflation.）

Maximum inflatation pressure: 0.25 Bar

▍Capacity

Capacity………………………7 people

Max loading…………………880kg

Net Weight (kg)…………… 230kg

The net weight menans boat with console, seat, canopy, A bar/ Arch etc, empty fuel tank, no engine.

The net weight also may change slightly depending on the different console, seat or other configuration etc.

Category………………………C

Single engine shaft………………L 20'’

Fuel tank.………………………… 80-100 Liters

Recommended power (Hp)…………40HP/ about 100kg-120kg

Max recommend power (Hp )………51HP/ about 95kg-110kg

(If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.)

▍Shipment

20ft/40ft  container…………4pc/8pcs

Buyer-Centric FAQ:

Q1: Is this dinghy stable enough for my family with young children?

A: Absolutely. The RIB (Rigid Inflatable Boat) design is one of the most stable small boat configurations available. The large, buoyant tubes provide immense secondary stability, making it very difficult to tip. Combined with the non-slip EVA deck, it creates a safe and secure platform that is ideal for families with children.

Q2: Can this boat realistically be used for water skiing or wakeboarding?

A: For tubing and light water skiing, yes—especially with the optional ski tow pylon and the maximum recommended 51HP engine. It has the power to pull a skier out of the water. For adult wakeboarding, it may be underpowered. It’s perfect for pulling kids on inflatables or skis.

Q3: Why choose a console model over a simpler tiller-steer dinghy?

A: A console model offers significant advantages: it provides a much more comfortable and controlled driving position, especially in wind or chop; it frees up space in the cockpit; it allows for easier installation of navigation electronics; and it simply feels more like a "real boat," enhancing the overall experience.

Q4: How easy is it to trailer and launch by myself?

A: Extremely easy. The lightweight aluminum hull is a key advantage here. The entire boat is light enough to be easily managed on a trailer by one person with a standard SUV or even a larger car. This makes spontaneous trips to the lake or coast hassle-free.

Q5: Is the 80-100L fuel tank necessary for a small boat?

A: It's a fantastic feature. A large fuel tank for its size means you can spend entire days on the water—exploring, swimming, and cruising—without worrying about finding fuel. It maximizes your fun and minimizes logistical hassles, making it feel like a much larger boat.

Q6: Can this be used as a tender for a 40-50 foot yacht?

A: Yes, it makes an excellent tender for yachts in that size range. Its light weight is easy on davits, its 7-person capacity is sufficient for guest shuttles, and the console provides good handling. For yachts frequently in rougher anchorages, a slightly larger tender might be preferred, but for protected bays and marinas, it is perfectly suited.

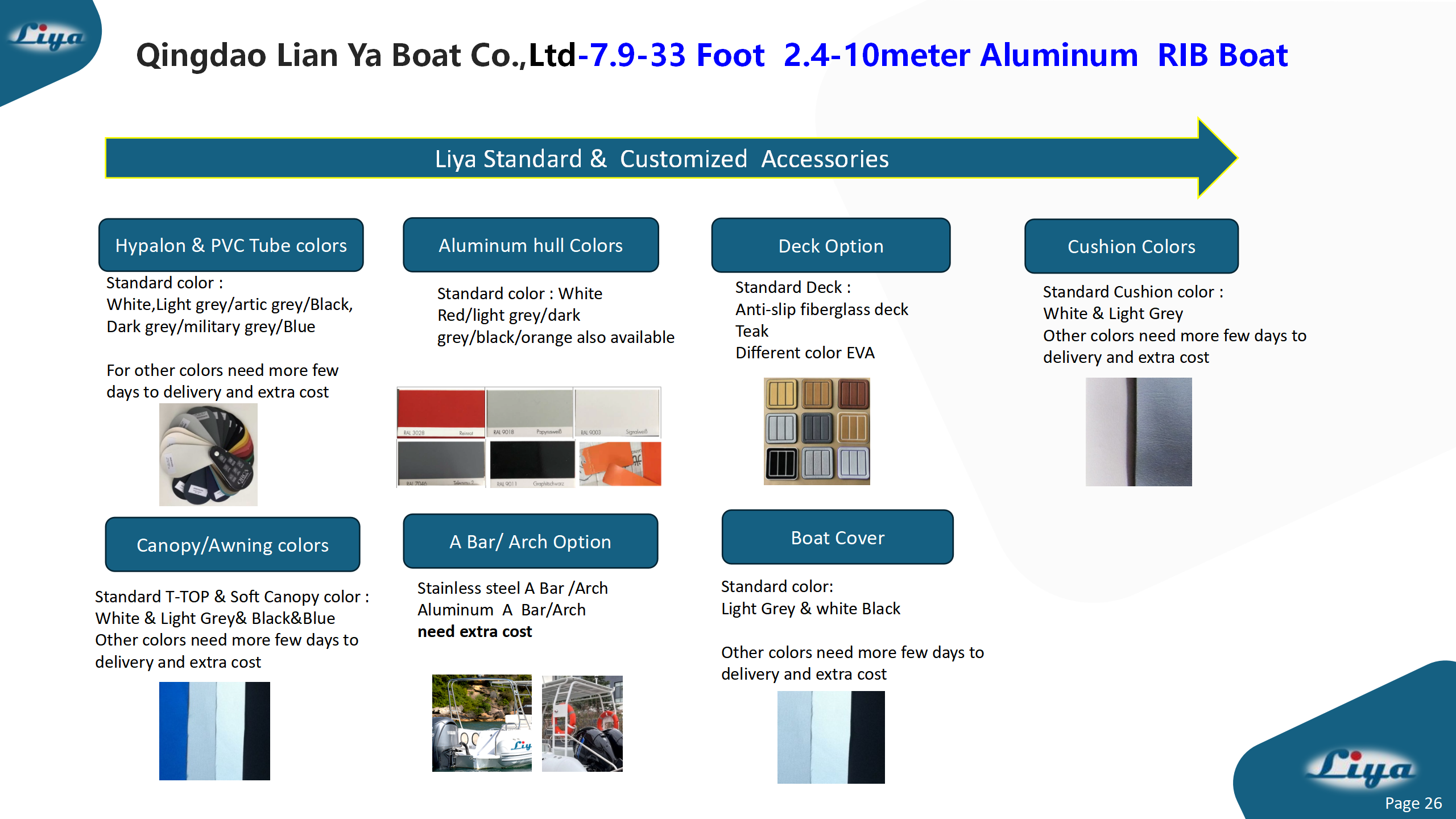

Liya 4.3m (14ft) RIB Dinghy Tender Standard and Customizable Accessories

▍Main Configurations:

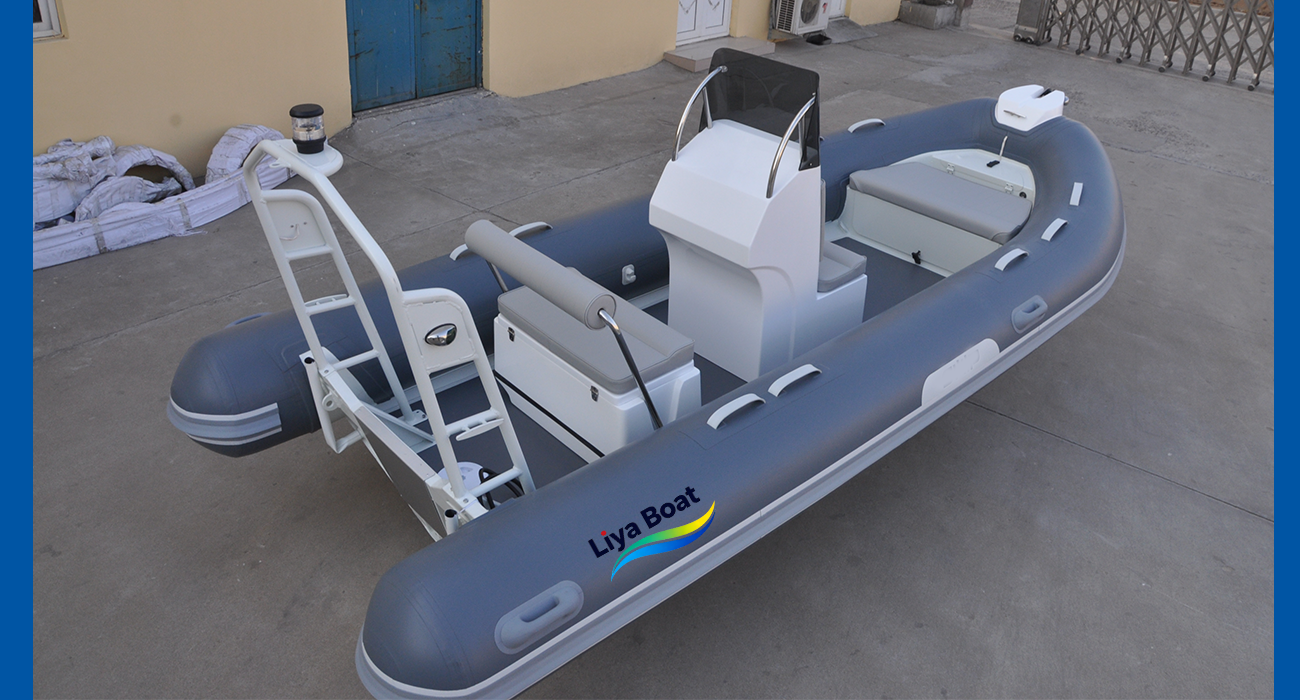

• Center Console: Console with cushion and foot step, teak floor, imitation teak floor, EVA deck, and PVC non-slip floor can be put on the foot step.

• Bow: Bow storage box with cushion and storage compartment underneath.

• Optional features include a foldable canopy.

• Stern: Stern seat with cushion and backrest.

• Optional features include a stainless steel or aluminum arch with navigation lights and a stainless steel ladder. In addition, a water ski pole can be added as an option, allowing for water sports such as towed water skiing and surfing.

• End tube: Available in different shapes: round, pointed, and GRP end step.

• Customization is available upon request.

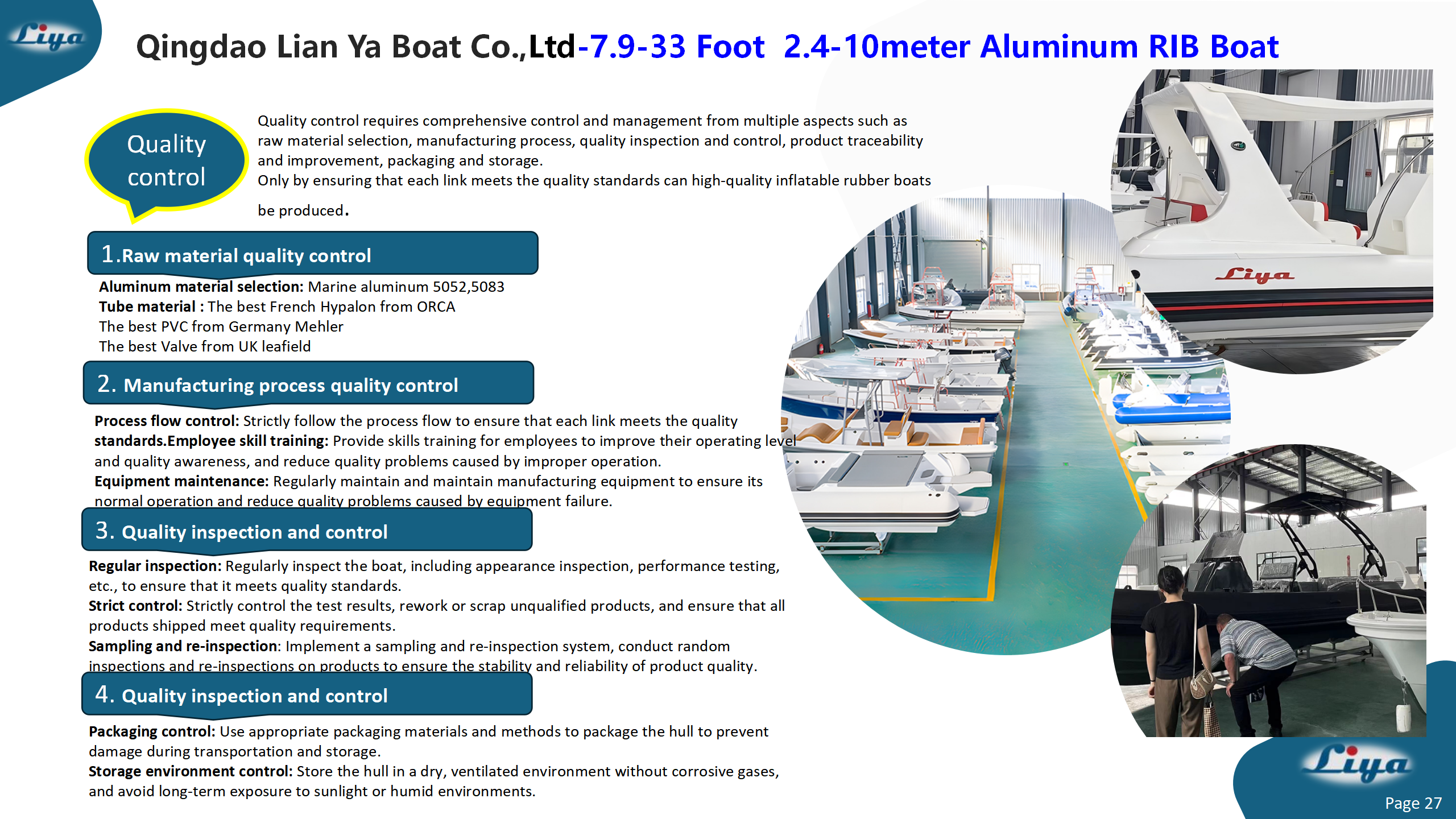

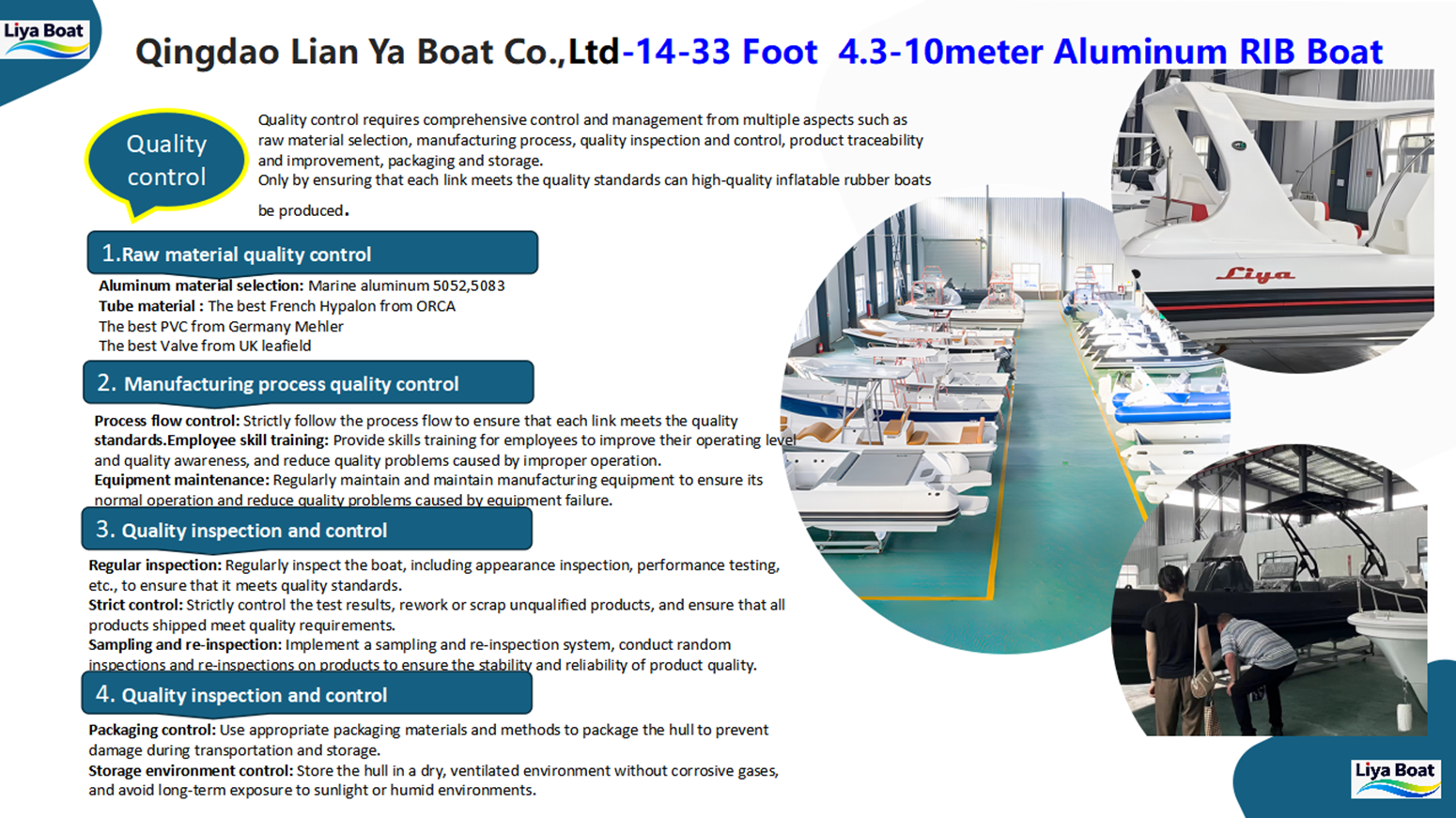

Quality Control-Liya aluminium rigid inflatable boats in Hypalon or PVC ,hard foam pontoon/tube.

-Designed base on international stanard ISO6185- certificate & Produced by ISO Manufactuer

▍Product Highlights:

• V-shaped hull for smooth and fast performance.

• World-class hypalon tube, customizable with optional decorations.

• Standard 80-100L fuel tank.

• Self-draining deck with drain pipe.

• Single engine: Recommended 40 hp, maximum 51 hp.

• Uses world-class tube materials: ORCA and German PVC.

• 5-year warranty on marine-grade 5052 aluminum alloy hull.

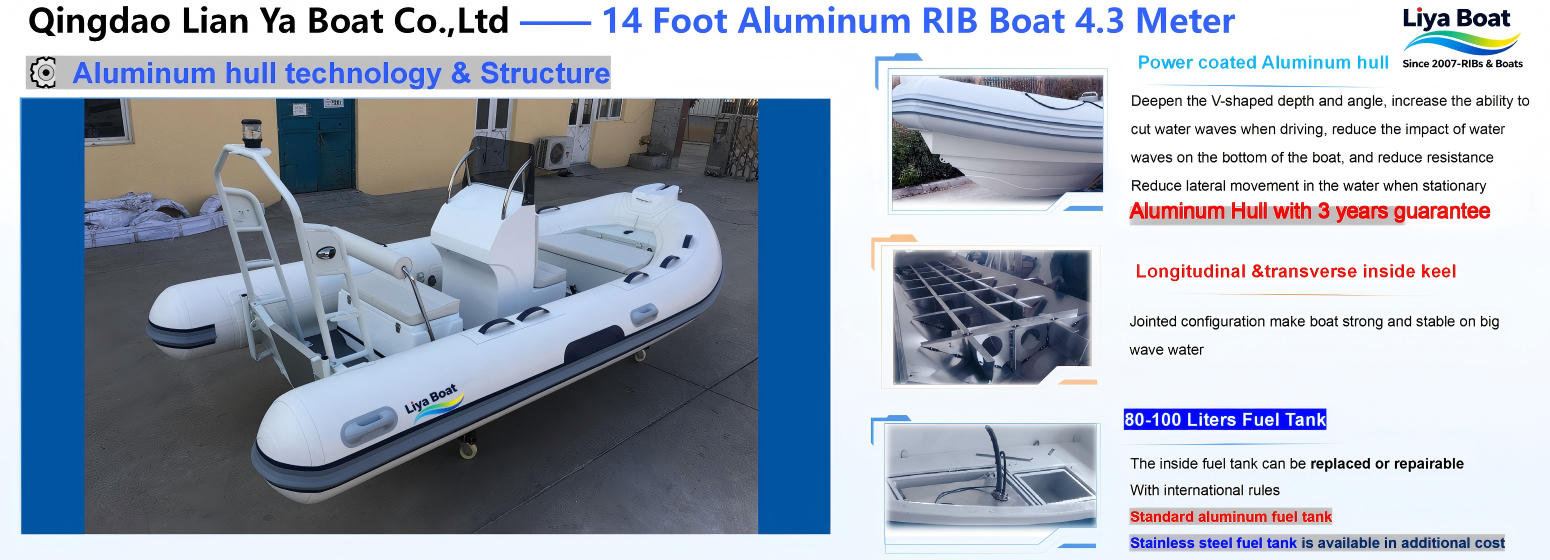

▋Aluminum Hull Technology & Structure

▋Line Classification System & Certificates Double Insurance

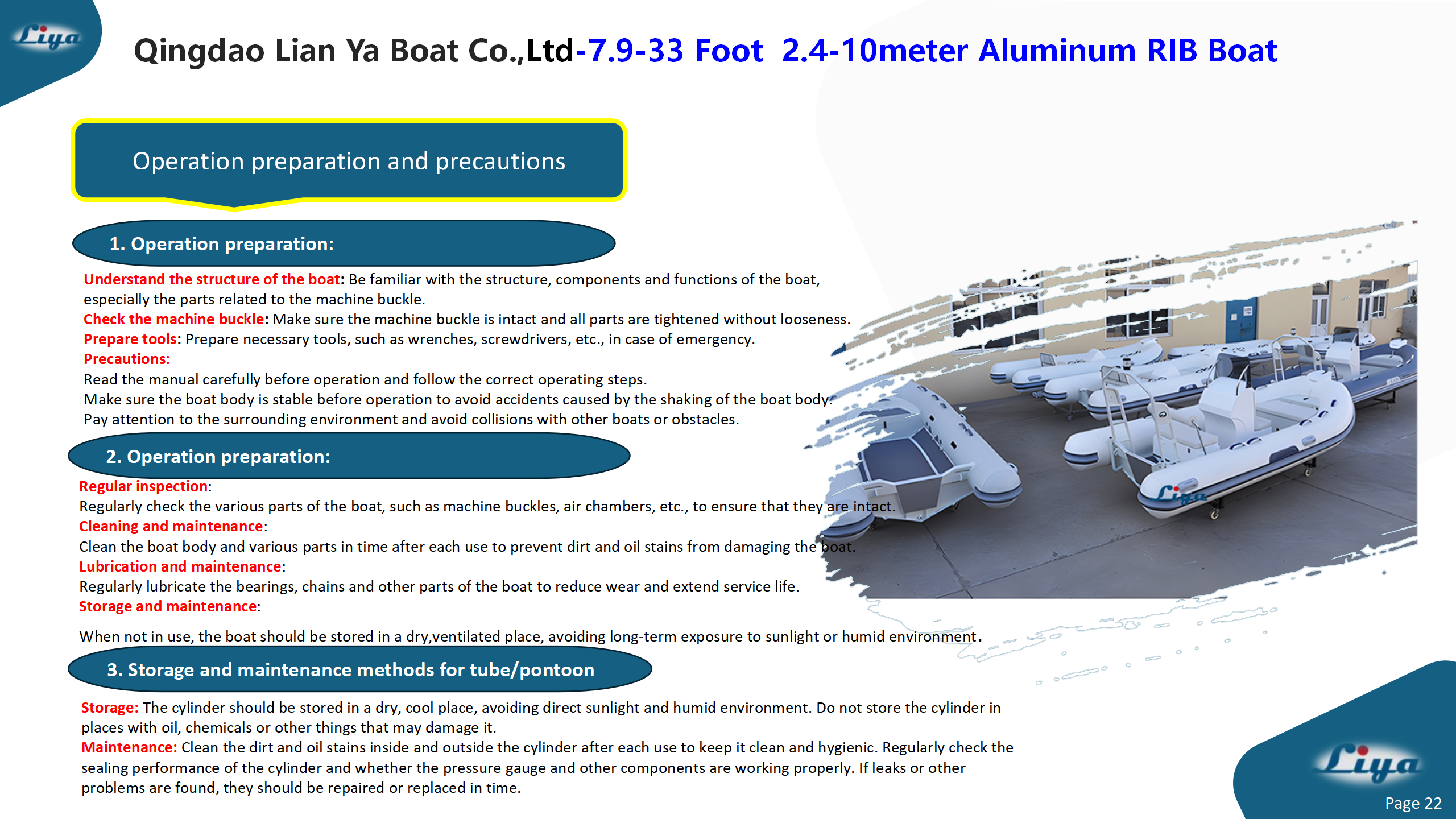

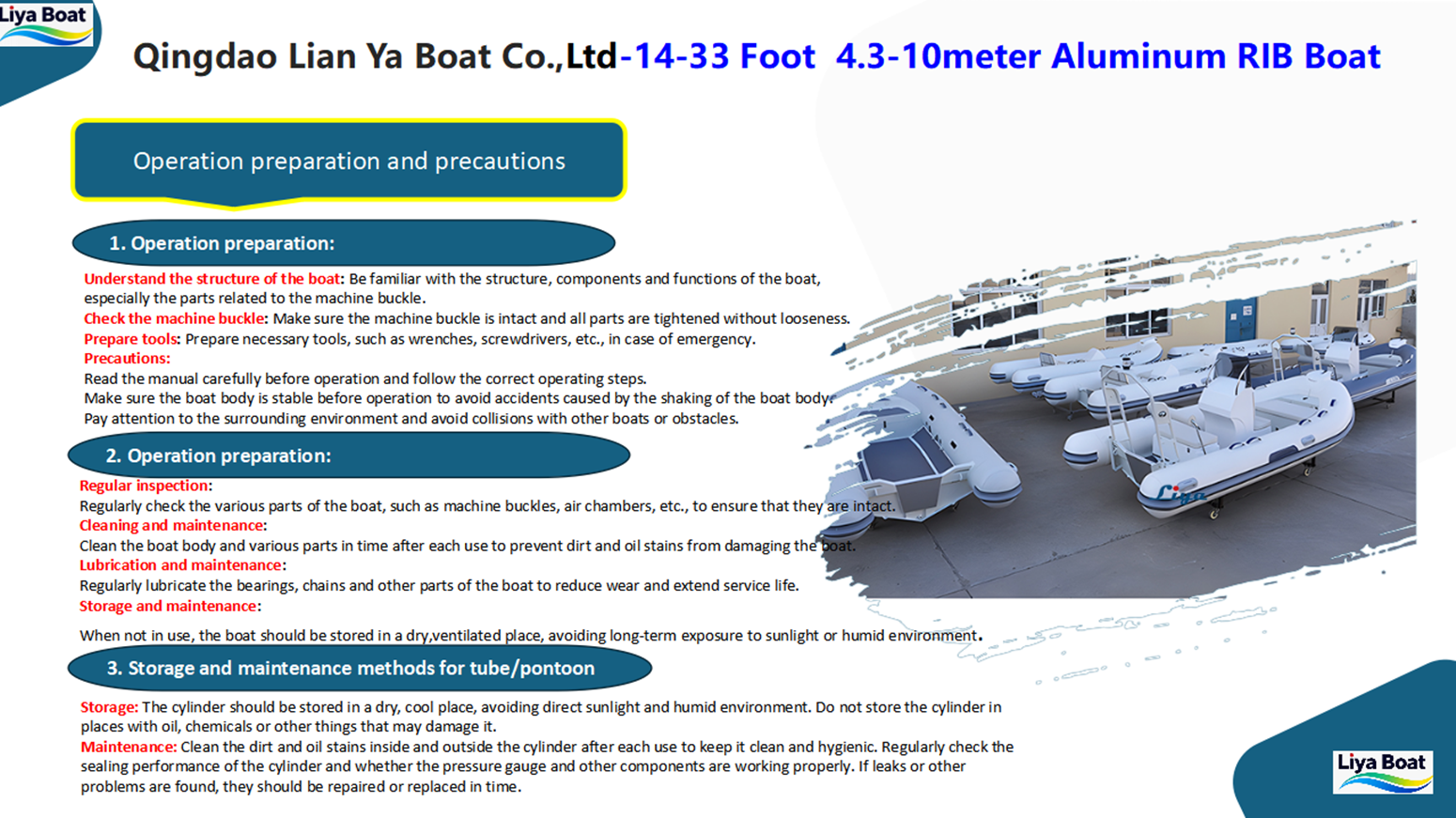

Liya 4.3m (14ft) Aluminum RIB Dinghy Operation & Precautions
