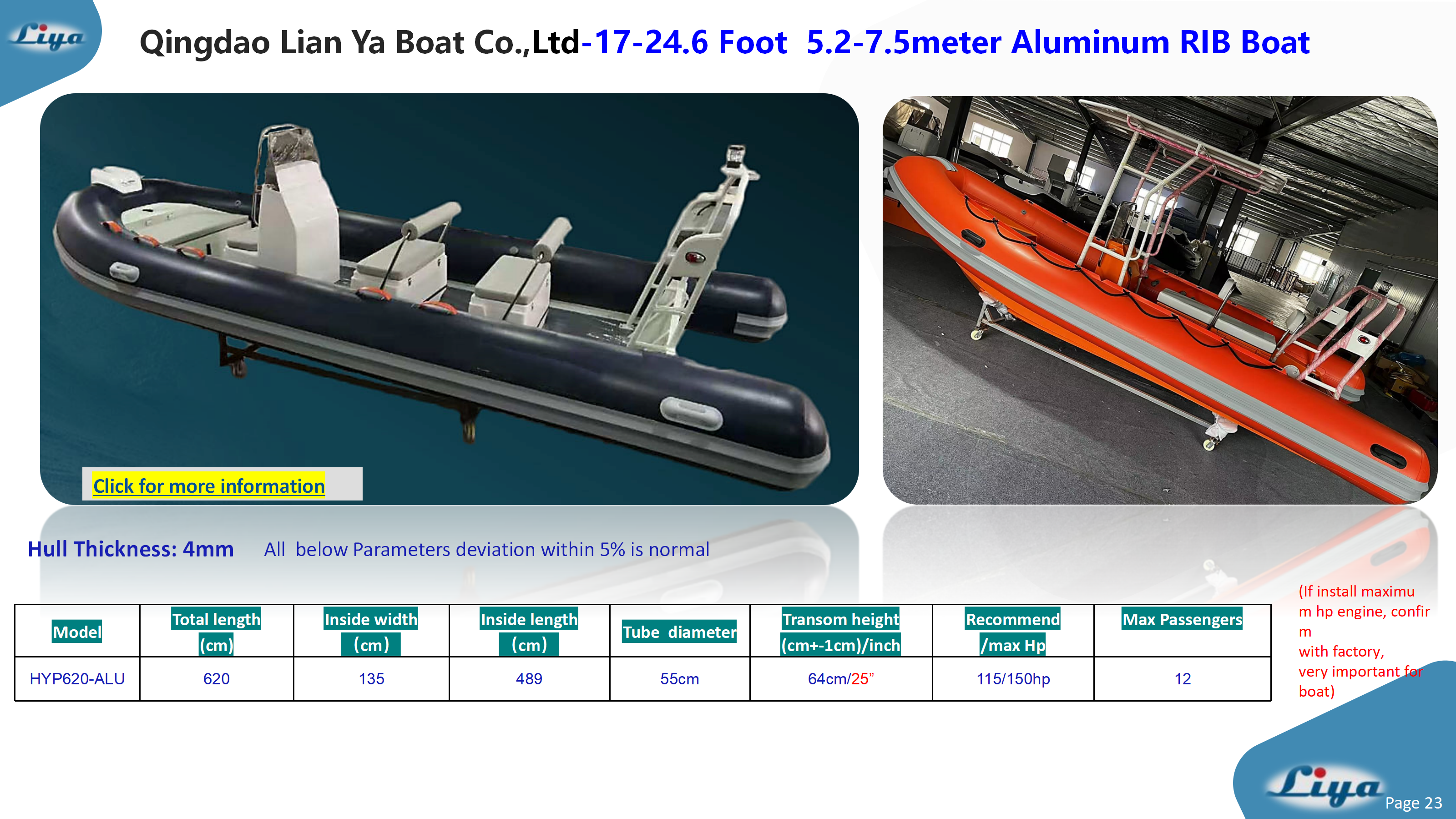

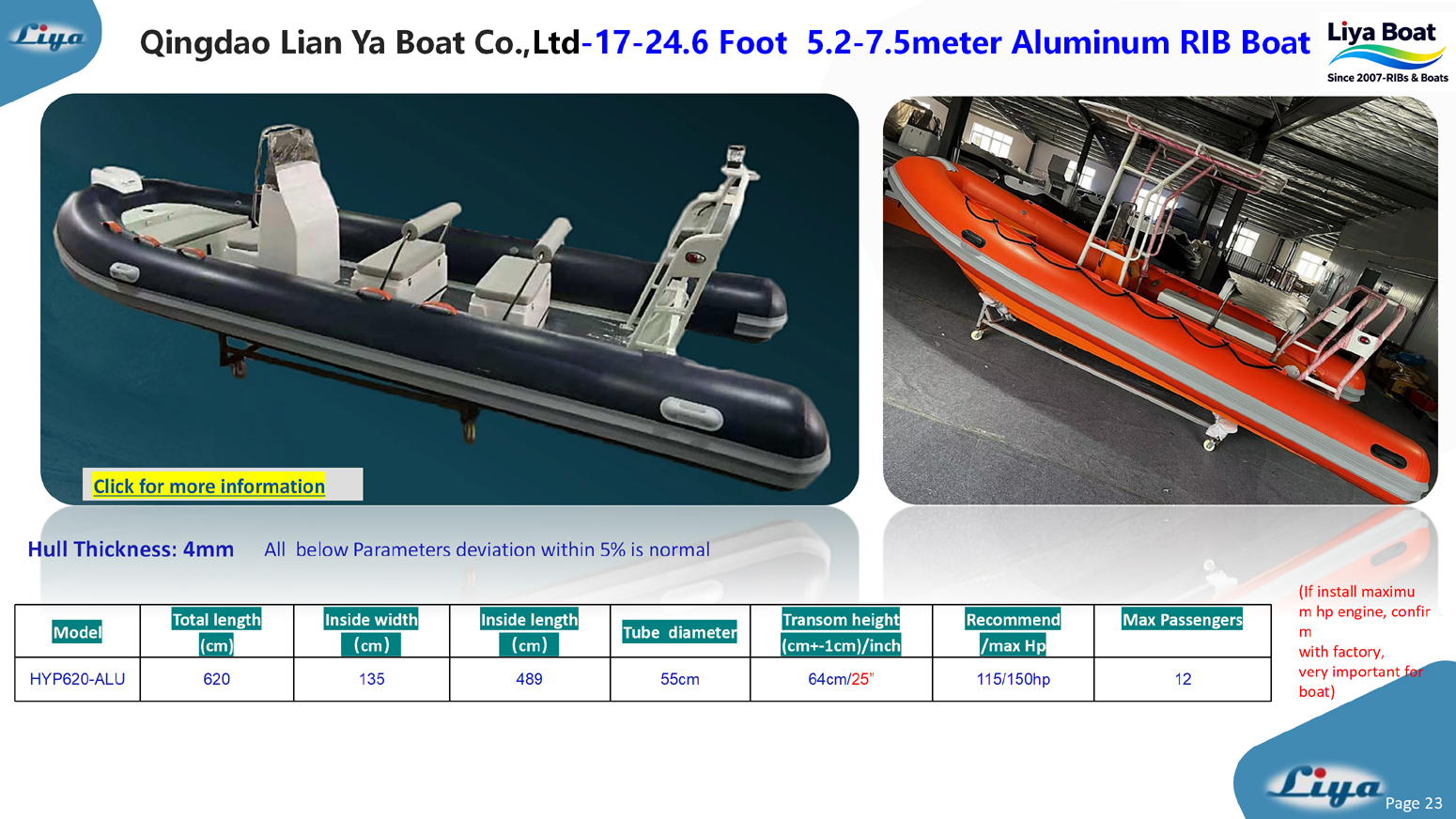

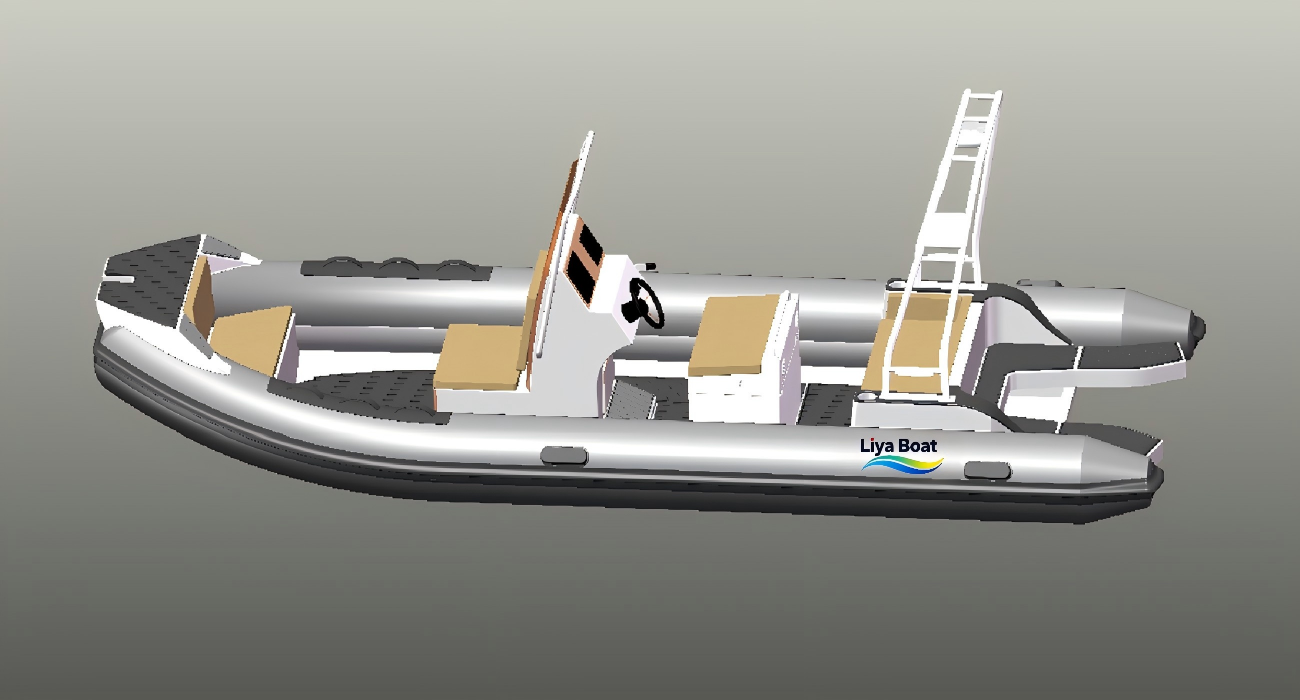

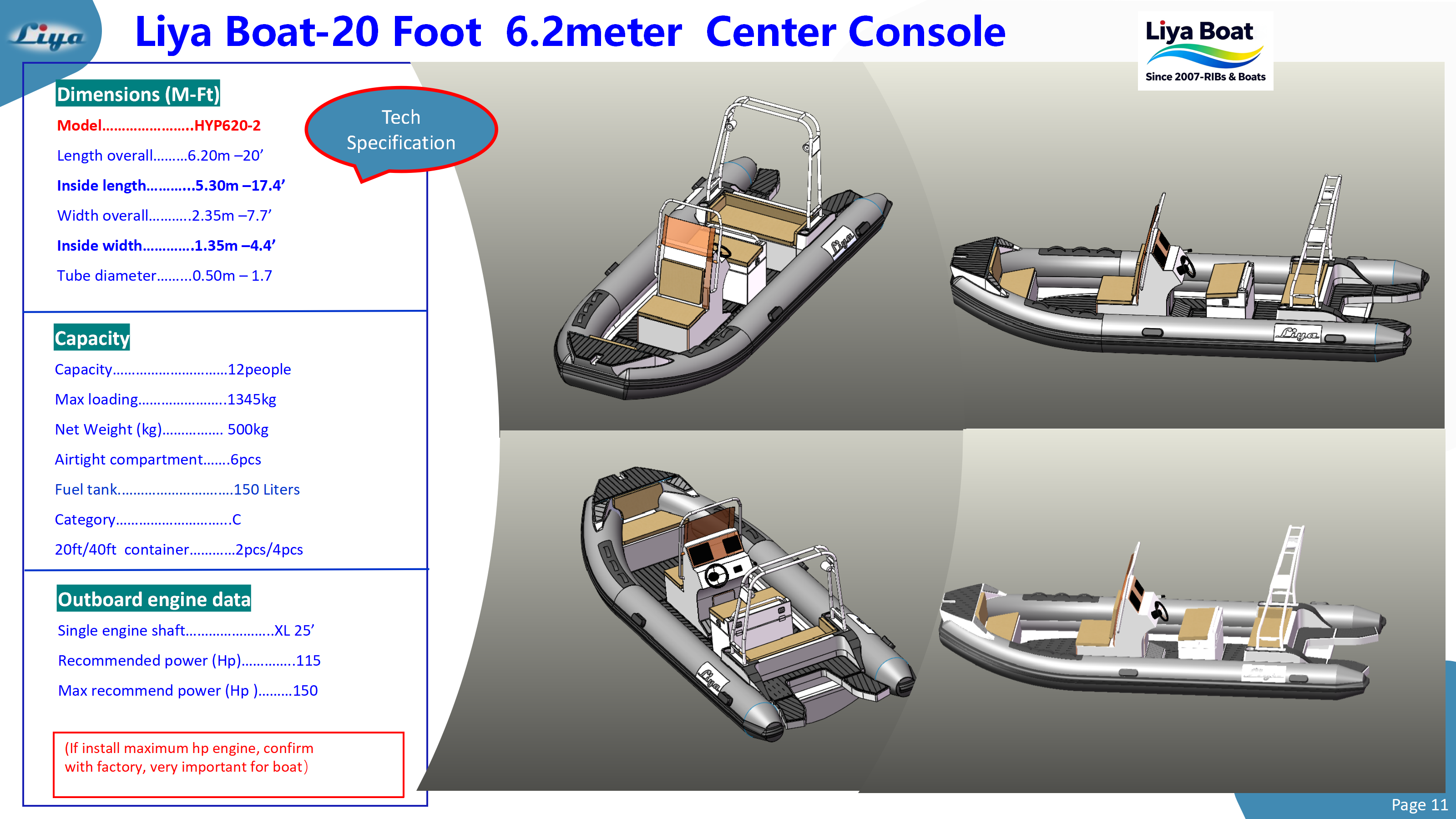

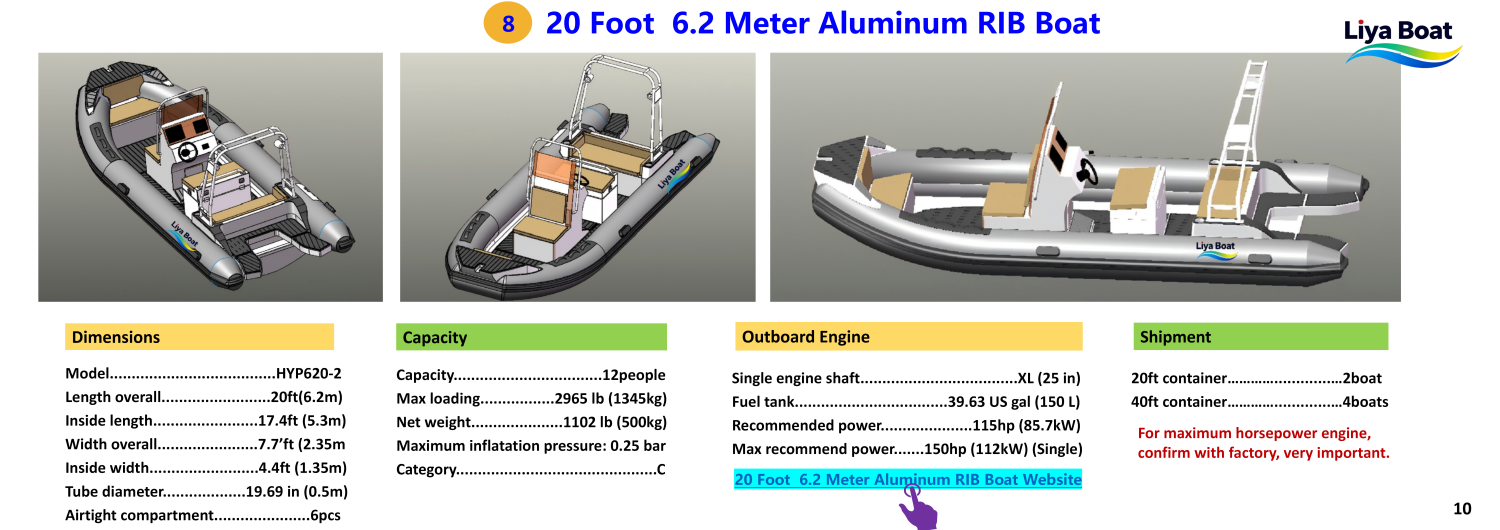

▍Technical Parameter-20FT RIB Boat With Motor

▍Dimensions

Model………………..............................HYP620-2

Length overall……….........................6.2 m– 20’

Inside length………............................5.3 m- 17.4’

Width overall…………........................2.35 m– 7.7’

Inside width…………..........................1.35 m– 4.4’

Tube diameter………..........................0.50 m-1.7'

Airtight compartment……...............6pcs

( The above data may have slight errors due to variations in the degree of inflation.）

Maximum inflatation pressure: 0.25 Bar

▍Capacity

Capacity……………………………….........12people

Max loading…………………..........1345kg

Net Weight (kg)……………..................500kg

The net weight menans boat with console, seat, canopy, A bar/ Arch etc, empty fuel tank, no engine.

The net weight also may change slightly depending on the different console, seat or other configuration etc.

Category………………………...................C

▍Outboard Engine

Single engine shaft…………………XL 25'’

Fuel tank.…………………….….........150 Liters

Recommended power (Hp)……...115HP/ about 163kg-165kg

Max recommend power (Hp )…..150HP/ about 206-207kg

(If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.)

▍Shipment

20ft/40ft  container………….................2 boats/4 boats

Buyer-Centric FAQ:

Q1: Why is a center console layout better for a boat of this size?

A: A center console design is hugely beneficial for versatility. It creates a wide, open, and walkaround deck, making it easier to fish from any side, move gear around, and socialize. It also gives the driver excellent, unobstructed 360-degree visibility for safer maneuvering, especially in crowded anchorages or when towing sports.

Q2: How does the deep-V hull improve our experience compared to a flatter hull?

A: The 24-degree deep-V aluminum hull is crucial for comfort and performance. It slices through waves and chop rather than slapping against them, resulting in a much smoother, drier, and more stable ride. This significantly reduces passenger fatigue and makes the boat more capable and comfortable in a variety of sea conditions you'll encounter during day trips.

Q3: Is this boat suitable as a primary family boat for weekend outings?

A: Absolutely. It's an ideal family day boat. The stable RIB design is inherently safe, the EVA deck is soft and non-slip for kids, the aft cushioned seating is comfortable, and options like the swim platform make swimming fun and easy. The 150L fuel tank means you won't be constantly worrying about refueling during your adventures.

Q4: Can it be configured seriously for fishing?

A: Yes, the center console layout is a favorite among anglers. We can customize it with a full fishing package: installation of rod holders (in the gunwales, on the console, or a rocket launcher), a live well, a fish box, and mounting pads for your fish finder and GPS. The open deck provides plenty of room to fight a fish.

Q5: What is the real advantage of the optional solid foam collar upgrade?

A: The solid foam collar upgrade provides absolute, permanent buoyancy. Even if the outer fabric tube is severely punctured, the foam collar will keep the boat afloat and stable. This is a top-tier safety feature for those who frequently venture far offshore, prioritize maximum safety for their family, or simply want the ultimate peace of mind.

Q6: We have specific ideas for the layout and colors. How flexible is the customization?

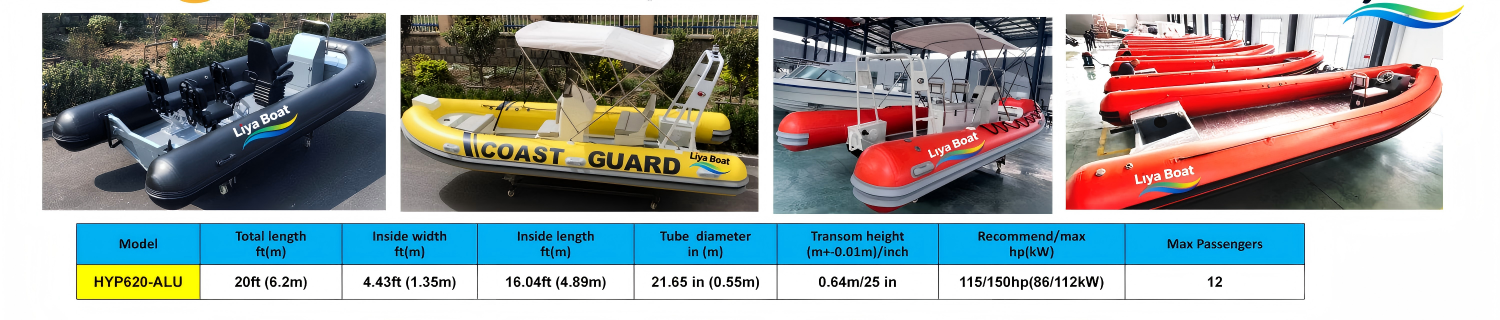

A: We are highly flexible. Customization is a core part of our service. You can choose the tube color, hull color, upholstery color and material, decking type, and which factory options (like the platform, T-top, etc.) to include. For significant layout changes, we can discuss engineering feasibility and provide guidance to create your ideal boat.

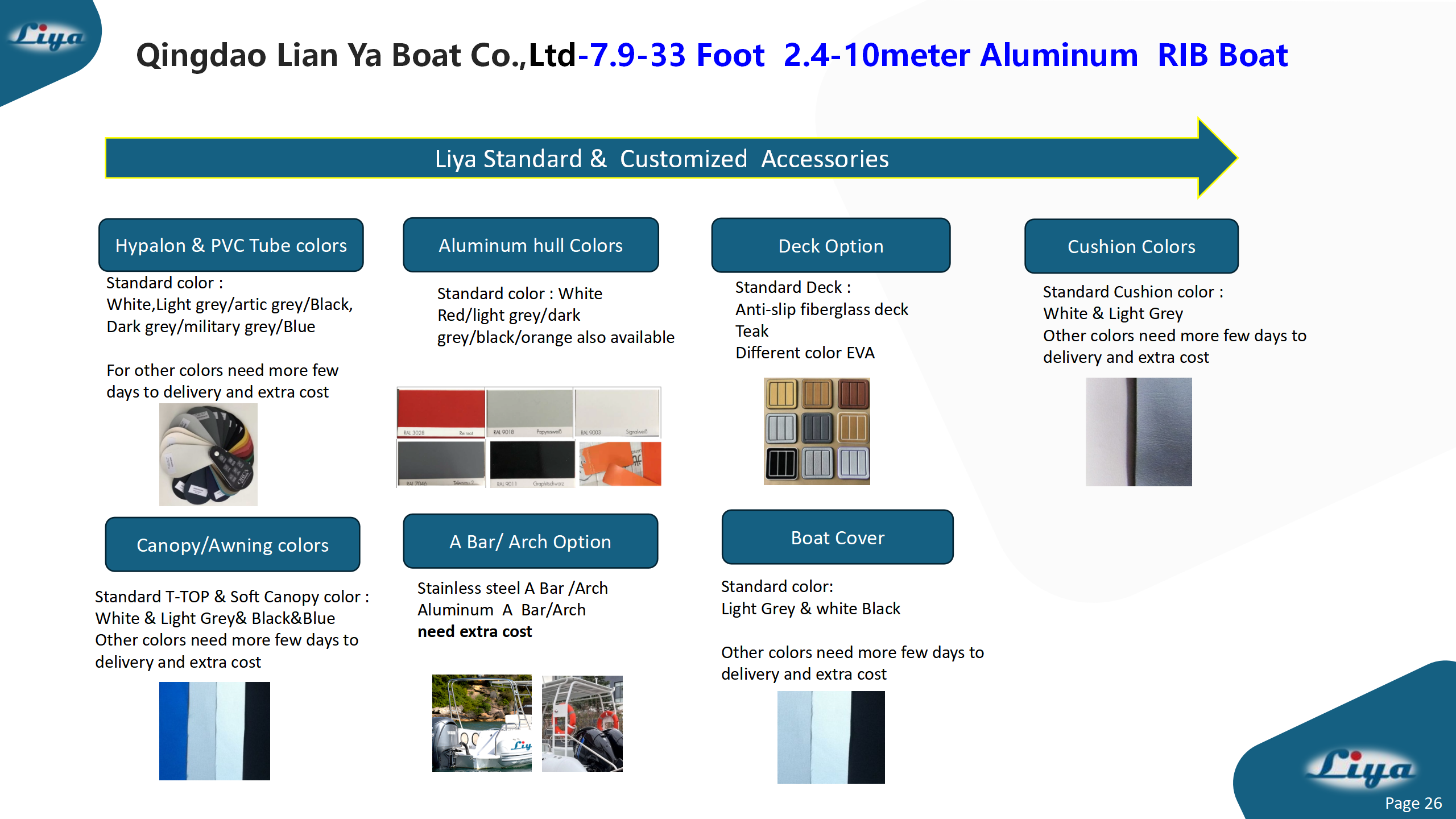

▍Standard & Customizable Accessories- Liya 20 Foot Aluminum hull Inflatable boat

Main configuration：

• Console: The console features a cushioned seat and footstep. Available in teak, imitation teak, or EVA.

• Bow: The bow can be fitted with a cushion, with a storage box underneath.

• Optional features include a stainless steel or aluminum T-TOP, and a folding canopy.

• Stern: Stern seats with cushions and backrests.

• Optional stainless steel or aluminum arch with navigation lights. A water ski pole is also optional, enabling water sports such as towed waterskiing and surfing.

• End tube: Available in various shapes: round, pointed, and fiberglass. An aluminum swimming platform and ladder are also available.

• Customization is available upon request.

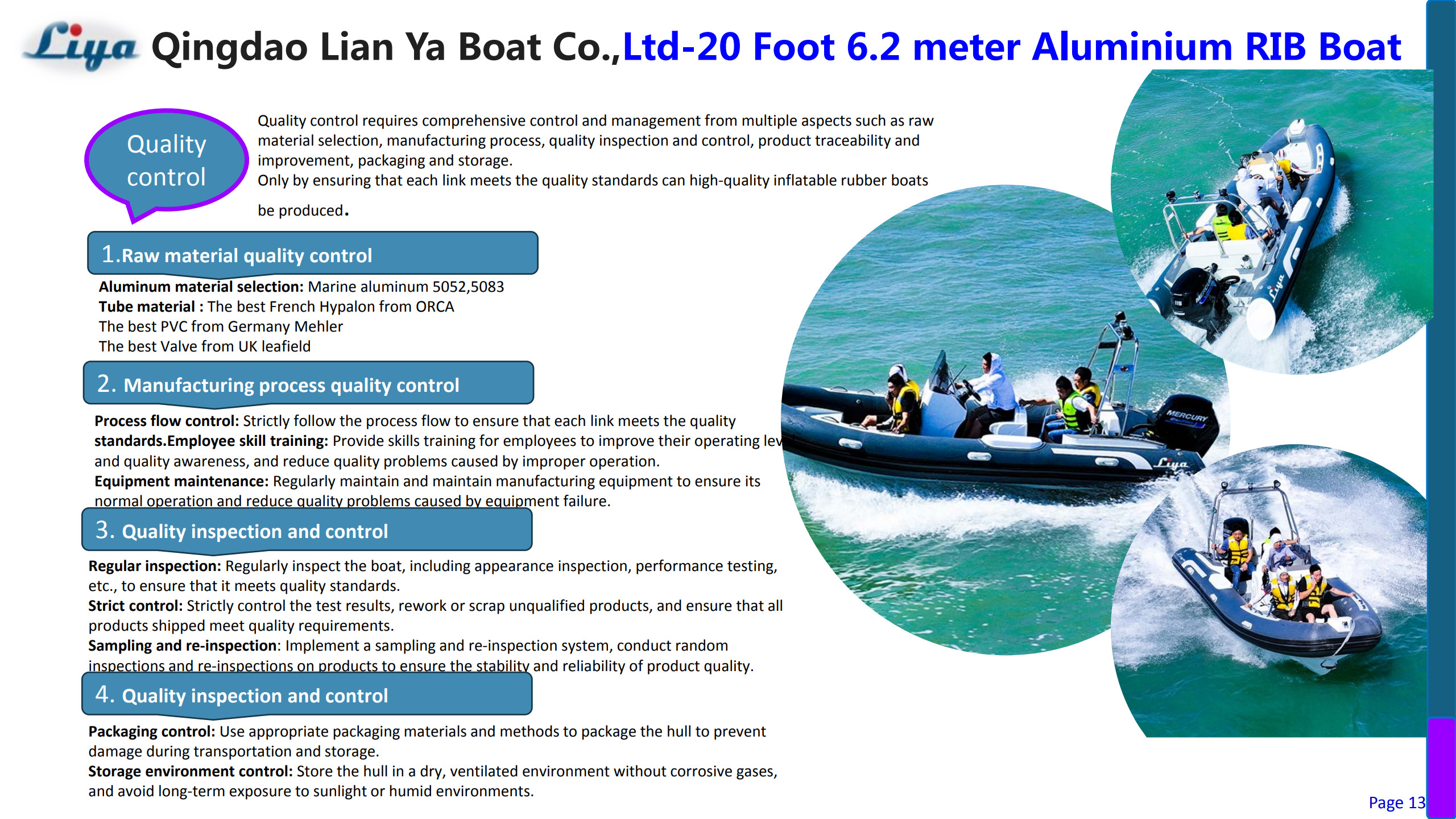

Quality Control-Liya 20FT Aluminum Deep V RIB Boat in Hypalon or PVC ,hard foam pontoon/tube.

-Designed base on international stanard ISO6185- certificate & Produced by ISO Manufactuer

Product Highlights：

• Deep V 24-degree hull, ensuring stability and speed.

• World-class Hypalon tubes, upgradeable to solid and detachable buoys. tubs can be decorated to suit individual needs.

• Standard 150L fuel tank.

• Self-draining deck with drain pipe.

• Recommended engine: 90 hp; Maximum engine capacity: 115 hp.

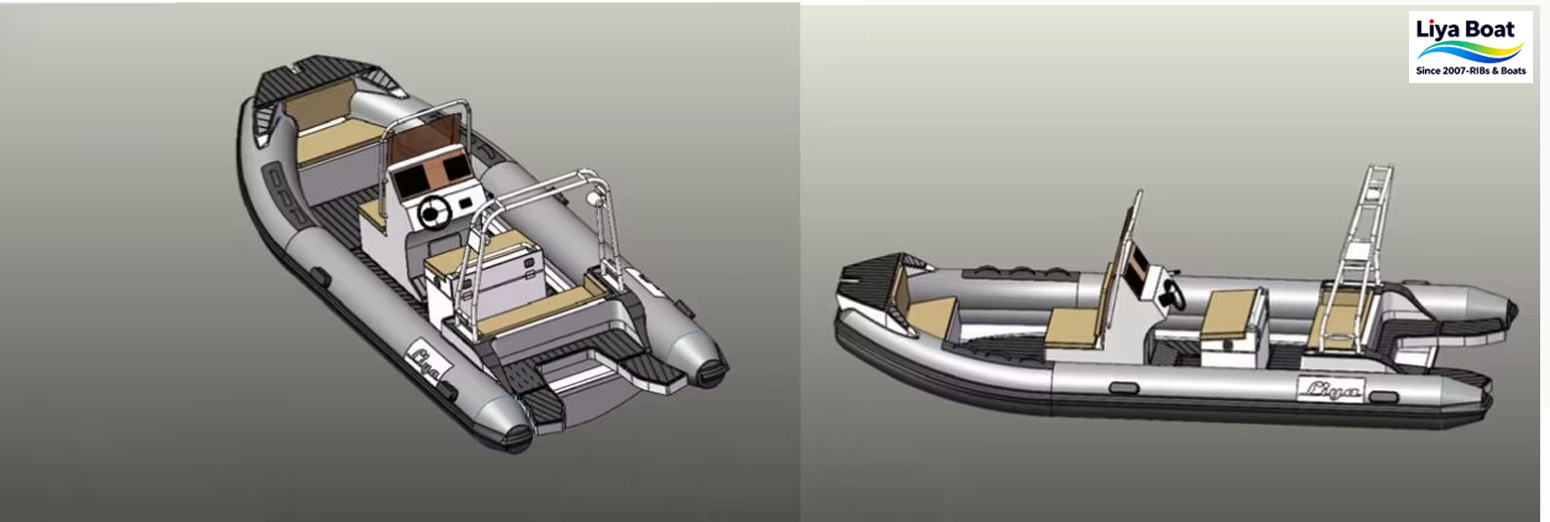

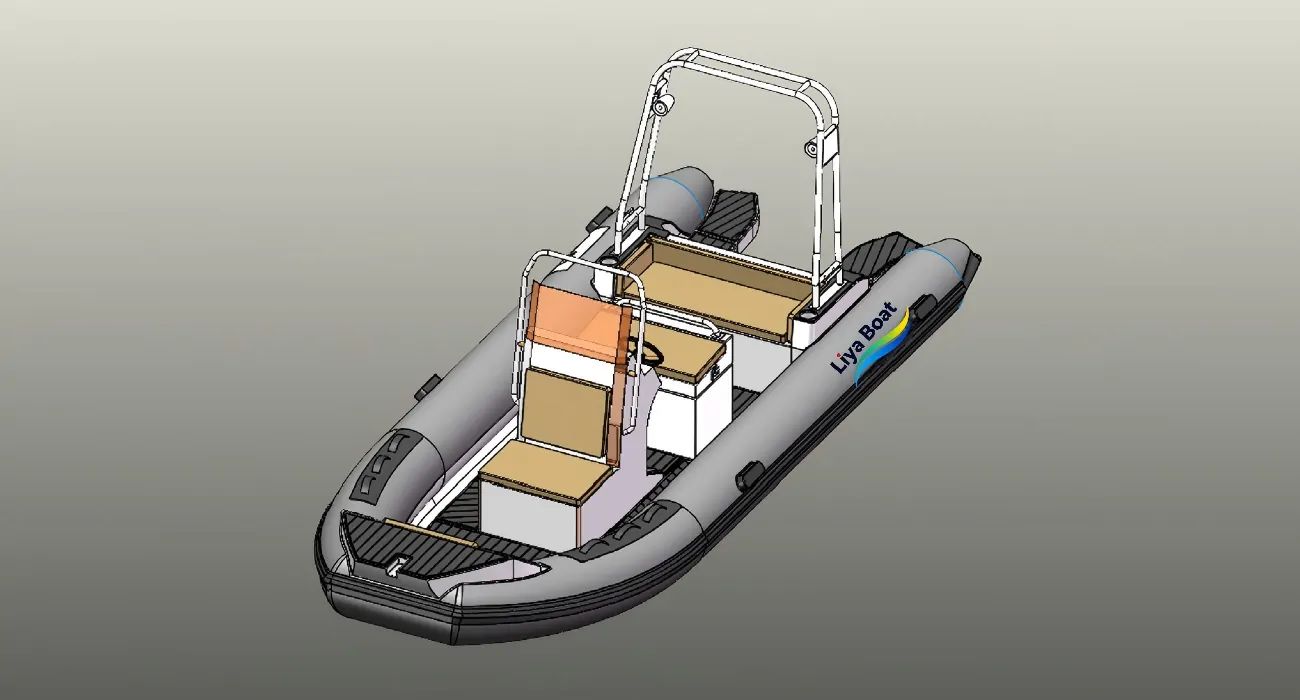

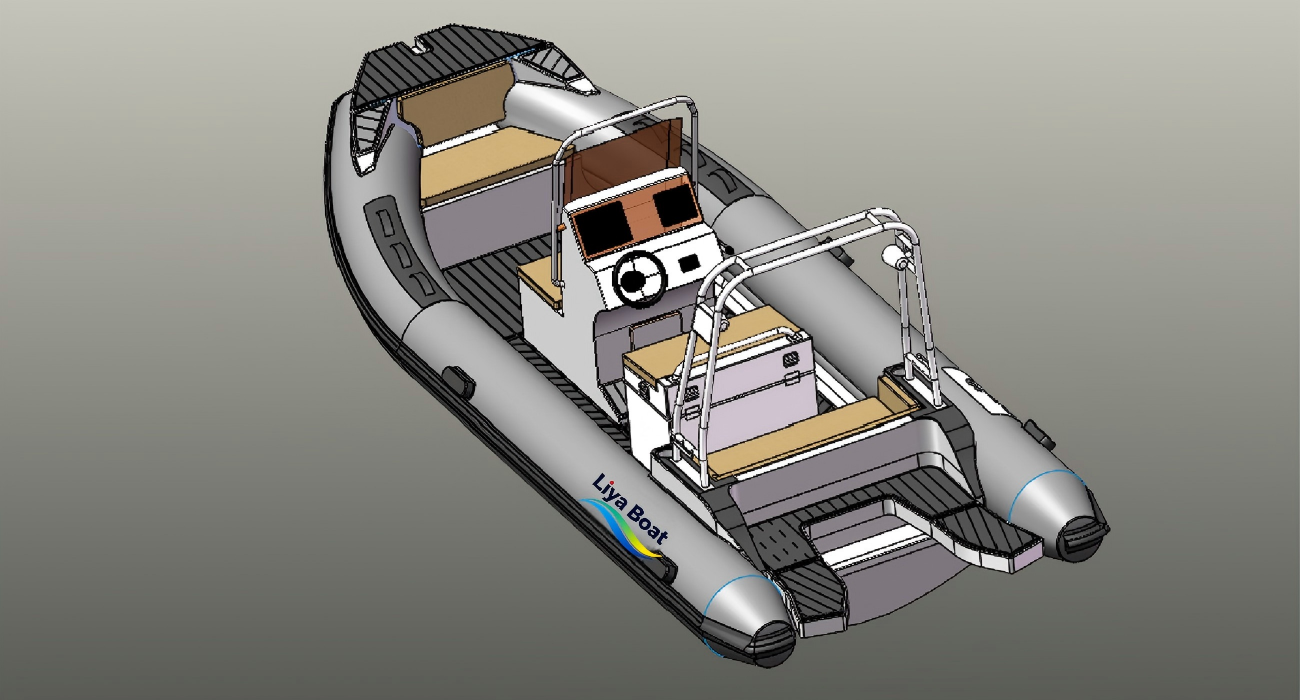

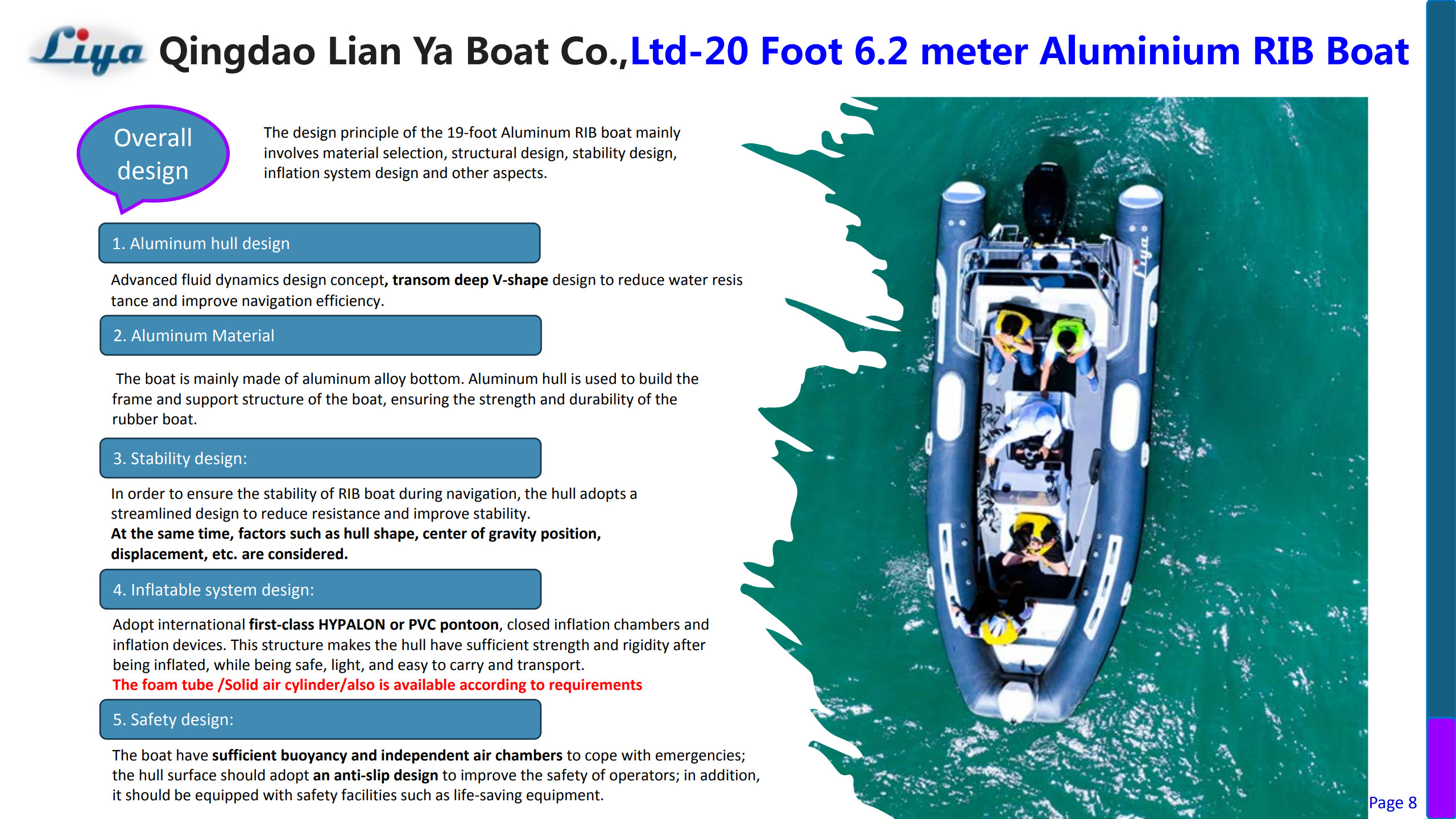

▋Overall design

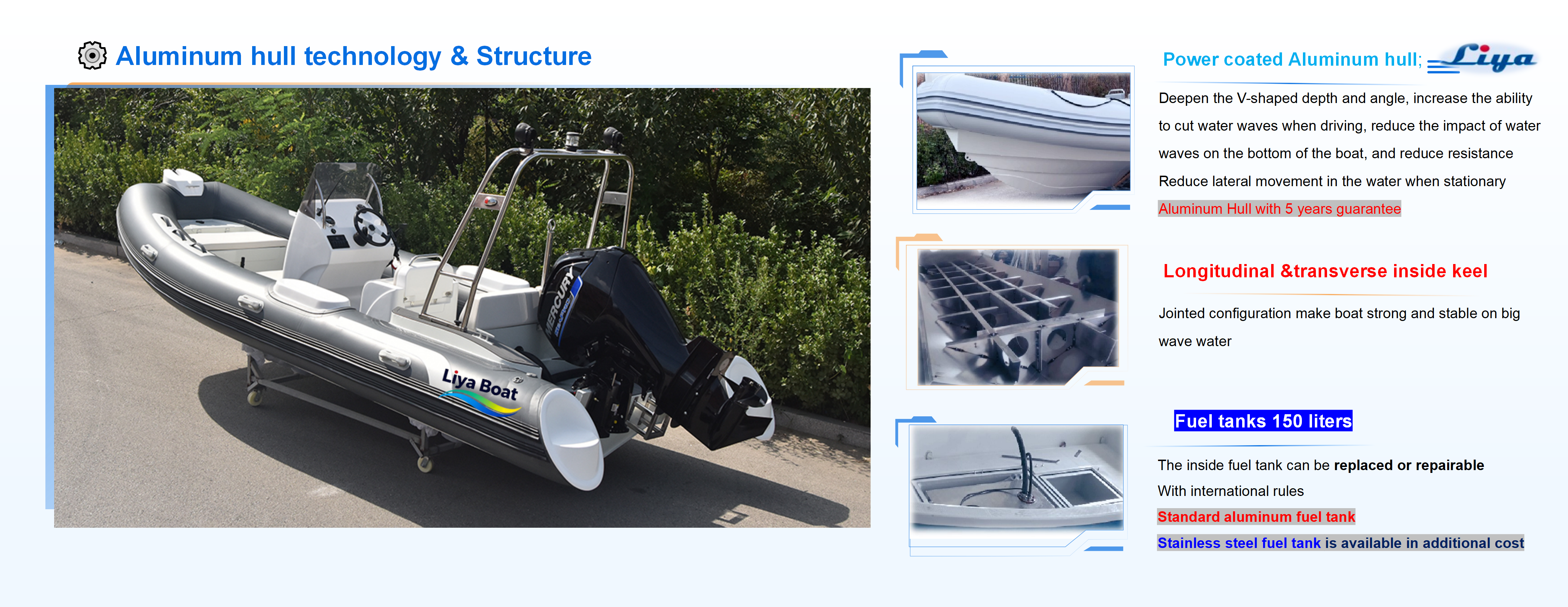

▋Aluminum Hull Technology & Structure

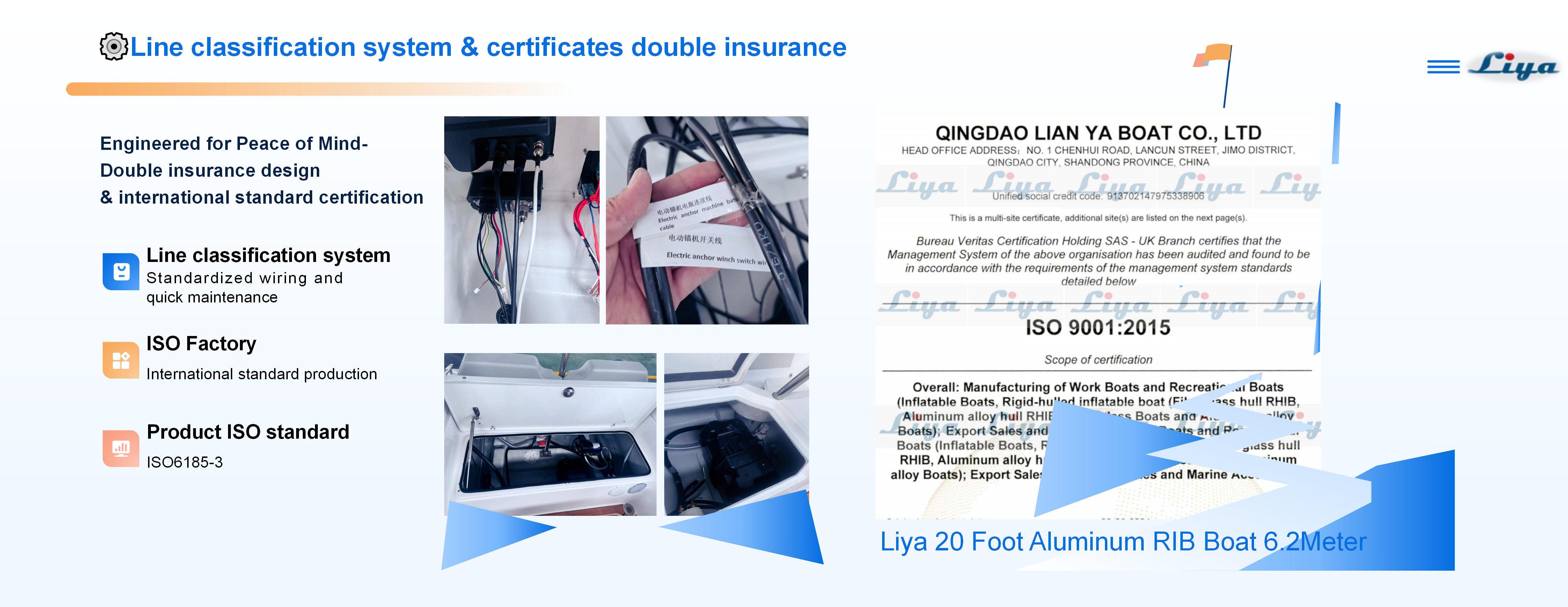

▋Line Classification System & Certificates Double Insurance

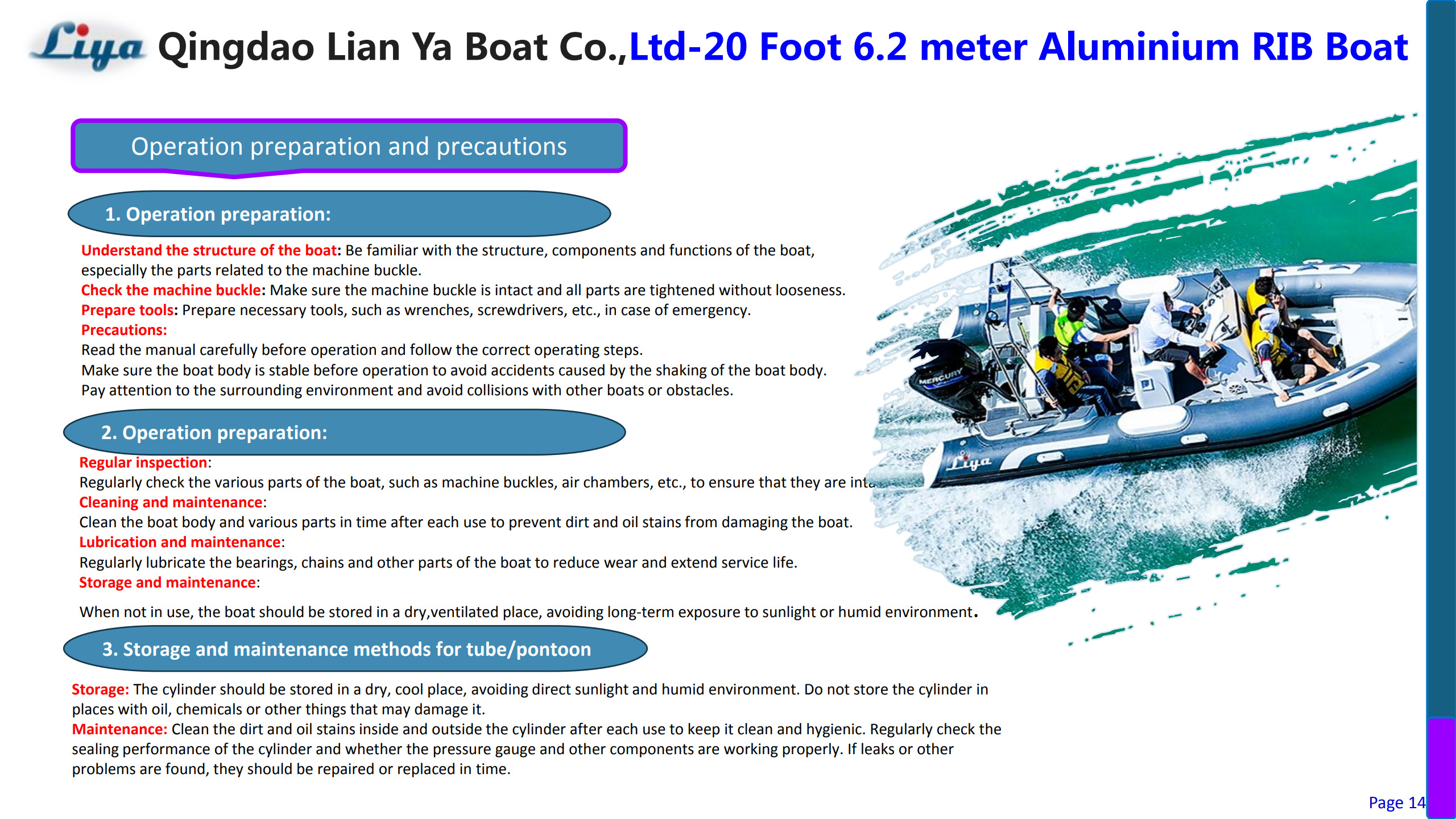

Operation & Precautions- Liya 20 Foot Deep V Hull RIB Boat
