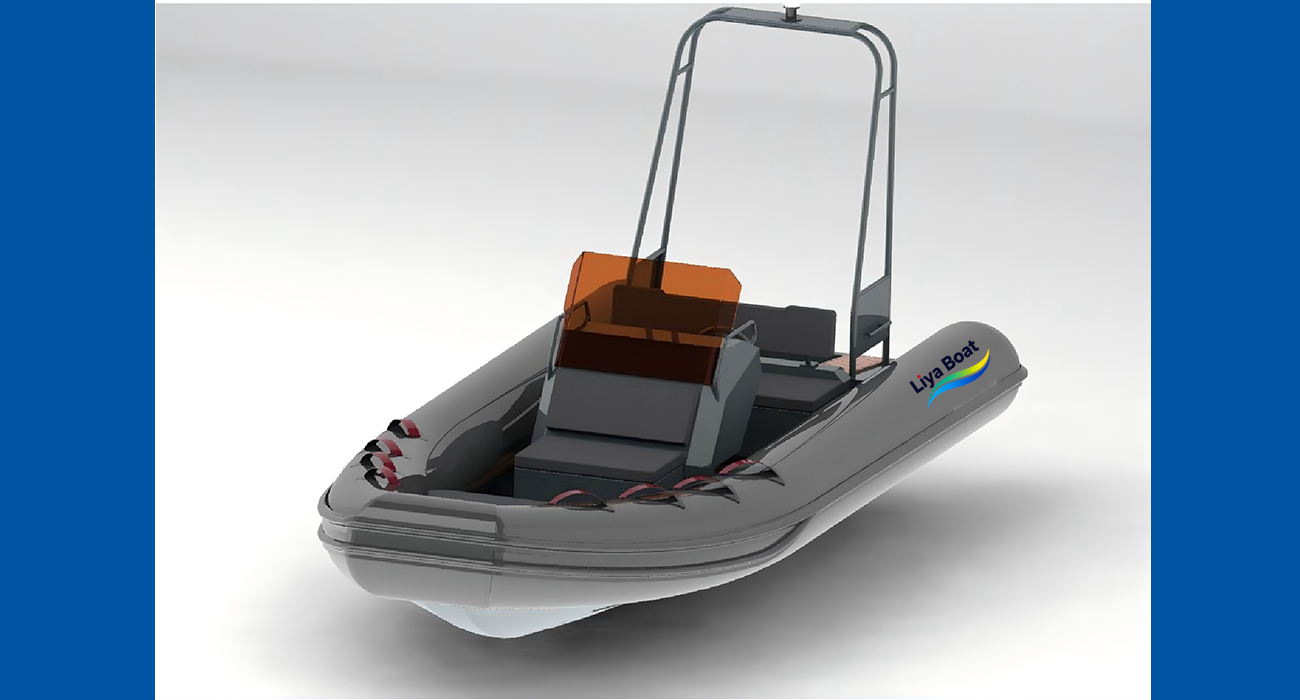

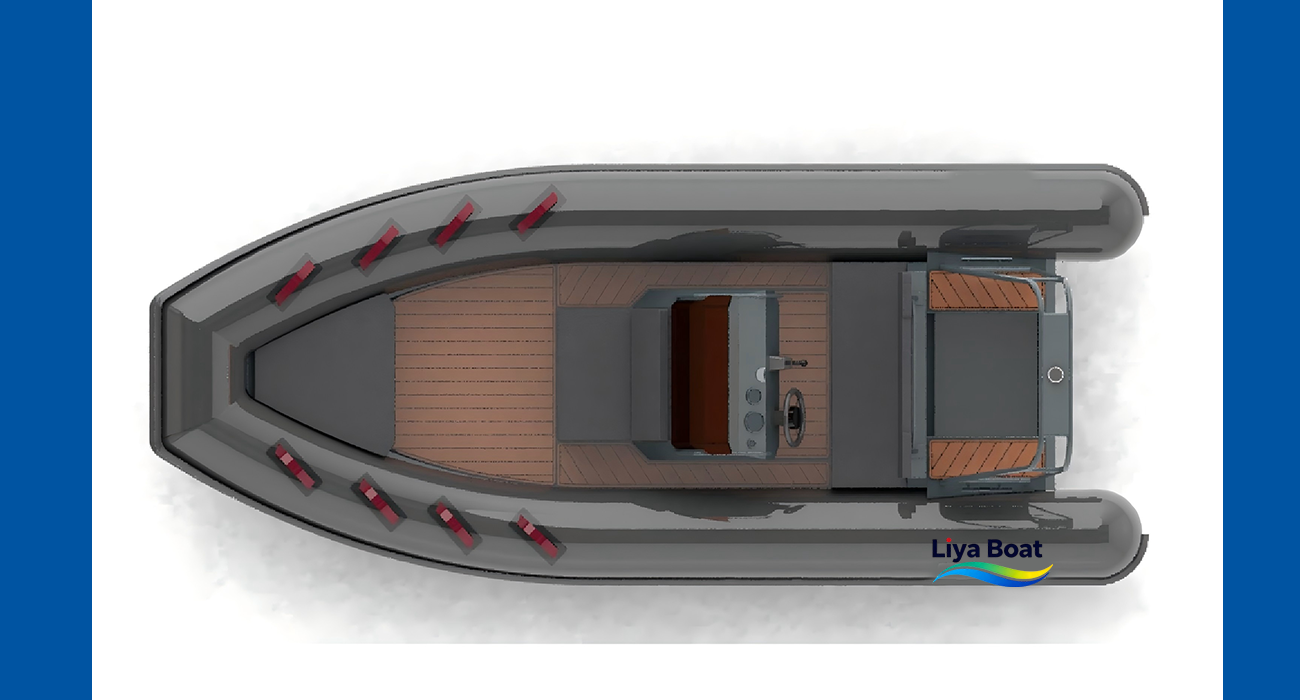

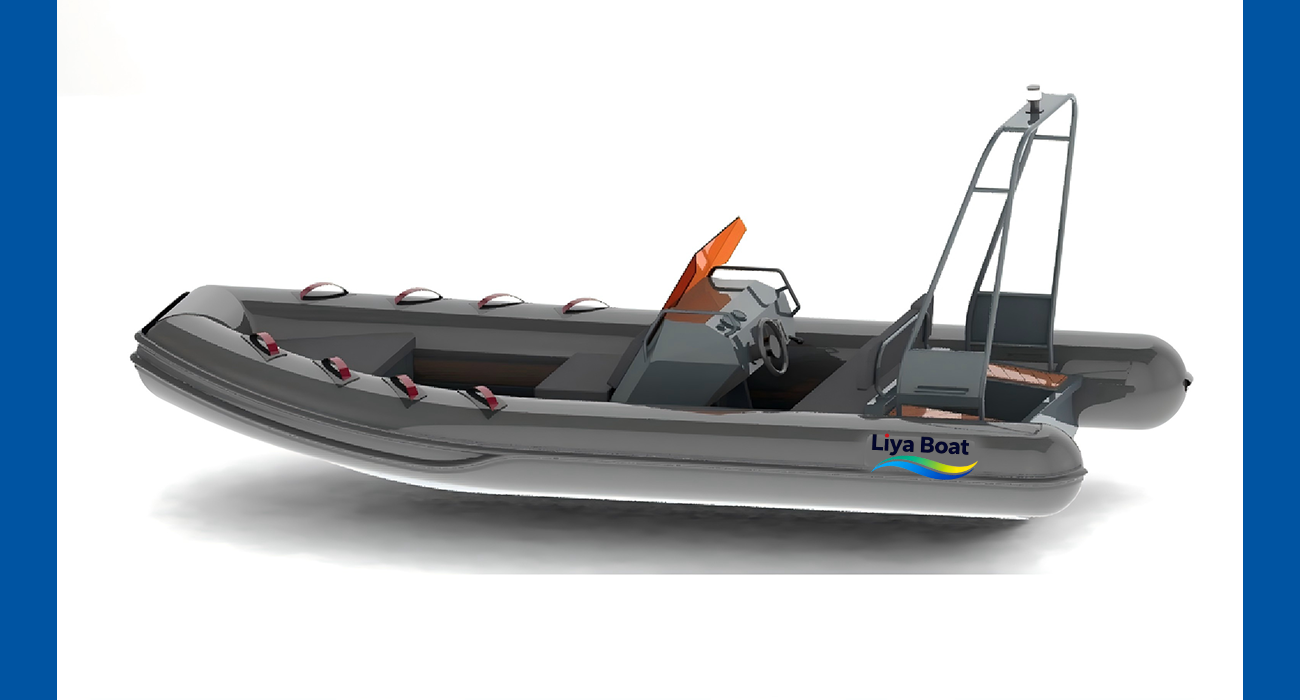

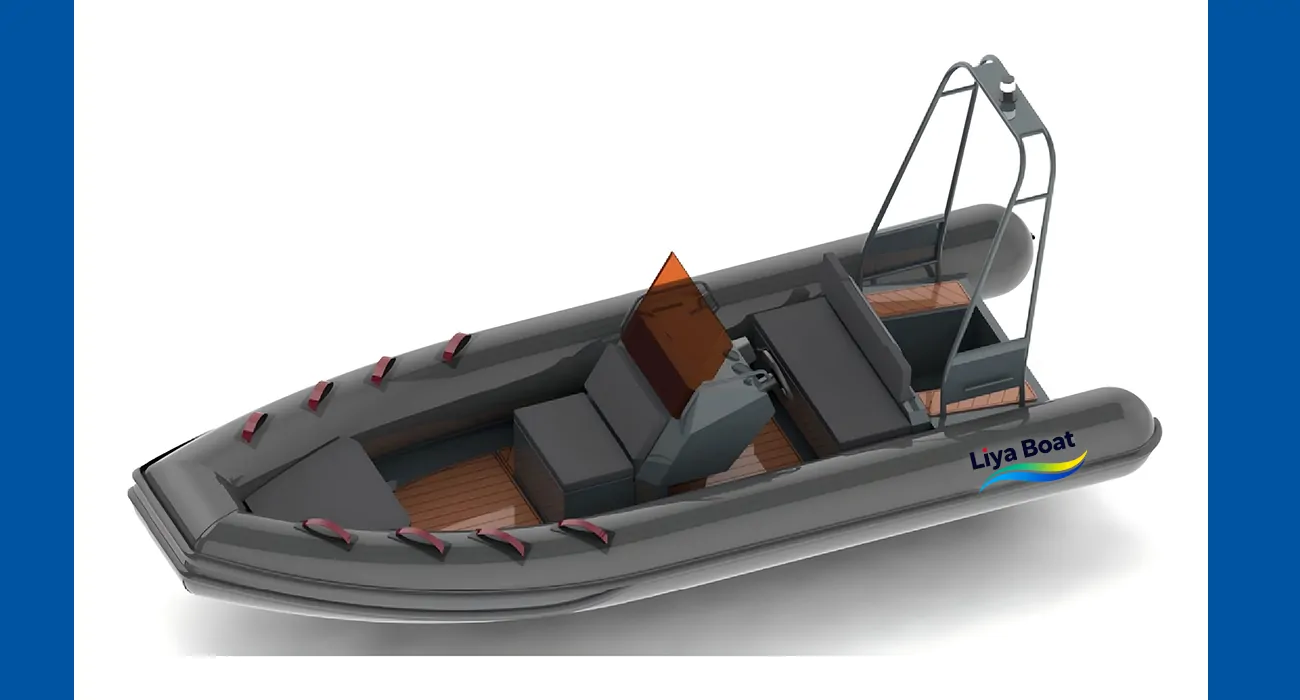

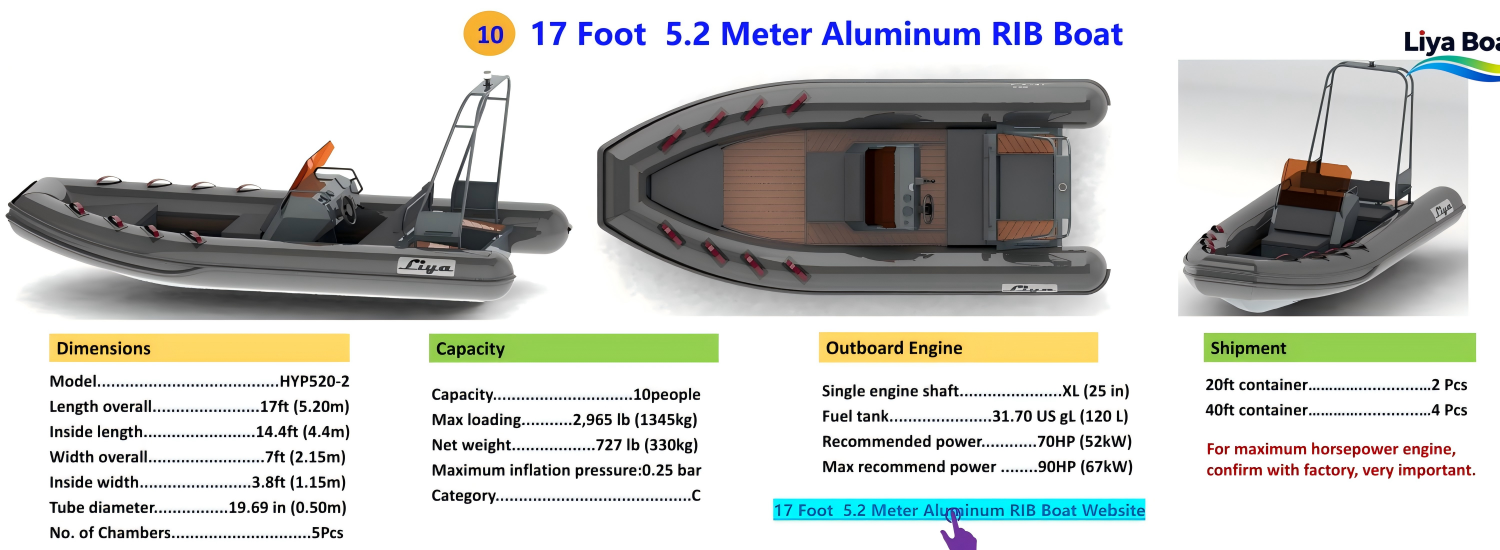

Liya 17 Foot Aluminum Center Console RIB Boat Technical Parameter

▍Dimensions

Model…………………..HYP520-2

Length overall………5.2m –17’

Inside length………...4.4m –14.4’

Width overall………..2.15m –7’

Inside width………….1.15m –3.8’

Tube diameter……...0.50m – 1.64’

Airtight compartment…….5pcs

( The above data may have slight errors due to variations in the degree of inflation.）

Maximum inflatation pressure: 0.25 Bar

▍Capacity

Capacity…………………………10 people

Max loading…………………..1345kg

Net Weight (kg)……………. 330kg

The net weight menans boat with console, seat, canopy, A bar/ Arch etc, empty fuel tank, no engine.

The net weight also may change slightly depending on the different console, seat or other configuration etc.

Category………………………...C

Single engine shaft…………………..XL 25'’

Fuel tank.…………………….….............120 Liters

Recommended power (Hp)…………..70HP/ about 125kg-145kg

Max recommend power (Hp )………90HP/ about 163kg-165kg

(If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.)

▍Shipment

20ft/40ft  container…………2pc/4pcs

Buyer-Centric FAQ:

Q1: Is this 5.2m boat really stable enough for 10 people?

A: Yes, when used within its designed capacity. The combination of the wide, buoyant inflatable tubes and the stable aluminum V-hull provides a secure platform. The CE certification confirms it meets specific stability and safety standards for carrying 10 persons under defined conditions. For optimal comfort, we recommend it for typical day-trip loads of passengers and gear.

Q2: Why choose aluminum over fiberglass for a boat of this size?

A: For this class of boat, aluminum offers distinct advantages: it's significantly lighter, which improves performance and fuel economy with smaller engines, makes it easier to trailer, and is incredibly durable and low-maintenance—it won't crack like fiberglass might from impact and is immune to osmosis. The 5-year hull warranty underscores its longevity.

Q3: Can this effectively serve as a tender for a midsize yacht (e.g., 50-70ft)?

A: Absolutely. It's an excellent yacht tender for vessels of that size. Its lightweight aluminum construction makes it easy to lift on davits, its 10-person capacity is great for guest shuttles, and its 120L fuel tank allows for multiple trips. The center console design offers good handling for the driver during docking maneuvers.

Q4: What kind of watersports can it handle?

A: With the recommended 70HP engine, it's well-suited for towing inflatable tubes, wakeboards, or water-skiers. For more demanding sports like wake surfing, opting for the maximum 90HP and adding the optional ski tow pylon is recommended. The stable RIB platform provides a good tow point.

Q5: How customizable is it? Can we get a specific color for the tubes?

A: We offer a high degree of customization. You can select from a range of standard colors for the inflatable tubes and hull. We can also often match custom colors for an additional fee. Other customizable elements include the deck material (EVA, teak, etc.), cushion upholstery color, and the selection of factory options like the Bimini or lighting packages.

Q6: What is the typical lead time for an order?

A: For a standard configuration, the lead time is typically 6-8 weeks from order confirmation and deposit receipt. If you require extensive customization (like special colors or non-standard accessories), the timeline may extend slightly, which we will confirm during the quotation process. We ensure clear communication throughout production.

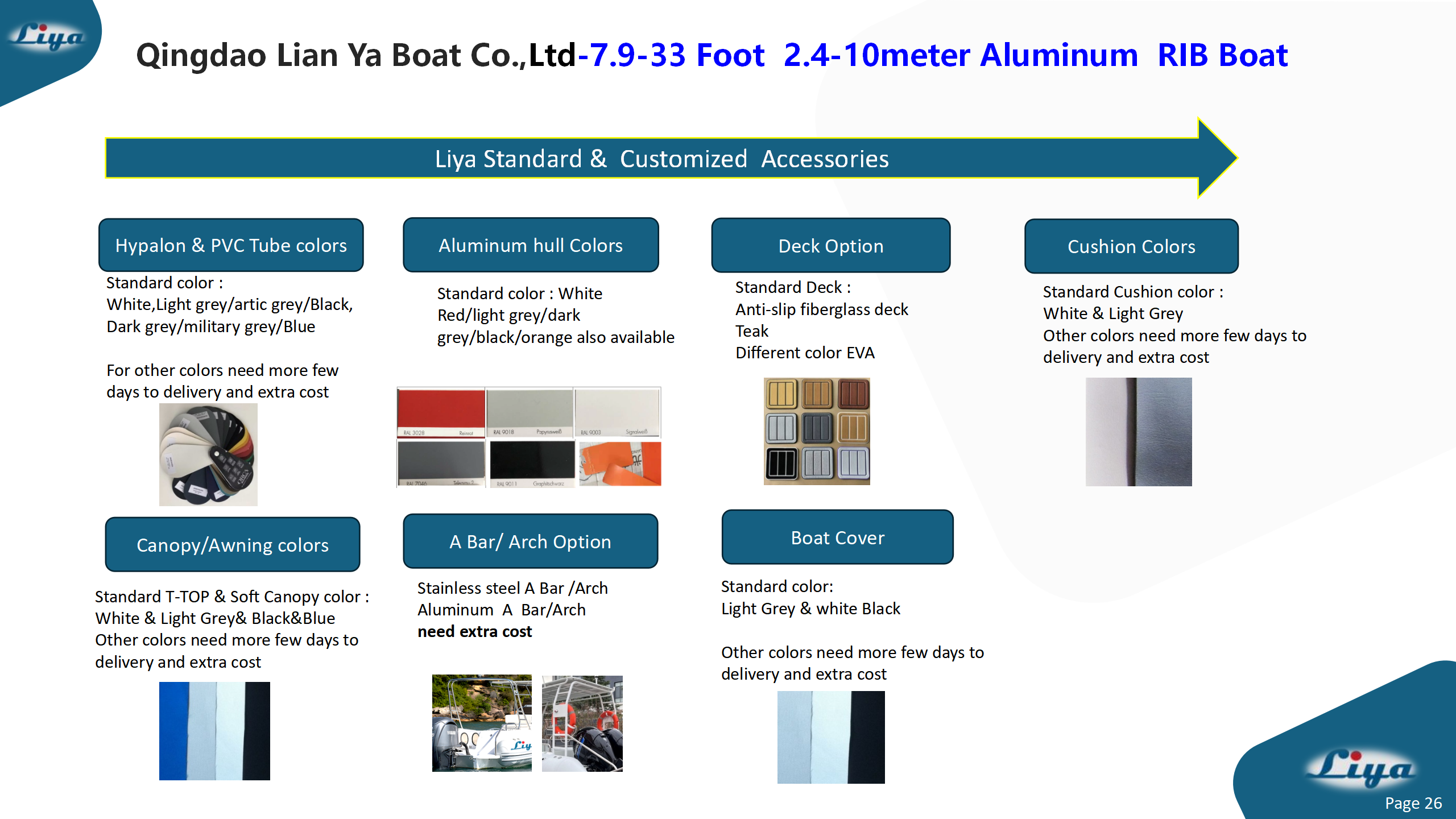

17 Foot Aluminum RIB Boat Standard and Customizable Accessories

Main configuration:

• Control console: Padded console with footrests, teak, imitation teak, EVA, and PVC non-slip flooring available.

• Bow: Padded bow with storage compartment underneath.

• Optional features include a folding awning.

• Stern: Padded stern seat with backrest.

• Optional features include a stainless steel or aluminum alloy stern fin with navigation lights and a swimming ladder. A water ski pole is also optional for water sports such as towed waterskiing and surfing.

• Stern tube: Optional shapes: round, pointed, and fiberglass stern ladder.

• Customizable.

• Materials and workmanship: Utilizes world-class air pump materials, ORCA and German PVC.

Quality Control-Liya aluminium rigid inflatable boats in Hypalon or PVC ,hard foam pontoon/tube.

Product Highlights：

• Deep V hull, ensuring stability and speed.

• World-class Hypalon tubes, upgradeable to solid and detachable buoys. tubs can be decorated to suit individual needs.

• Standard 120L fuel tank.

• Self-draining deck with drain pipe.

• Recommended engine: 70 hp; Maximum engine capacity: 90 hp.

-Designed base on international stanard ISO6185- certificate & Produced by ISO Manufactuer

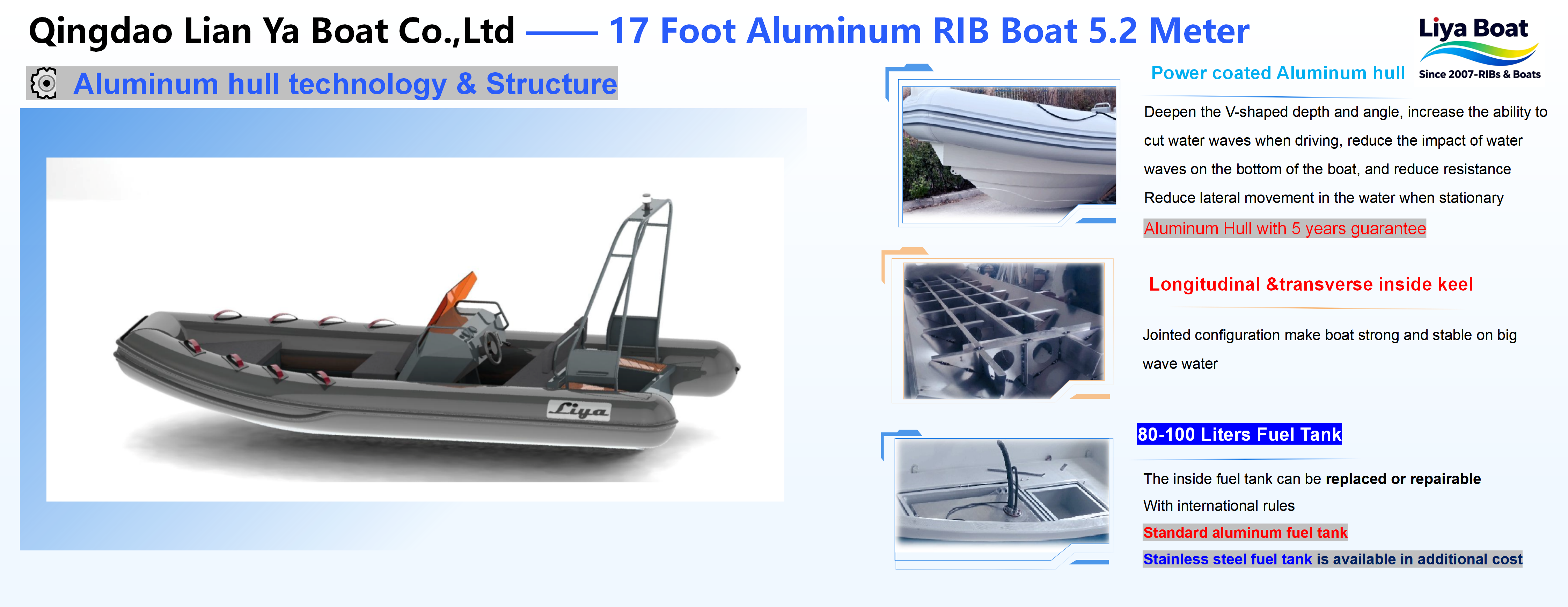

▋Aluminum Hull Technology & Structure

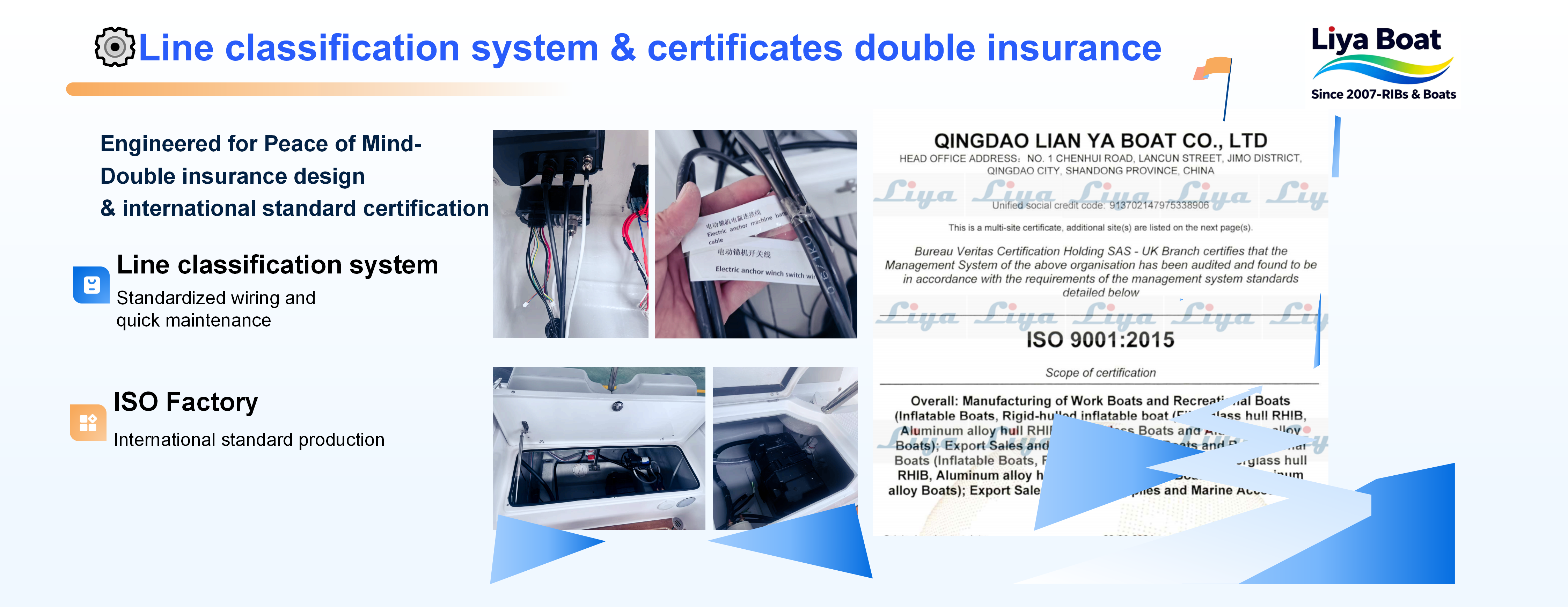

▋Line Classification System & Certificates Double Insurance

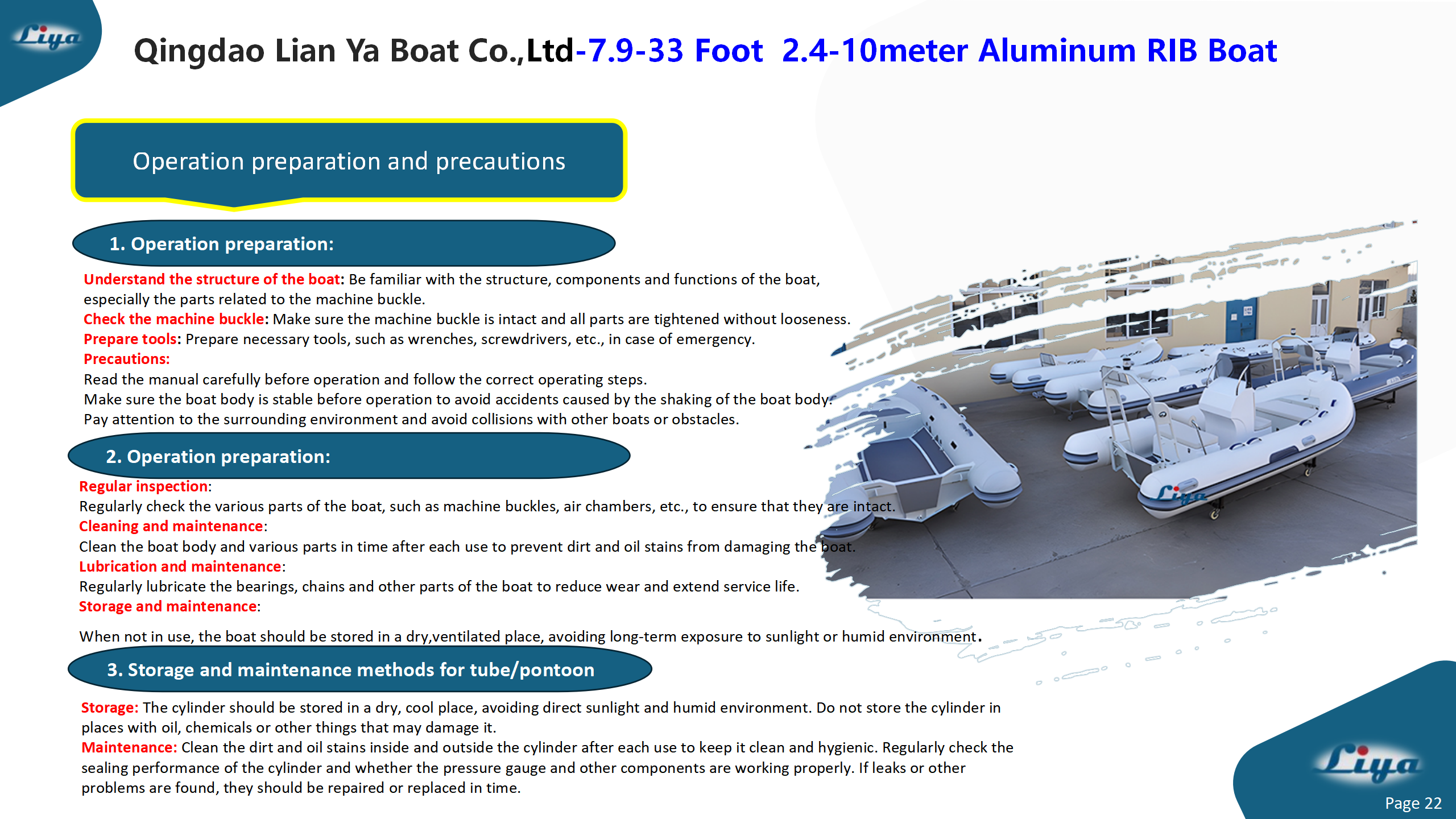

Liya 17FT Custom Aluminum v-Hull RIB Operation & Precautions
