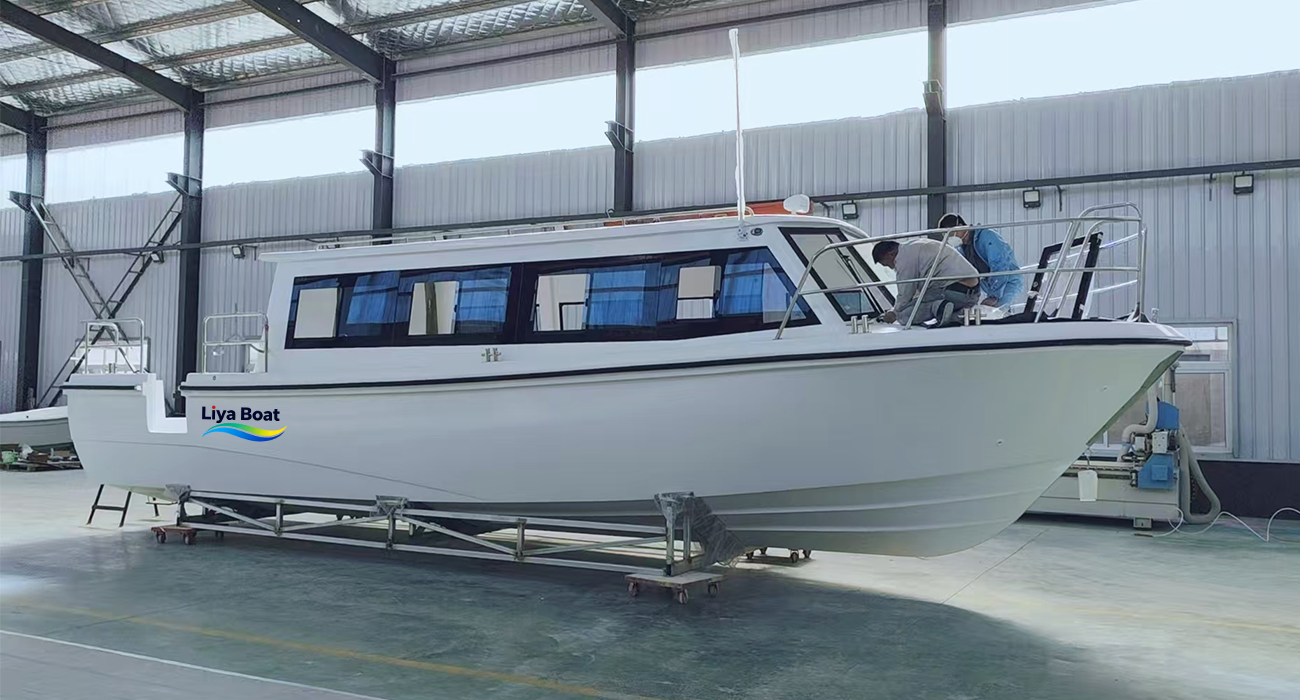

Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP
Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP

Liya 37ft Fiberglass Passenger Ferry Boat with 30 Seats,22 Capacity,300-600HP

⚙️Versatile 37ft Commercial Passenger Vessel
Durable Build: 37-Foot (11.19m) high-strength fiberglass hull.
High Capacity: 30 fixed seats (configurable layout), certified for up to 22 passengers.
Enclosed Cabin: Full enclosed cabin with doors and windows for all-weather operation.
Powerful & Efficient: Single or twin engine options (300-600HP).
Large 1000L main fuel tank + 200L generator diesel tank.
Fully Equippable: Options for toilet, galley, A/C, TV, fridge, solar panels.
Aft side doors for easy passenger access.
Multi-Role: Perfect for sightseeing tours, floating restaurant, leisure fishing, adventure transport, and more.
  • 11.19m passenger boat

  • Liya Boat

  • 8903.190000

  • 22 passengers

  • XL 25''

  • 2x300HP

库存: 0
Inquire

▍Detailed Description:

  • The 37-foot (11.19-meter) fiberglass passenger ferry boat is a robust and versatile commercial vessel designed for profitability and passenger comfort. Its fully enclosed cabin, featuring front, rear, and side doors along with windows, ensures safe and comfortable operation in various weather conditions, making it ideal for scheduled tours or private charters.

  • The cabin comes standard with 30 sturdy seats equipped with under-seat storage. With a maximum certified capacity of 22 persons, the seating layout, style, and number can be customized to fit your specific business model.

  • The vessel's versatility is further enhanced by a range of optional amenities, including a private toilet, an open galley (kitchen) with a dining table, air conditioning, television, refrigerator, and solar panels.

  • Strategically placed doors on both sides of the aft stern facilitate efficient and safe passenger boarding and disembarkation.

  • Powered by a configurable single or twin outboard or inboard/outboard engine system (300-600 HP total), this ferry offers reliable performance.

  • Its exceptional range is supported by a substantial 1000-liter main fuel tank, supplemented by a separate 200-liter diesel tank dedicated to the onboard generator.

  • Built with a rugged fiberglass hull, this multi-purpose vessel is perfectly suited for a wide array of commercial applications, including water tourism and sightseeing, operating as a floating restaurant, leisure group fishing, coastal adventure trips, and passenger transport services.

▍Features of this vessel:

1. Self-draining, anti-slip deck.

2. This 11.19m vessel's lower hull design is based on the basic shape of Japanese Yamaha marine fishing workboats, featuring a flat midsection, slightly smaller lift angles on both sides, and a larger hull width. This results in greater vessel stability, larger cargo capacity, lower planing speed, energy savings, and reduced likelihood of grounding in shallow waters.

3. The hull structure utilizes a longitudinal and transverse keel structure with foam filling technology to enhance the vessel's stability and robustness at sea.

4. The fiberglass deck uses a PVC core instead of traditional wooden planks, ensuring a lighter, stronger, and more waterproof hull.

5. Deep V-shaped hull with a cast-in-place hull, and a double-hull structure for a neat and organized deck. It comes with a 5-year warranty and is versatile enough to function as a passenger boat, fishing boat, and recreational boat.

▍Main Configurations:

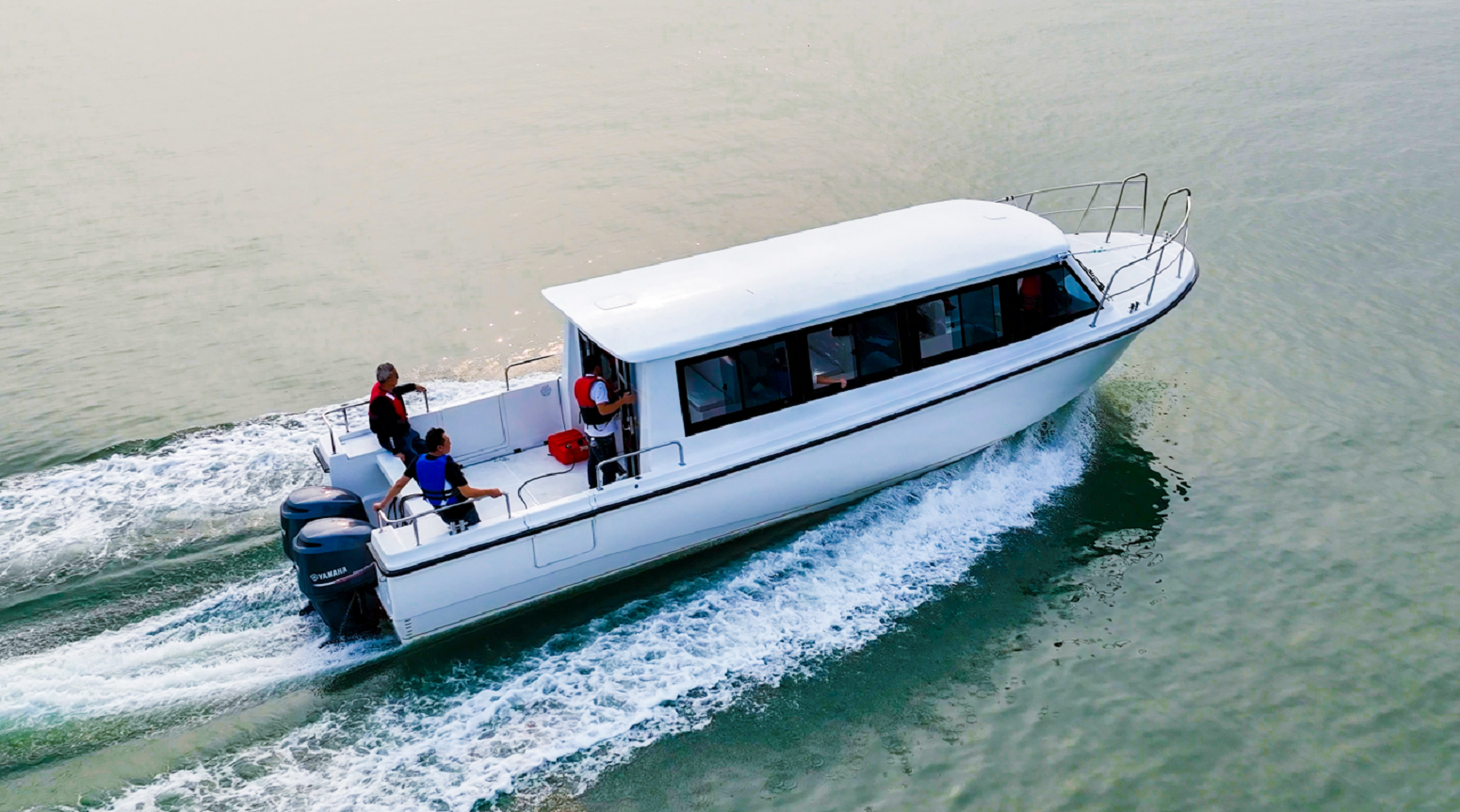

37 Foot fully-enclosed-cabin-passenger-ferry-with-doors-windows

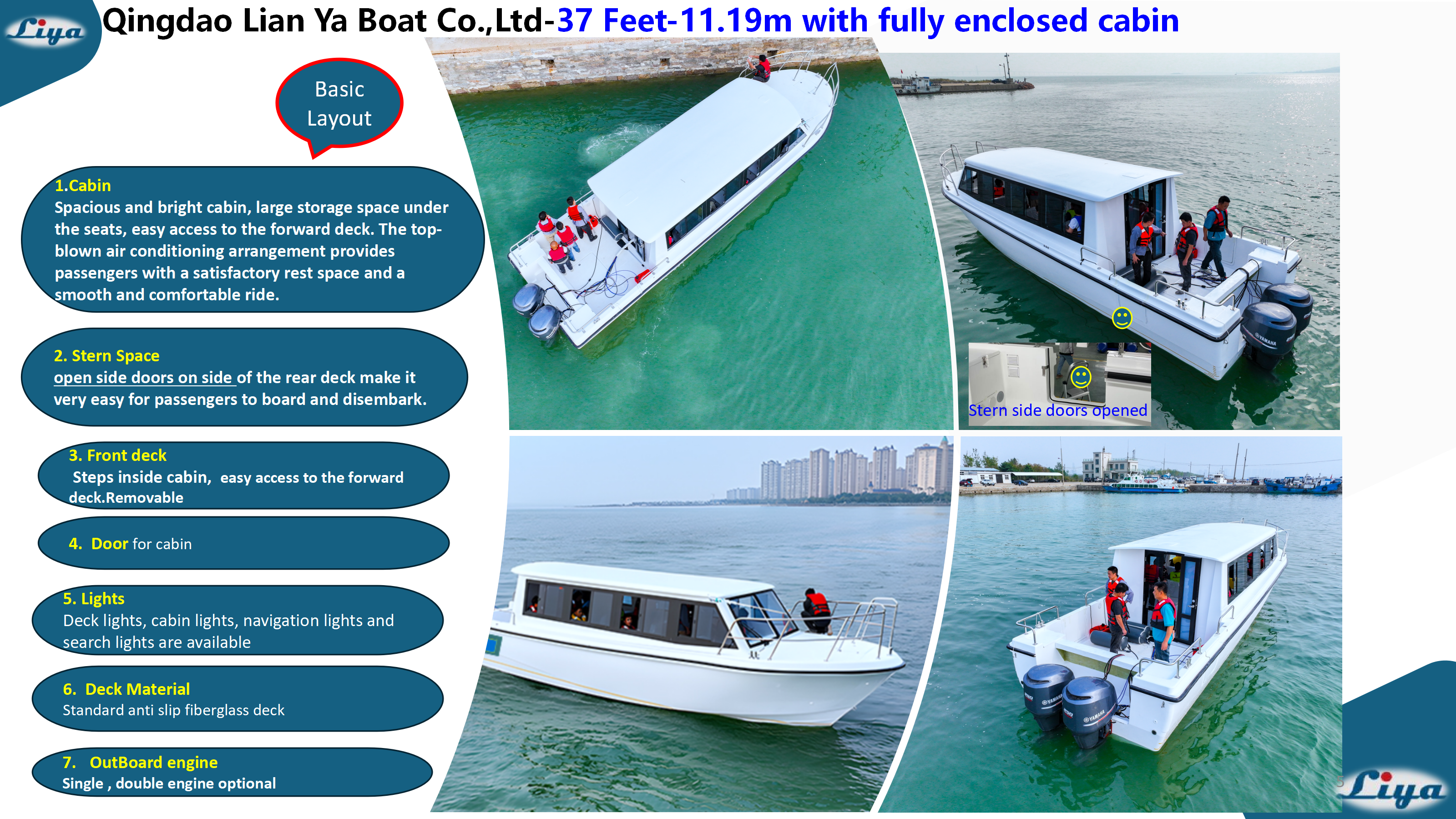

passenger-boat-for-sightseeing-and-water-tourism

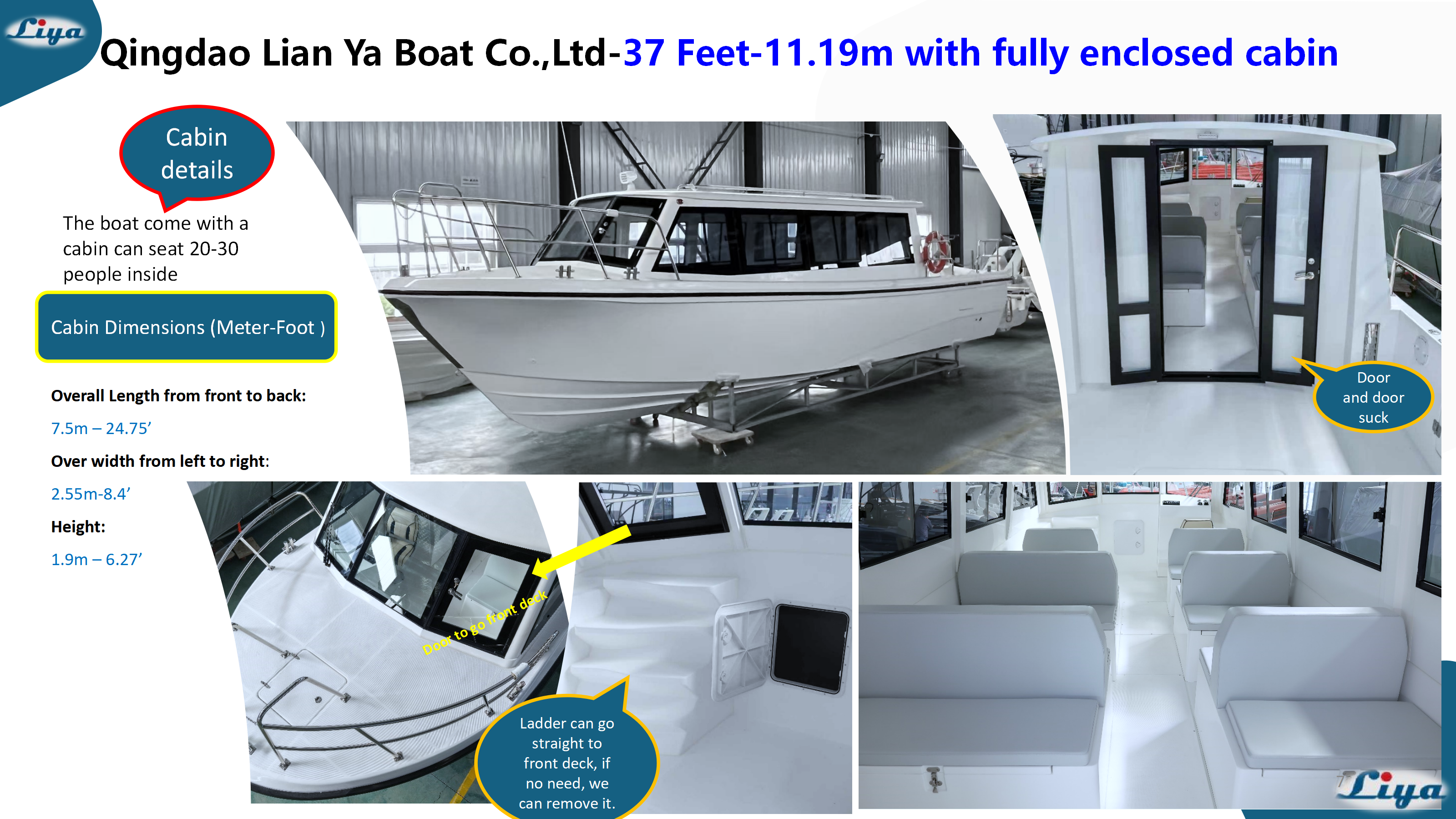

spacious-passenger-cabin-interior-layout

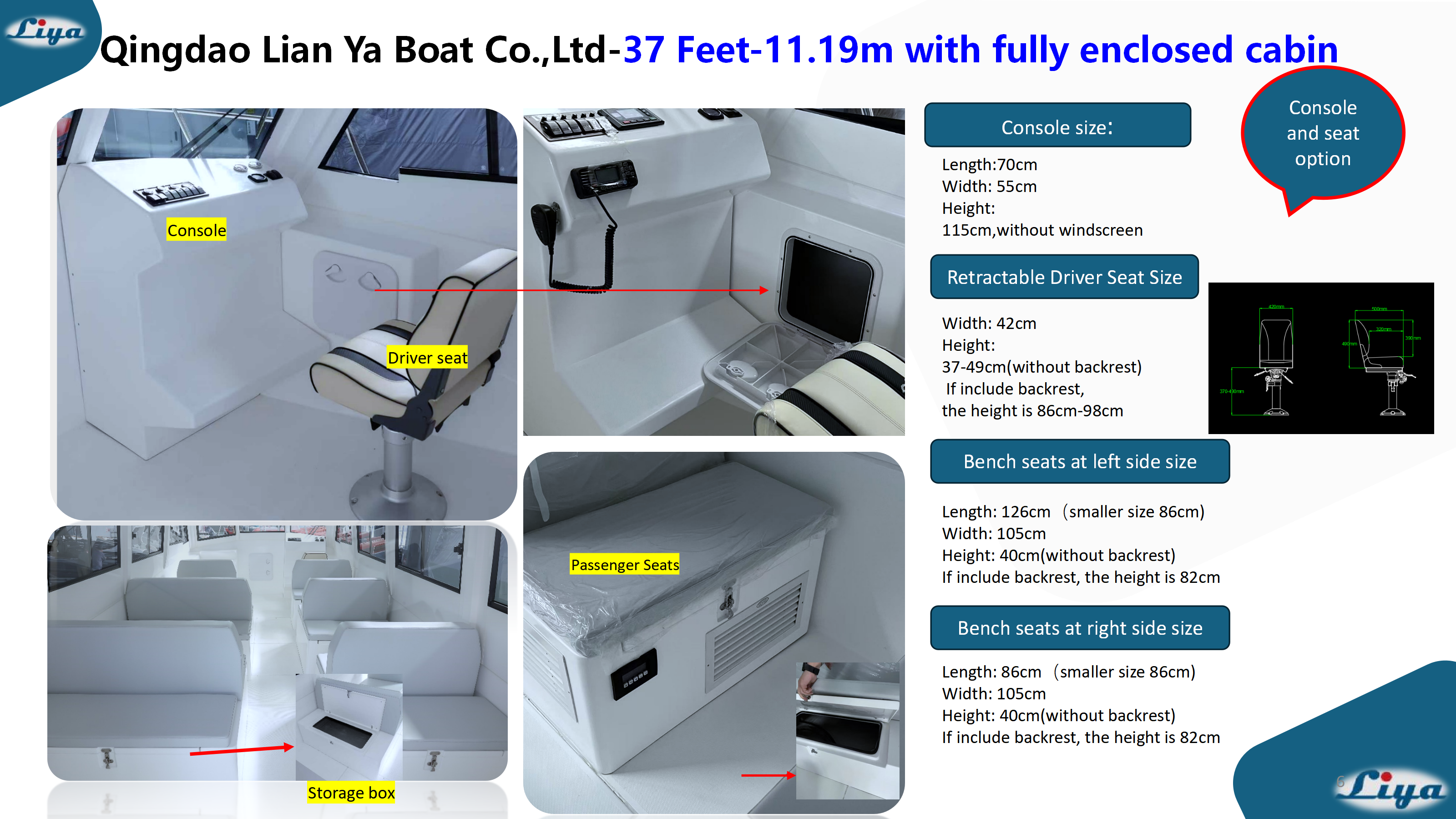

30-fixed-high-quality-seats-with-storage-compartments

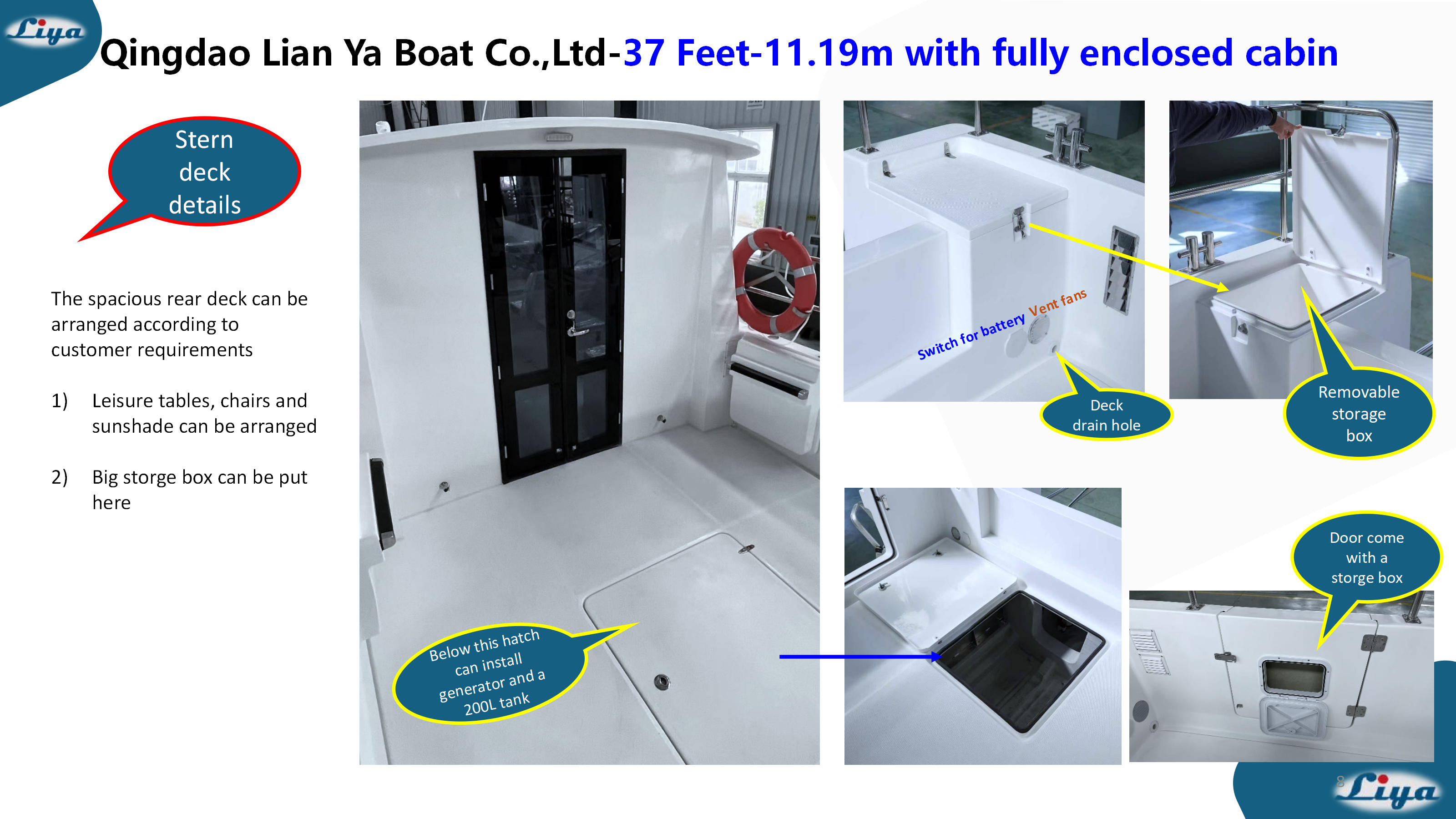

aft-stern-side-doors-for-efficient-passenger-boarding

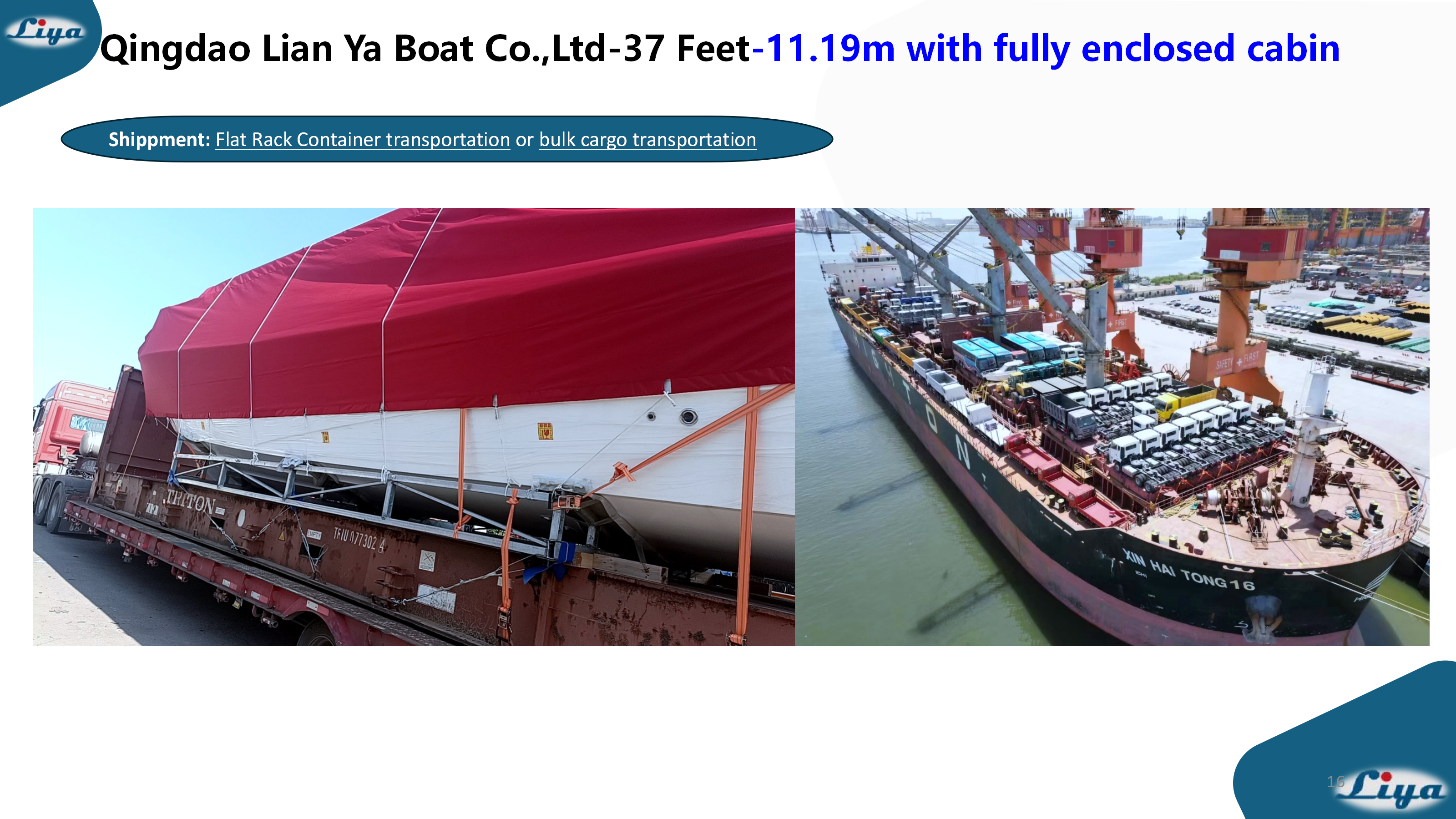

Liya 37 Foot Cabin Fiber Boat packing and shipment

1. Equipped with heavy-duty bollards, anchor boxes, and storage boxes, providing both aesthetic appeal and an enhanced passenger experience.

2. Equipped with enclosed cabins, including fore and aft doors and windows.

3. Equipped with a control panel and 30 seats, with a recommended maximum capacity of 22 people. Providing comfortable space for passengers.

4. Optional features include a separate toilet, open kitchen, and dining table.

5. Optional features include air conditioning, refrigerator, television, generator, and solar panels.

6. Doors can be installed on both sides of the aft side for easy passenger boarding and disembarking.

7. Optional fishing rod holders to meet passengers' recreational fishing needs.

8. Optional fore and aft safety railings.

▍Liya 37 Foot Passenger Ferry Boat Technical Specification

▍Dimensions

Maximum length..........................11.92m/39ft

Length of the hull……....…...........11.19m/37ft

Waterline length............................10m/33ft

Maximum beam.............................3.3m/10.9ft

Beam of hull.....................................3.2m/10.6ft

Maximum depth.............................1.55m/5.1ft;

Maximum draft:...............................0.535m/1.75ft;

Loaded dispalcement.....................8.398ton;

Deck height........................................0.83~0.86m /2.72ft-2.82ft

Net weight...................................4500kg

(The net weight means boat with console,seat etc,empty feul tank,no engine.

The net wight also may change slightly depending on the different console, seat or other configuration etc

V shape degree……….........................18°

Design catagory...................................B

▍Capacity

Crew..........................................................22 Persons

Max seats arrangement quantity...30pcs

▍Outboard Engine

Diesel...............................................200L

Fuel Tank.........................................1000L

Maximum Speed....................................about 32knots

Transom height……….............................66cm/ 22 Foot

Main Propulsion..............................2*300hp / about 239kg-259kg(single engine weight)

(If install the maximum horsepower engine, please confirm with factory before produce,

it's very important for boat.)

▍Shipment

Shipped by Flat Rack Container transport


▍Standard & Optional Accessories- Liya 37 Foot Passenger Boat

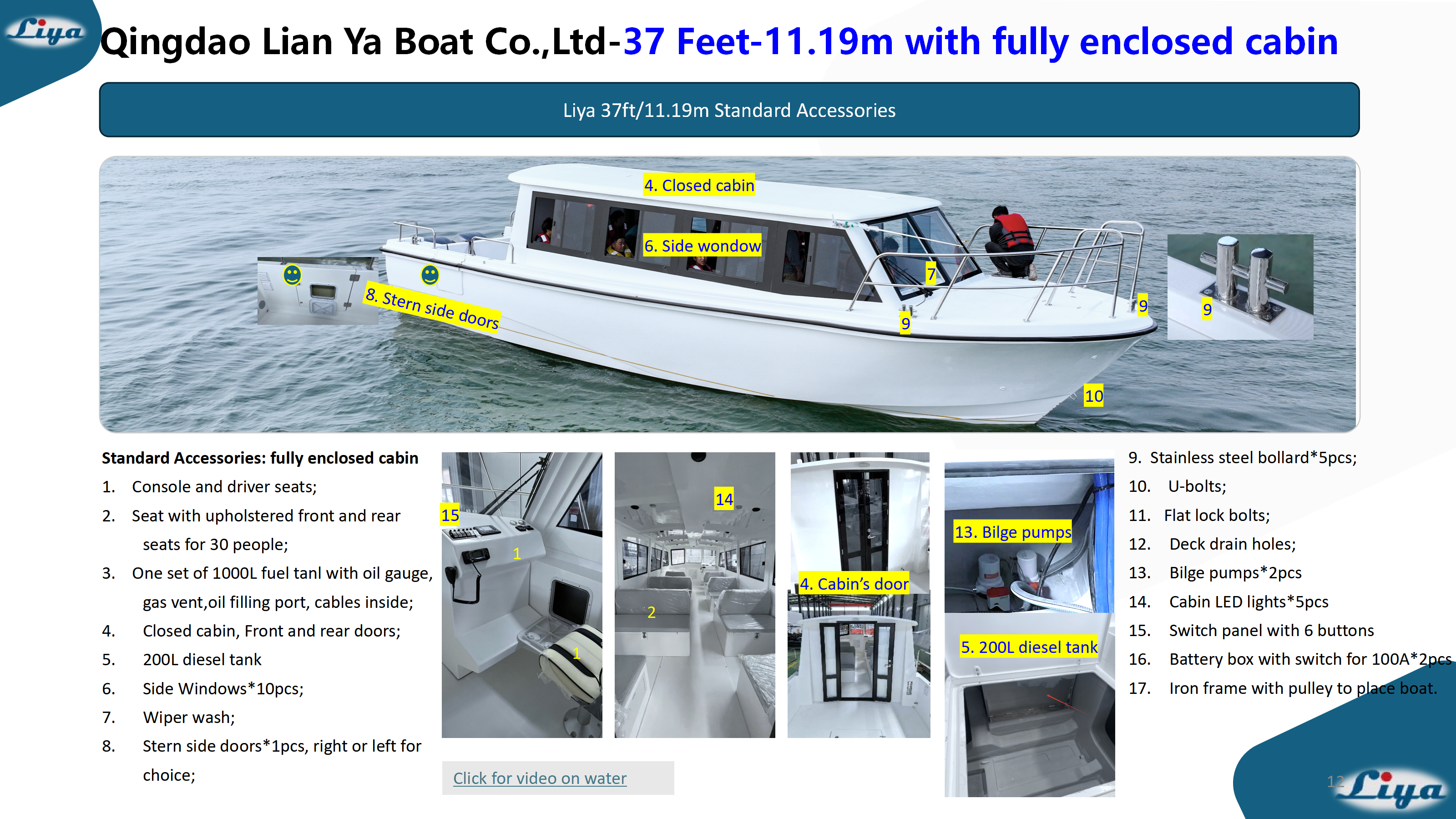

Liya 37FT Passenger Boat Standard Accessories

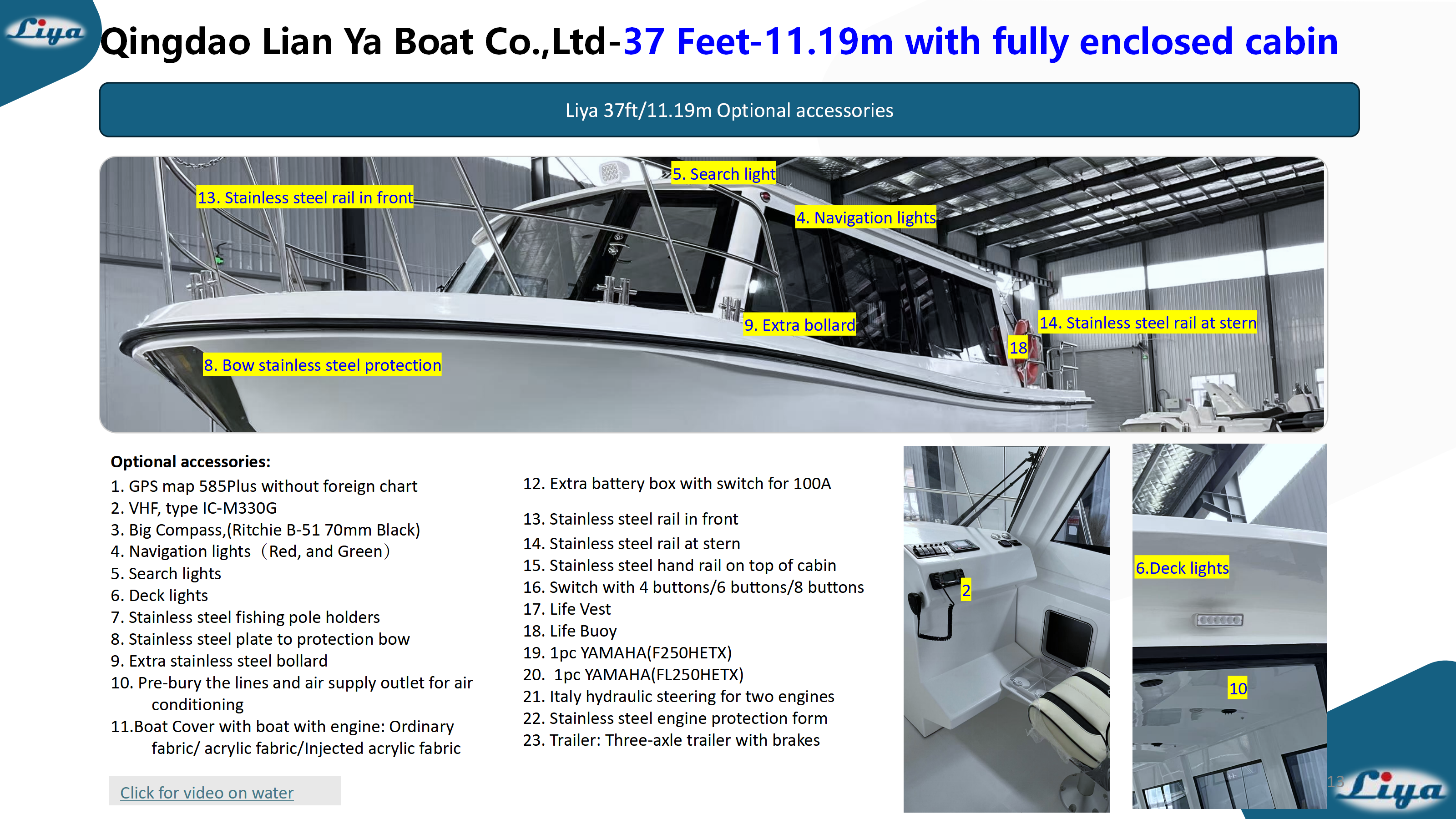

37FT Cabin Passenger Vessel Optional accessories



▍Quality Assurance- Liya 37FT Fiberglass Passenger Boat

-Designed base on international stanard ISO6185 certificate & Produced by ISO Manufactuer

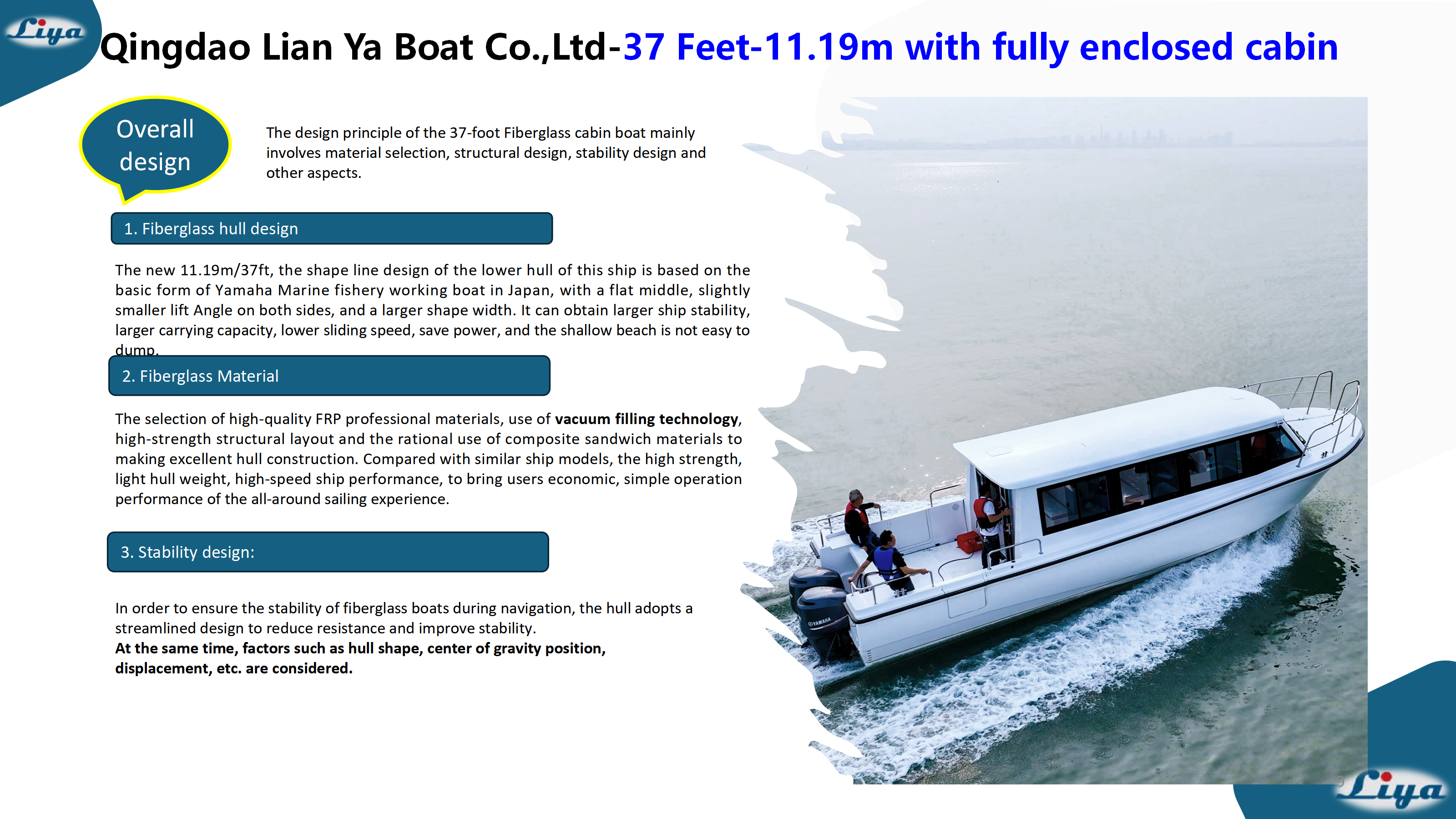

▊Overall Design & Fiberglass Hull

The design principle of the 37-foot Passenger boat mainly involves material selection, structural design, stability design and other aspects.

37ft sightseeing tour boat design

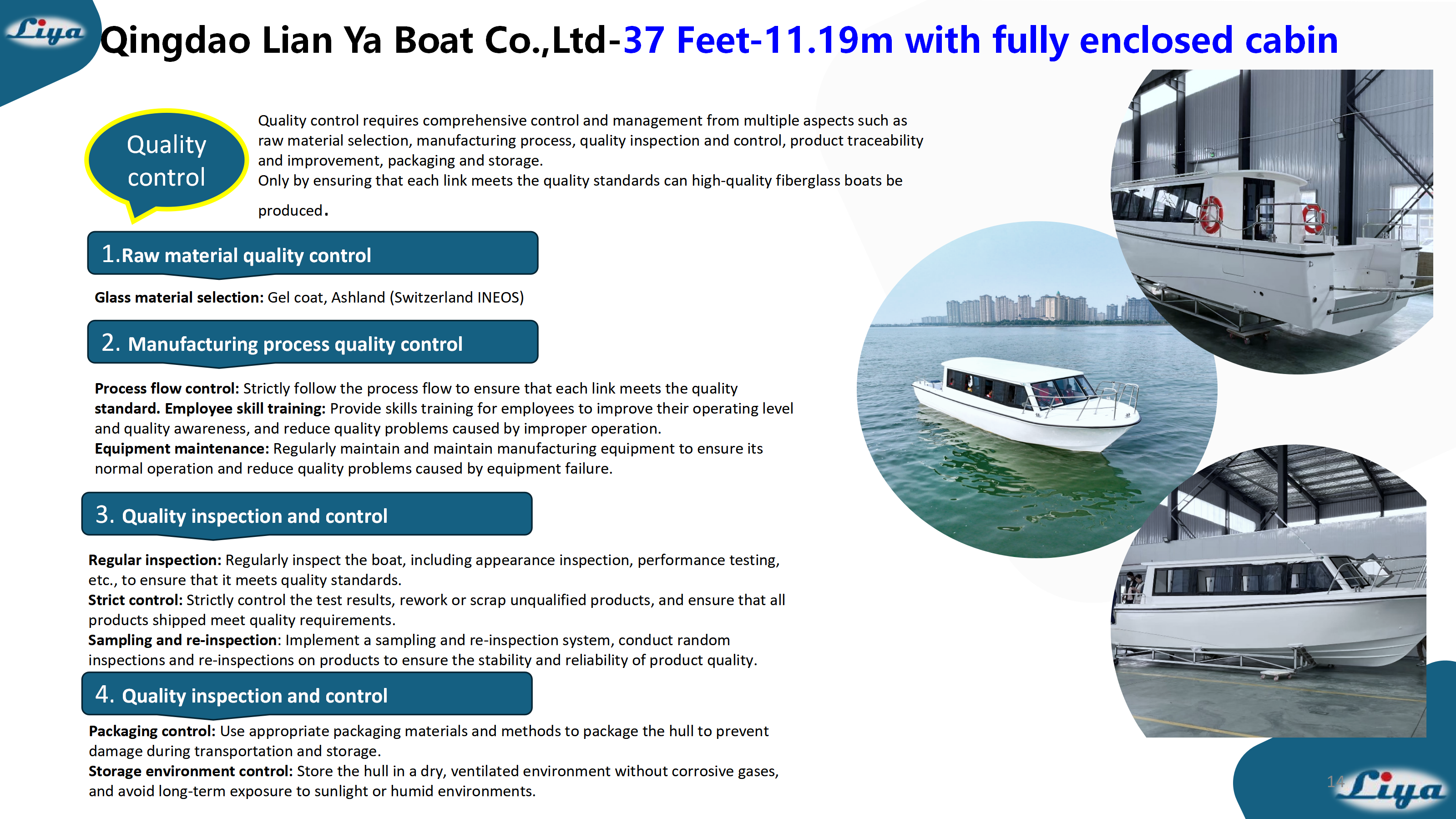

37ft passenger ferry boat quanlity control

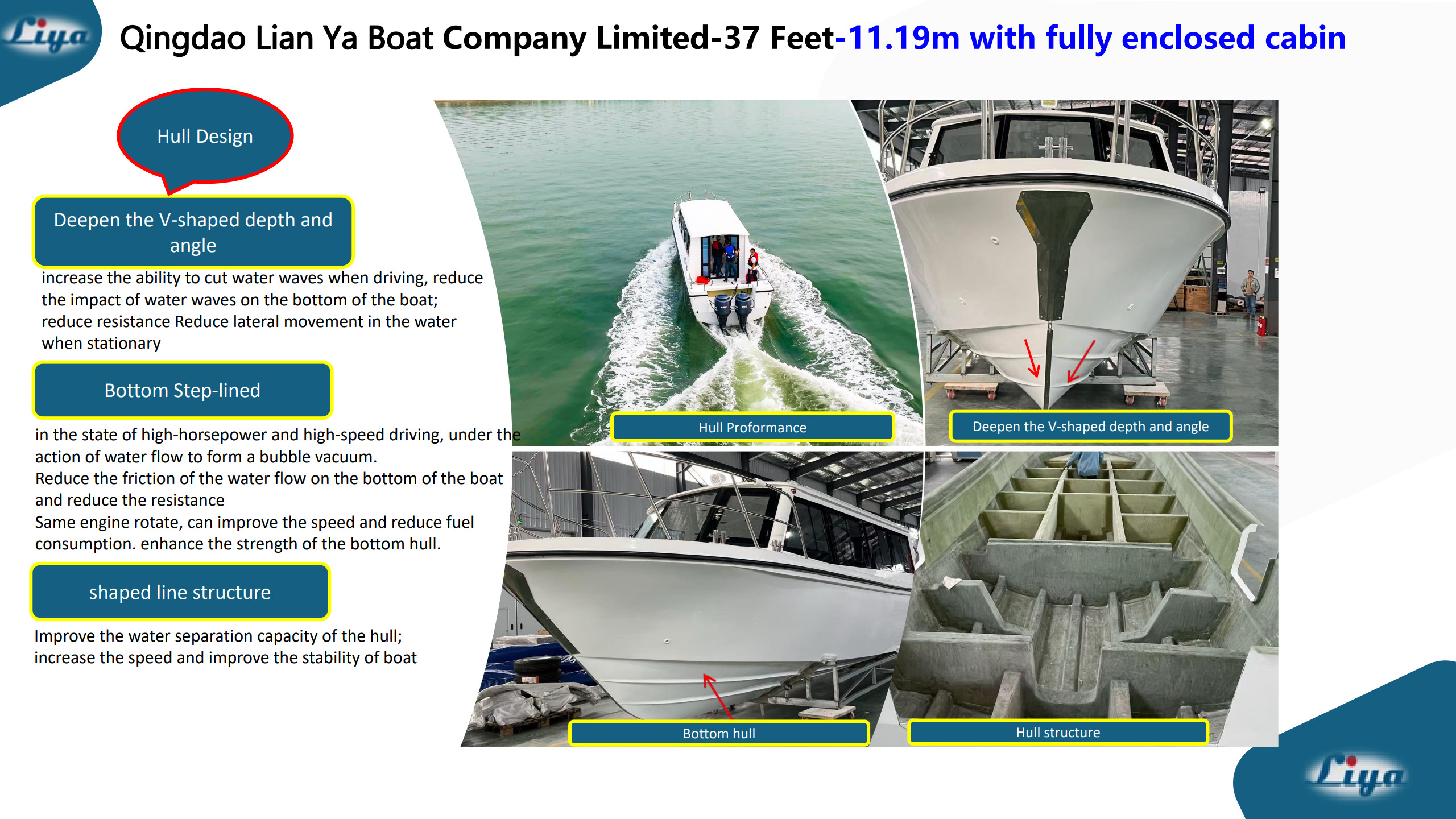

|Fiberglass hull design and structure features & Technology

Sturdy internal structure and reliable fiberglass hull make the boat more stronger, more stable, and safer.37ft fiberglass passenger boat hull design37ft passenger boat fiberglass hull technology and structure

|Line classification system & Certificates double insurance

Engineered for Peace of Mind- Double insurance design & international standard certification30 foot passenger boat with ISO

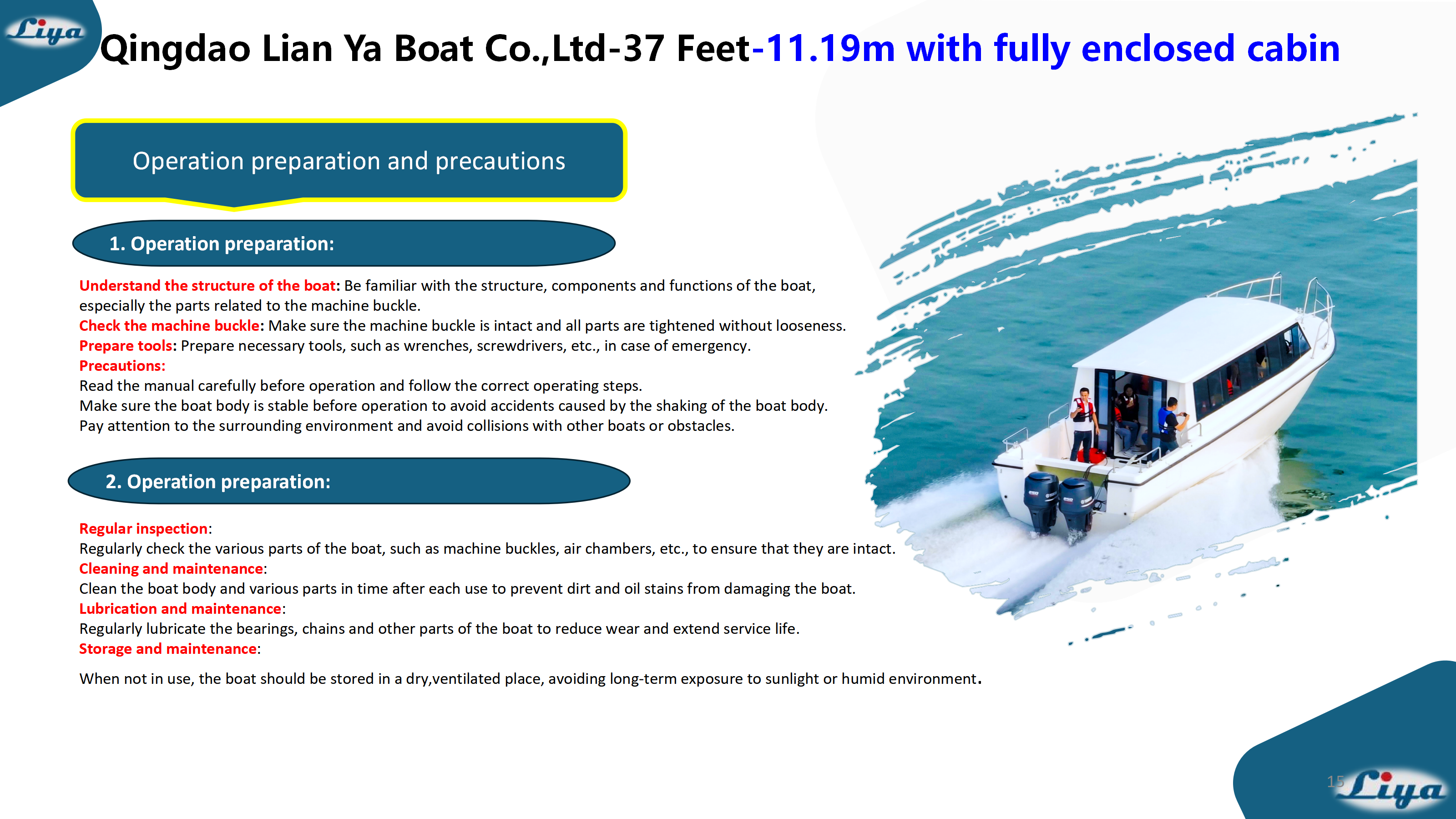

▍Operation & Precautions-Liya 37FT Cabin Passenger Vessel37FT Cabin Passenger Vessel Operation & Precautions
