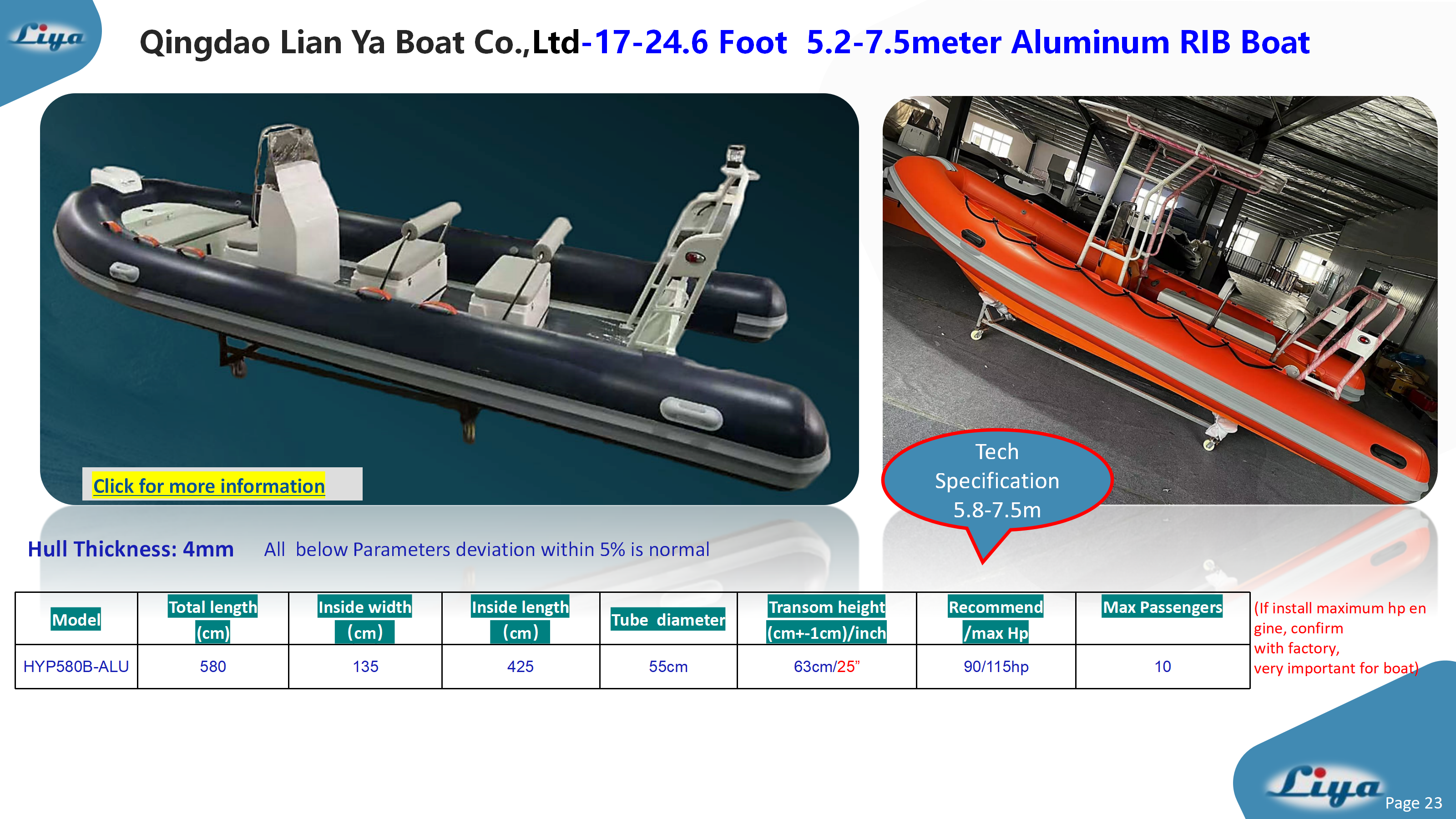

▍Tehcnical Specification

• Model: HYP580-19FT-AL-

• Beam: 2.35-2.51 meters (7.9 feet)

• Hull Material: 5052 Marine Aluminum Alloy

• Tube Material: German Mehler PVC / ORCA Hypalon

• Engine Capacity: 90-115 HP Outboard

• Passenger Capacity: 8-10 persons

• Fuel Capacity: 150 liters

• Load Capacity: 1345 kg

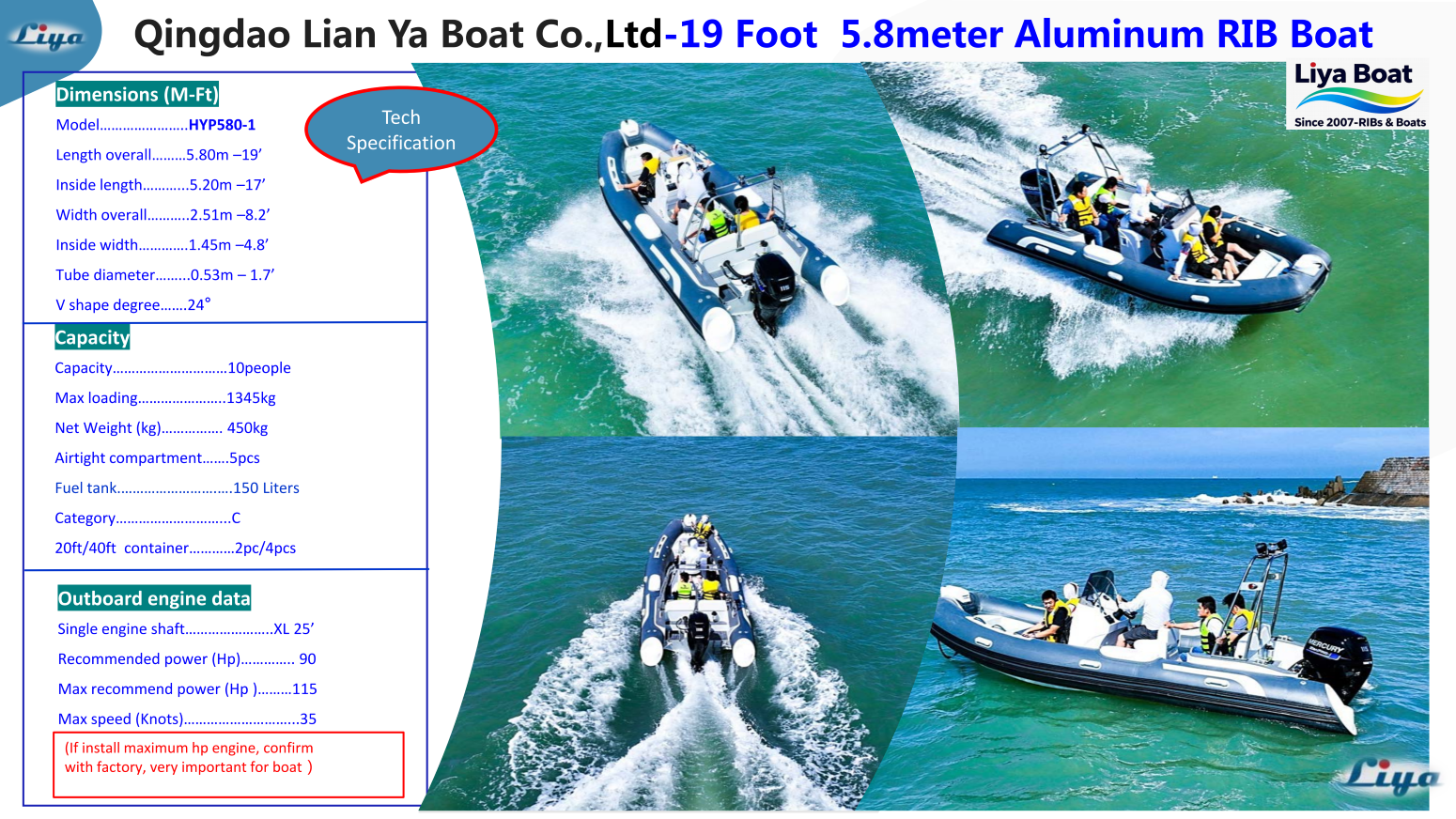

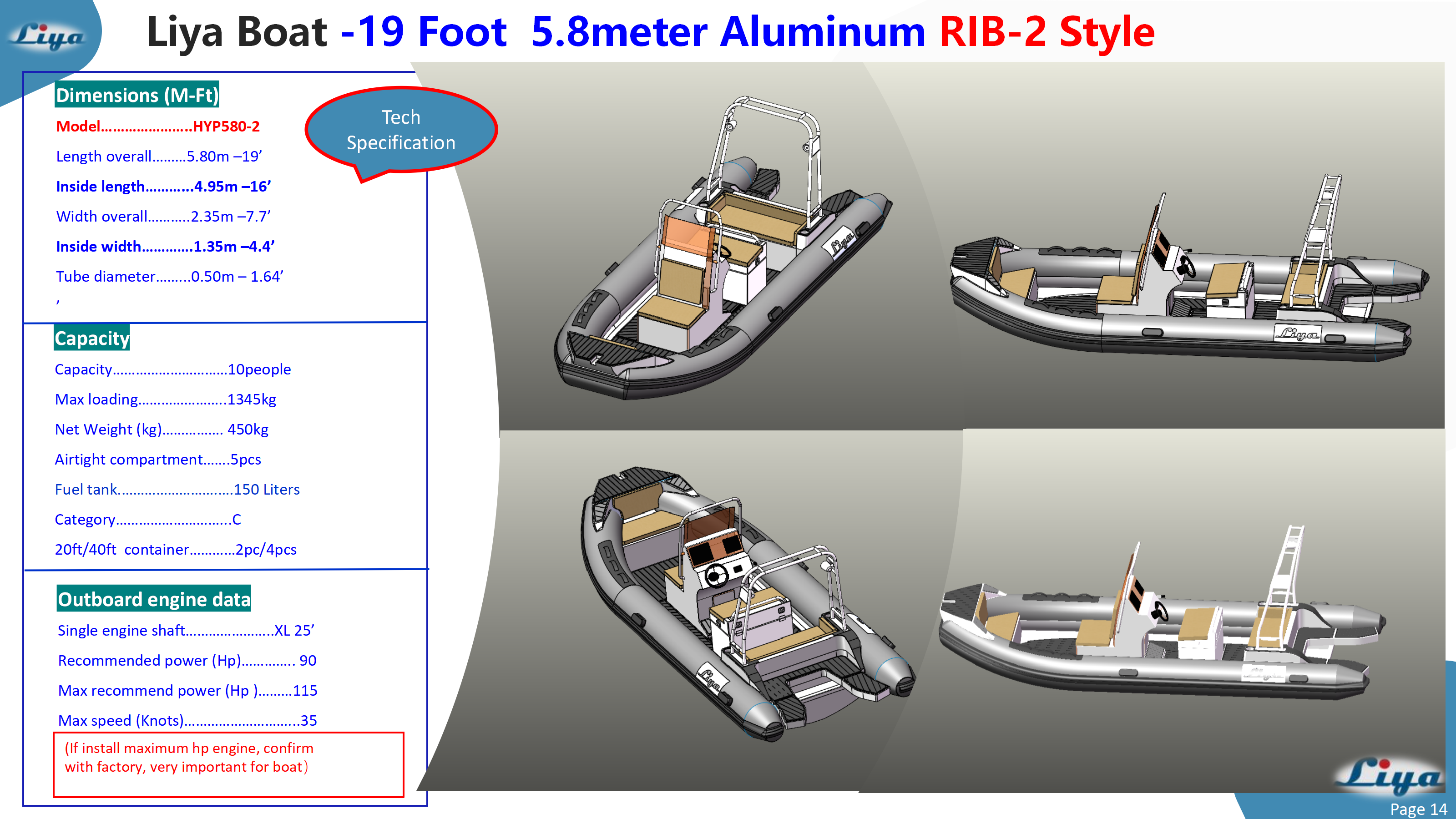

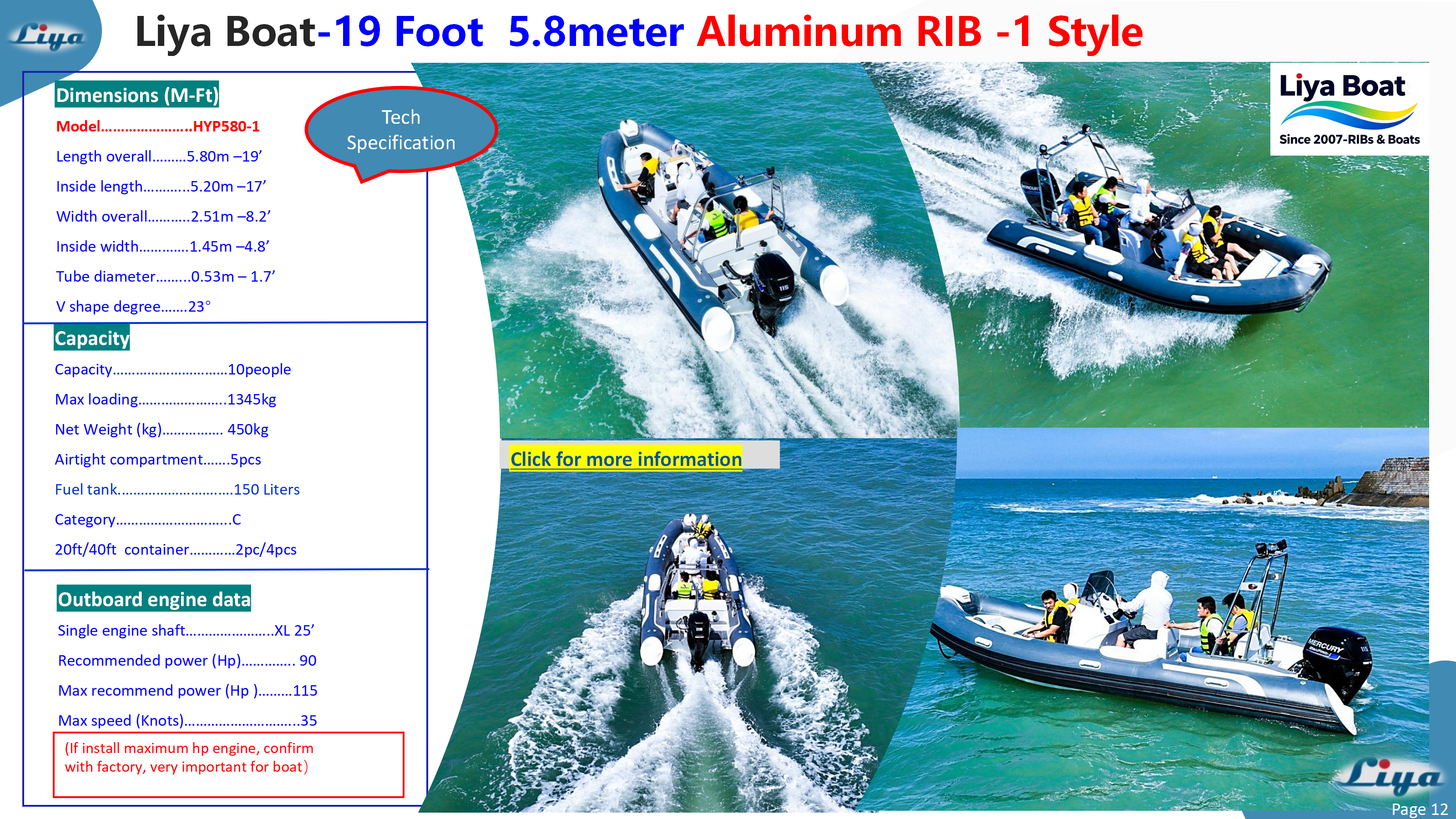

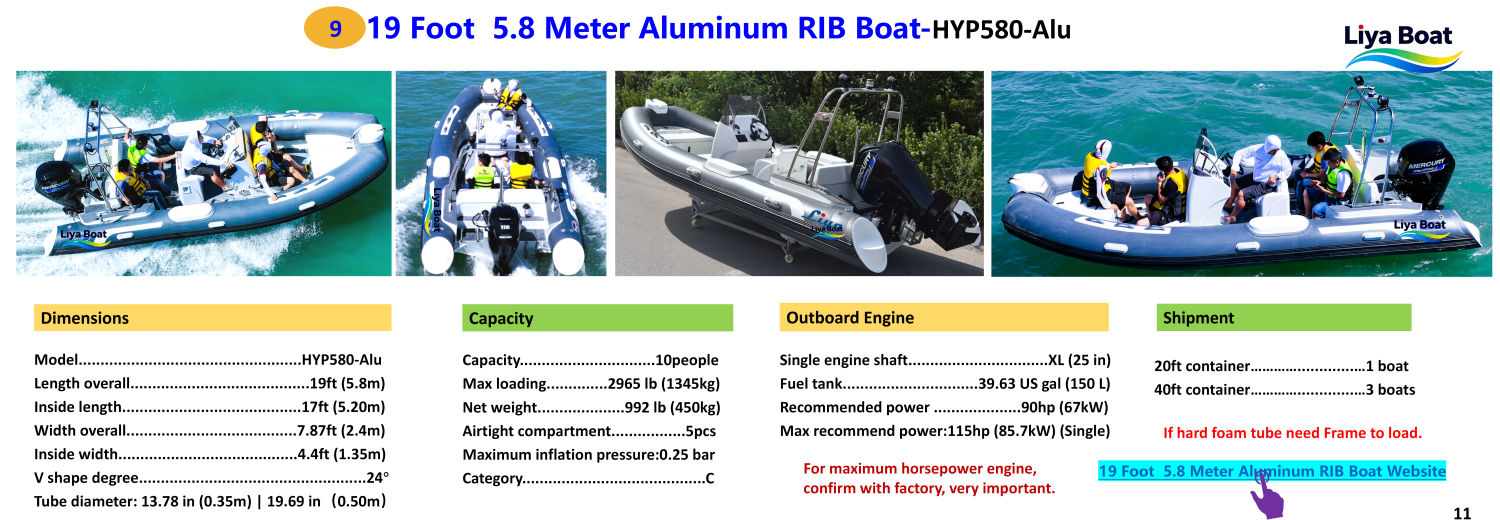

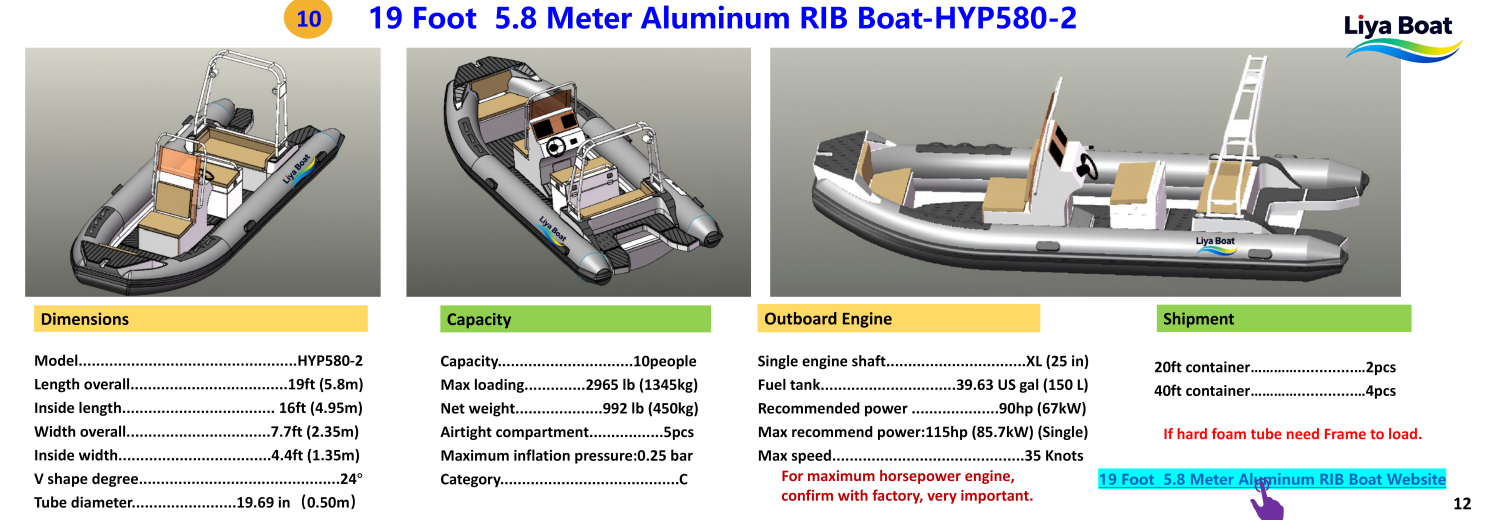

▍Dimensions

Model…………………...................HYP580

Length overall……….................5.80m –19’

Inside length………..............5.20m –17’

Width overall………....................2.51m –8.2’/2.35m-7.7'

Inside width…………...................1.45m –4.8’/1.35m-4.4'

V shape degree……....................24°

Tube diameter…….......................0.53m – 1.7’/0.50m-1.64'

▍Capacity

Capacity………………………….........10 people

Max loading………………….....1345kg

Net Weight (kg)……………........... 450kg

( The net weight means boat with console,seat, canopy,  A bar /Arch etc ,empty feul tank,no engine.

The net wight also may change slightly depending on the different console, seat or other configuration etc.)

Airtight compartment……...........5pcs

Maximum inflation pressure: 0.25 Bar

Fuel tank.……..……………................150 Liters

Category ……………..................C

▍Outboard Engine

Single engine shaft……………..XL 25”

Fuel tank....................................150L

Recommended power …………90 HP/ about 163kg

Max recommend power...........115HP (Single)/ about 163kg-165kg

Max power …............................115 HP/ about 163kg-165kg

(If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.)

▍Shipment

20ft/40ft HQ container…..........…2pcs/4pcs

If hard foam tube need Frame to load

FAQ

Q1: Why choose an aluminum hull over a fiberglass hull for a RIB tender?

A: An aluminum hull offers significant advantages: it is lighter (improving speed and fuel efficiency with the same horsepower), incredibly durable and impact-resistant, requires less maintenance as it won’t blister or osmosis, and provides a 5-year warranty on the hull structure. It's the preferred material for professional and heavy-use tenders seeking longevity.

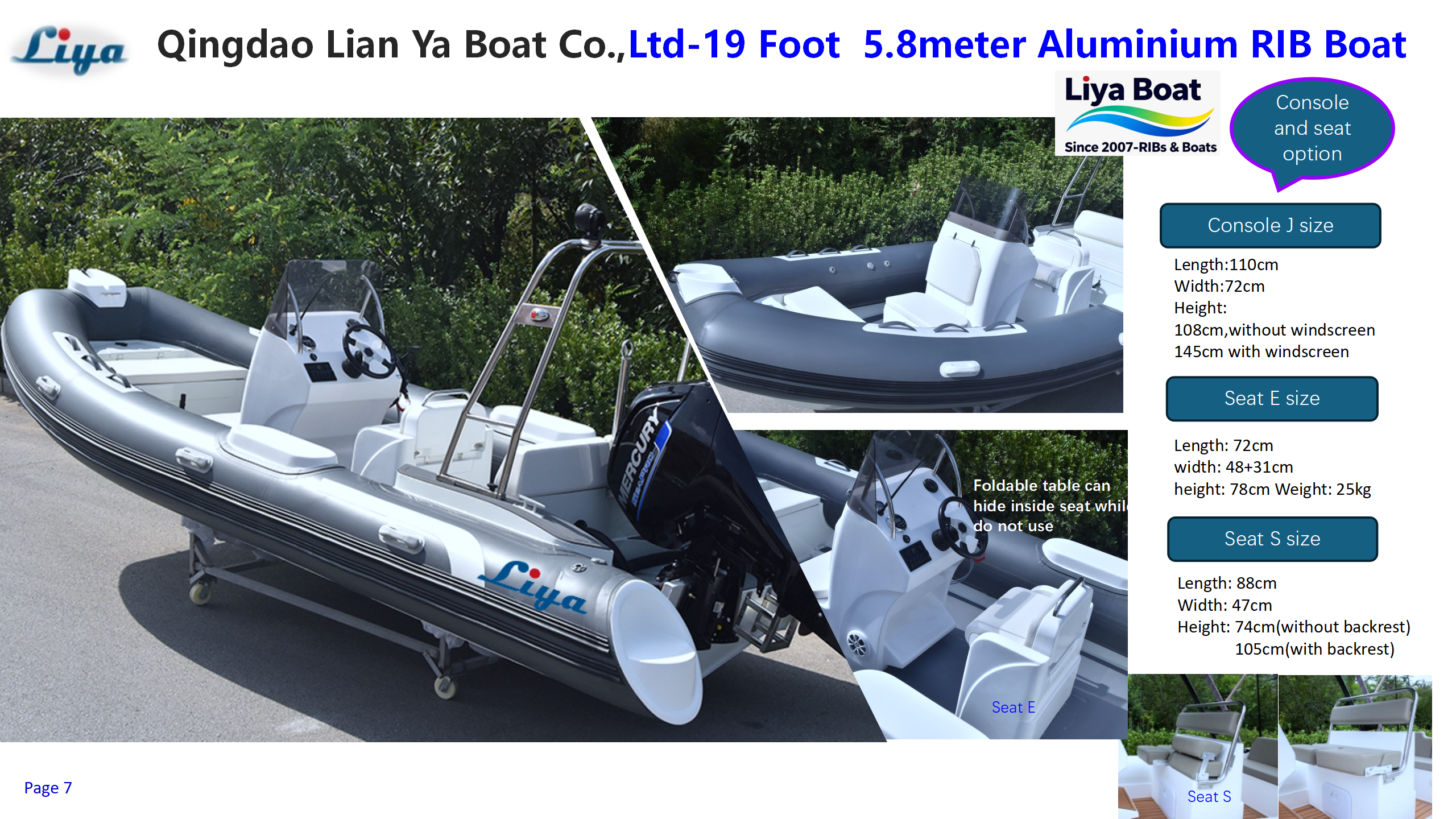

Q2: What are the main differences between Style 1 and Style 2?

A: The core difference is in materials and focus. Style 1 (FRP Console) emphasizes practical luxury with easy-clean PVC decking and a useful slide-out table, ideal for frequent guest transfer and casual use. Style 2 (Aluminum Console) focuses on premium leisure, featuring softer EVA decking and the option for a built-in swimming platform, making it perfect for swimming, diving, and onboard relaxation.

Q3: Is the 150L fuel tank standard? What kind of range can we expect?

A: Yes, the large 150L fuel tank is standard equipment. Range depends on engine load, sea conditions, and speed, but with a recommended 90HP engine, you can expect a very substantial range suitable for full-day excursions or extended shuttle services without needing to refuel.

Q4: Can you customize the boat to match the colors of our main yacht?

A: Absolutely. A key part of our service is full customization. We can match your yacht's color scheme on the tubes, hull, upholstery, and cushions. We can also apply your yacht's name, logo, or other graphics to create a perfectly coordinated tender.

Q5: What does the "upgrade to solid or removable foam collar pontoons" mean?

A: This is a premium safety and convenience feature. Beyond the standard inflatable ORCA tubes, you can opt for solid foam-filled collars (unsinkable even if punctured) or removable foam collars (which can be taken off for repair or replacement). This is ideal for owners who prioritize absolute safety or operate in areas with higher risk of puncture.

Q6: What is included in the base price, and what is the typical lead time for a customized order?

A: The base price includes the complete boat with aluminum hull, ORCA hypalon tubes, standard console/seating for the chosen style, 150L tank, and basic navigation lights. Items like the T-top, swimming platform, specific decking material, and upgraded upholstery are customizable options. Lead time for a customized boat is typically 8-10 weeks after final design confirmation.

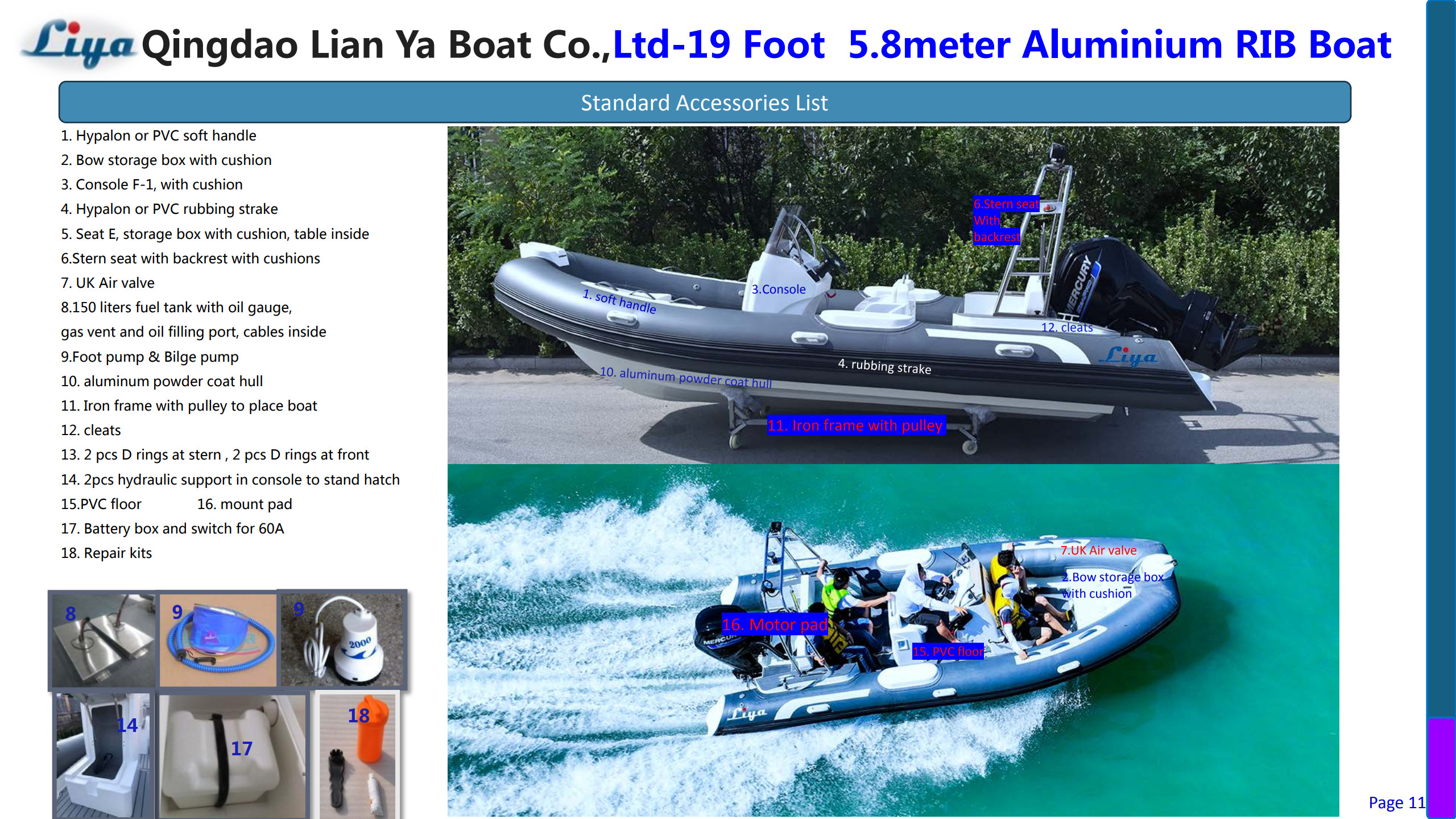

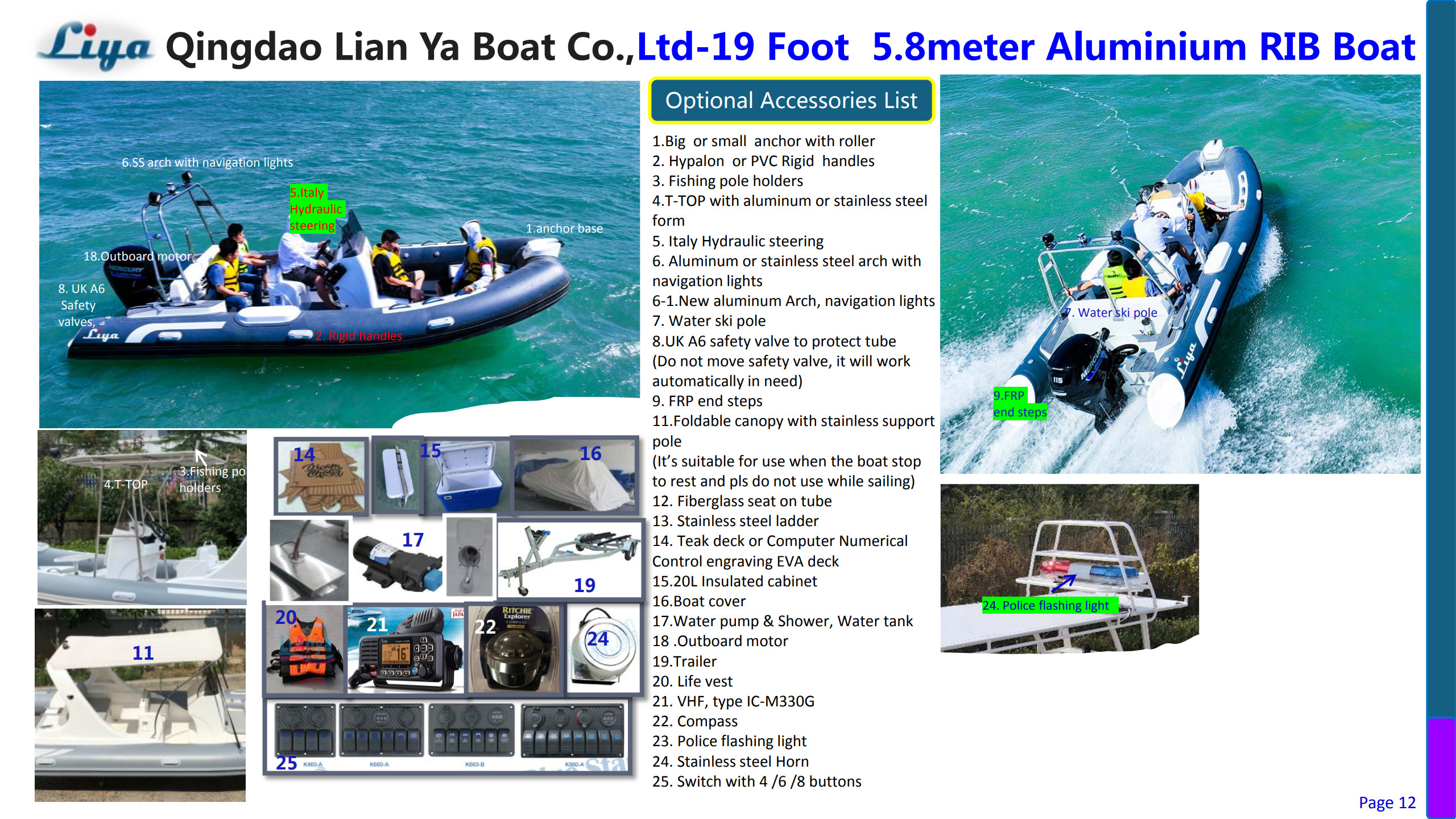

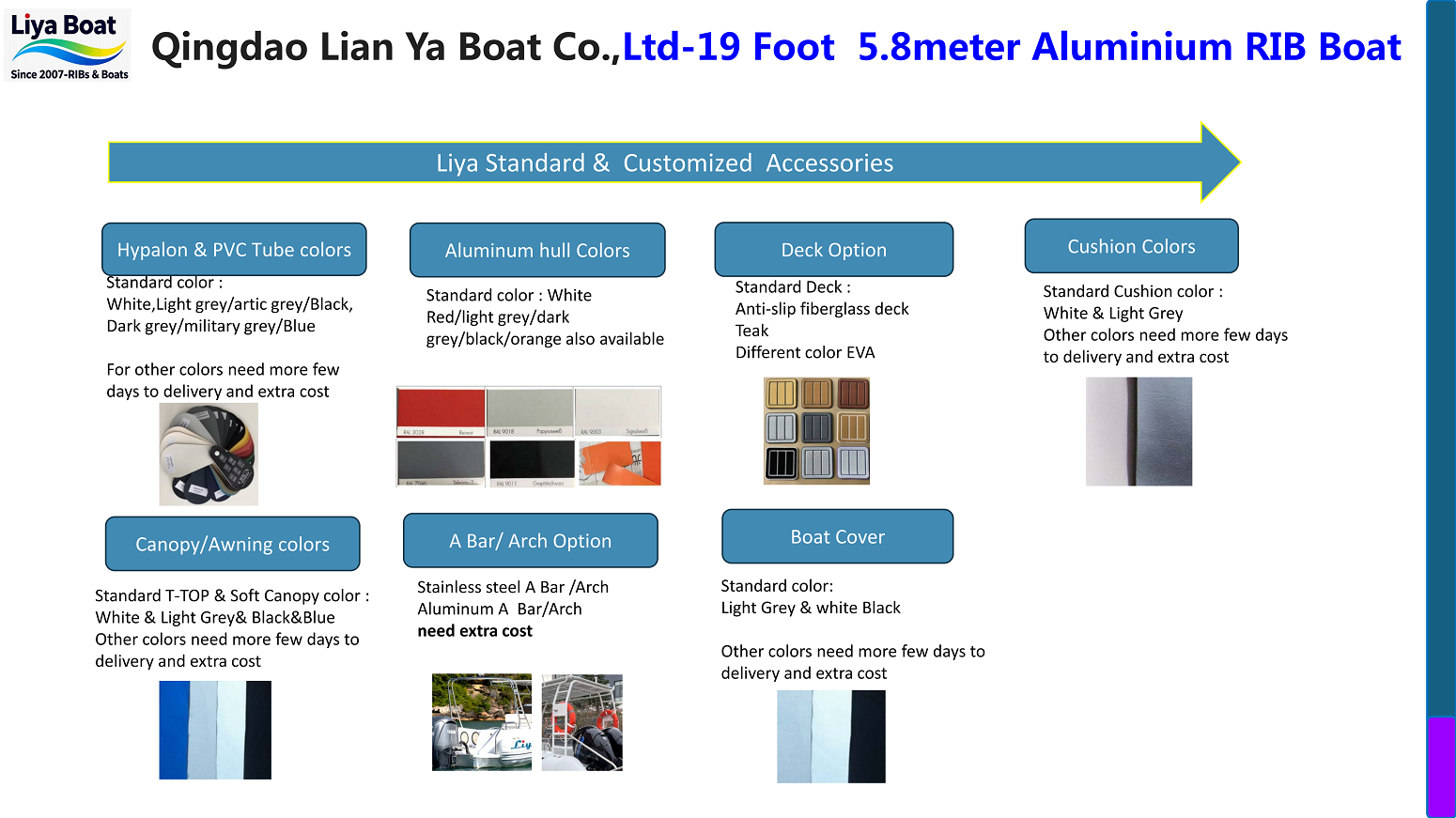

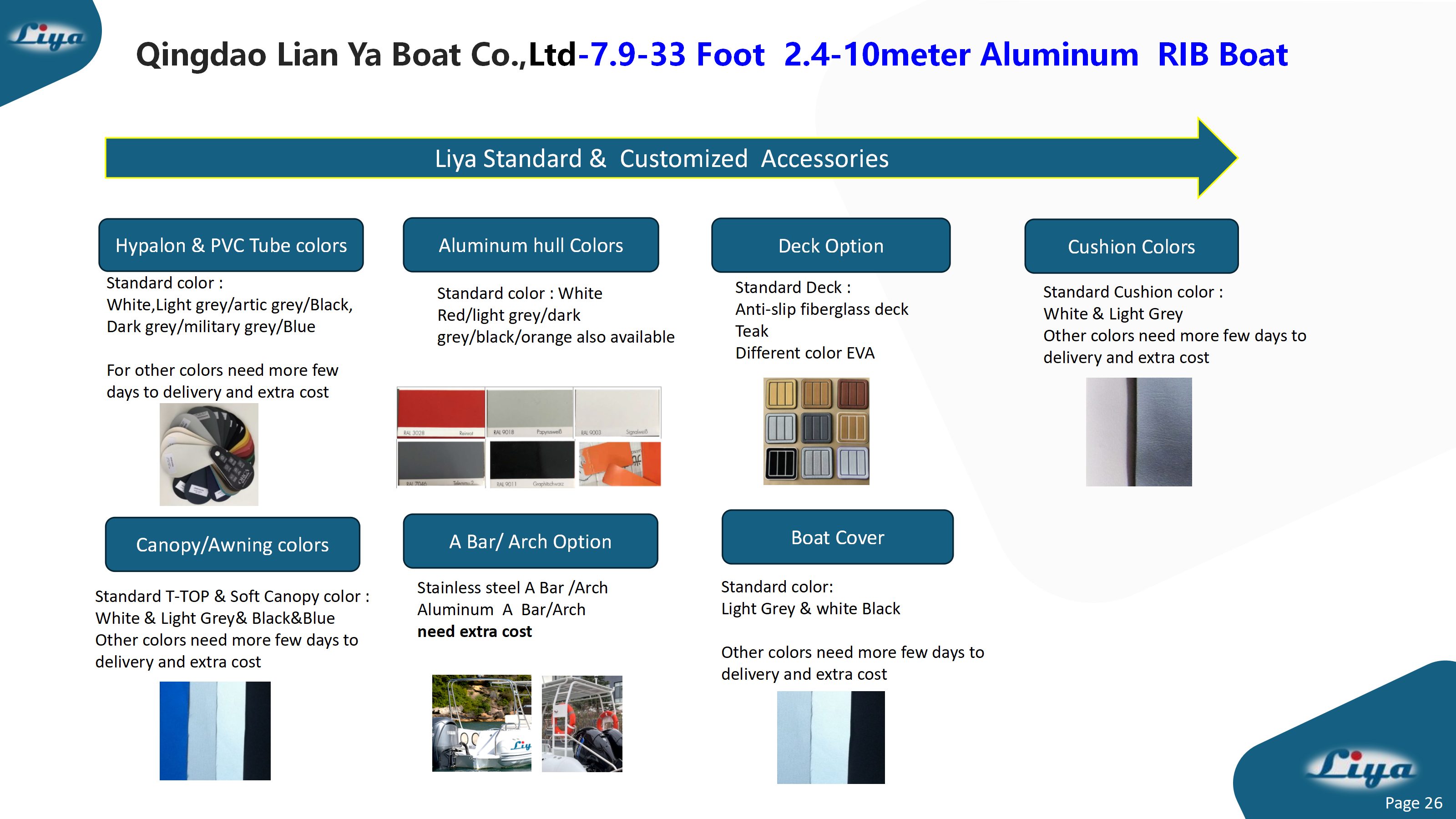

Standard & Optional Accories

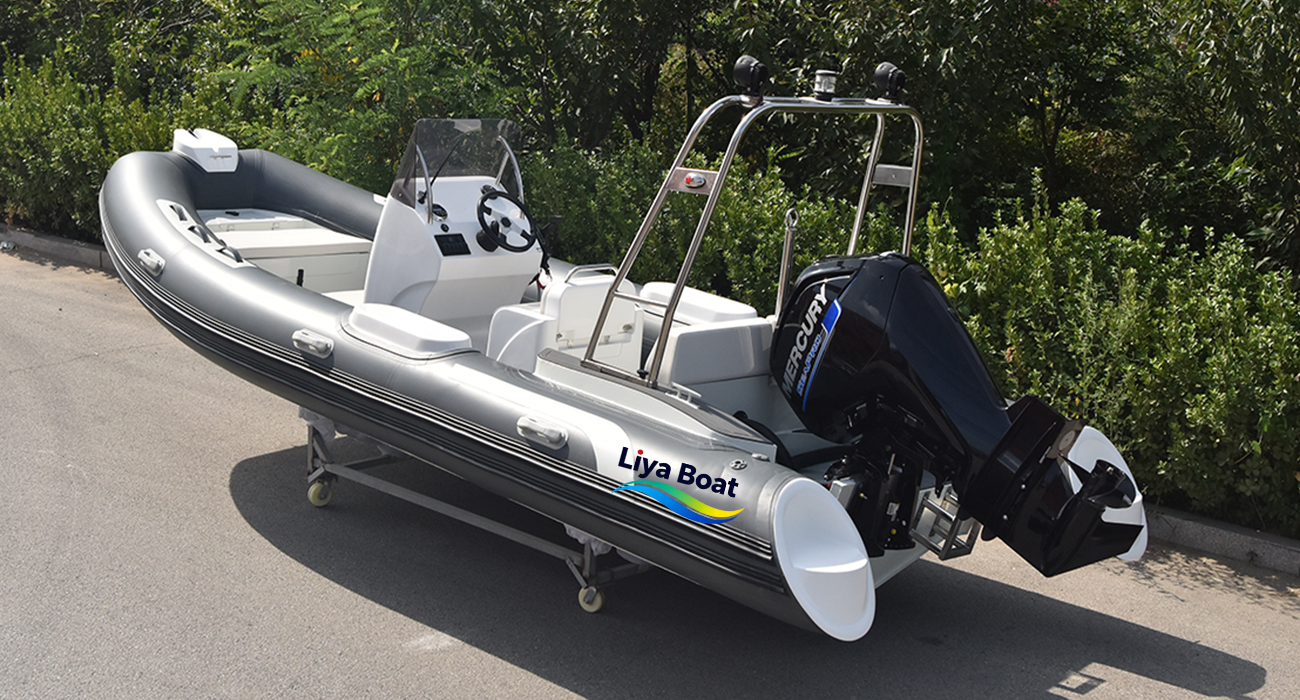

-Liya 19 Foot Aluminum Hull Luxury RIB Tender Boat with CE for 10 Persons

Main Configurations:

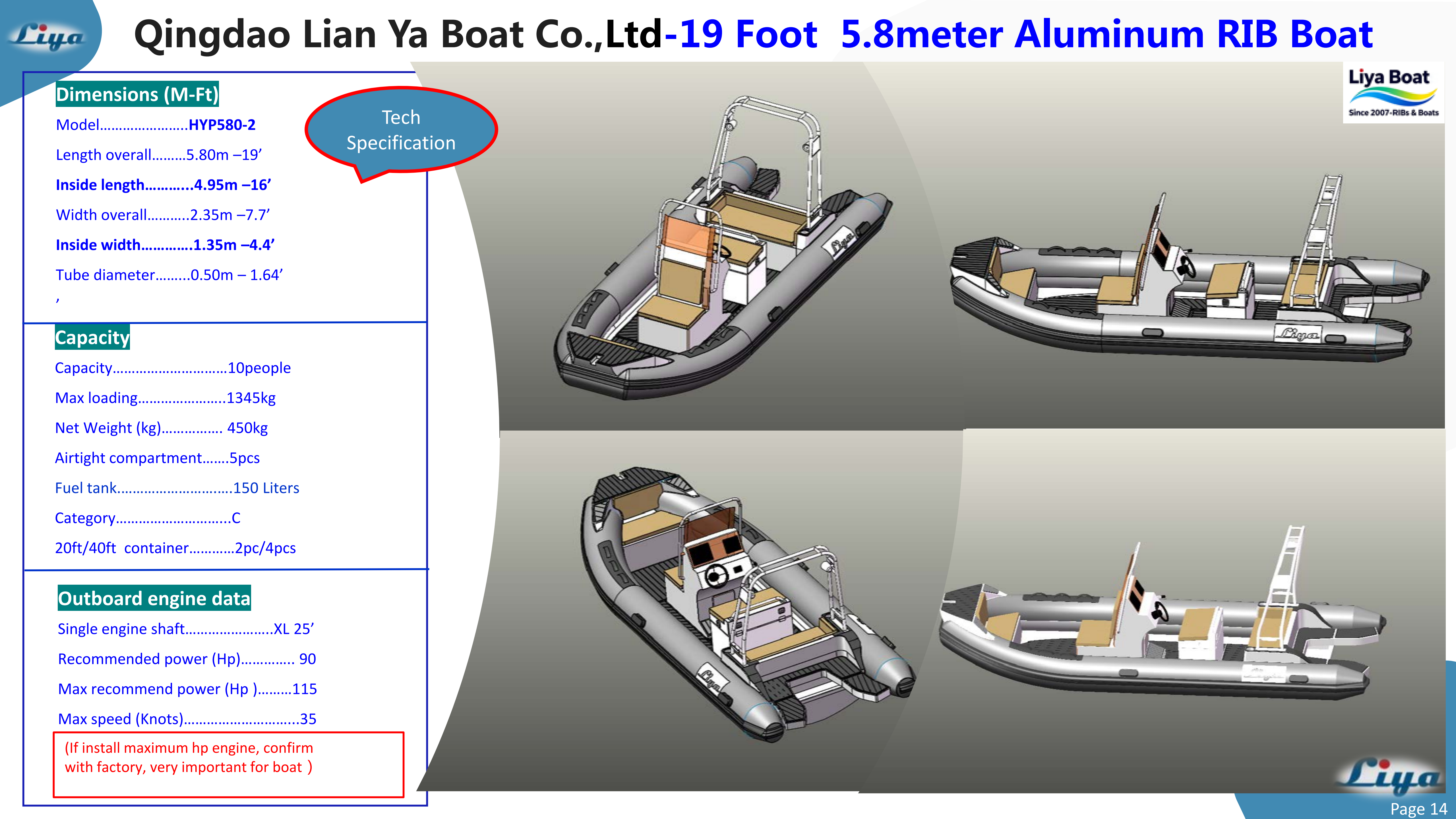

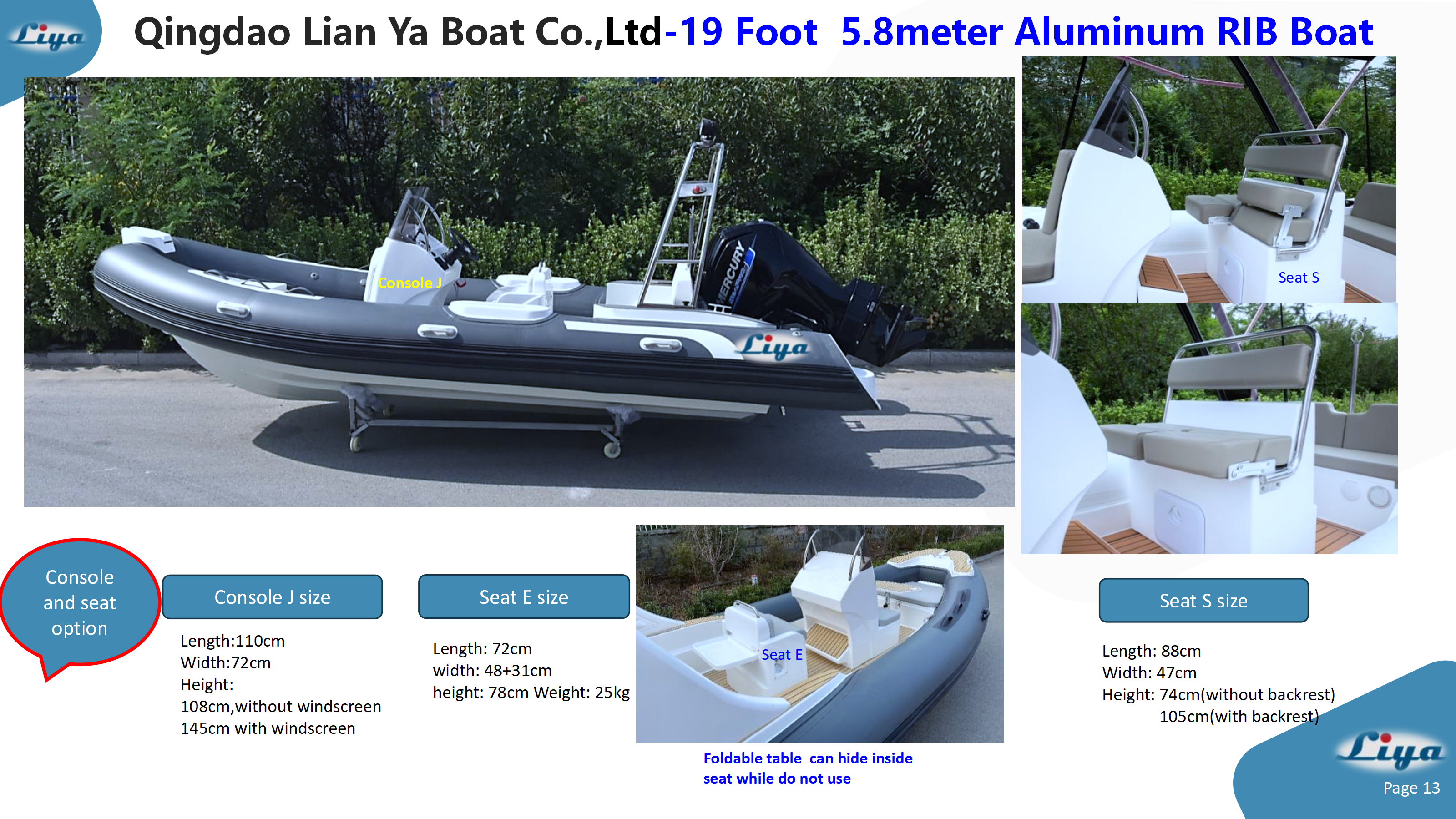

1. Control Panel: The control panel features a padded seat and footrest, with options for teak, imitation teak, EVA, and PVC non-slip flooring.

2. Multiple driver's seats are available, including standard models and seats that allow the driver to stand, lean, or sit, offering various driving modes to suit different driving habits.

3. Bow: The bow can be fitted with a padded seat and storage compartments underneath.

4. Optional stainless steel or aluminum alloy T-shaped canopy and folding awnings are available.

5. Stern: The stern seats are padded and have backrests,the stern can be equipped with a stainless steel or aluminum alloy tail fin with navigation lights. Additionally, a water skiing bar can be added to the stern for water sports such as towed waterskiing and surfing.

6. Stern Dock:

Style 1: Available in different shapes: round, pointed, and fiberglass stern ladder.

Style 2: Available in different shapes: round, pointed, and fiberglass stern ladder. An aluminum alloy swimming platform and ladder can also be added.

Customization is available upon request.

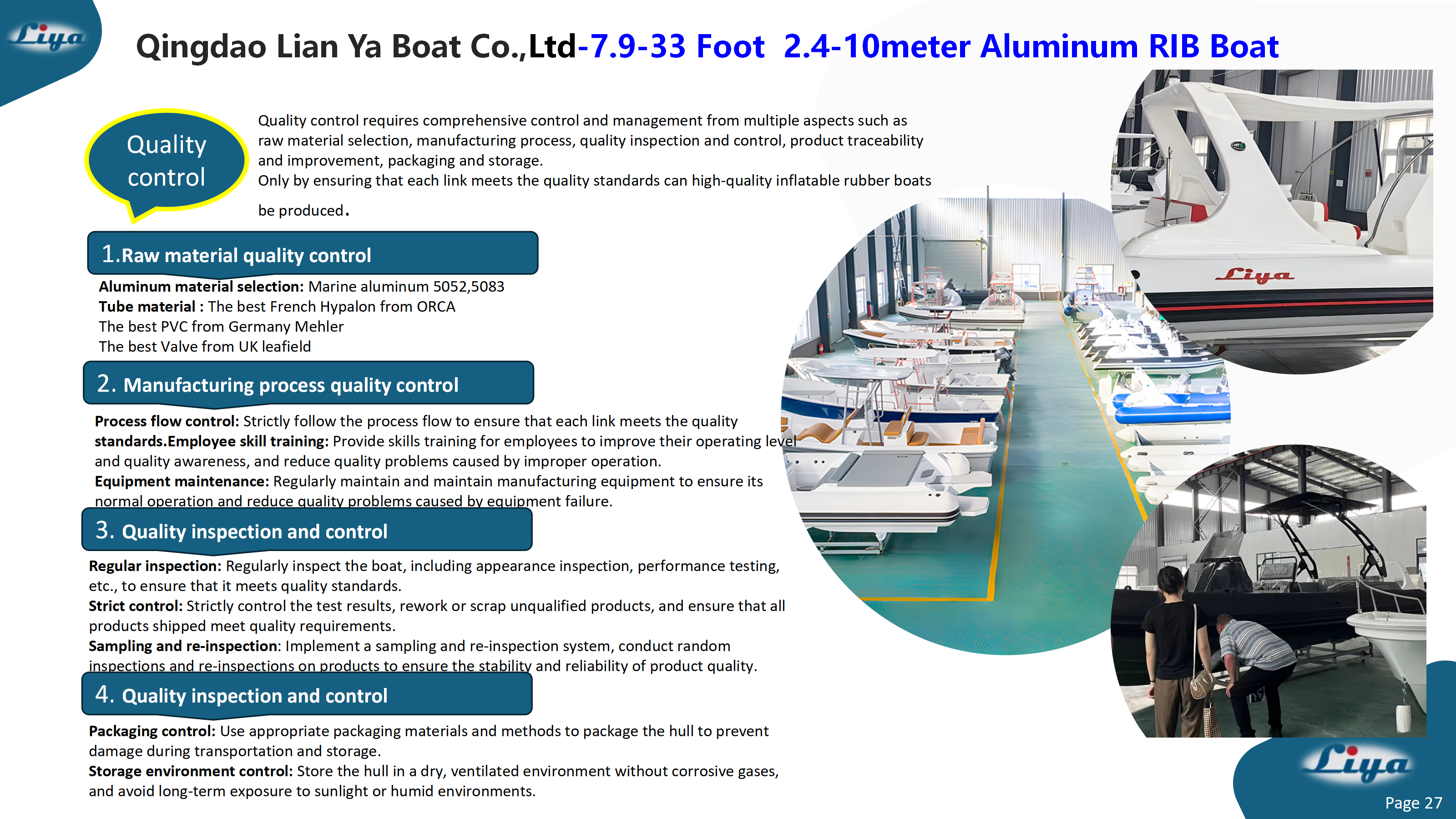

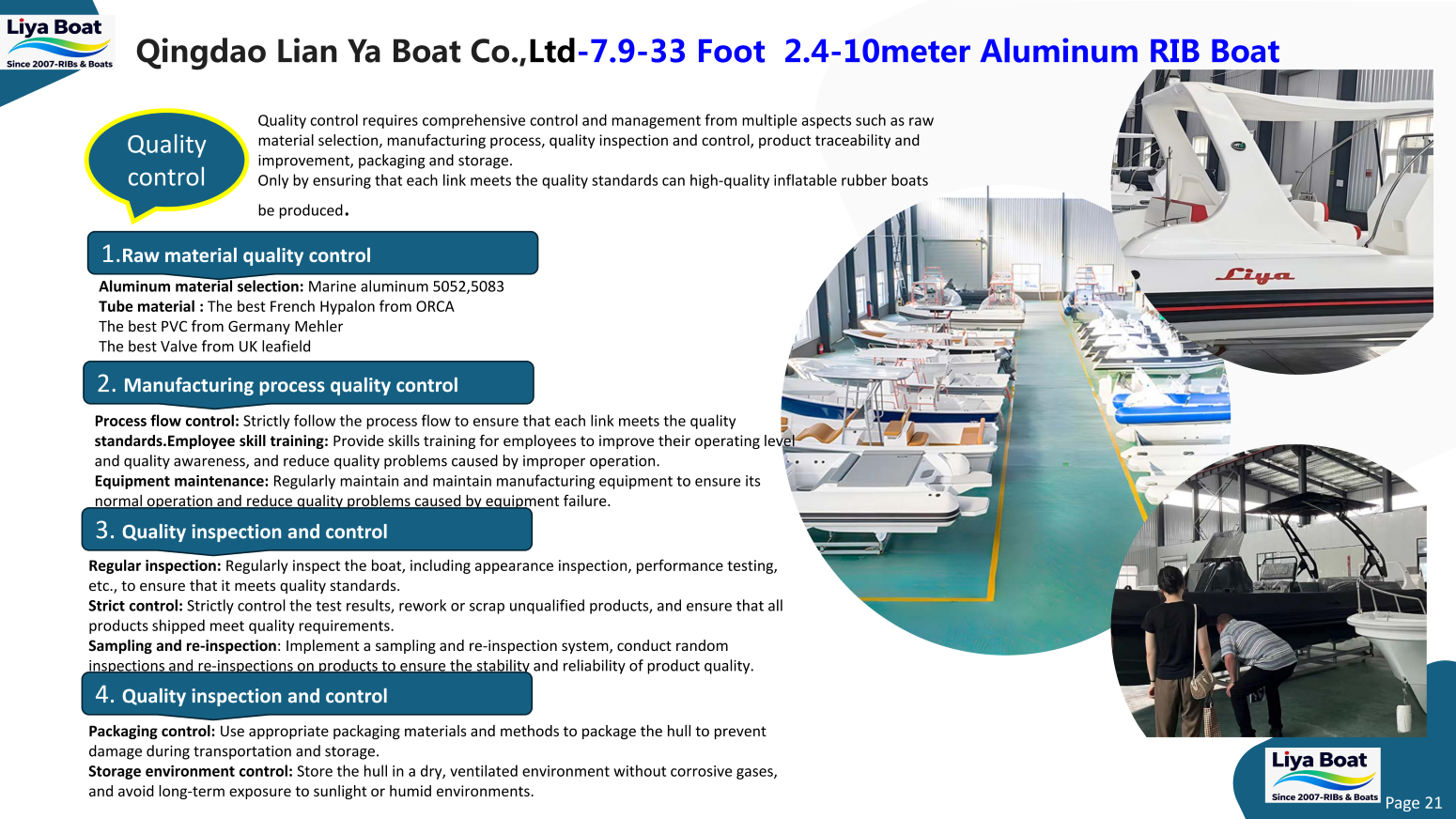

Materials and Craftsmanship:

• Utilizes world-class air cylinder materials, ORCA and German PVC, with upgradeable solid pontoons.

• Marine-grade 5052 aluminum alloy, 5-year warranty.

Performance Features:

• Deep V 24-degree hull, stable and fast. World-class Hyperion air cylinders, upgradeable solid pontoons and detachable pontoons; air cylinders can be decorated as needed.

• Standard 150L fuel tank.

• Self-draining deck with drain pipe.

• Single engine capacity: Recommended 90 hp, maximum capacity: 115 hp.

-Designed base on international stanard ISO6185- CE certificate & Produced by ISO Manufactuer

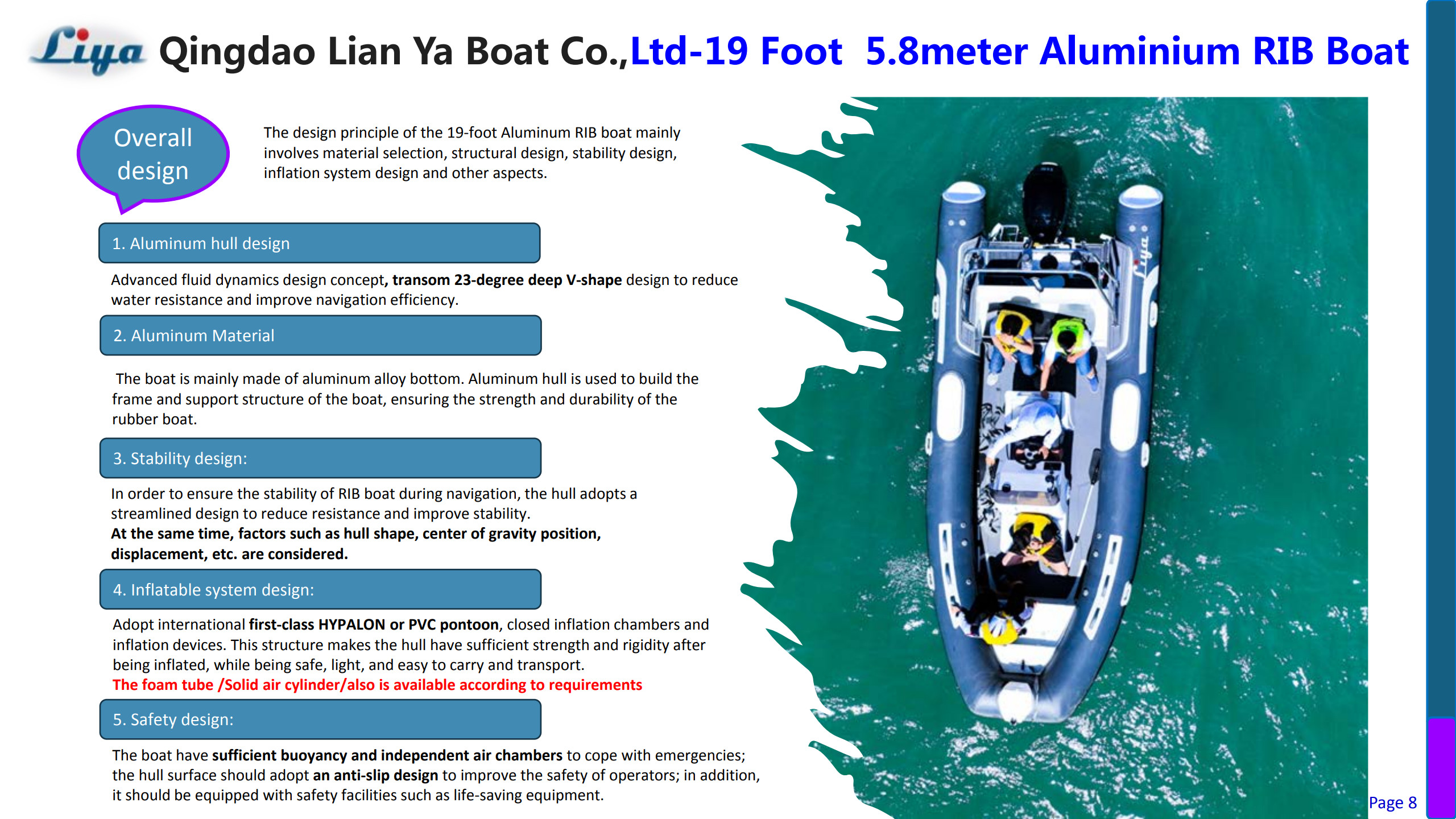

▋Overall design

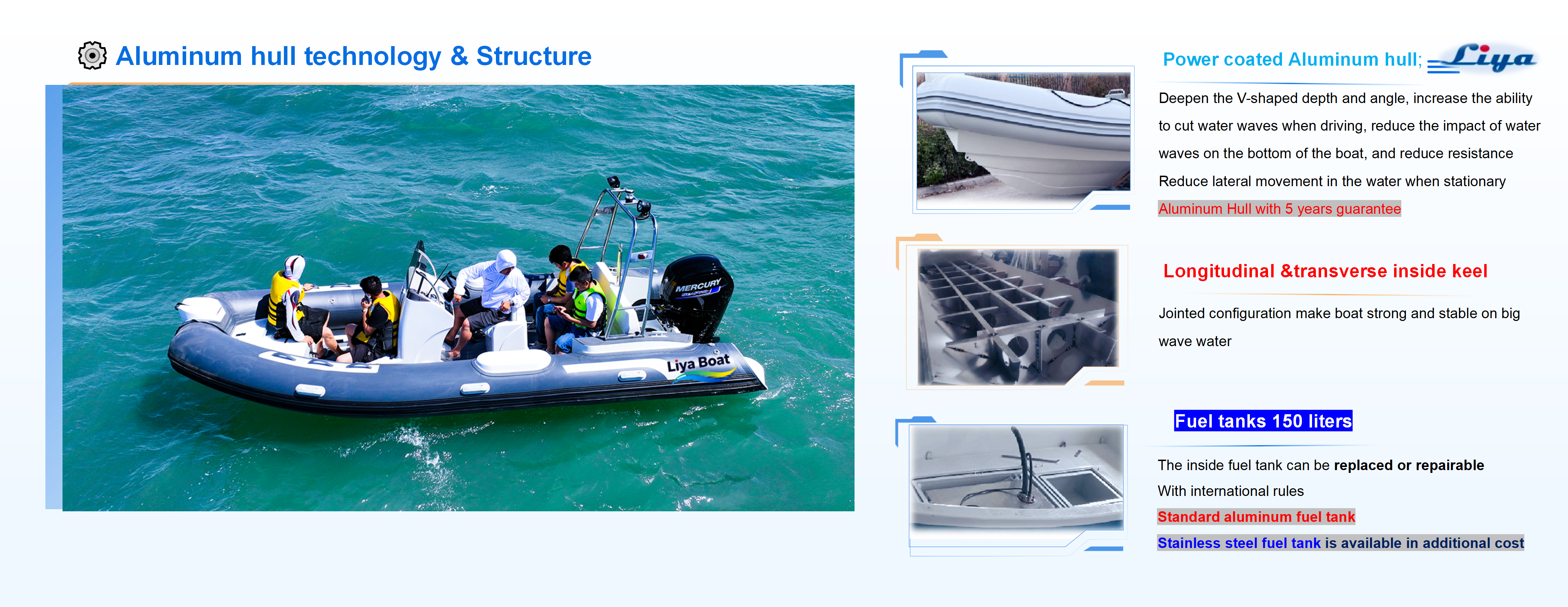

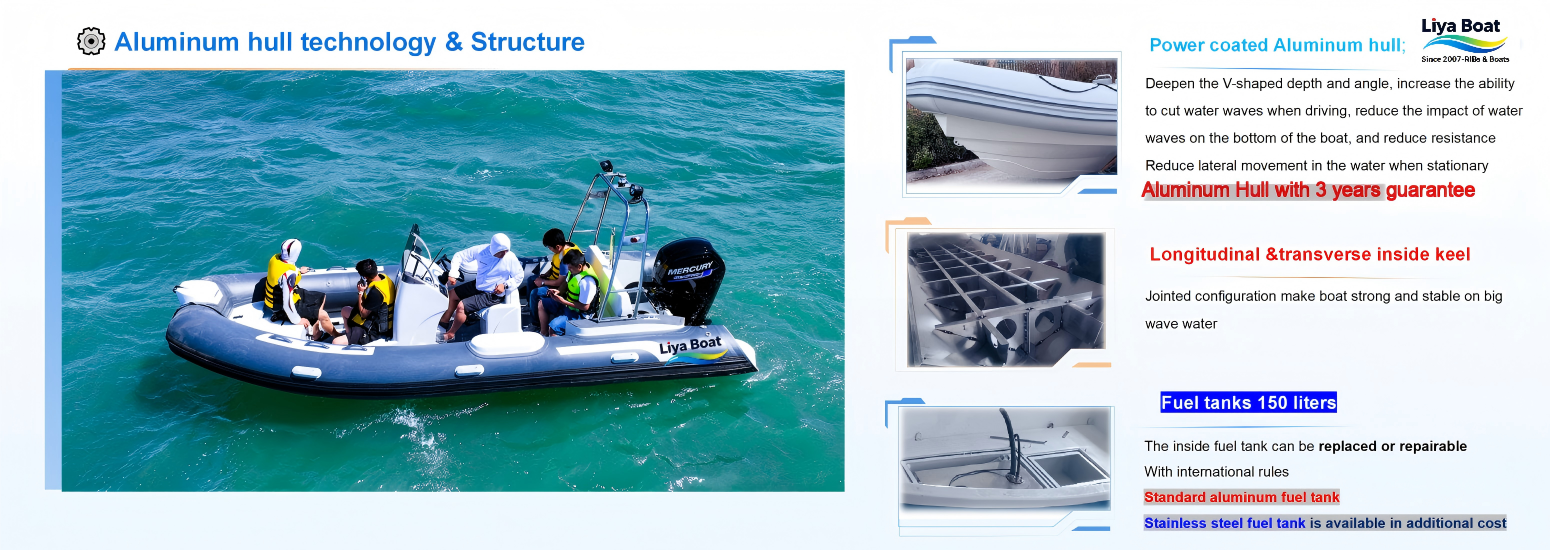

▋Aluminum Hull Technology & Structure

▋Line Classification System & Certificates Double Insurance

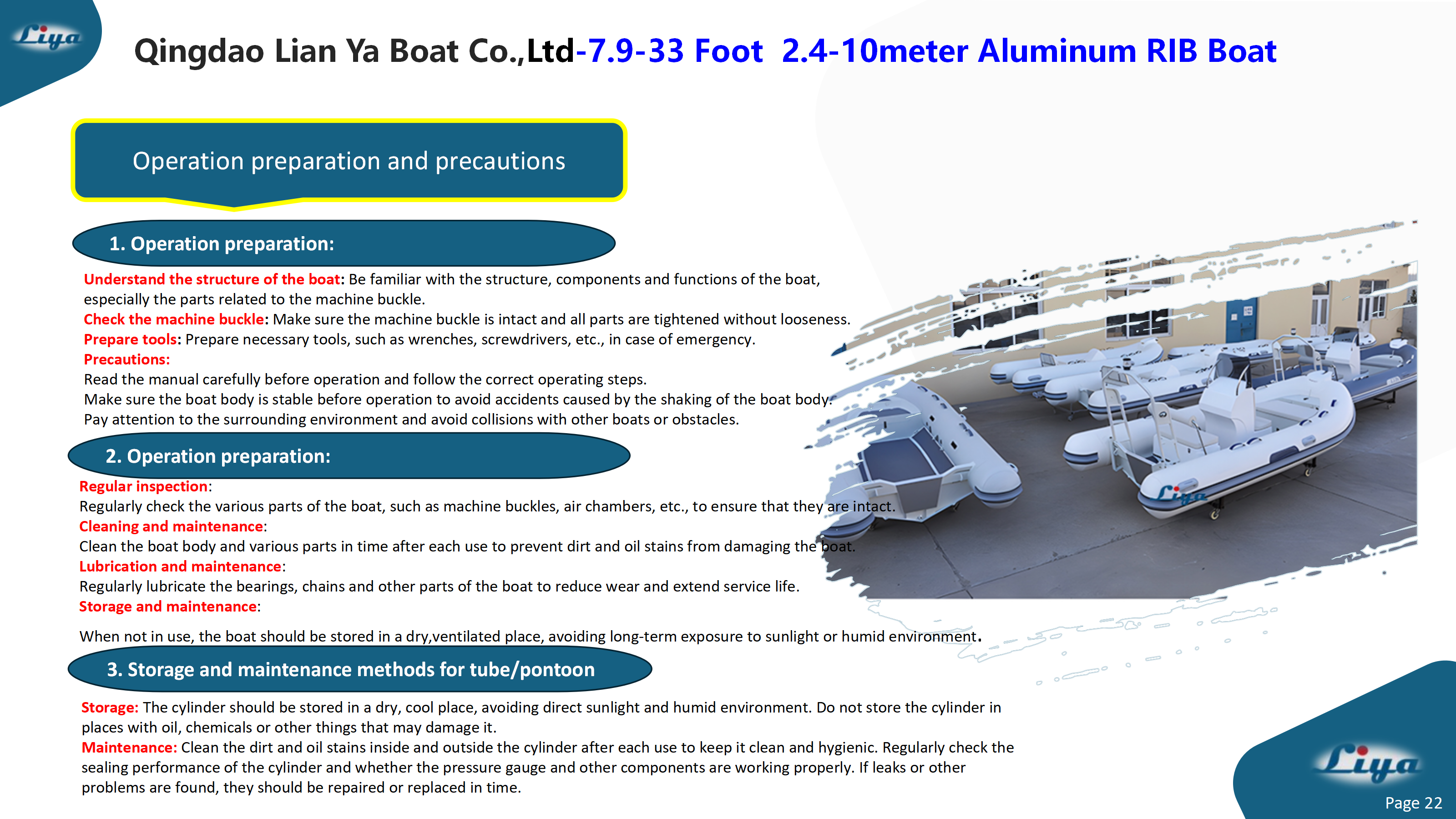

Operation & Operation&Precautions

-Liya 5.8m Aluminum Hull Luxury RIB Tender Boat with CE for 10 Persons

• Regular Cleaning: Rinse with fresh water after each use

• Hull Inspection: Check for damage and corrosion periodically

• Tube Maintenance: Keep properly inflated, clean with mild soap

• Engine Care: Follow manufacturer's maintenance schedule

• Winter Storage: Proper winterization recommended for cold climates
