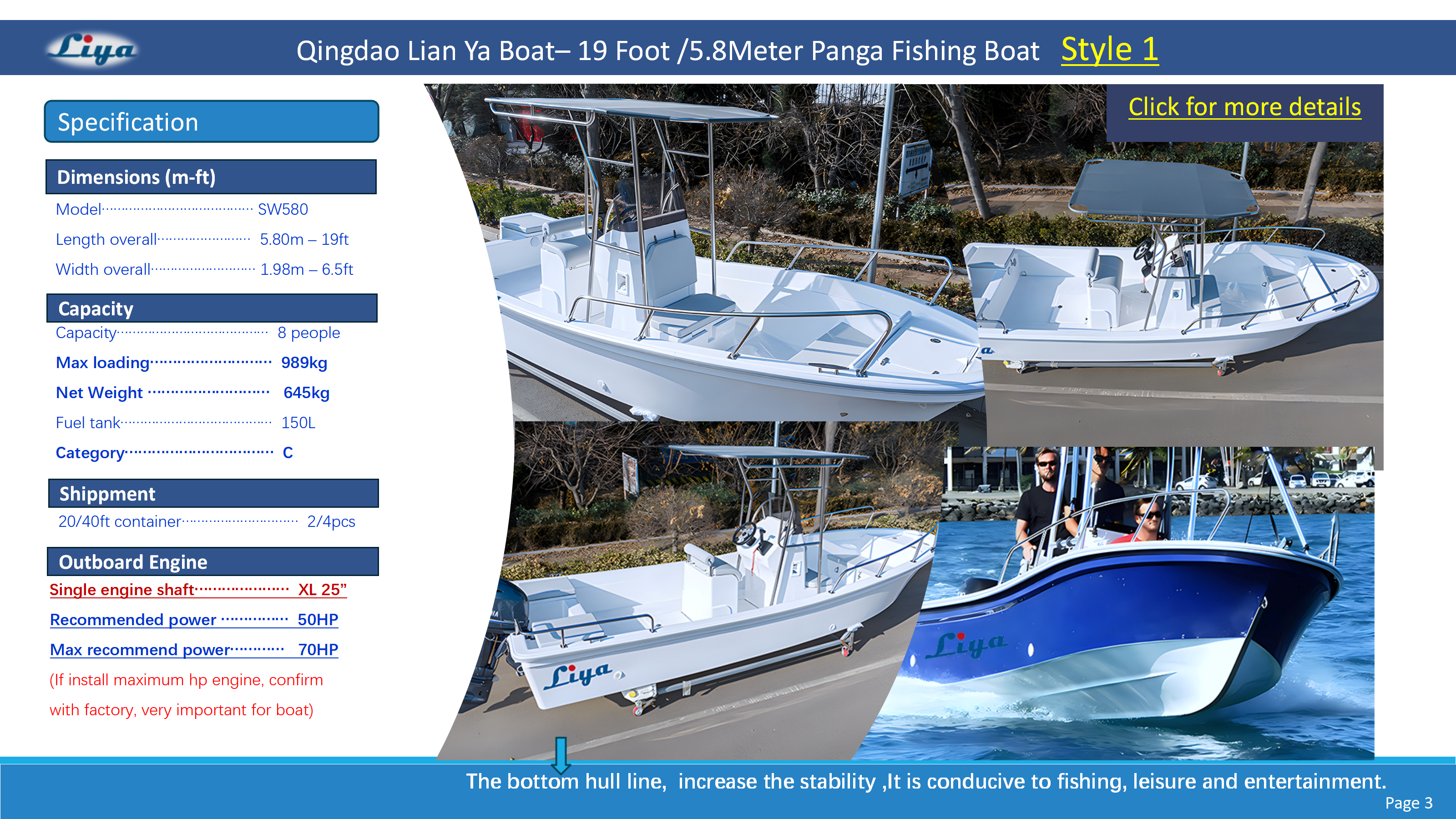

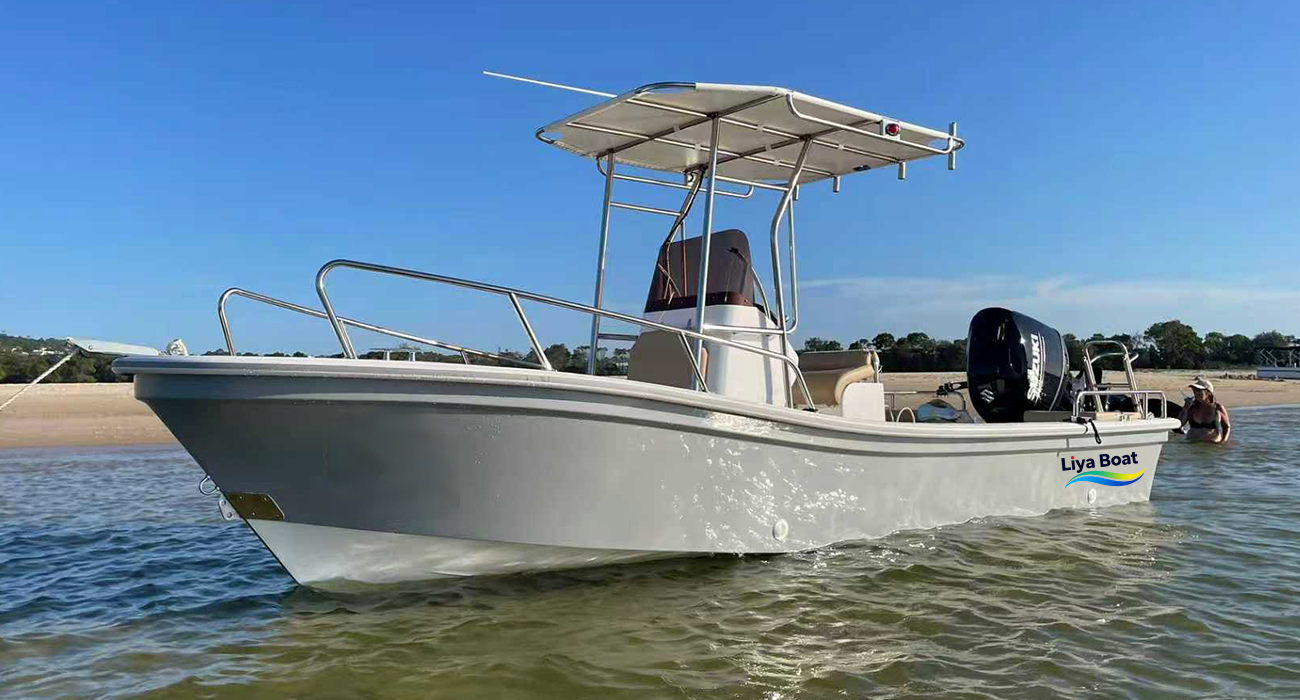

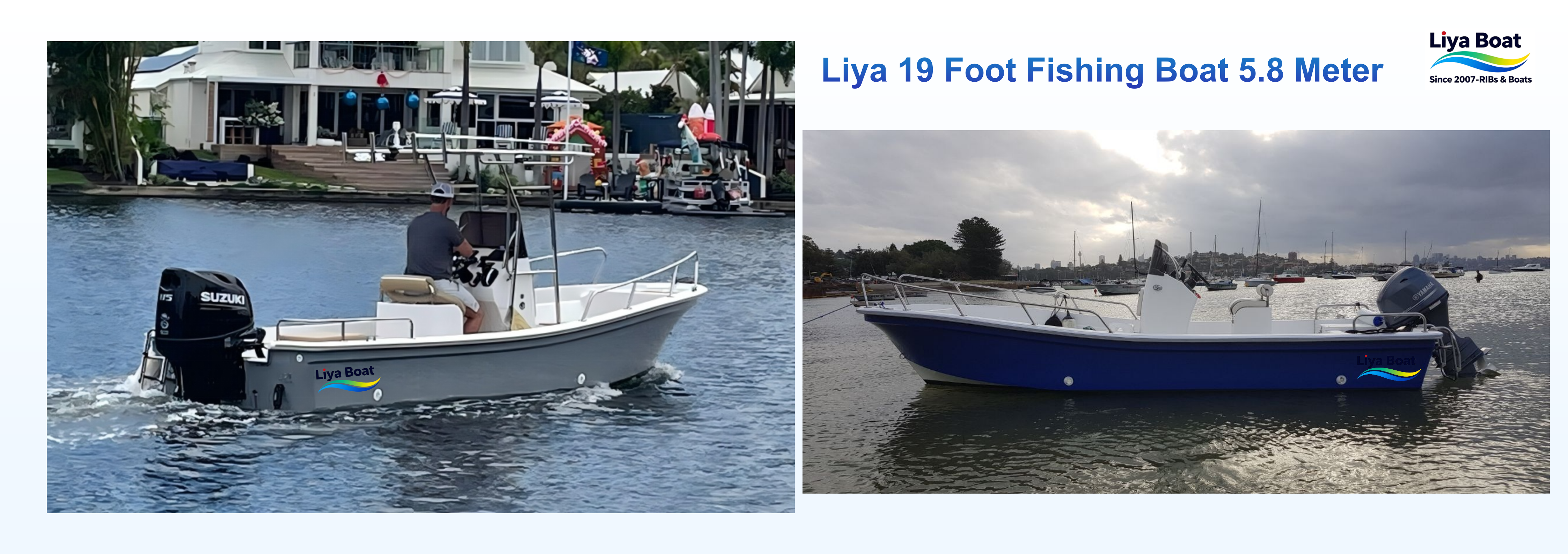

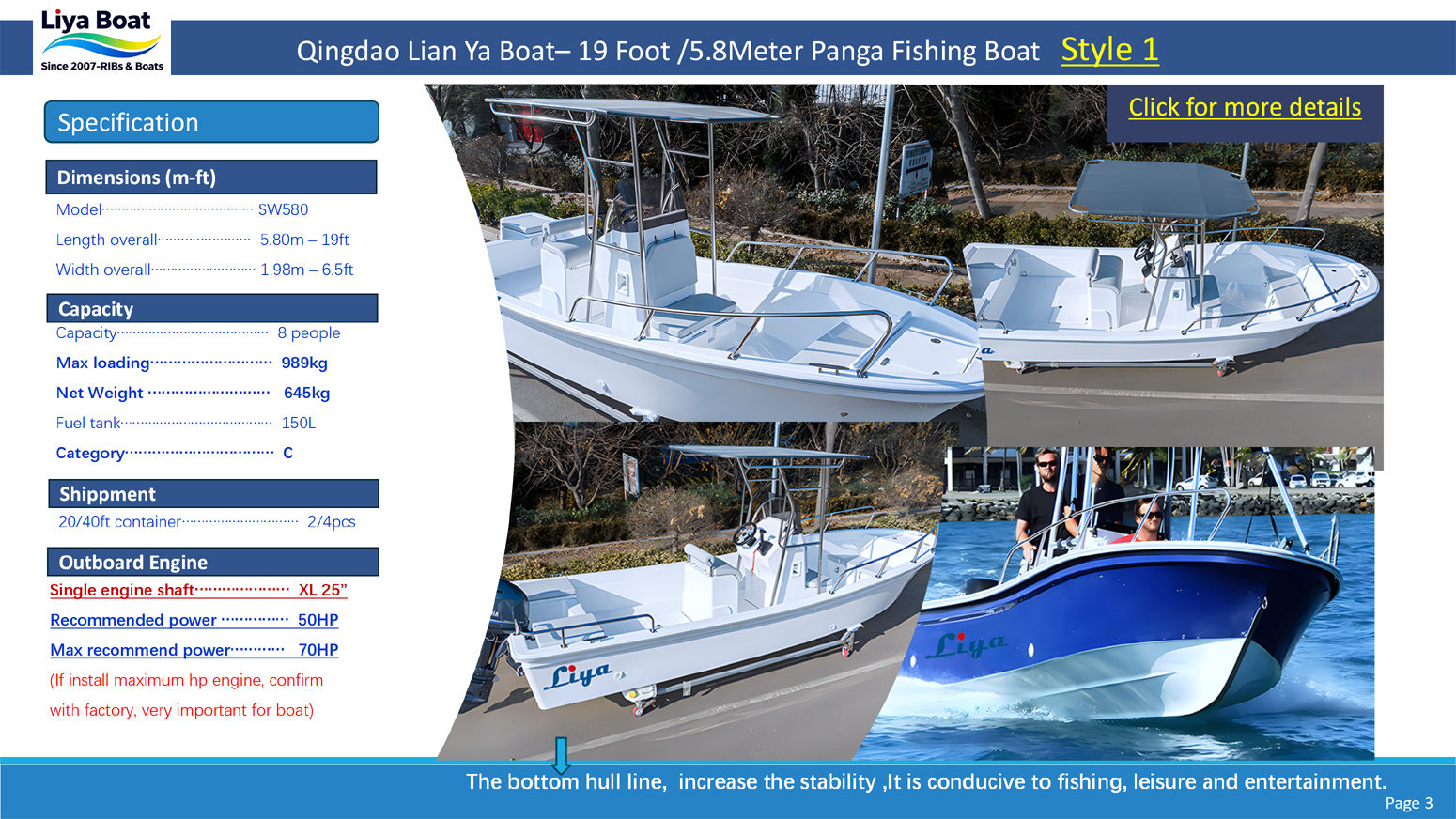

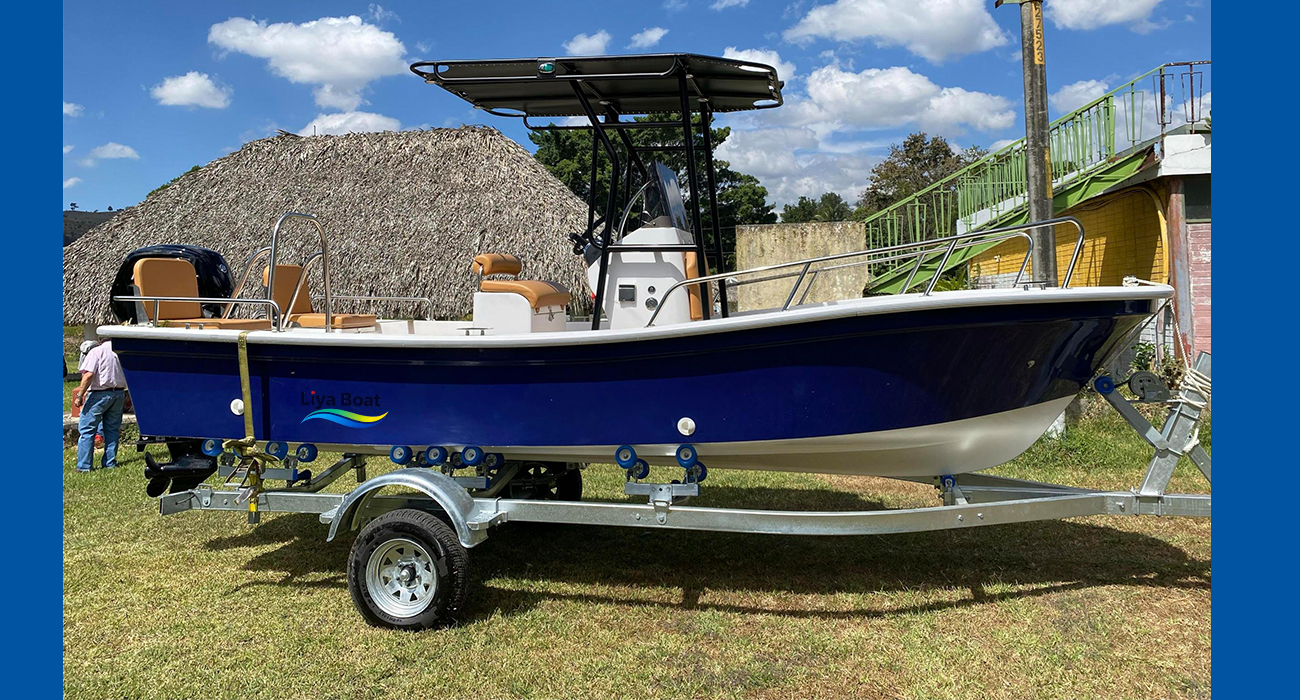

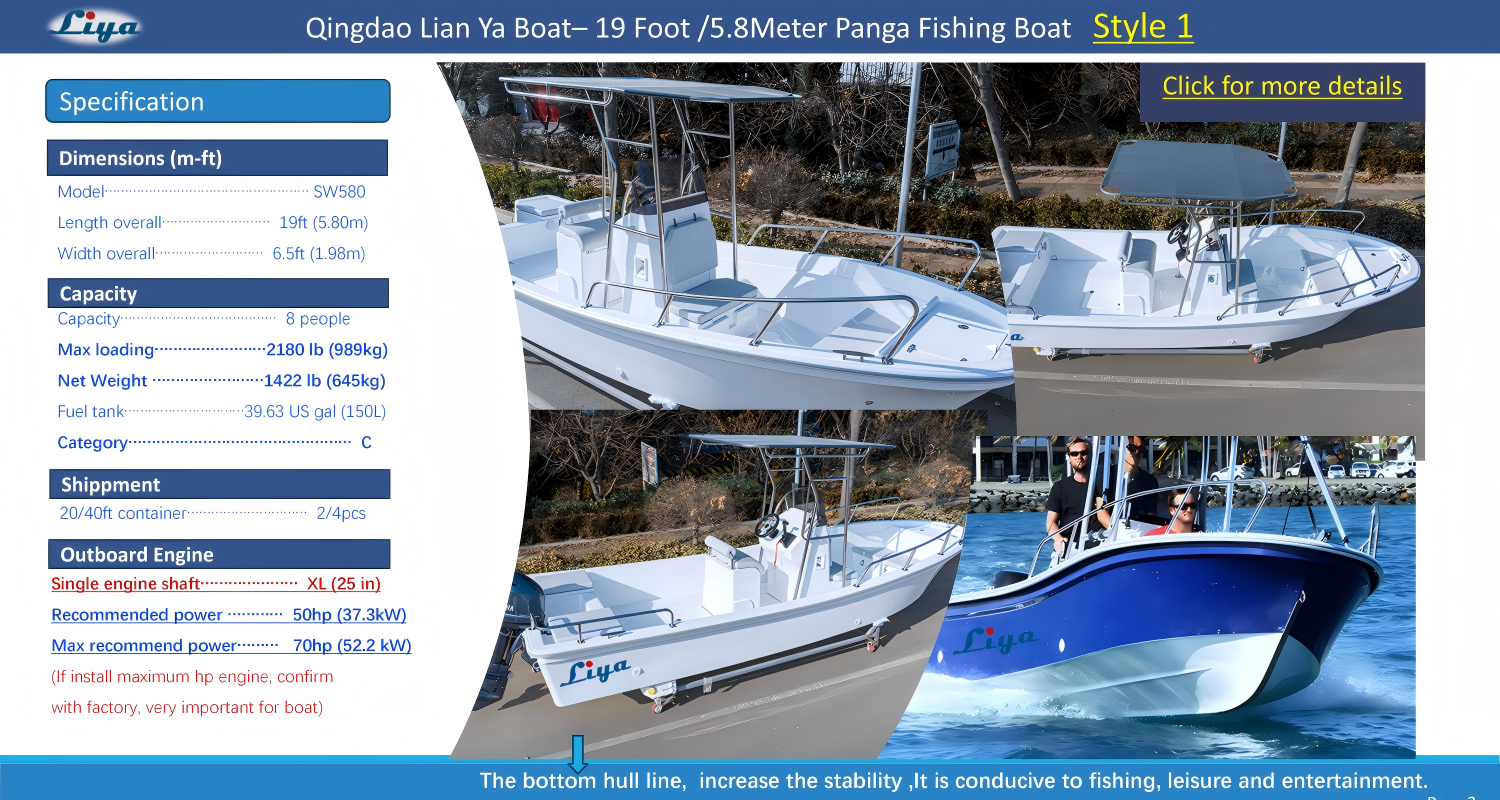

▊Technical Specification- Liya 19 Foot FRP Fishing Boat For 8 People

▊Dimensions

Model………………………………… SW580

Length overall……………………  5.80m – 19ft

Width overall……………………… 1.98m – 6.5ft

Category……………………………  C

▊Capacity

Capacity…………………………………  8 people

Max loading………………………  989kg

Net Weight ………………………   645kg

(The net weight means boat with console,seat etc ,empty feul tank,no engine.

The net wight also may change slightly depending on the different console, seat or other configuration etc.)

▊Outboard Engine

Single engine shaft…………………  XL 25”

Fuel tank………………………………… 150L

Recommended power ……………  50HP/ about 95kg-110kg

Max recommend power…………   70HP/ about 120kg-140kg

(If install the maximum horsepower engine, please confirm with factory before produce, it's very important for boat.)

▊Shipment

20/40ft container………………………2/4pcs

Buyer-Centric FAQ:

Q1: What are the main advantages of the Panga hull design for a boat of this size?

A: For a 19ft boat, the Panga hull offers superior stability at slow speeds and while stationary—crucial for passenger comfort, fishing, or loading/unloading. Its efficient shape requires less power to plane, improving fuel economy. The high bow keeps the deck drier and safer in choppy coastal waters compared to flatter-bottomed boats.

Q2: Is this boat suitable for commercial passenger transport or tourism operations?

A: Yes, absolutely. Its CE Certification is a key indicator. When configured with the appropriate seating (8-person capacity), safety rails, and Bimini top, it is well-suited for commercial inshore transport, island tours, and rental operations. Its durability and simple mechanics keep operational costs low.

Q3: How does the PVC-core deck compare to a traditional wooden floor?

A: It's a significant upgrade. A PVC core is completely impervious to water, so it will never rot, warp, or delaminate. It's also lighter, which improves boat performance and fuel efficiency. This means lower lifetime maintenance costs and consistent structural integrity, a vital factor for commercial use.

Q4: What is the realistic passenger and gear capacity for a day trip?

A: With 8 average-sized adults, the boat has good capacity for a day of coastal touring or light fishing. The 150L fuel tank provides ample range. For longer trips or with more gear, careful weight distribution is key. The self-draining deck handles light spray or splashes effectively.

Q5: Why choose a center console layout for a multipurpose boat?

A: A center console offers 360-degree visibility for the operator, which is essential for safely navigating around swimmers, docks, or fishing spots. It also creates an open, walk-around deck space, making it easier to move between bow and stern, handle lines, or tend to fishing gear, maximizing the usability of the boat's entire length.

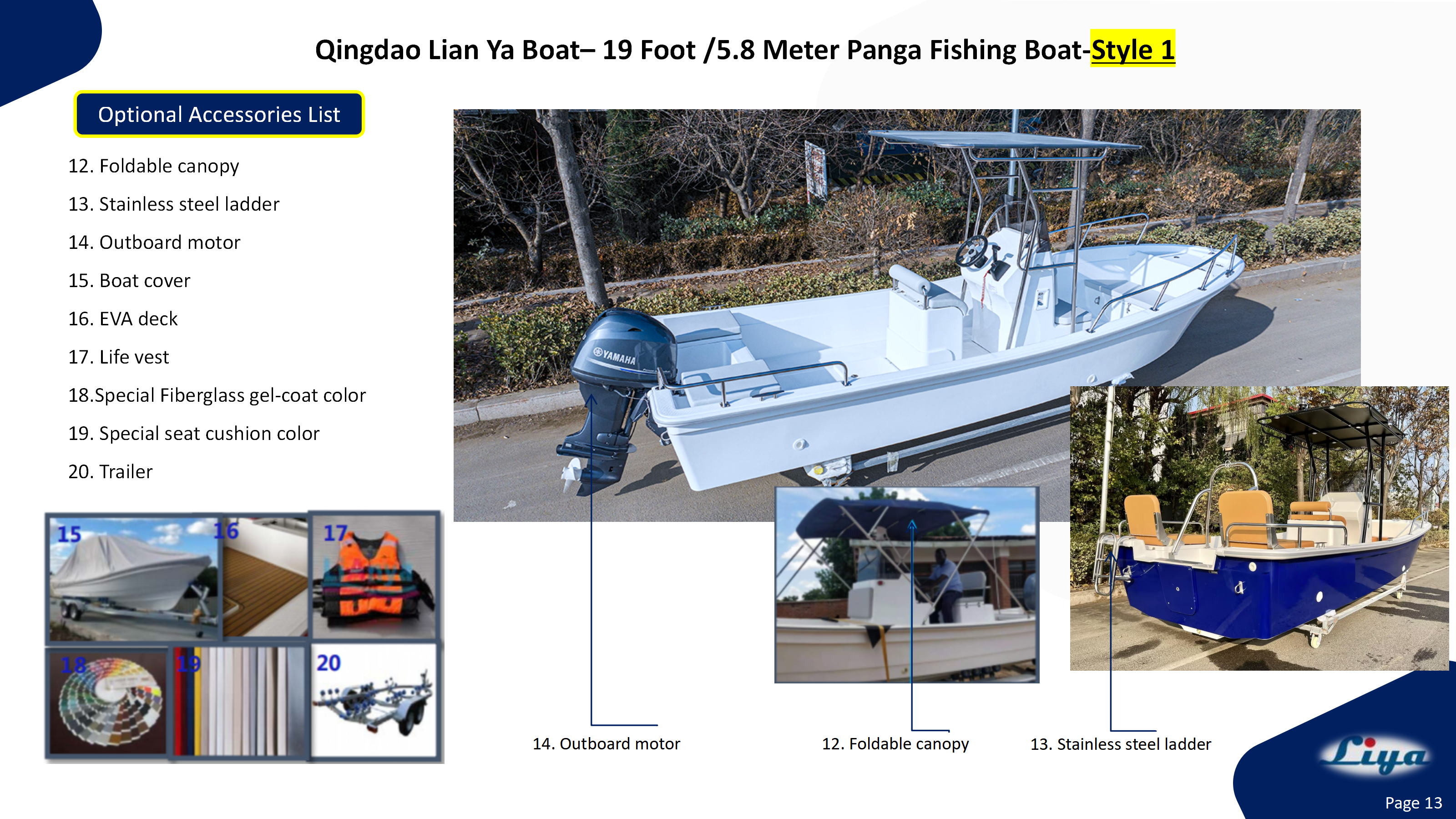

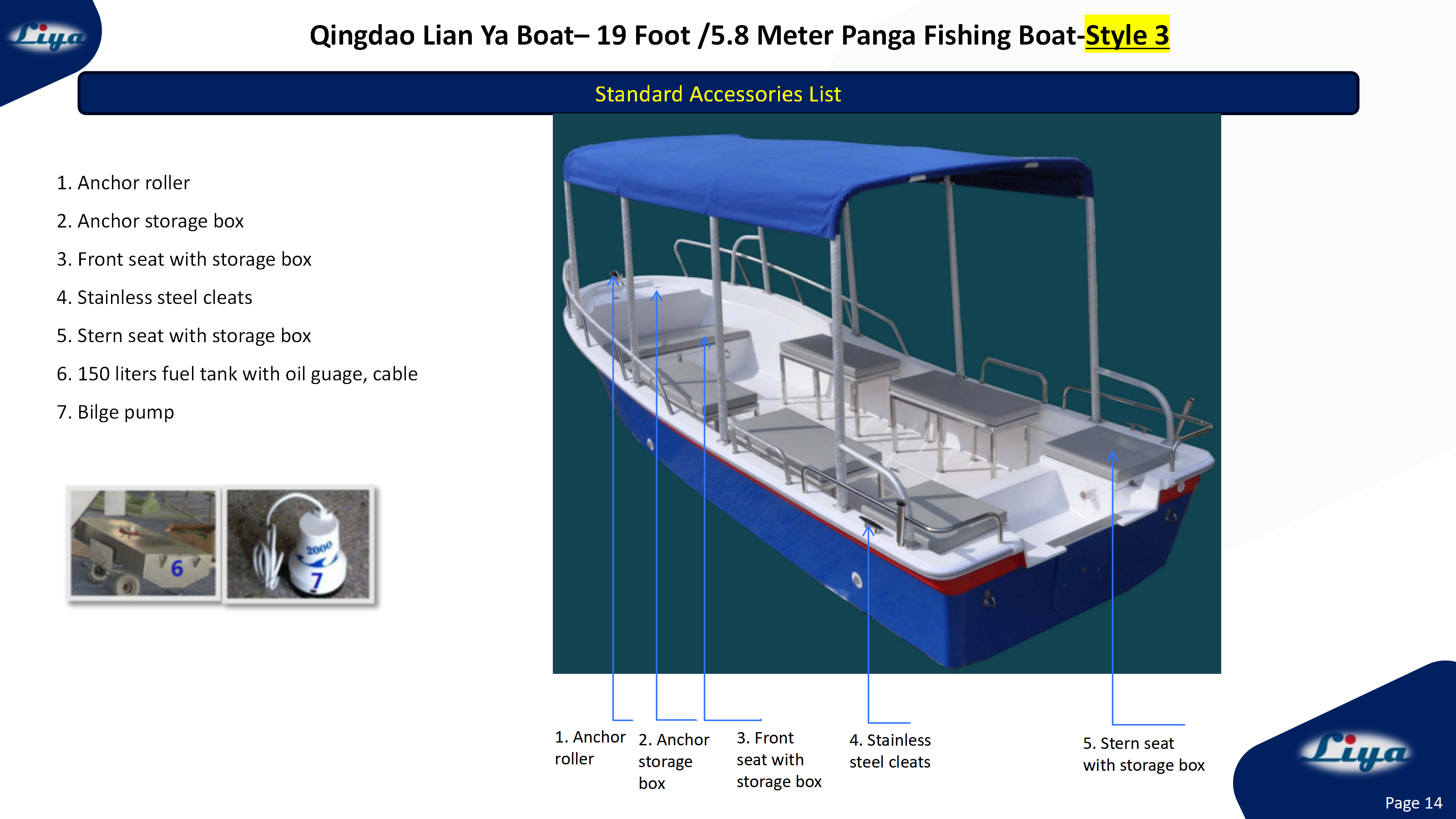

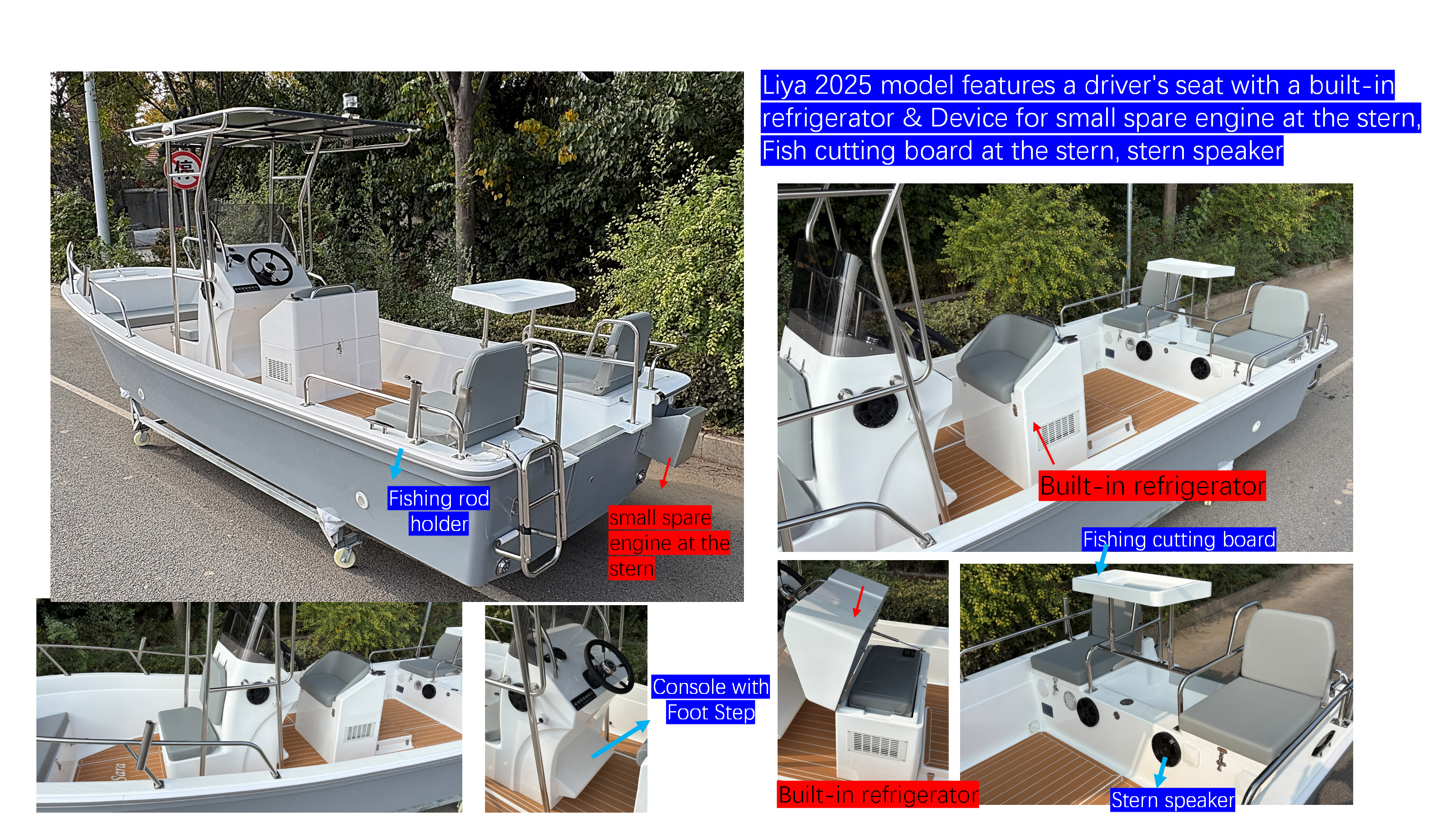

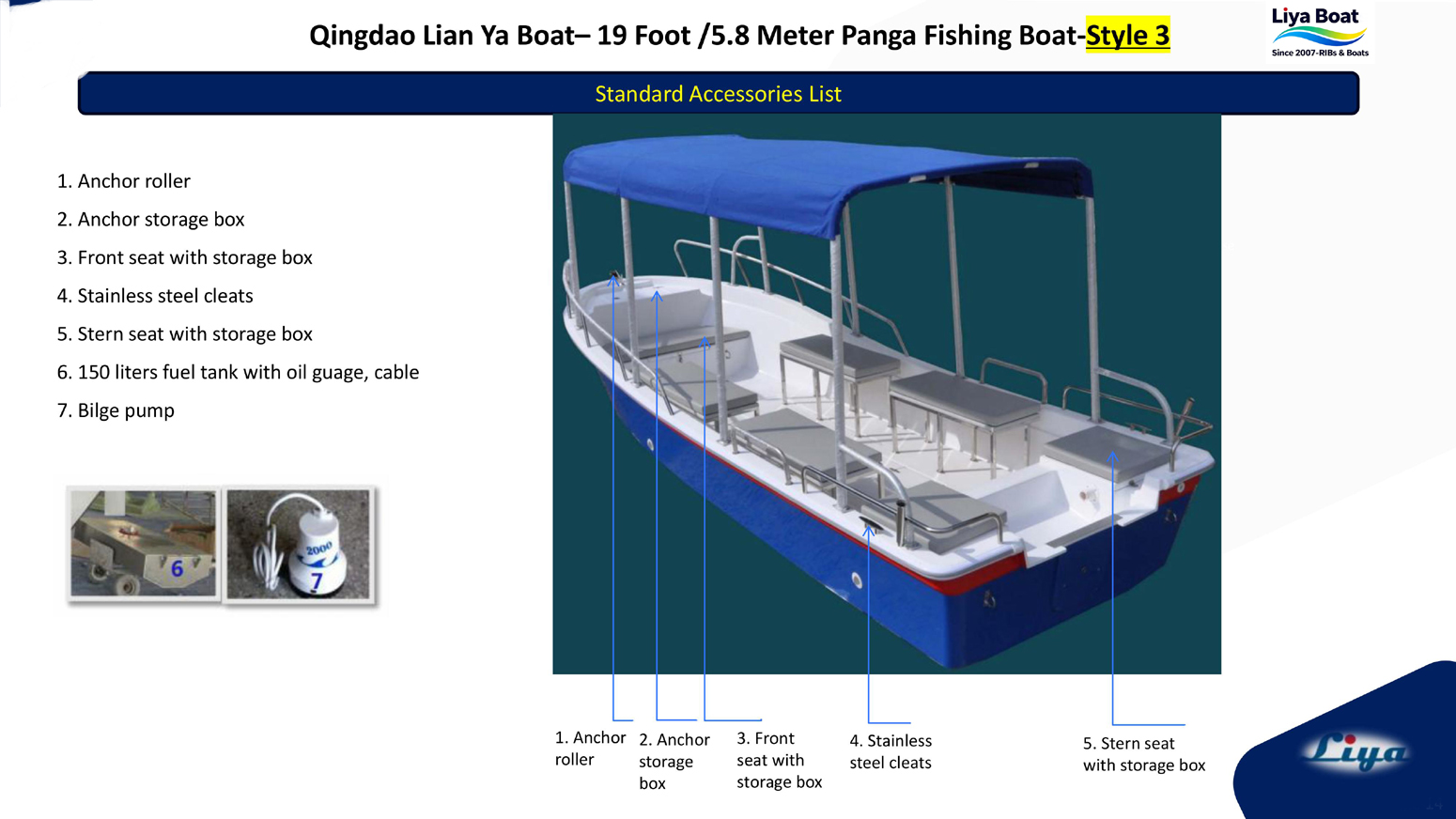

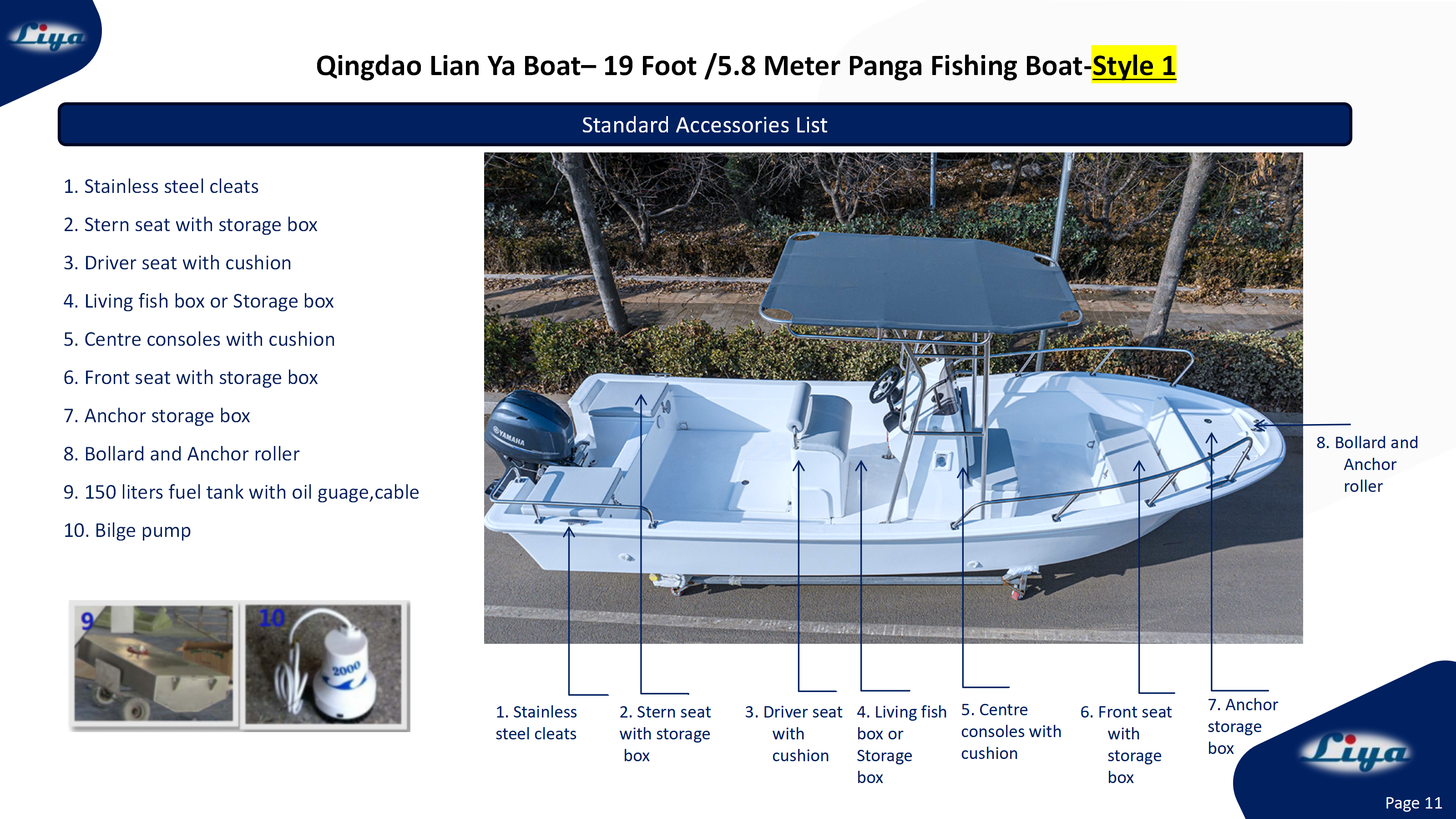

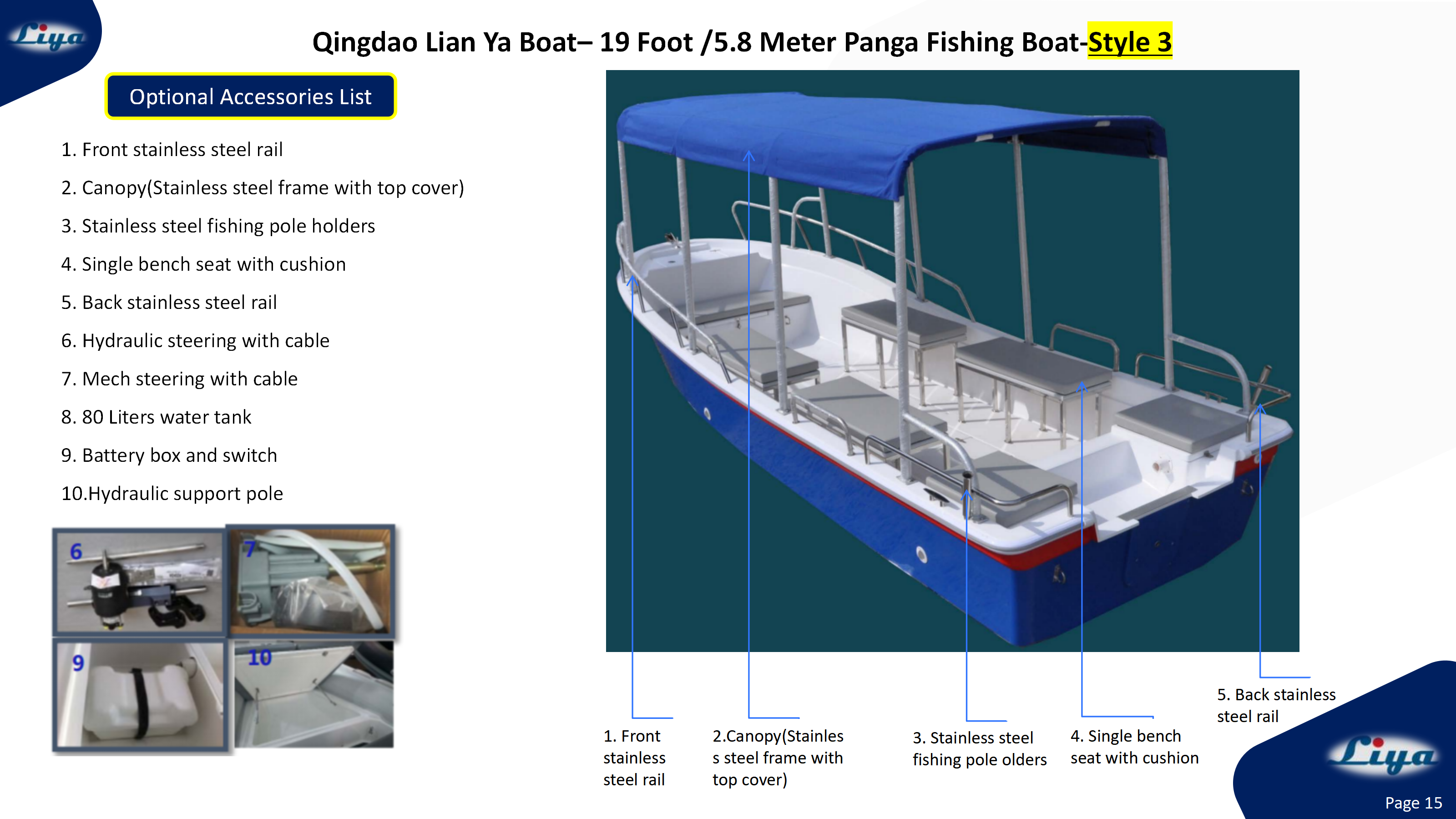

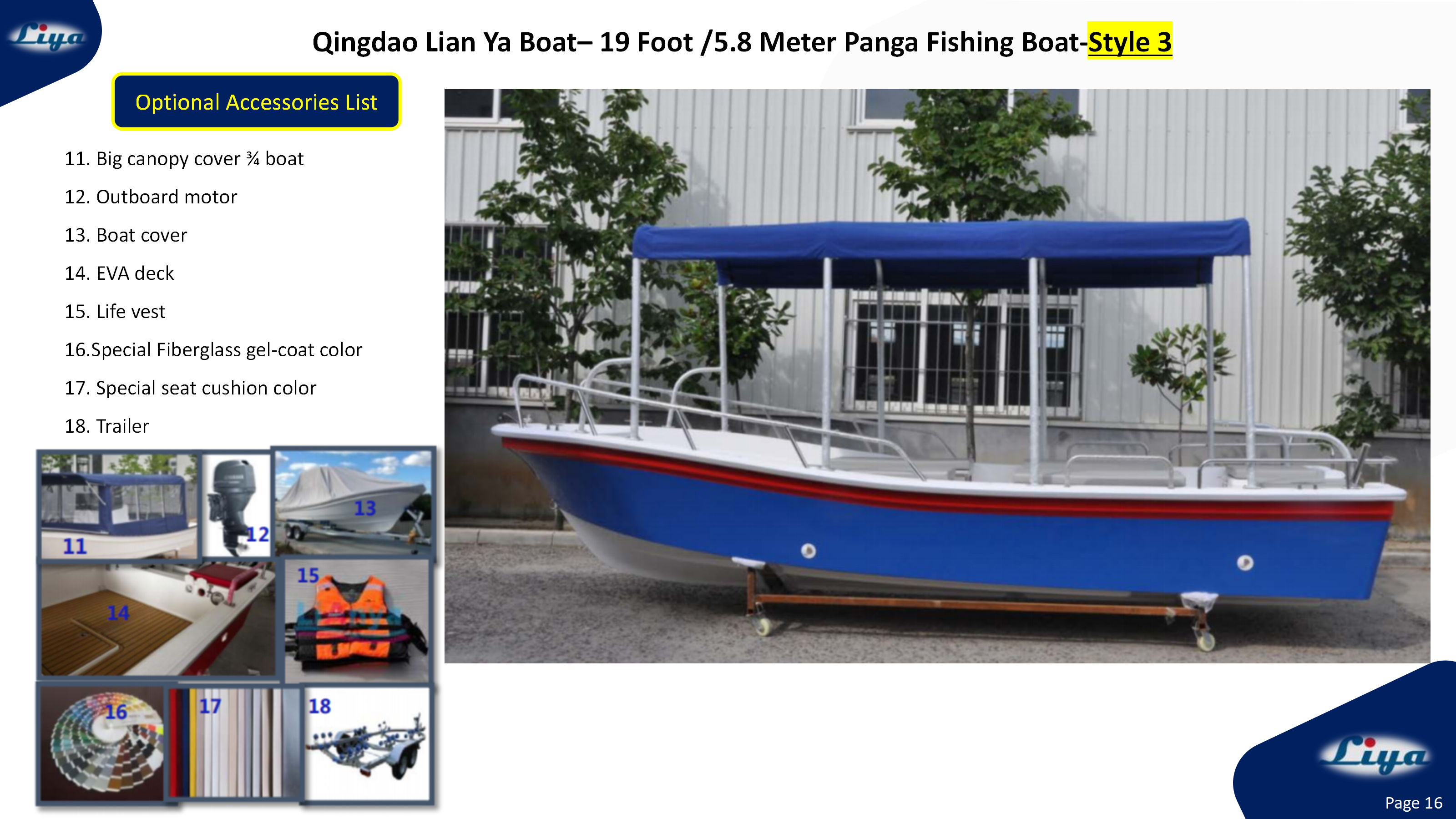

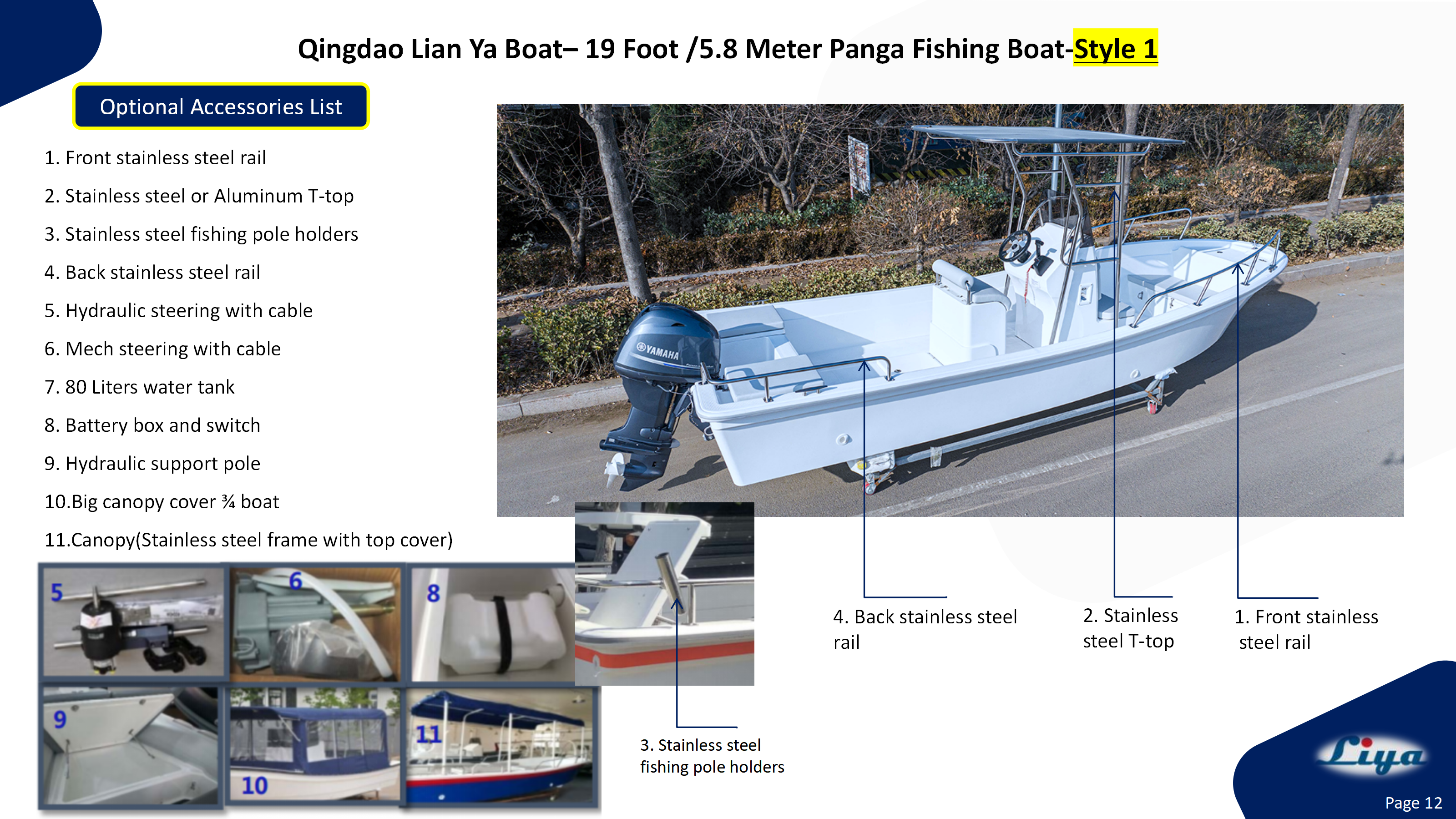

▊Standard & Optional Accessories

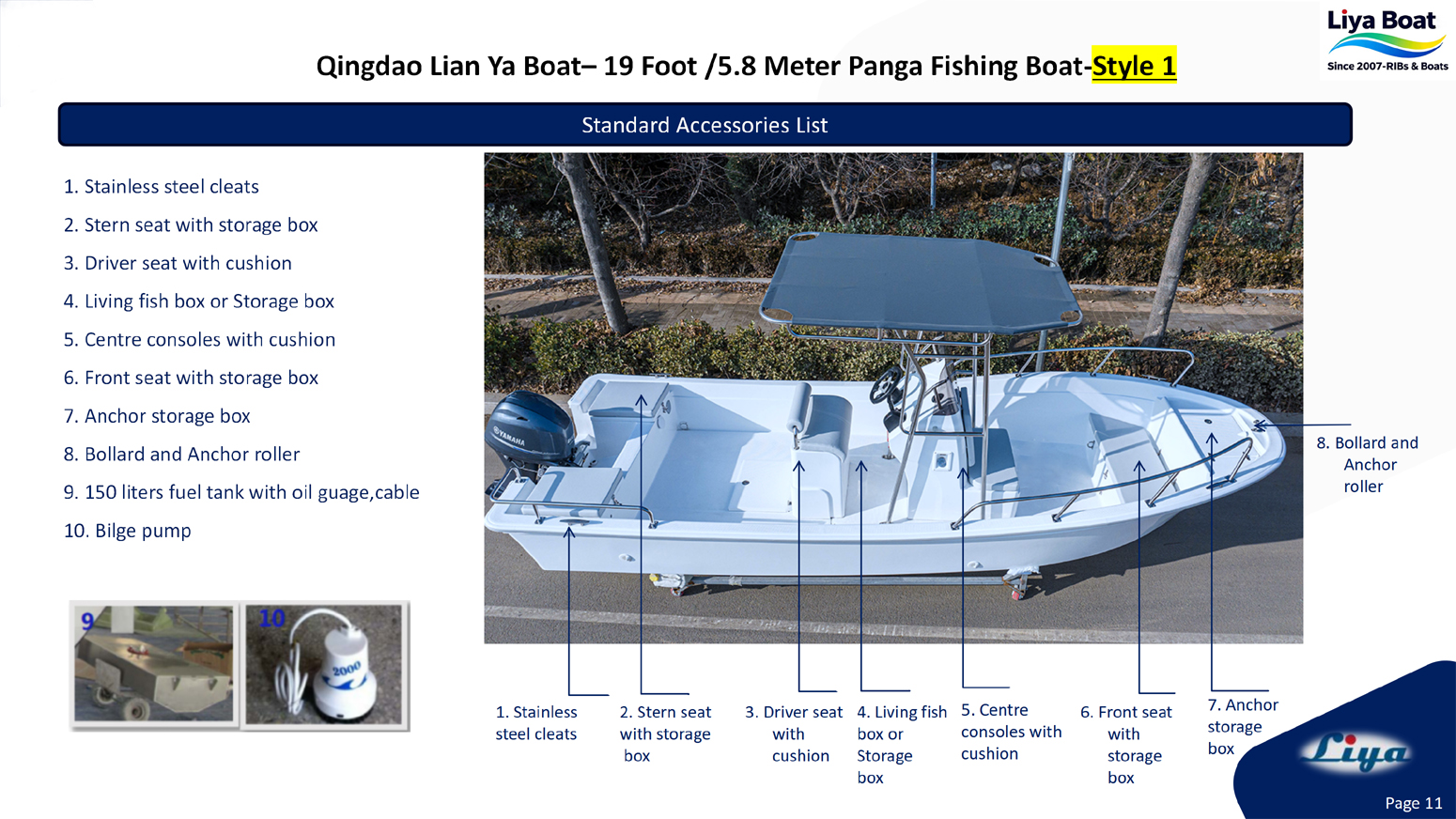

Main configuration:

• The multi-functional center console features,built-in storage space.

• Storage boxes or live fish tanks are available below deck.

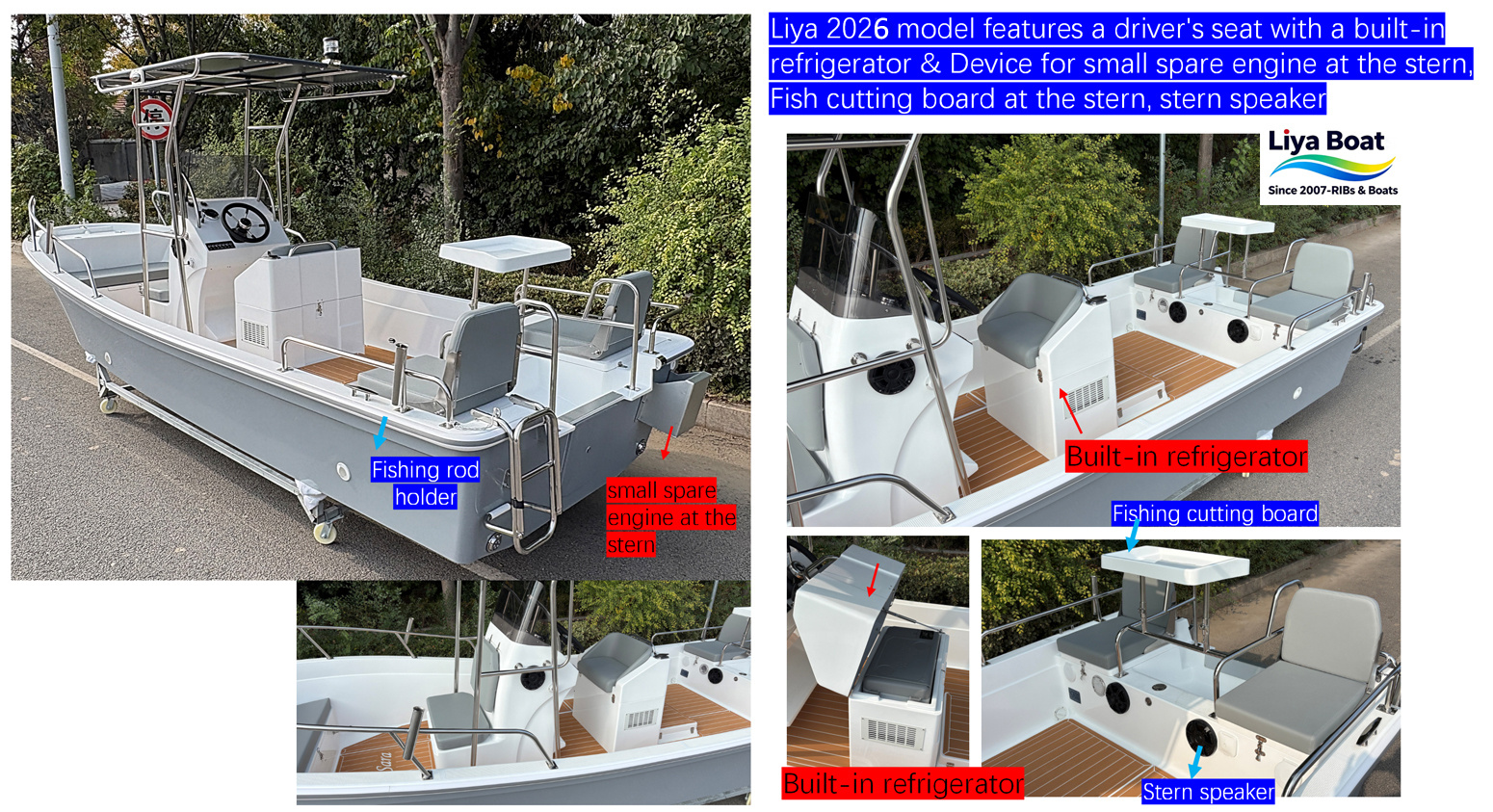

• Multiple driver's seats are available, each with storage space or a refrigerator.

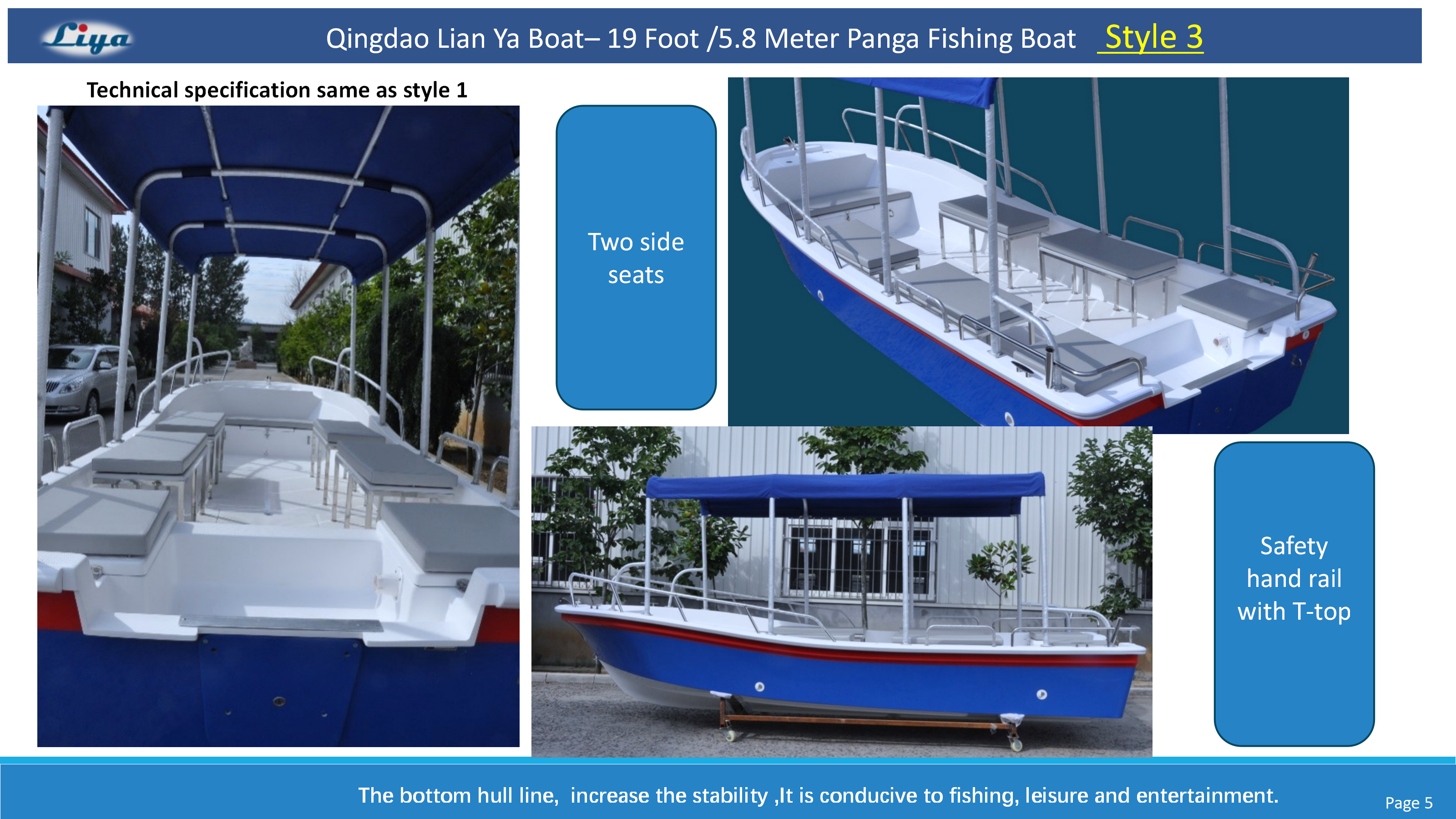

• Safety handrails are optional at the bow and stern.

• Anchor box is included at the bow.

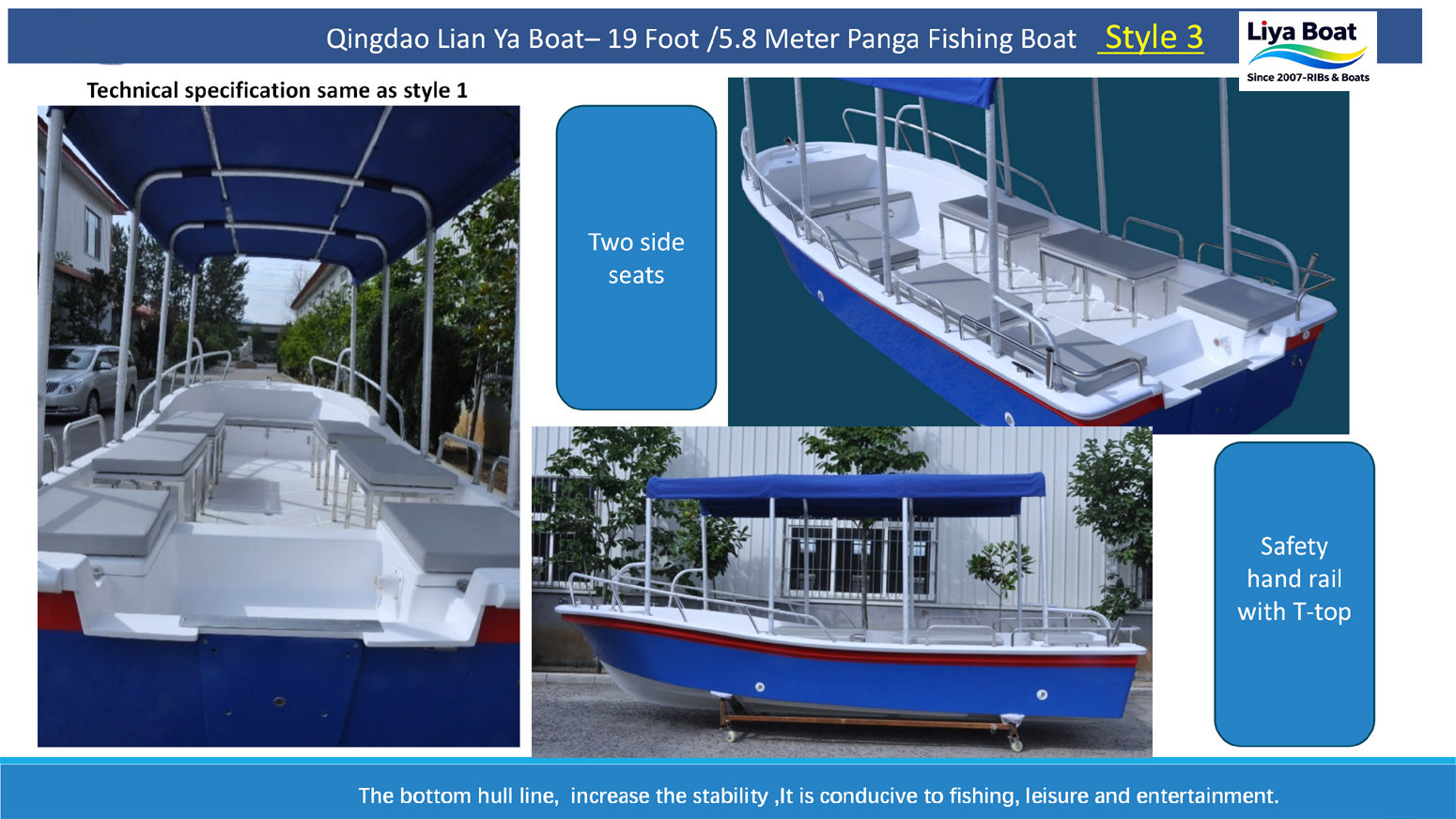

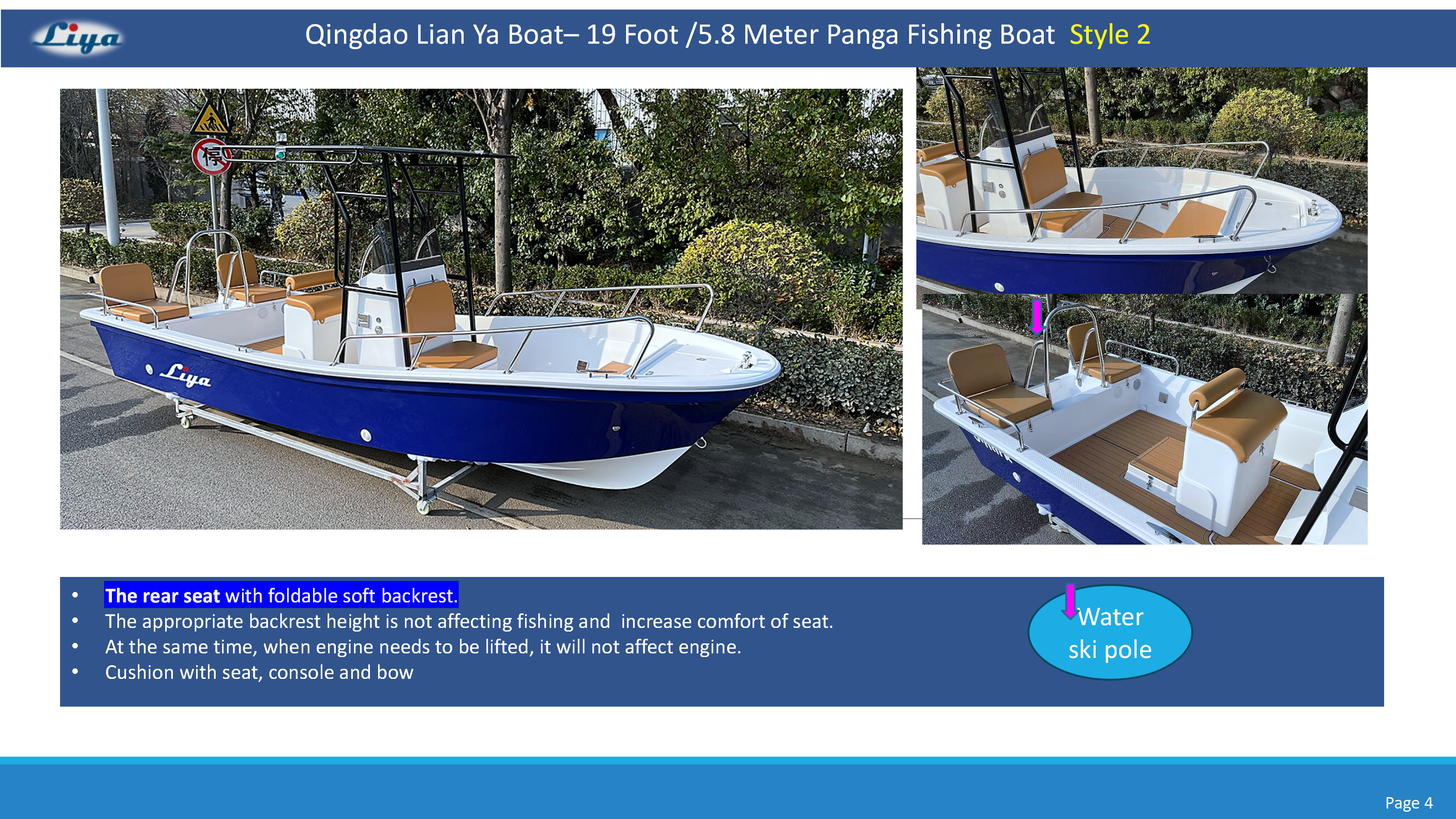

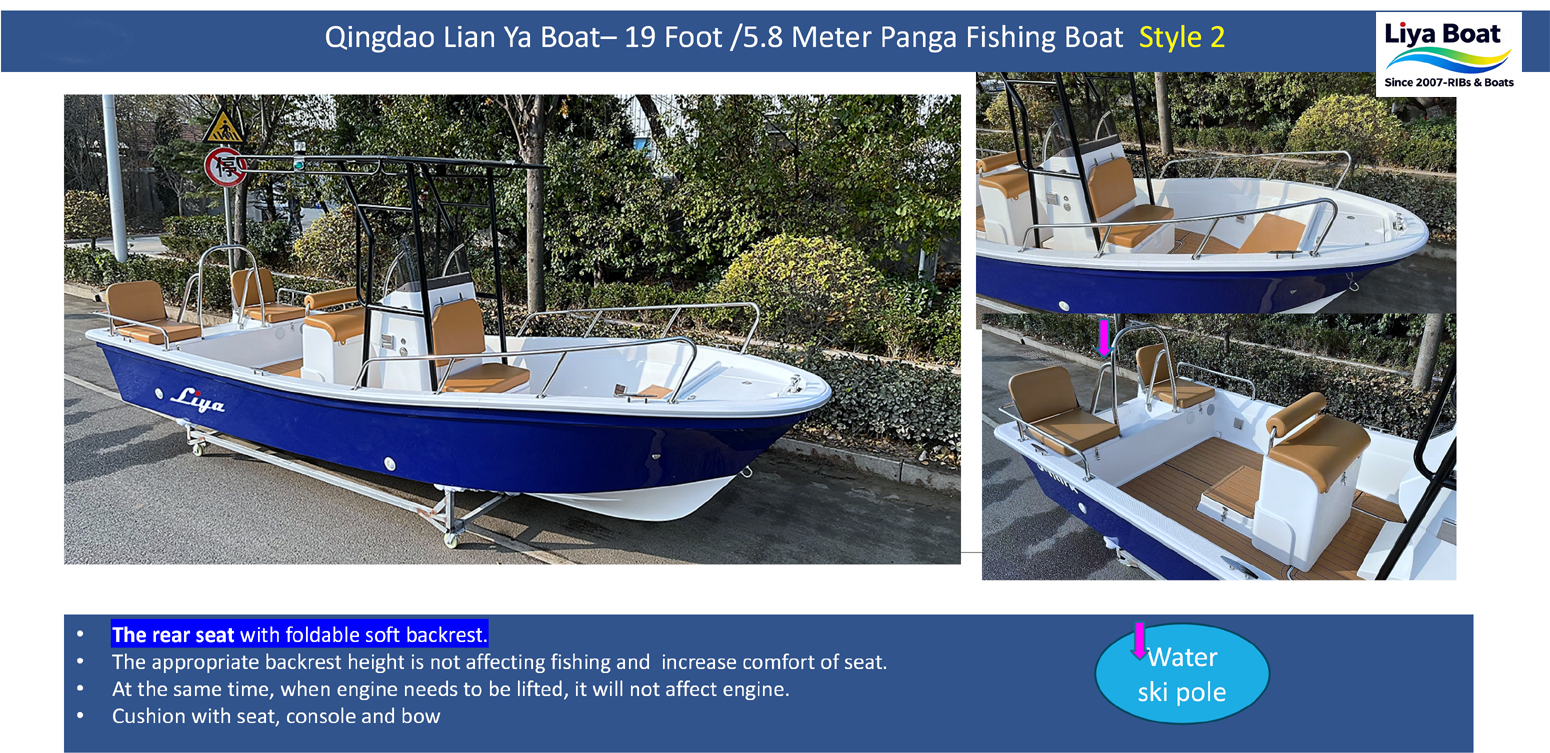

• Stern seats can be cushioned and have storage boxes. A swimming platform or stainless steel ladder is also optional at the stern. Additionally, a water ski rack and fish cutter are optional at the stern.

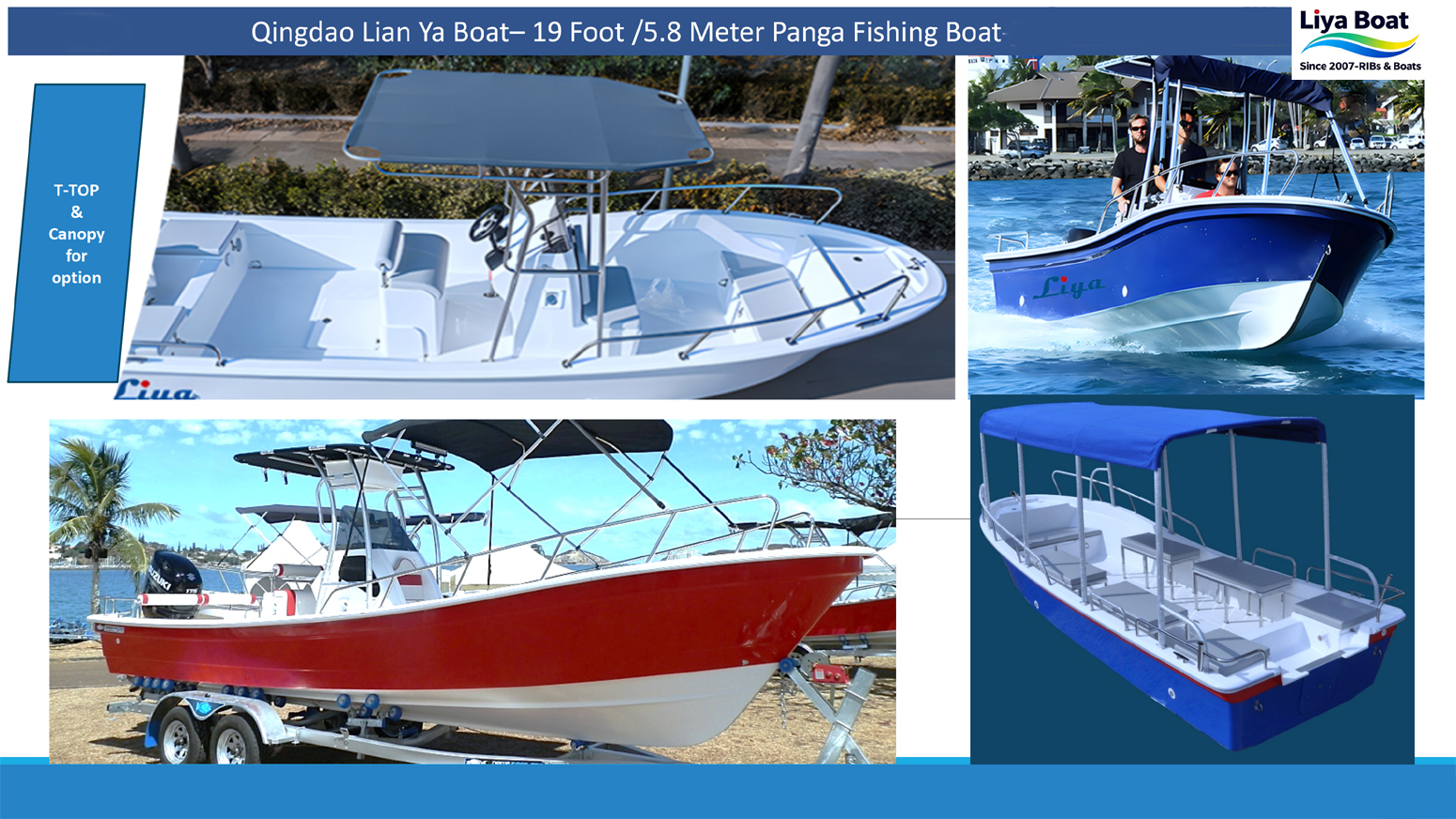

• A T-top and folding canopy are optional. Fishing rod holders, water tanks with shower are also optional.

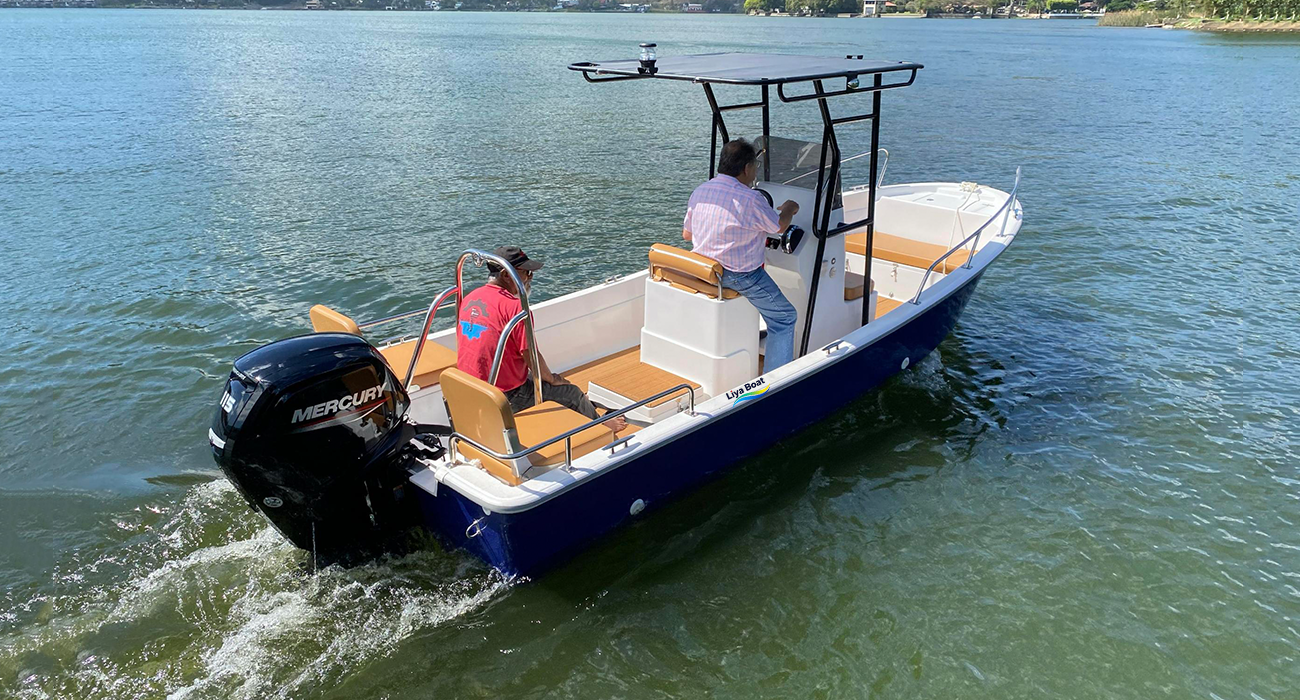

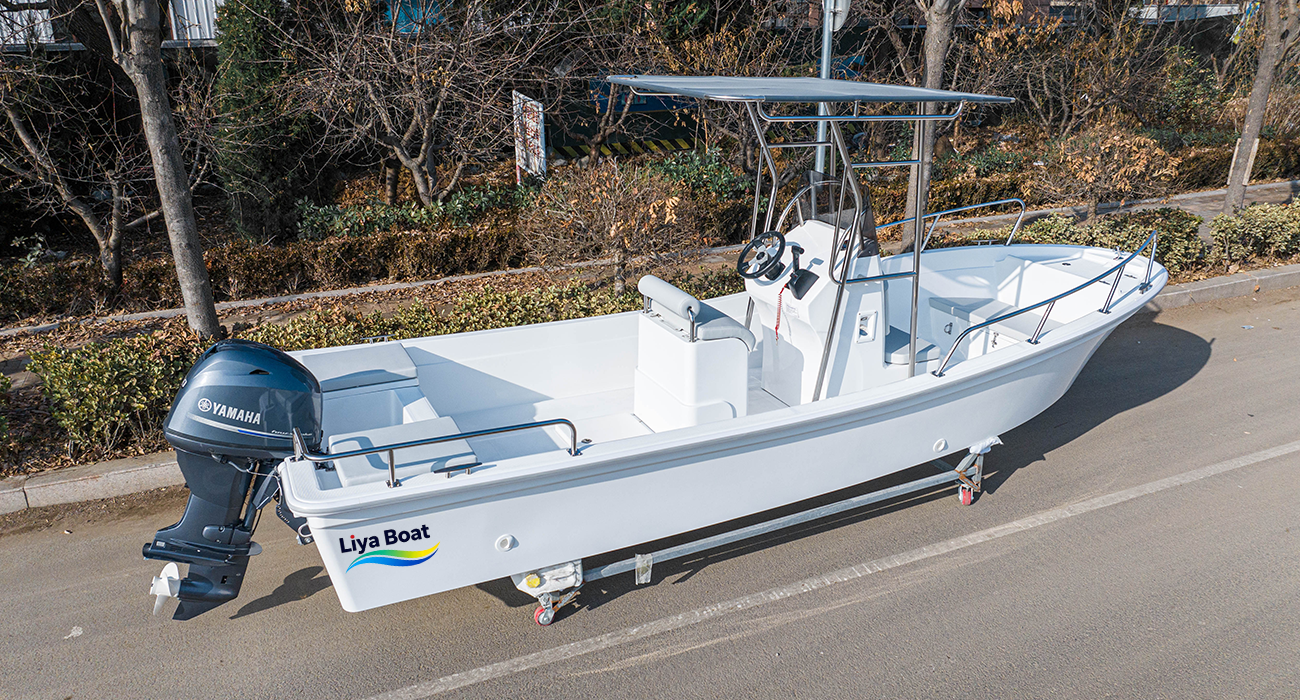

- Liya 19 Foot Center Console Fishing Boat

▊Quality Assurance- Liya 19 Foot Offshore Fishing Boat

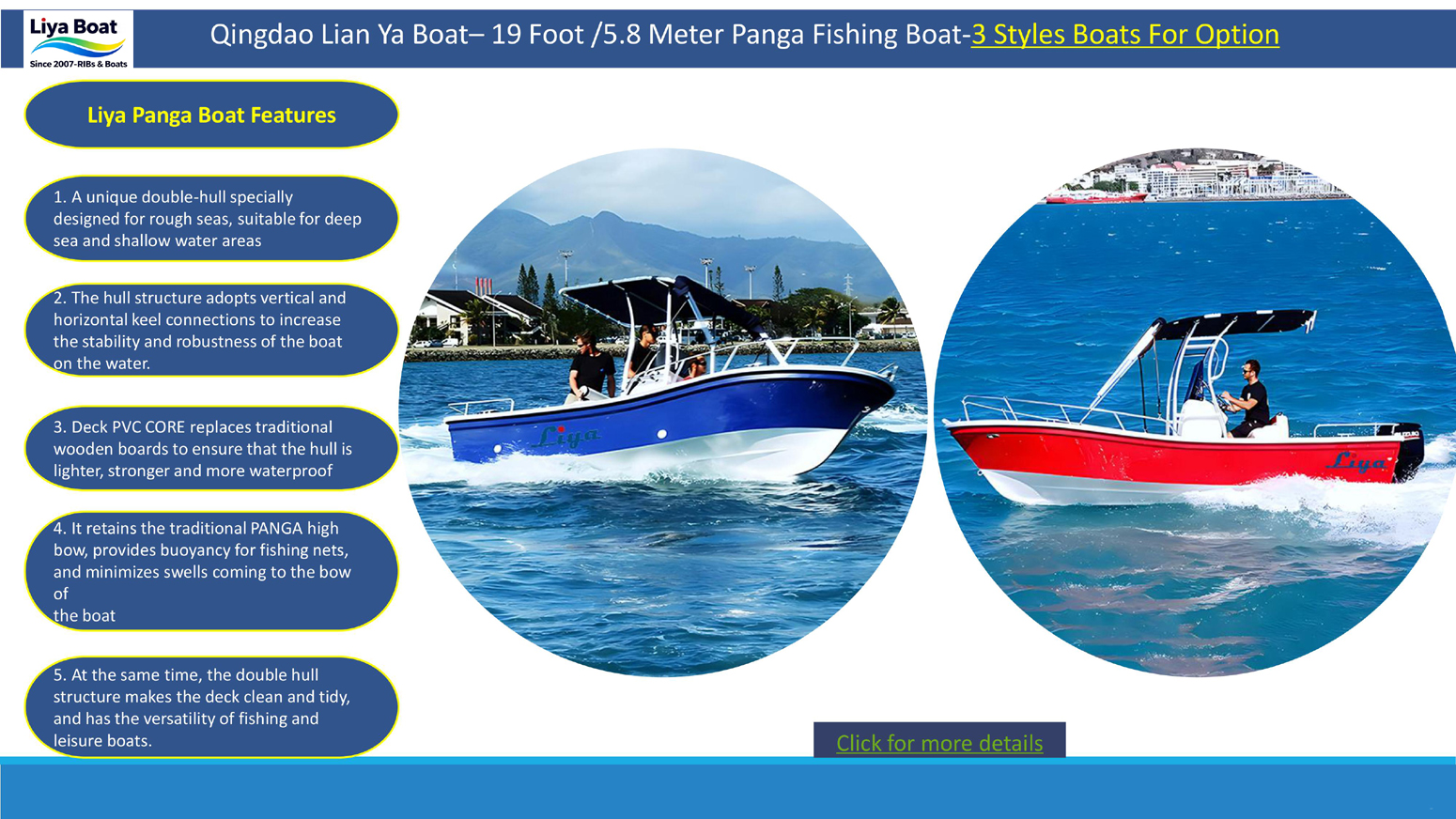

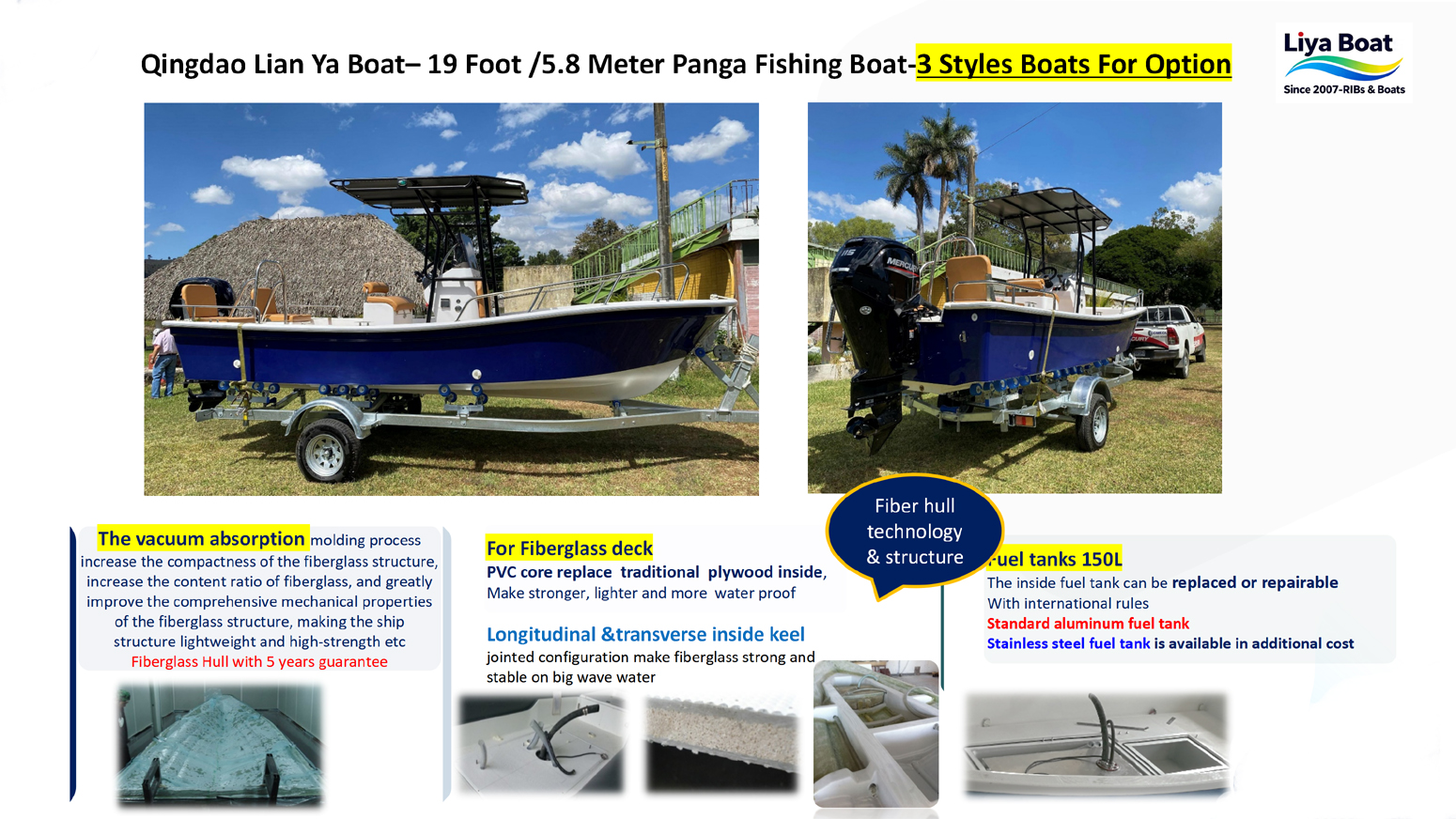

▋Panga Boat Features:

• Unique double-hull structure, suitable for complex sea conditions.

• The hull structure uses longitudinal and transverse keels to improve the boat's stability and robustness at sea.

• The fiberglass deck uses a PVC core instead of traditional wooden planks,ensuring a lighter,stronger&more waterproof hull.

• The Panga retains its high-sloping bow design to minimize bow swell.

• The double-hull structure keeps the deck neat and organized,combining the versatility of fishing boat &a recreational boat.

-Designed base on international stanard ISO6185 certificate & Produced by ISO Manufactuer

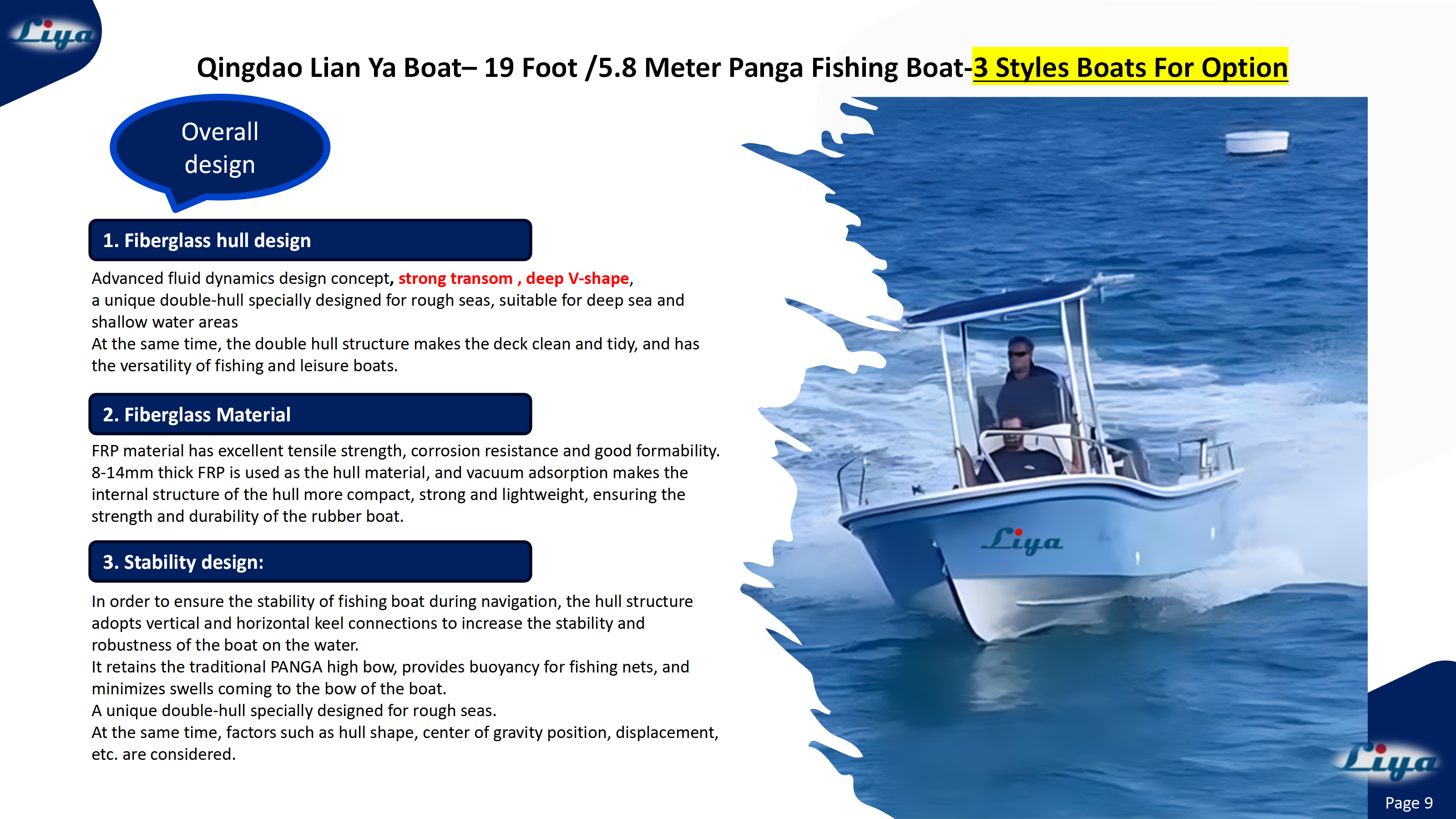

▊Overall Design & Fiberglass Hull

The design principle of the 19-foot Fishing boat mainly involves material selection, structural design, stability design and other aspects.

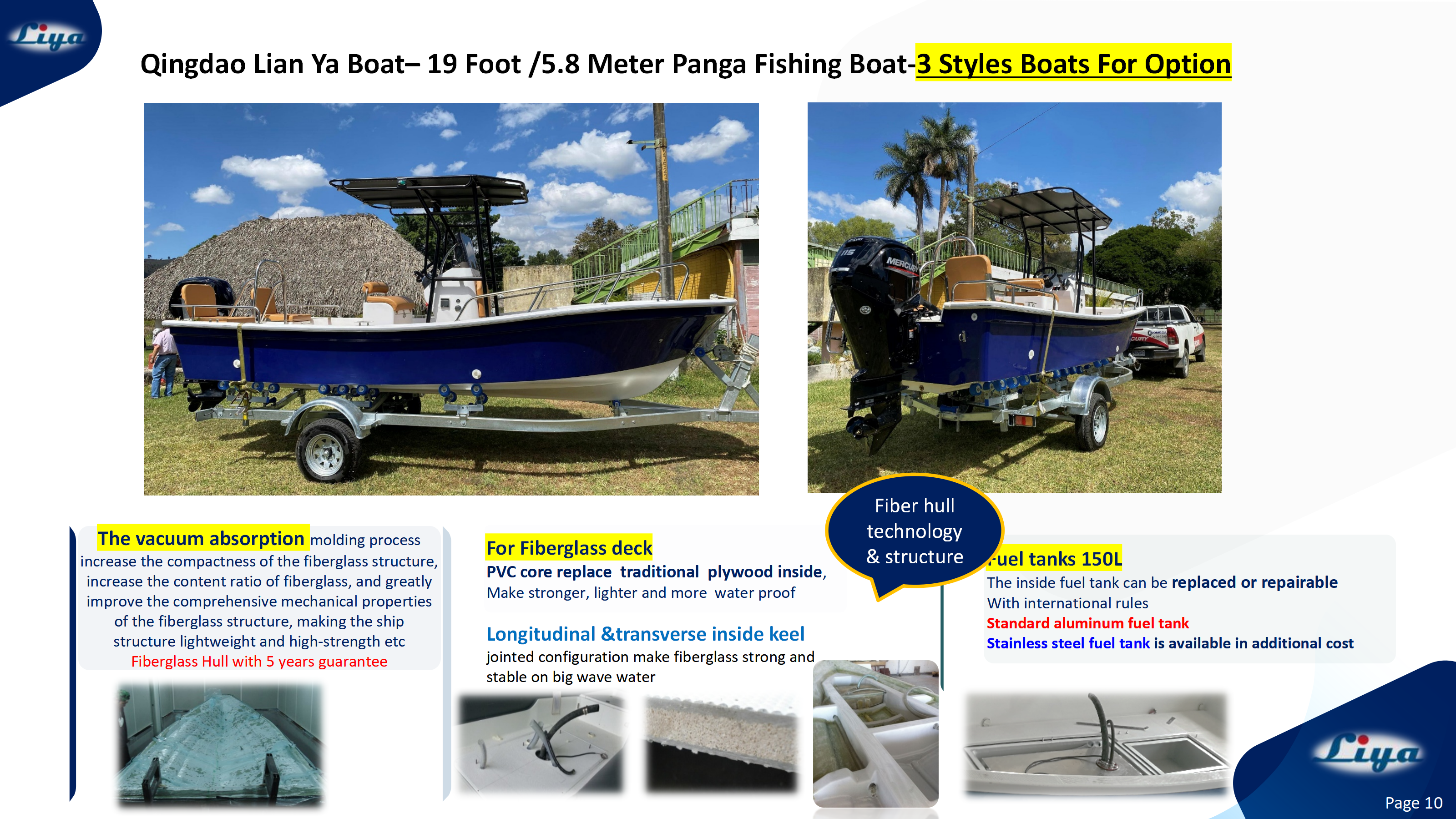

｜Fiberglass hull and structure features & Technology

Sturdy internal structure and reliable fiberglass hull make the boat more stronger, more stable, and safer.

｜Line classification system & Certificates double insurance

Engineered for Peace of Mind- Double insurance design & international standard certification.

▊Operation & Precautions- Liya FRP Panga Boat

Safety Operation

The safe operation of your FRP boat requires preparation, situational awareness, and adherence to fundamental rules.

Pre-Departure Checks (The "Do" List):

• Weather:

  Always obtain the latest forecast for wind, waves, and tides before departure. Never exceed the limitations of your boat or your experience.

• Boat & Systems:

  Verify the boat is seaworthy. Check that the engine starts easily, the electrical system is functional, and the bilge pump is operational.

• Fuel:

  Ensure you have sufficient fuel for your trip plus a minimum one-third reserve. Be aware of your engine's fuel consumption under load.

• Loading & Stability:

  Never overload the boat. Distribute all weight (passengers, gear) evenly to keep the boat in good trim and the center of gravity low. Ensure there is adequate freeboard for the conditions.

• Safety Equipment:

  Confirm you have a correctly sized, serviceable Personal Flotation Device (PFD) for every person on board. Brief all passengers on where to sit and how to wear their PFD. Ensure other mandated safety gear (fire extinguisher, visual signals, sound-producing device) is accessible and in date.

Underway Procedures:

• Speed & Wake:

  Operate at a safe and controlled speed appropriate for conditions, traffic, and visibility. Be aware that your wake can cause damage or injury.

• Passenger Management:

  All occupants must be seated on provided seats or the deck. They must not sit on the gunwales, bow deck, or stand while the boat is moving.

• Ventilation & Fumes:

  Gasoline vapors and carbon monoxide are deadly. Maintain good cockpit ventilation. Run blowers if equipped. Be alert for fumes, especially from the engine compartment.

• Rules of the Road:

  Obey all navigational rules and local regulations.

Critical "Do Not" List:

• Do not operate the boat, or allow others to operate it, under the influence of alcohol or drugs.

• Do not permit horseplay or reckless behavior on board.

• Do not make high-speed turns or sudden maneuvers.

• Do not use PFDs as seat cushions or fenders, as this can damage them.

Special Considerations for Offshore & Fishing Use:

• Lifejacket Policy:

  Develop a clear "Lifejacket Wear Procedure" for various tasks (e.g., fishing, working on deck). As demonstrated by professional fisheries, wearing a lifejacket should be mandatory during high-risk activities like working on the bow, in rough weather (e.g., over 20 knots of wind), or when operating alone.

• Man Overboard (MOB):

  Have a plan and practice it. Key controls include: immediately reducing engine revs, throwing a life ring or buoyant object, assigning a spotter, and executing a safe recovery approach.

• Communication:

  For offshore trips, a VHF radio and an **Emergency Position Indicating Radio Beacon (EPIRB)** are essential beyond visual range of land.

Inspection & Maintenance

Regular maintenance is critical for safety, performance, and longevity. FRP hulls are durable but require specific care.

Hull & Gel Coat (Monthly/After Each Use):

• Cleaning: Wash with fresh water and mild soap to remove salt and contaminants. Avoid harsh abrasives that can scratch the gel coat.

• Inspection: Look for new cracks, gouges, or blistering (osmosis). Pay special attention to areas of high stress: near fittings, strakes, and the transom. Early detection of damage is key to simple repairs.

• UV Protection: Apply a quality marine wax or UV-protectant polish regularly to shield the gel coat from sun degradation.

Mechanical & Systems (Before Each Use & Per Schedule):

• Engine: Follow the engine manufacturer's maintenance schedule strictly for oil changes, filter replacements, and cooling system flushing. Use the correct fuel grade as specified.

• Steering & Controls: Check for smooth, full-range operation of steering and throttle/shift controls. Look for corrosion or stiffness in cables.

• Electrical: Inspect battery terminals for corrosion, ensure connections are tight, and check charge levels. Verify all navigation lights, the bilge pump (automatic and manual), and other circuits function correctly.

• Bilge: Keep the bilge clean and free of oil or debris. Ensure the bilge pump intake is not clogged.

Annual/Seasonal Maintenance:

• Through-Hull Fittings & Seacocks: Operate all seacocks to ensure they are not frozen. Check for leaks or corrosion.

• Trailer: Inspach trailer tires, bearings, lights, and winch. Rinse the trailer frame to prevent rust.

• Professional Inspection: Consider an annual check by a marine technician for systems you are not qualified to assess.

FRP-Specific Repairs:

Minor scratches or gouges in the gel coat can be repaired with a marine-grade gel coat patch kit to prevent water ingress.

For any structural damage (cracks, holes), or if you are unsure, consult a professional FRP repair technician. Proper repair requires specific materials and techniques to restore strength and integrity.

Emergency Preparedness

• Drills: Practice man overboard and fire drills with your regular crew.

• Emergency Gear: Keep flares, a first-aid kit, a toolkit, and spare parts (e.g., drain plug, fuses, fuel filter) in a dry, accessible location.

• Swamped or Capsized Boat: Stay with the boat. A CE-certified FRP boat is designed to remain buoyant even if swamped. Use grab lines to hold on and await rescue.
