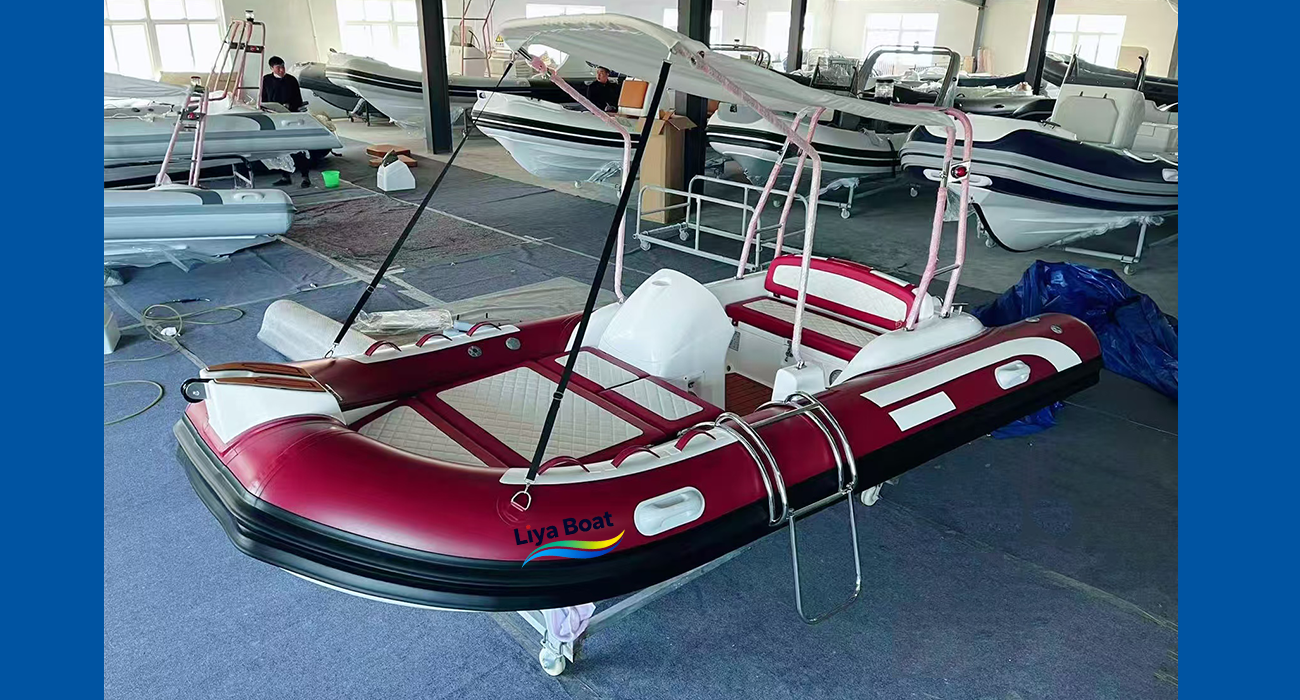

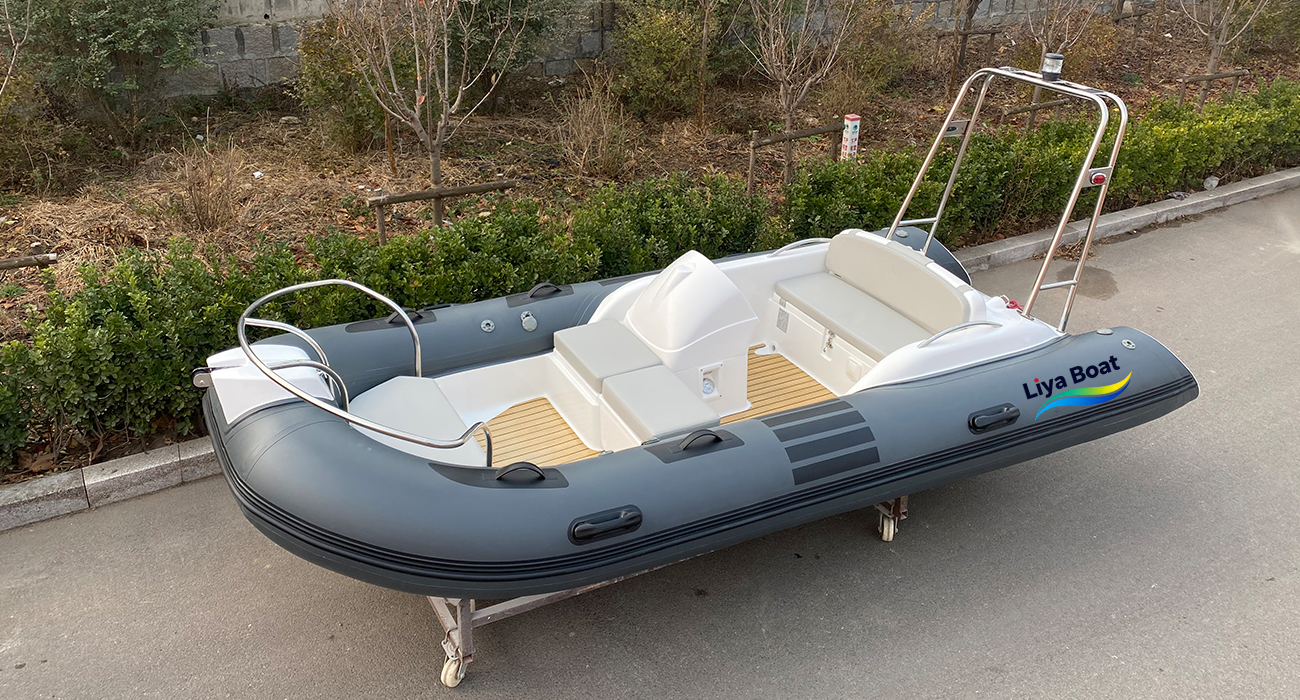

Liya 4.3m Yacht Tender RIB Dinghy 14ft,Side Console,7 Person,CE Certified

｜Technical Parameter-Liya 4.3m RIB Yacht Dinghy

｜Standard & Optional Acccessories-Liya 4.3 Meter RIB Yacht Dinghy

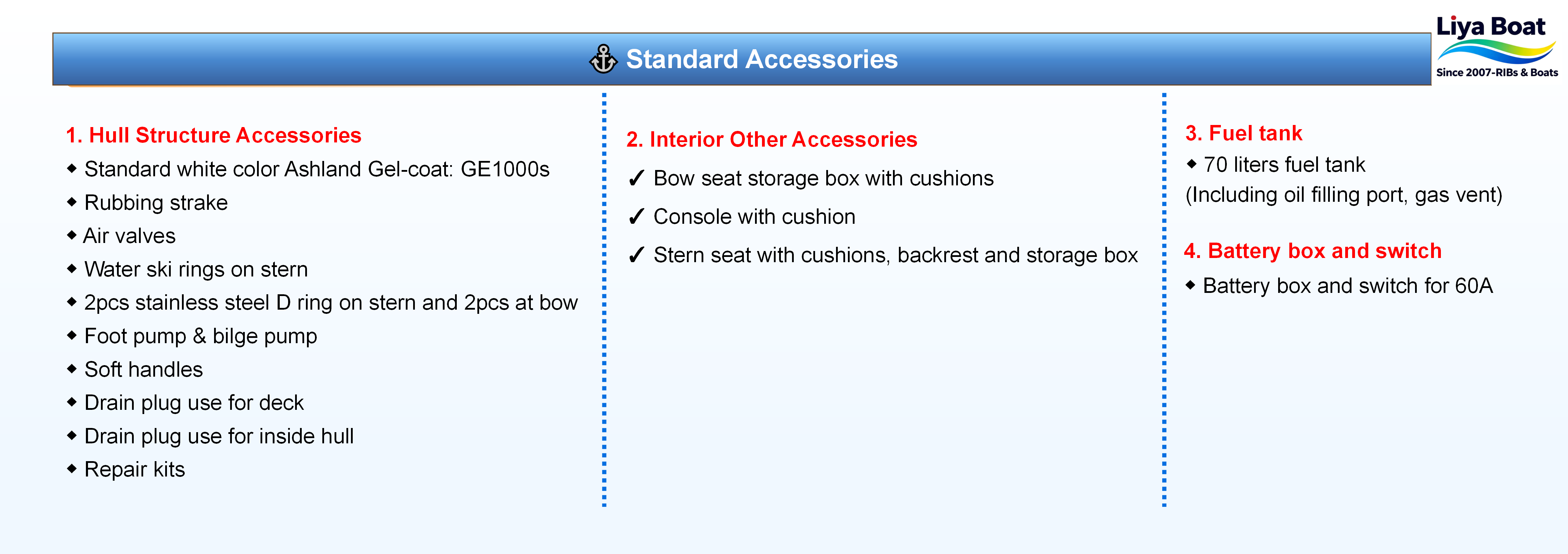

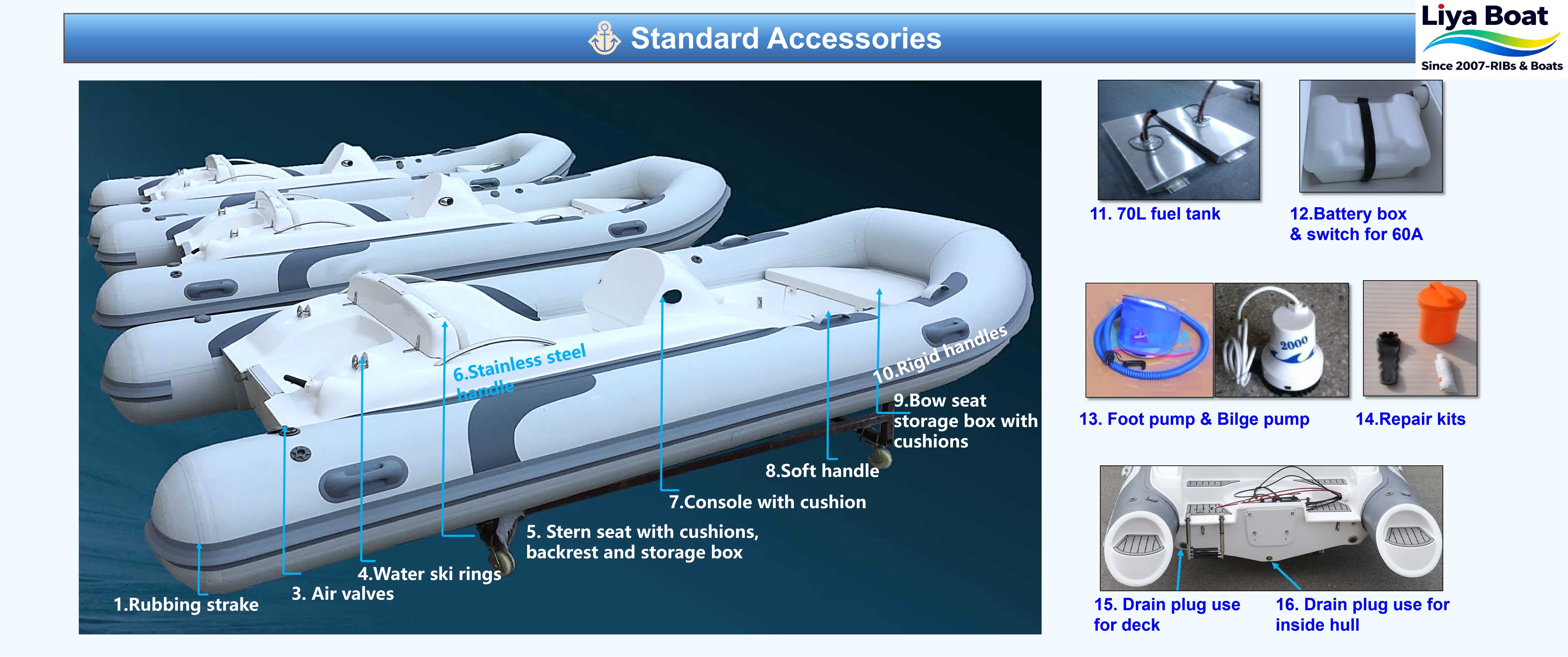

｜Standard Accessories

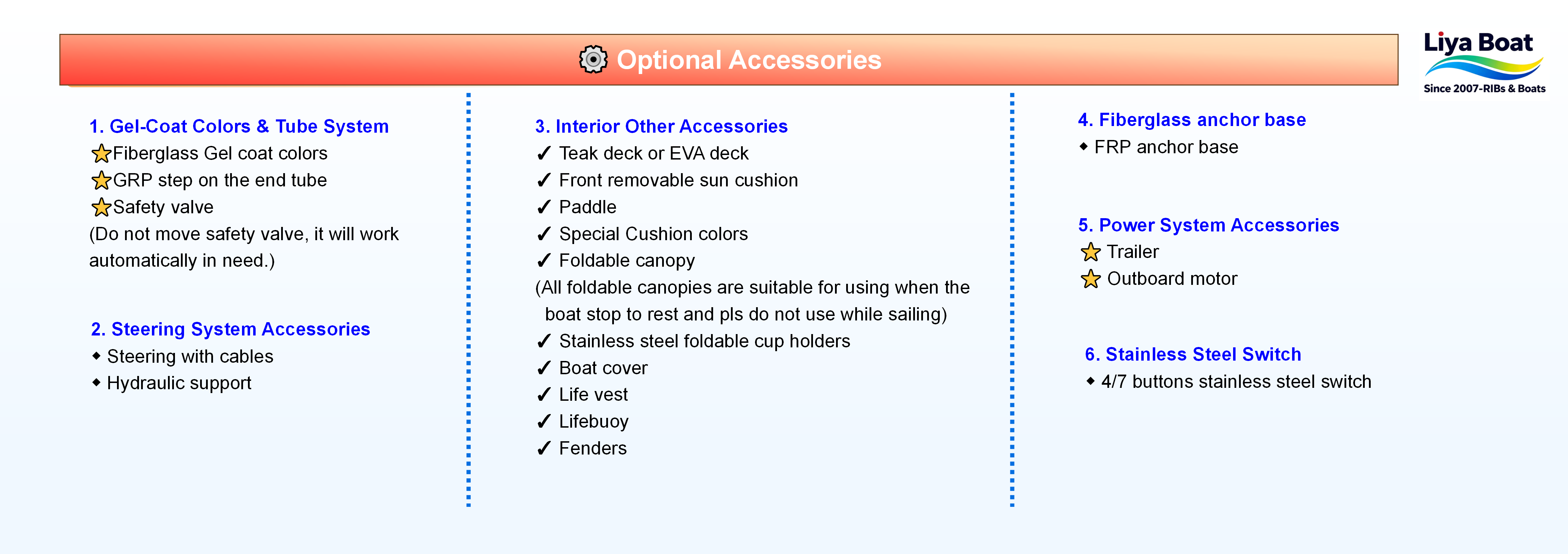

｜Optional Accessories

｜Quality Assurance-Liya 14 Foot RIB Yacht Dinghy

 -Designed base on international stanard ISO6185- CE certificate & Produced by ISO Manufactuer

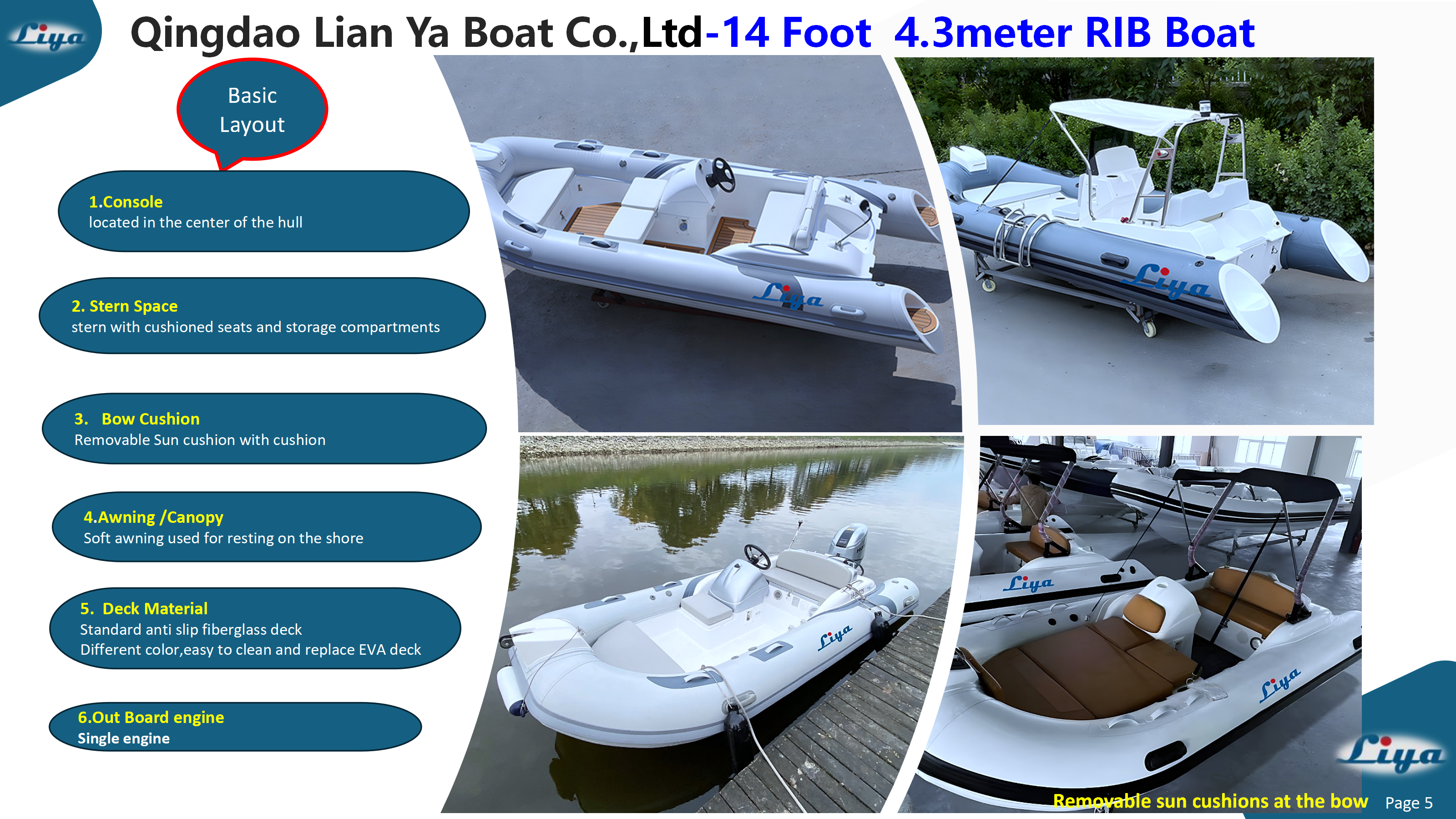

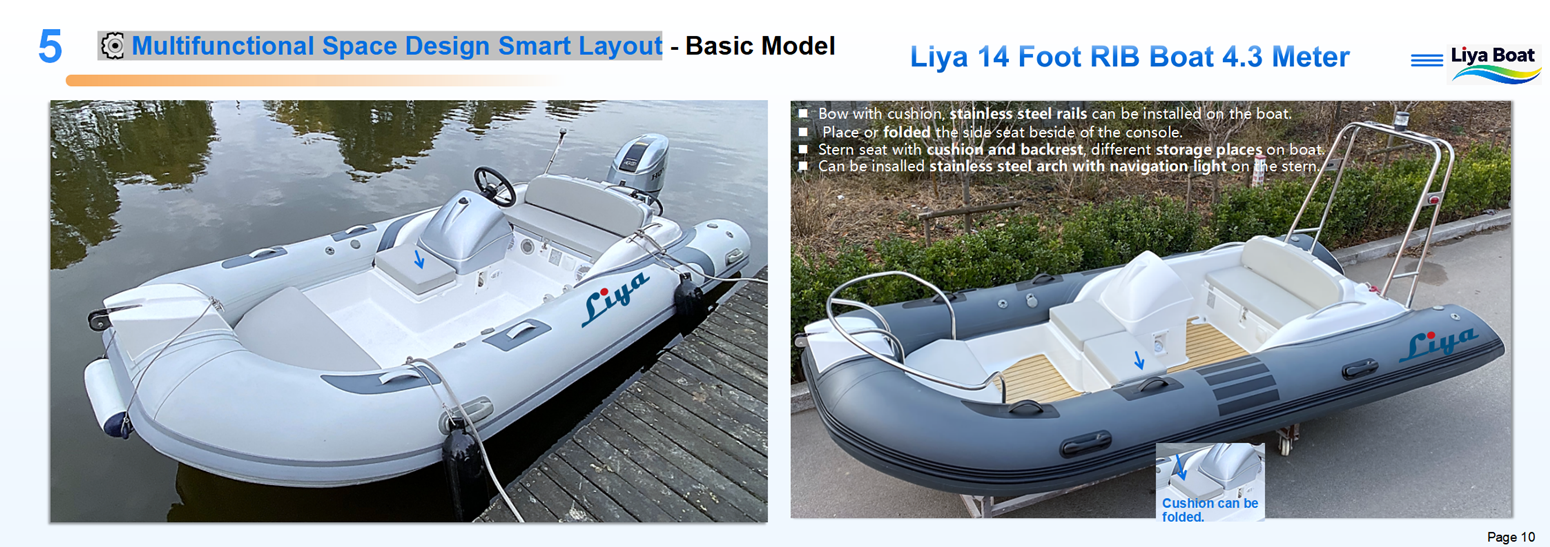

｜Overall Design

The design principle of the 14-foot Fiberglass RIB boat mainly involves material selection, structural design, stability design, inflation system design and other aspects.

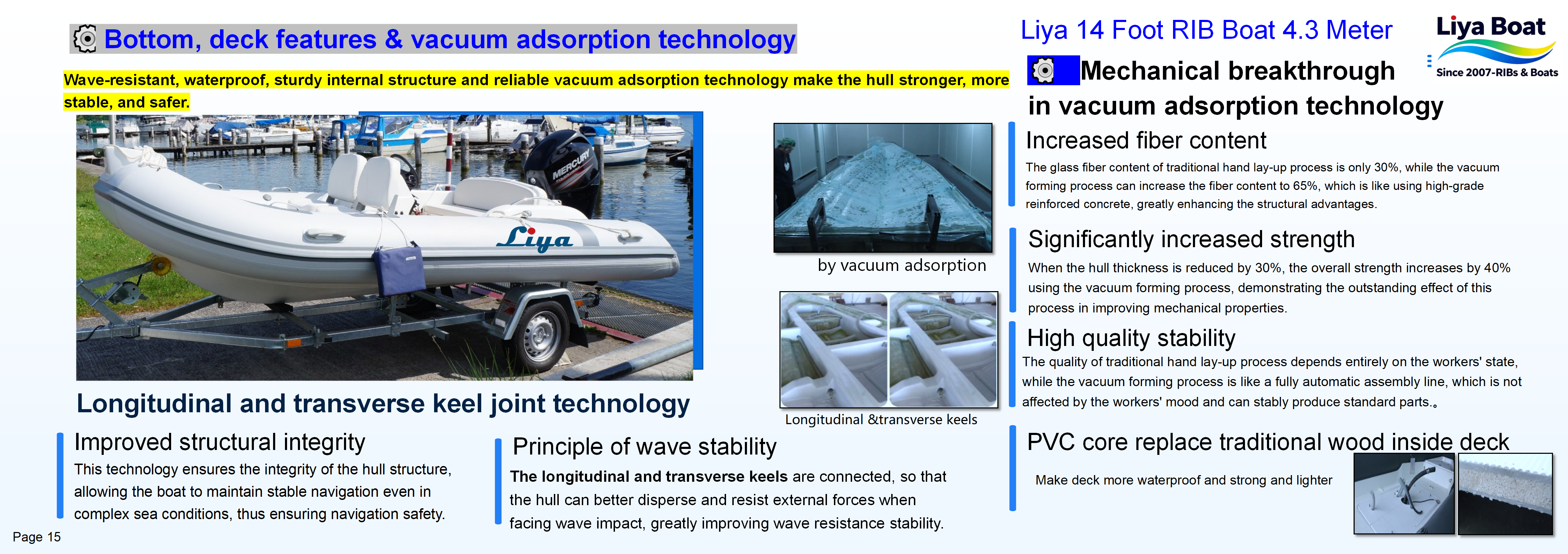

｜Bottom and deck features & Technology

Wave-resistant, waterproof, sturdy internal structure and reliable vacuum adsorption technology make the hull stronger, more stable, and safer.

｜Line classification system & Certificates double insurance

｜Safey Operation & Maintenance Guide-Liya 14 Foot RIB Yacht Dinghy

｜Key Safety Operating Points

First and foremost, safety is always paramount, regardless of the type of water activity. The following points are emphasized:

Emergency stop line must be used:** This is one of the most important safety devices. Its sole purpose is to immediately shut off the engine if the operator accidentally leaves the control position.

Always securely fasten the rope clip to the operator's arm or leg before starting the engine.

Regularly test the functionality to ensure the engine stops immediately when the rope is pulled.

Always shut off the engine before changing operators.

Wear life jackets correctly:** While not entirely legally mandatory for small boats, it is strongly recommended that all occupants (especially children) wear certified life jackets or buoyancy suits correctly at all times. This greatly increases the chances of survival and rescue in the event of an accidental fall overboard.

Maintain a safe speed and maintain a watchful eye:Speed must be appropriate for weather, sea conditions, and the density of other vessels and people in the channel. Especially near shore, docks, or near swimmers, a low speed is essential to avoid creating waves that could affect others. Maintaining a vigilant lookout at all times is a fundamental requirement for being responsible for your own life and the lives of others.

Driving under the influence of alcohol is strictly prohibited: Alcohol impairs judgment, balance, and reaction time, significantly increasing the risk of accidents.

｜Operation and Precautions for Your Boat Type

Your Liya 14-foot RIB boat has unique design features that require extra attention during operation:

Starboard Control: The control panel is located on the starboard side, which may limit visibility on the right. You will need to turn your head more frequently to observe the surroundings and communicate with the crew on the port side for lookout assistance. This asymmetrical layout must be carefully considered when berthing or navigating narrow waters.

V-shaped Bore Characteristics: The 20-degree V-shaped hull provides excellent wave-breaking and stability during navigation, but the feeling of heeling may be more pronounced at low speeds or when turning. It is essential to remind all crew members to remain seated at all times during navigation and prohibit standing or moving around the cabin.

Load and Balance: Although the maximum load capacity is 880kg (approximately 7 people), during actual loading, it is essential to ensure that the weight is evenly distributed throughout the vessel, avoiding concentration on one side or at the bow and stern, maintaining the vessel's "fore-and-aft balance and port-and-port balance." Incorrect loading will severely affect maneuverability and stability.

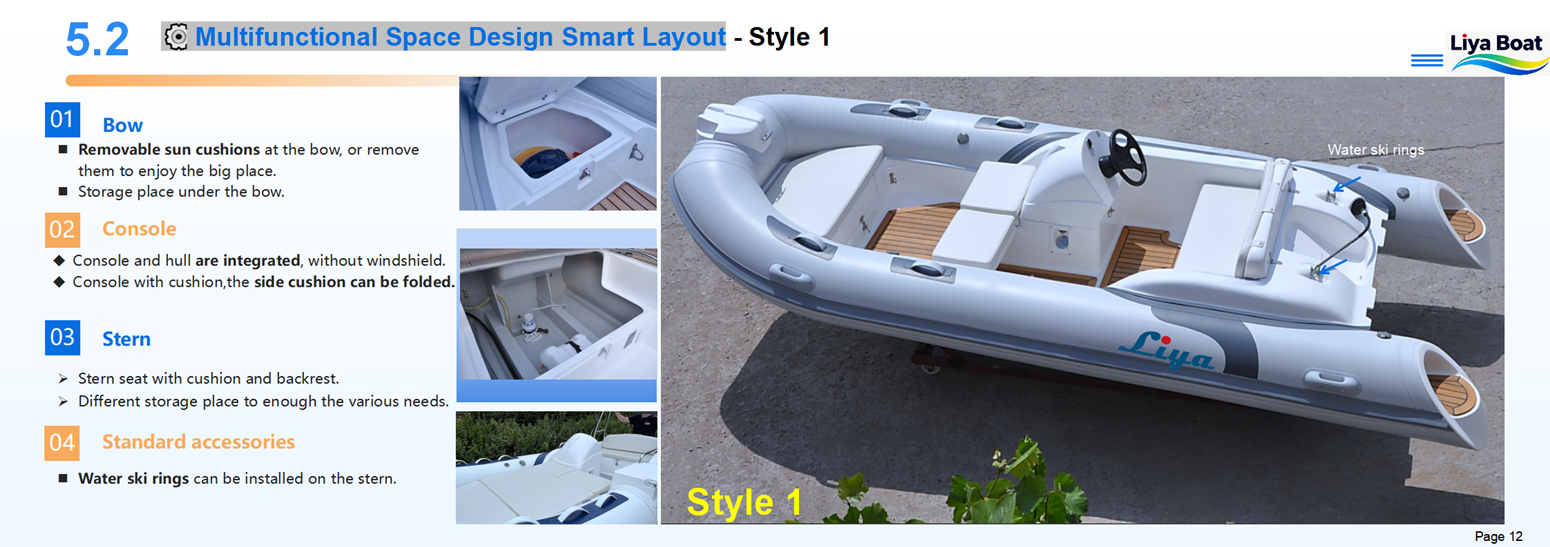

Side Pad Folding: Folding the side pads can expand deck space, but during navigation, ensure that the folding parts are securely locked to prevent loosening.

｜Regular Inspection and Maintenance

Regular maintenance ensures the boat is always in a safe and usable condition and extends its service life.

1. Hull and Inflatable Airbag Maintenance

Cleaning: After each use, rinse the hull with clean water and a neutral detergent, especially the airbag area, to remove salt, dirt, and sand.

Inspection: Regularly and carefully inspect the entire inflatable airbag for signs of wear, scratches, delamination, or aging.

Air Pressure: Before each voyage, use a pressure gauge to check that the air pressure in each chamber meets the manufacturer's recommended value. For long-term storage, it is recommended to check the air pressure monthly. 1. Drainage Holes: Keep deck drainage holes clear of obstructions and ensure their automatic drainage function is working properly.

2. Outboard Engine Maintenance

Routine Inspection: Check that the engine mounting clips are secure and that the emergency stop rope is functioning correctly.

Cooling System: Start the engine in fresh water and observe that a steady flow of water is exiting the outlet to ensure proper cooling water circulation.

Fuel System: Use fresh fuel with the correct mixing ratio (strictly refer to the engine manual). Regularly inspect the fuel lines and filters, and avoid using fuel containing impurities.

Corrosion Prevention: After each use in seawater, it is recommended to rinse the exterior of the engine with fresh water, especially the cooling water passages.

Long-Term Storage: If not used for an extended period, perform rust prevention and lubrication maintenance according to the engine manual, or consult a professional technician.

3. Safety and Ancillary Equipment Inspection

Safety Equipment: Check all life jackets for damage monthly. Ensure that all oars, throwing rope equipment, first-aid kits, anchoring systems, and signaling equipment (such as whistles and signal flags) are complete and in good working order.

Communication and Navigation: If carrying VHF radios or GPS devices, ensure they are fully charged and functioning properly.

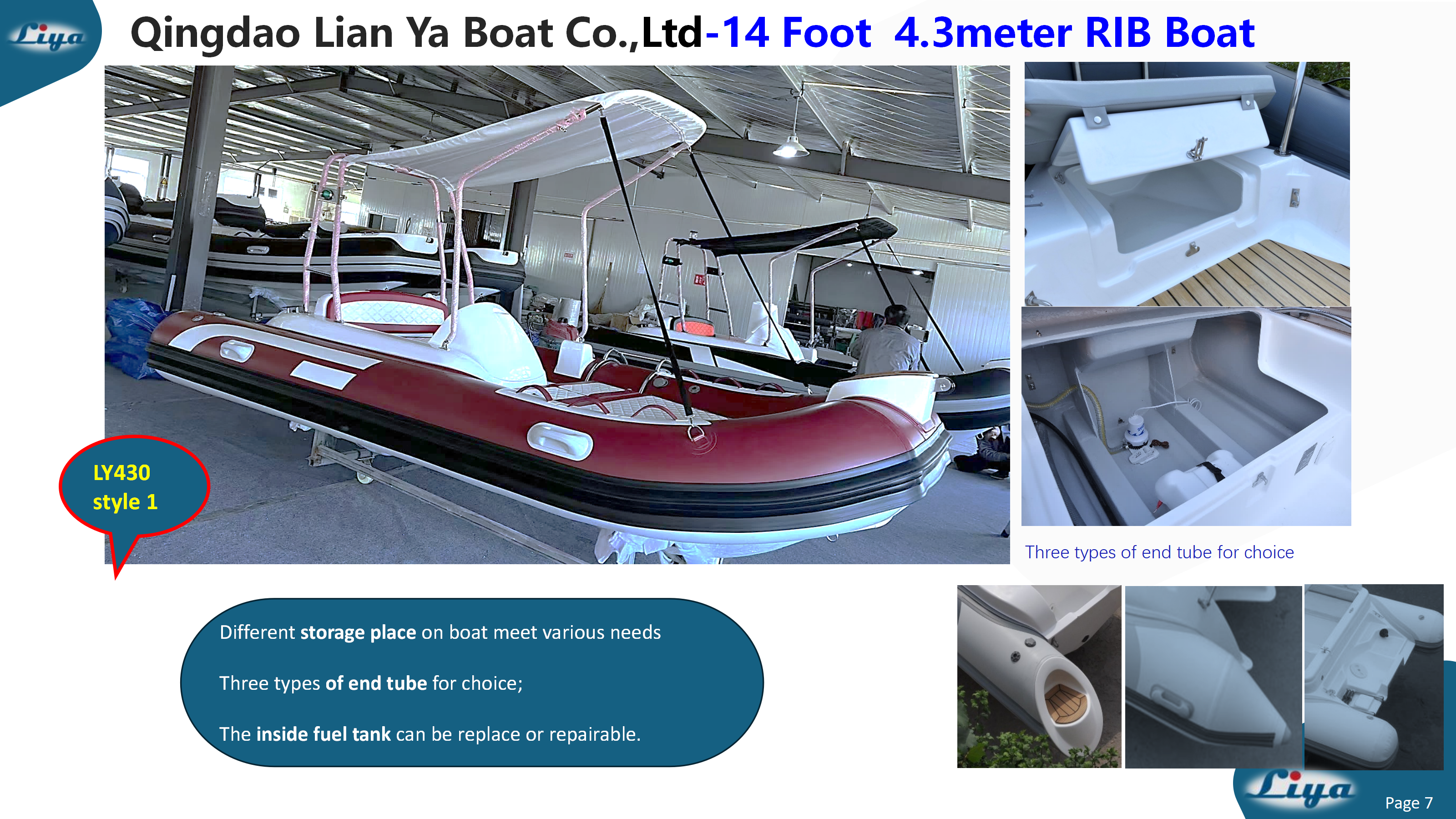

Storage Space: Clean storage compartments regularly, keep them dry, and avoid storing corrosive or flammable materials.

4. Storage

Store the boat in a cool, dry, and well-ventilated indoor location whenever possible. If outdoors, use a dedicated boat cover for protection, avoiding prolonged exposure to sunlight and rain.

For long-term storage, it is recommended to provide appropriate support to the hull to prevent sustained pressure on a single point on the airbags.
