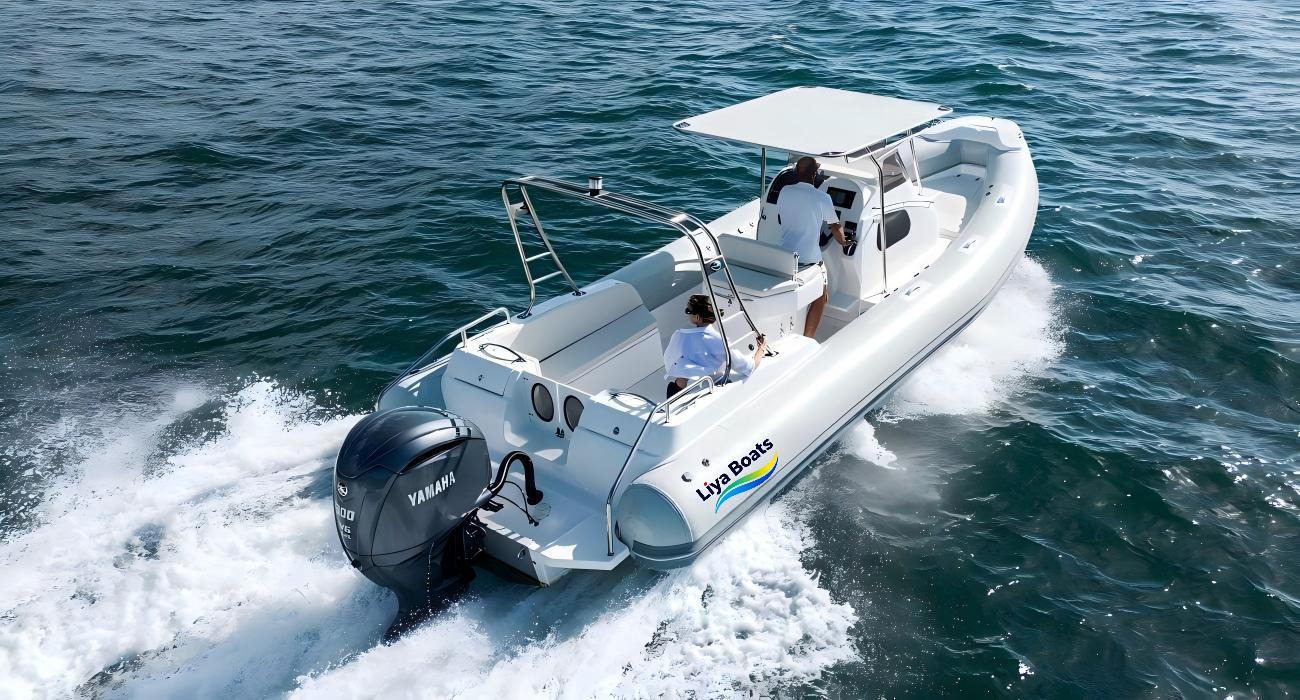

｜Technical Specification-Liya 27 Foot Cabin RIB Boat With CE

• Hull Type: Deep-V Step Hull

• Cabin: Integrated, with toilet preparation

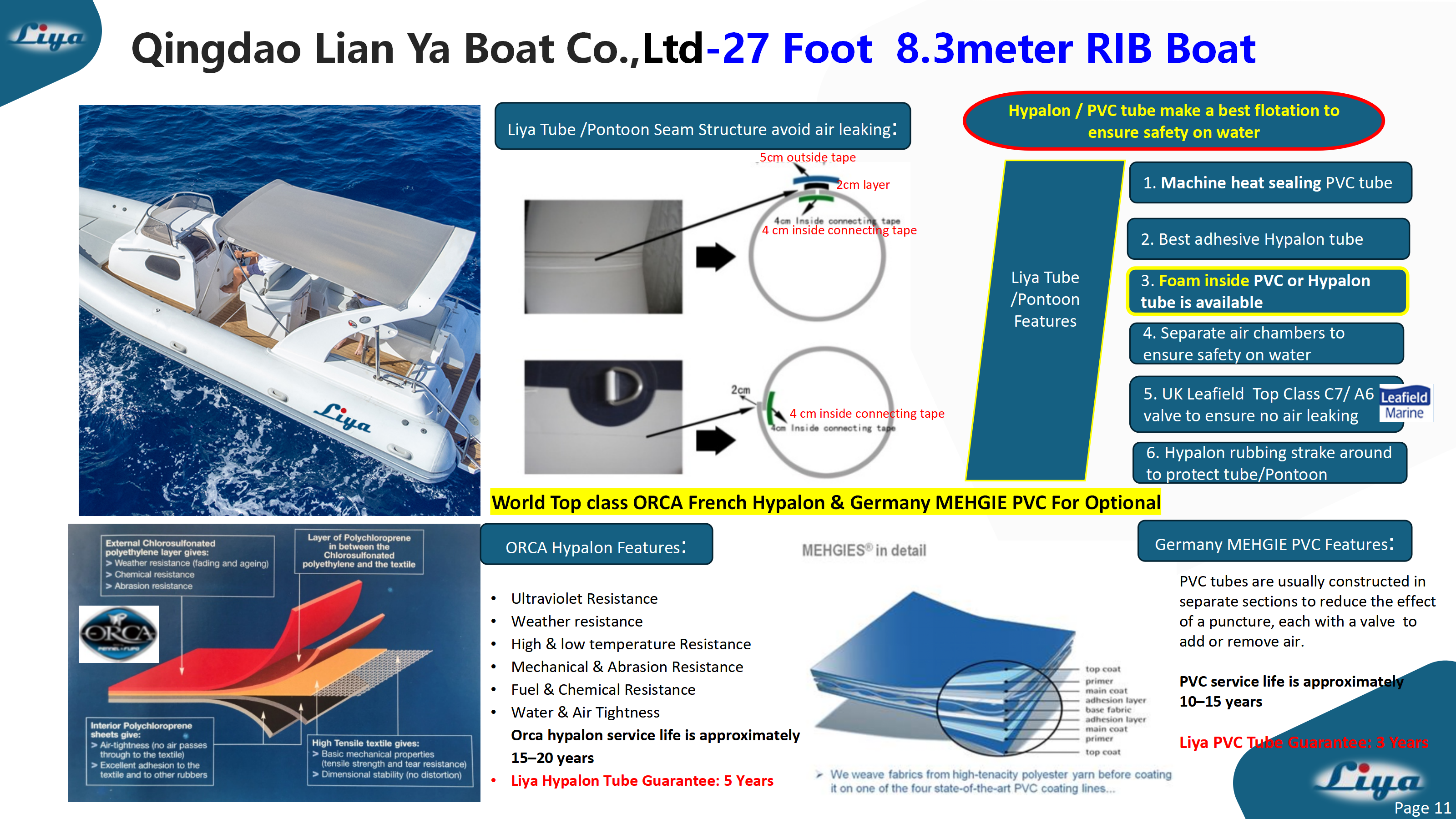

• Tube Material: ORCA / German PVC Fabric

• Hull Construction: Vacuum absoprtion

• Deck Core: Structural PVC Foam

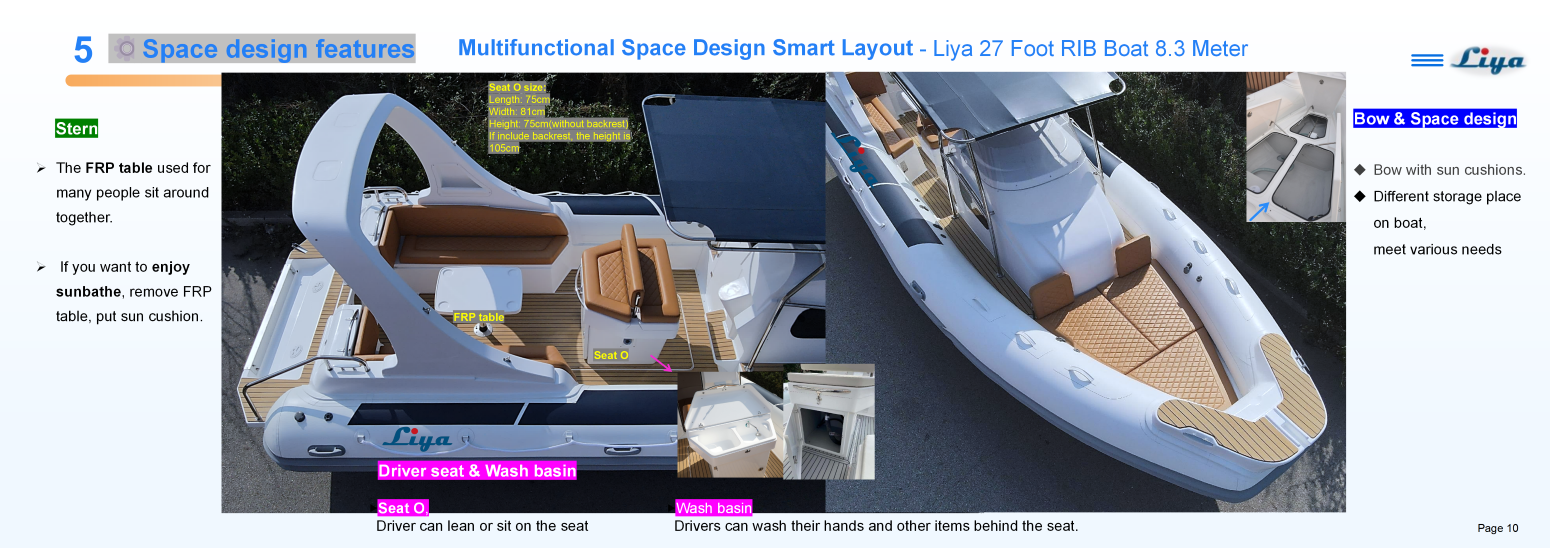

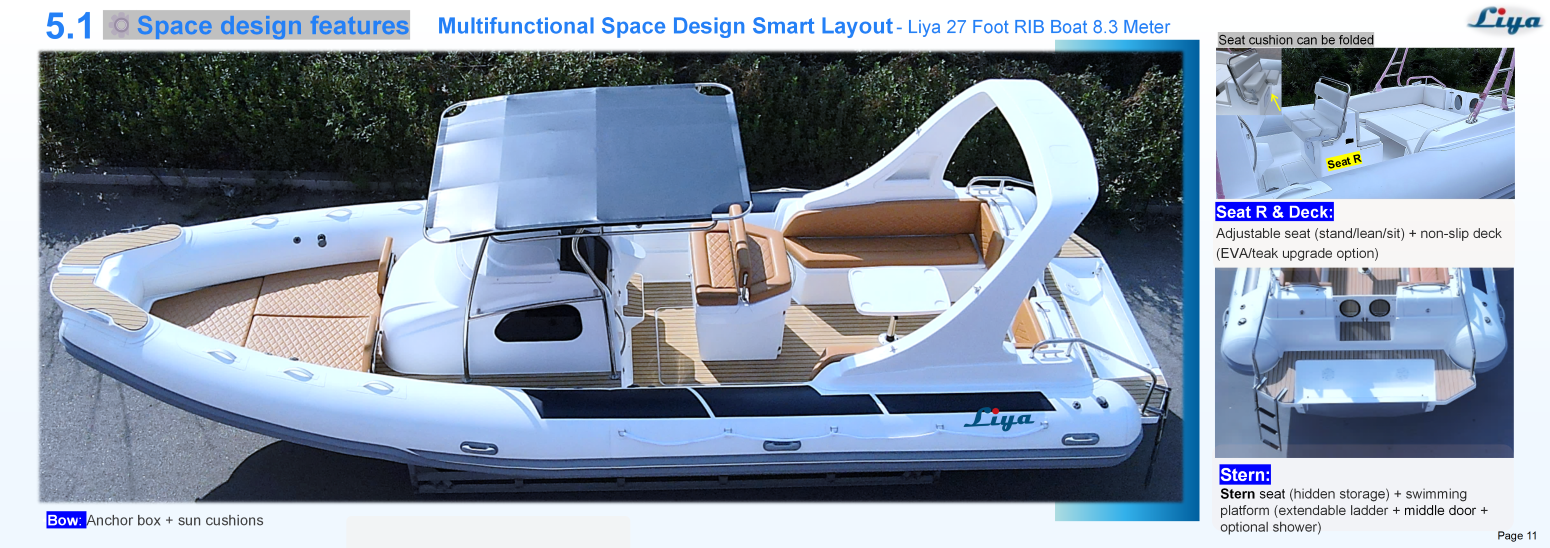

• Key Features: Convertible Aft Sunpad/Table, Swimming Platform, T-top Ready

Dimensions
Model	HYP830
Length overall	8.30 Meter / 27 Foot
Inside length	8.10 Meter /26 Foot
Width overall	3.00 Meter /9.9 Foot
Inside width	1.70 Meter/5.58 Foot
Tube diameter	55-60cm /1.8 Foot
* Note: The above data may have slight errors due to variations in the degree of inflation.
Structure & Specifications
No. of Chambers	8 Pcs
Maximum inflation pressure	0.25 Bar
V shape degree	22°

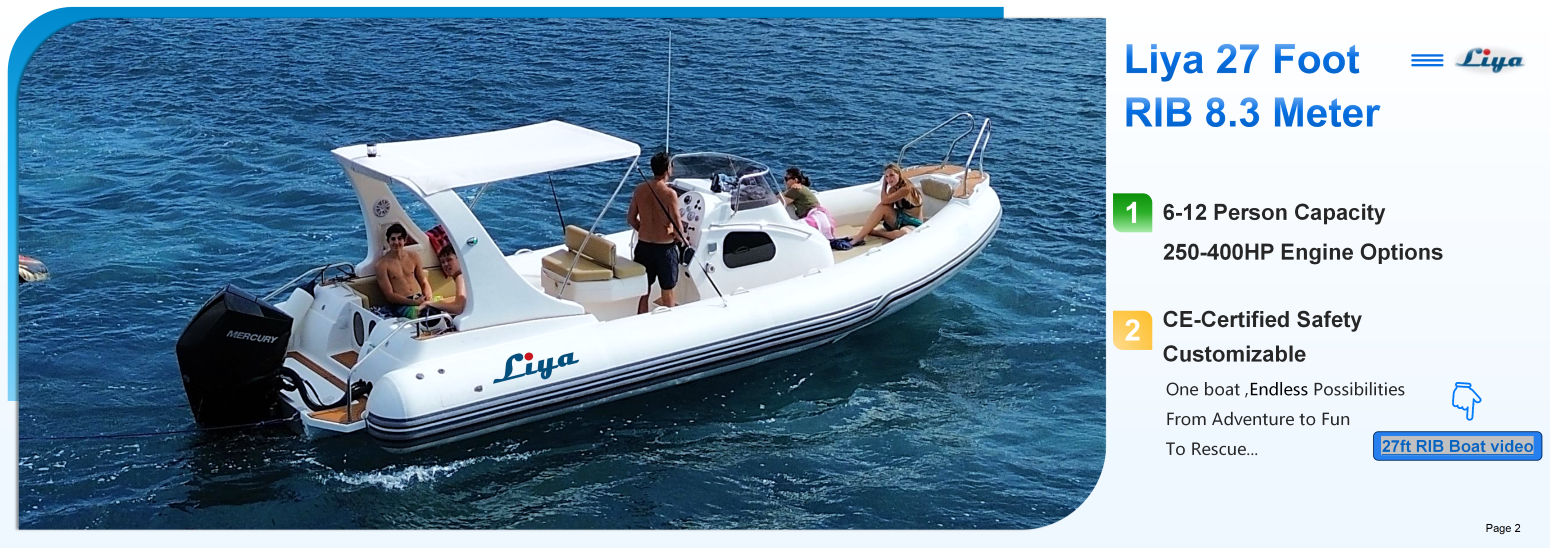

Crew Capacity	6-12 people
Max loading	1700kg
Net weight	1300kg
* Note: The net weight means boat with console,seat, canopy, A type bar /Arch etc., but excludes fuel tank and engine. The actual net weight also may change slightly depending on the different console, seat or other configurations etc.
Authentication and System
Design Category	C,B
Outboard engine shaft	XL 25’’
Fuel Tank	410 Liters
Fresh Water Tank ( Option)	100 Liters

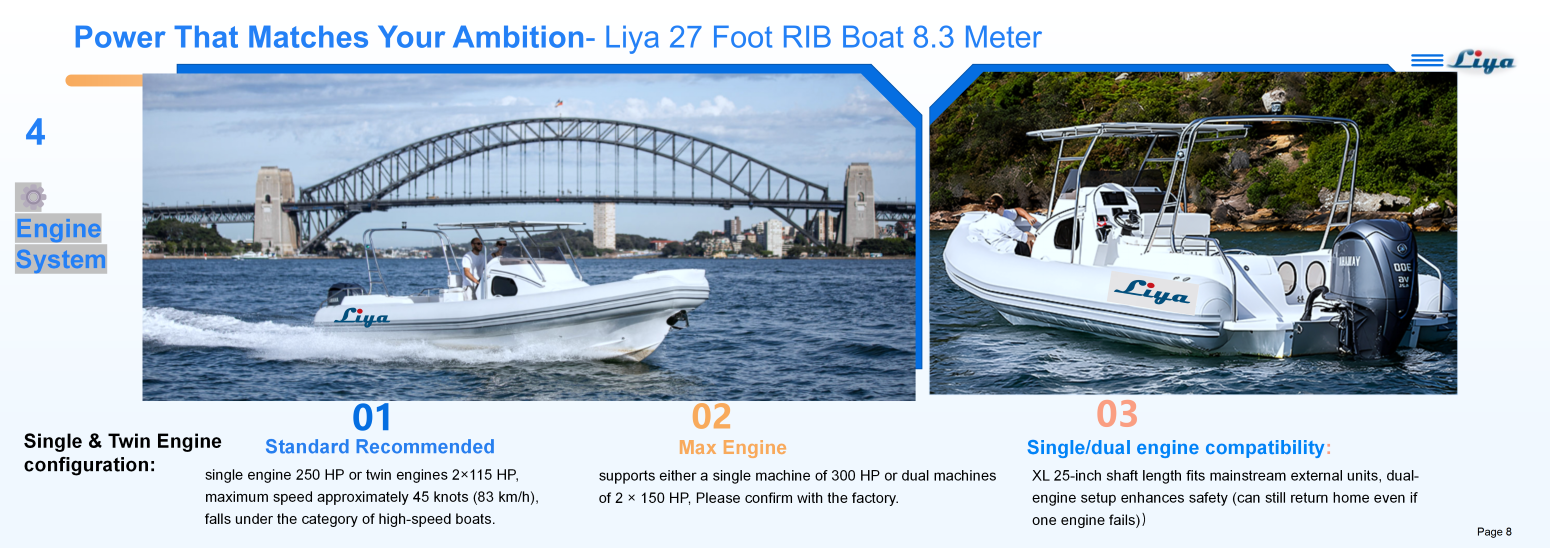

Power Options
Recommended power (single)	250HP
Recommended power (twin)	2x115HP
Engine weight	About 232-252kg
Max recommended power (single)	300HP
Max recommended power (twin)	2x150HP
Engine weight	About 239-259kg
Max power in additional cost	400HP/ about 316kg
Engine weight	About 316kg
*Important Notice: If you choose the maximum recommended power, confirm with the manufacturer before production, because this is critical to the boat's configuration and performance.
Shipment
40ft HQ container	2 Boats

▍FAQ

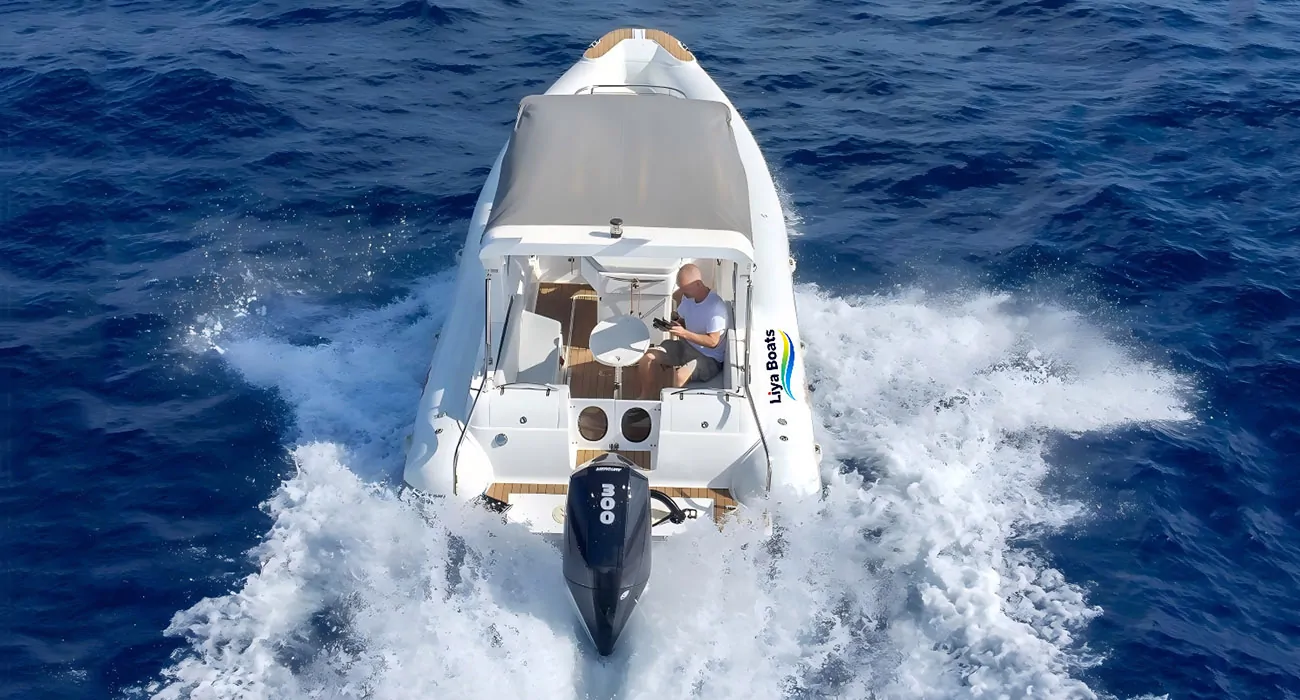

Q: Is this boat suitable for chartering?

A: Absolutely. With its strong CE B/C certification, robust construction, comfortable cabin, and 6-12 passenger capacity, the Liya 27FT is an excellent and reliable choice for chartering a RIB (River Insider).

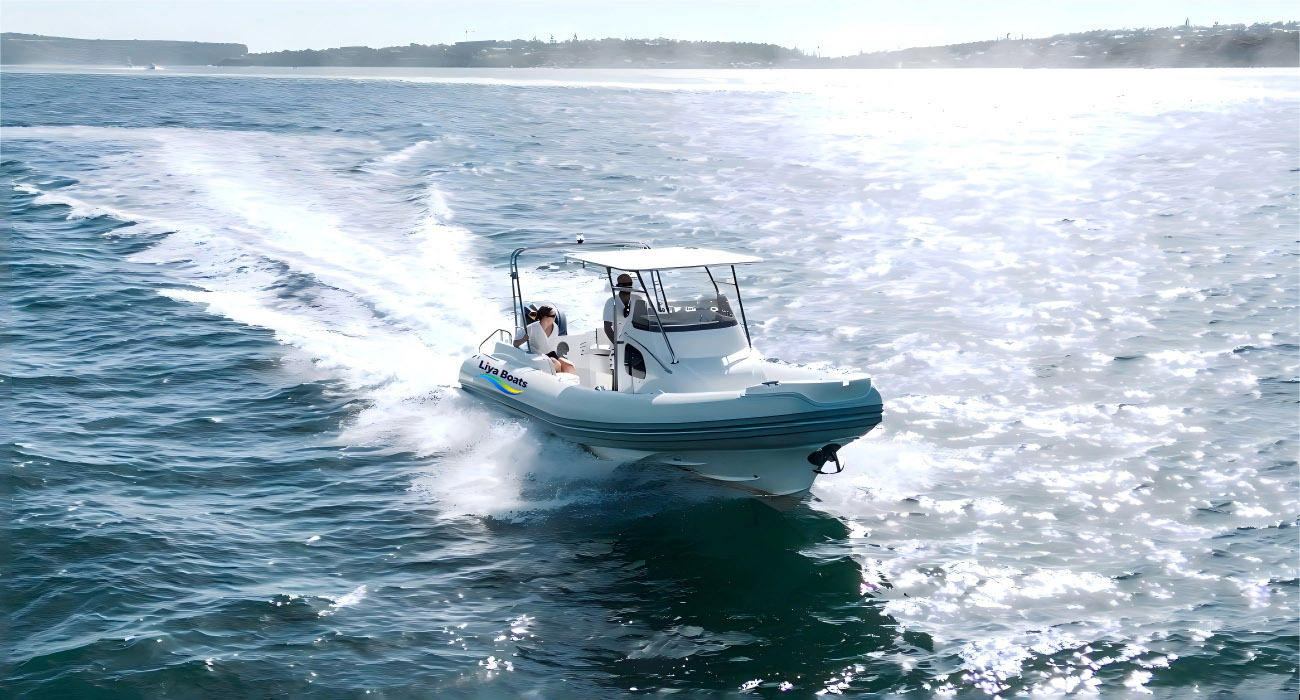

Q: What are the practical advantages of a stepped hull design?

A: A stepped hull design reduces impact, allowing the RIB to navigate smoothly in rough waters, achieve higher top speeds with the same power, and improve overall fuel efficiency. This is a hallmark of high-performance RIBs.

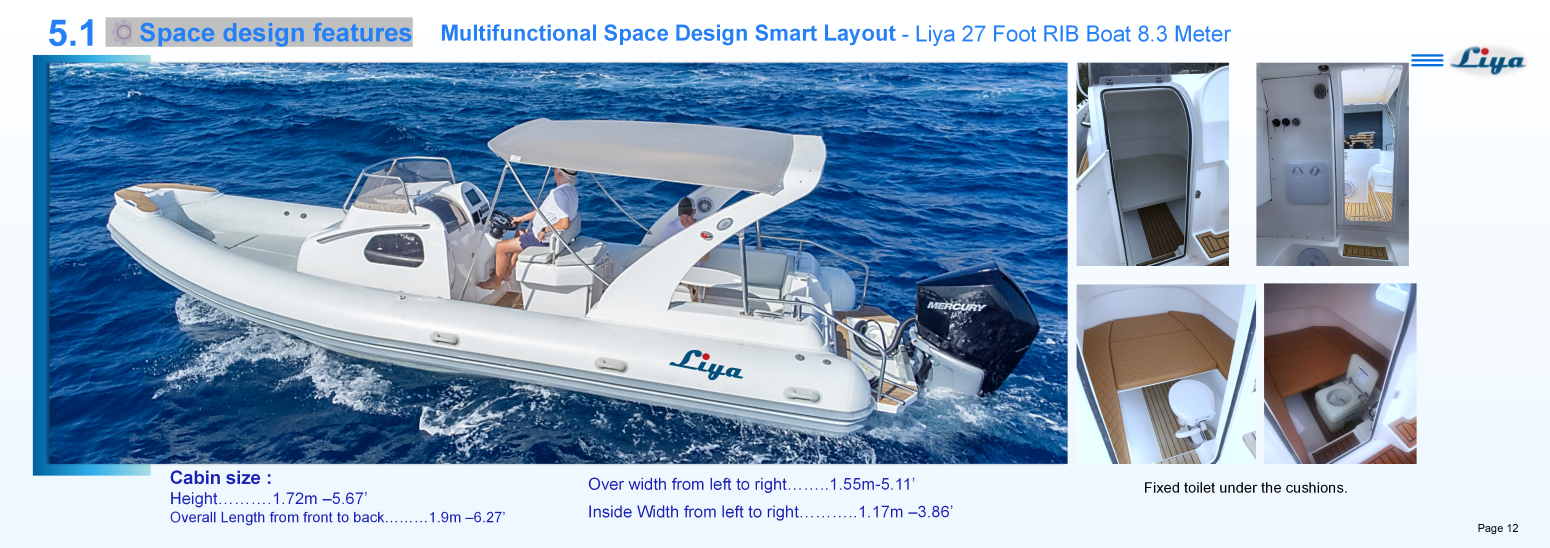

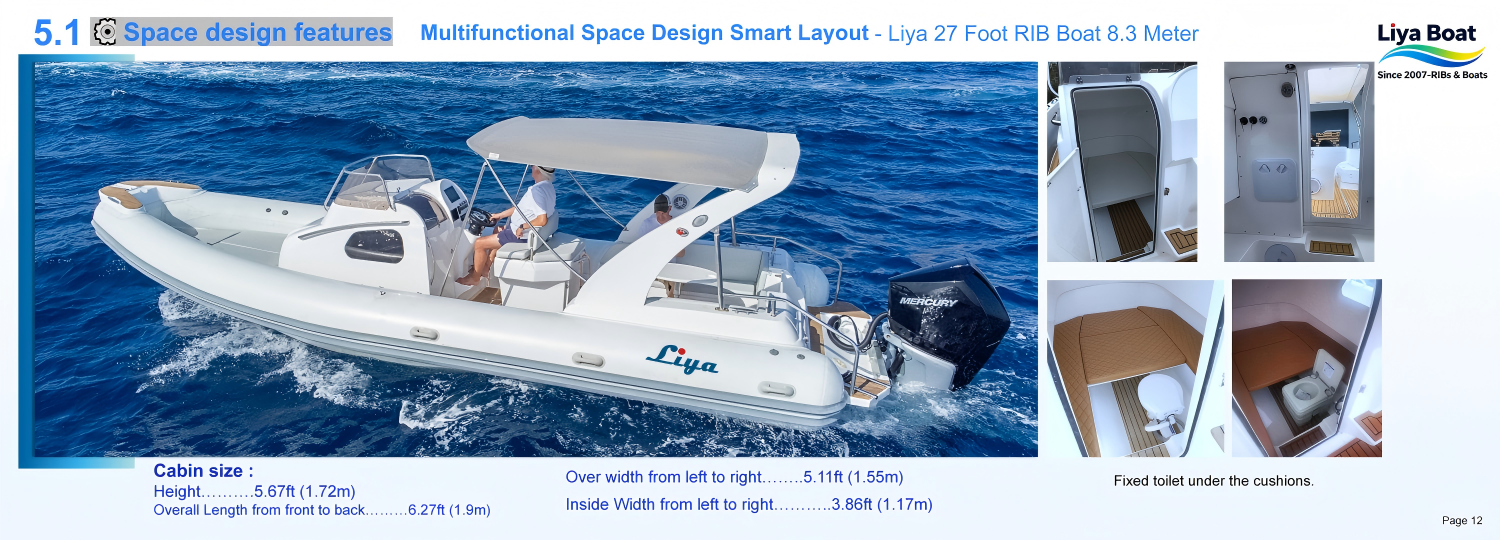

Q: Can a toilet really be installed in the cabin?

A: Yes. The cabin features a specially designed, secluded compartment for installing a fixed or portable boat toilet, which is crucial for top-of-the-line RIBs with cabins suitable for family use or long day trips.

Q: Why is a PVC core material better than wood for the deck?

A: Wood absorbs water, rots, and adds unnecessary weight. Our PVC core material is completely waterproof, corrosion-resistant, and lighter, ensuring the deck remains strong, stable, and maintenance-free for the vessel's lifespan.

Q: What warranty do you offer?

A: We offer a 5-year structural warranty on our vacuum suction hulls, demonstrating our confidence in their superior quality.

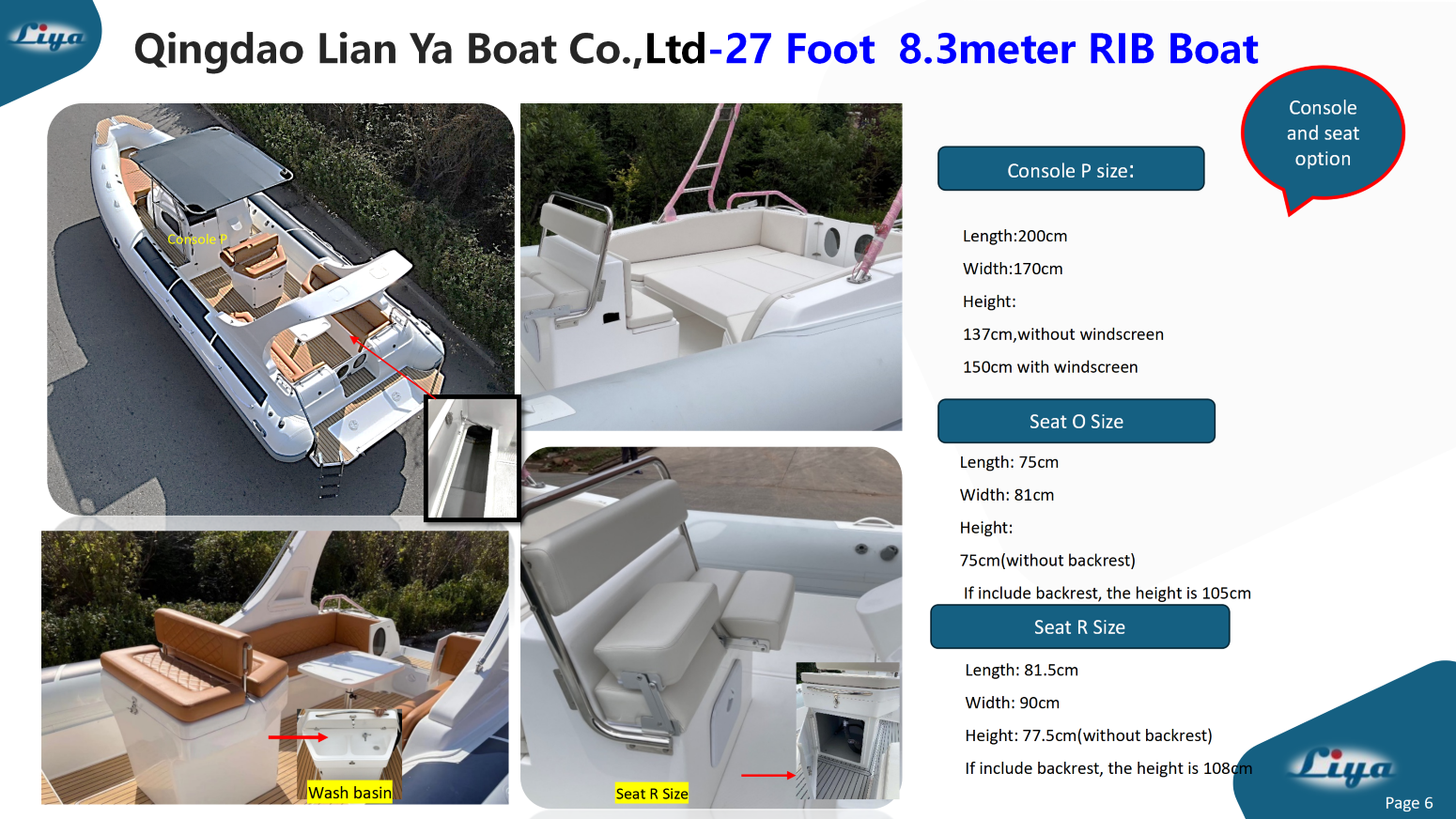

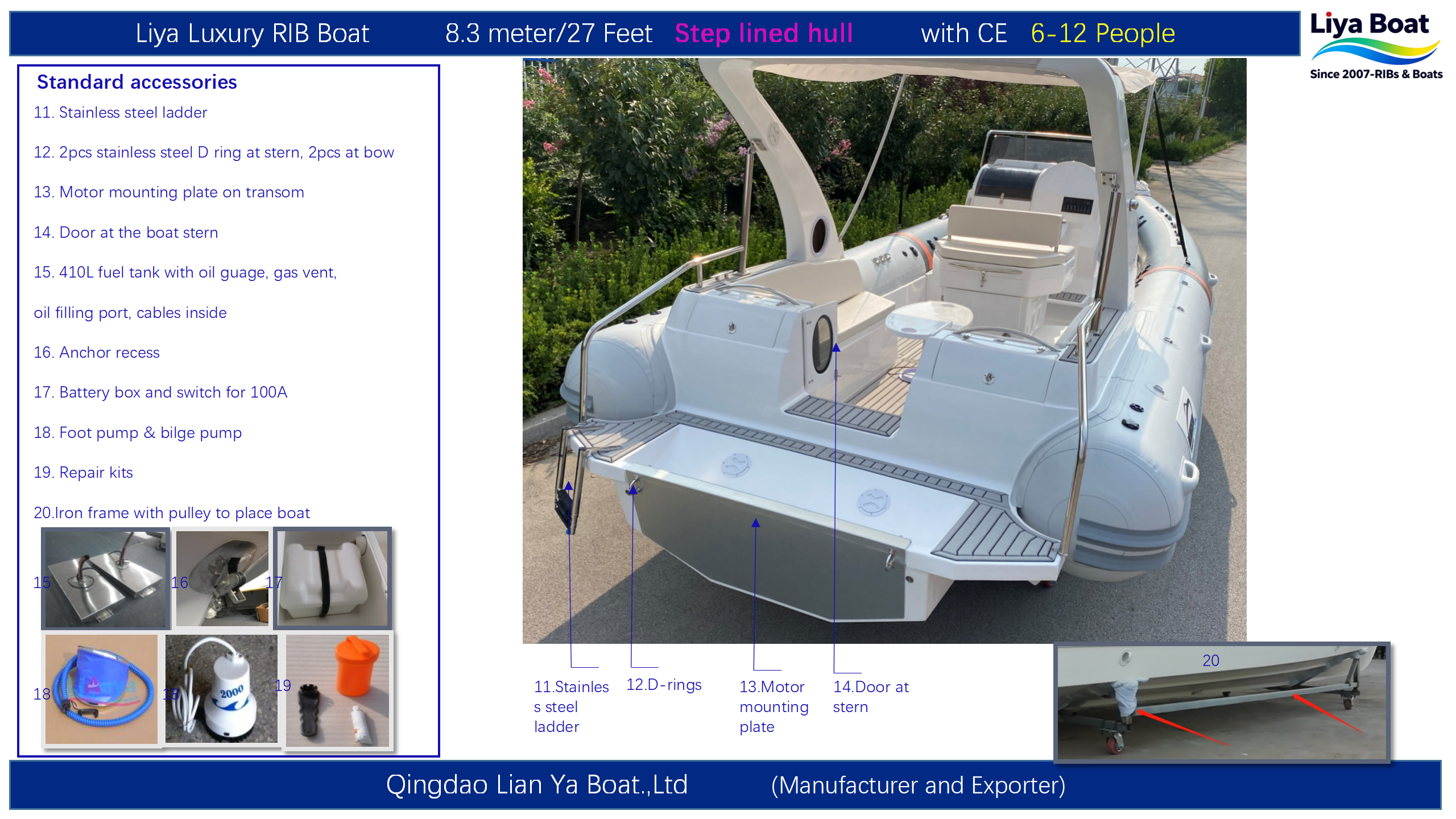

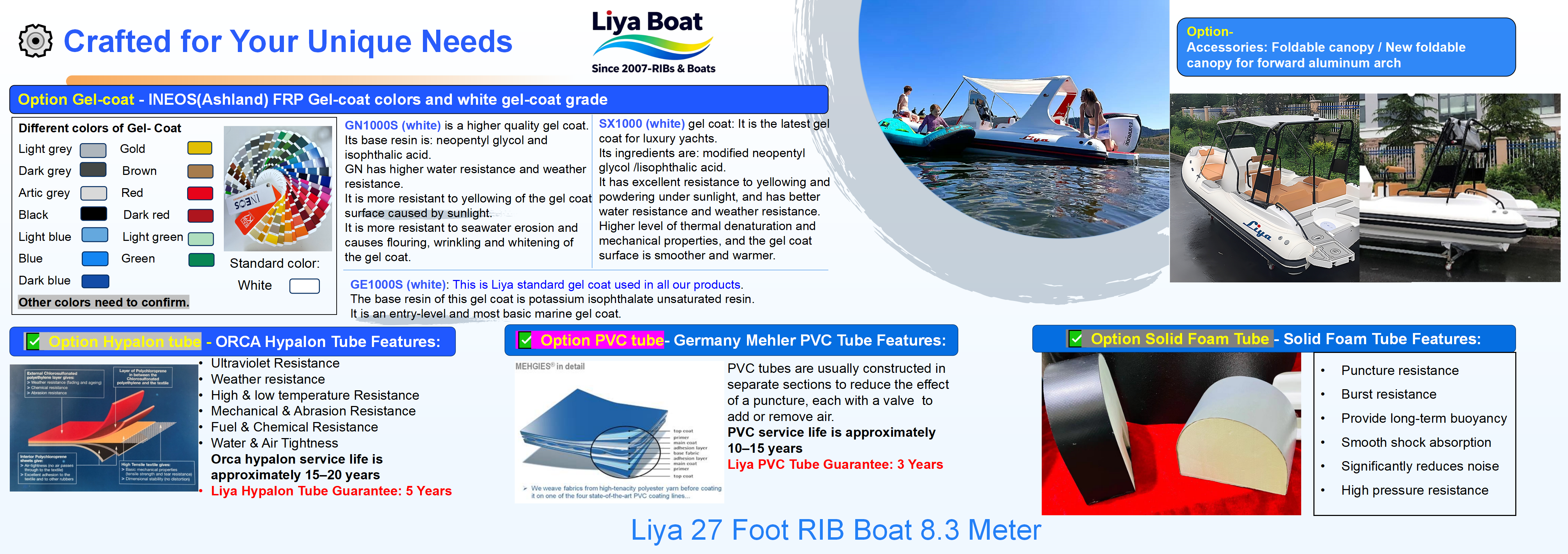

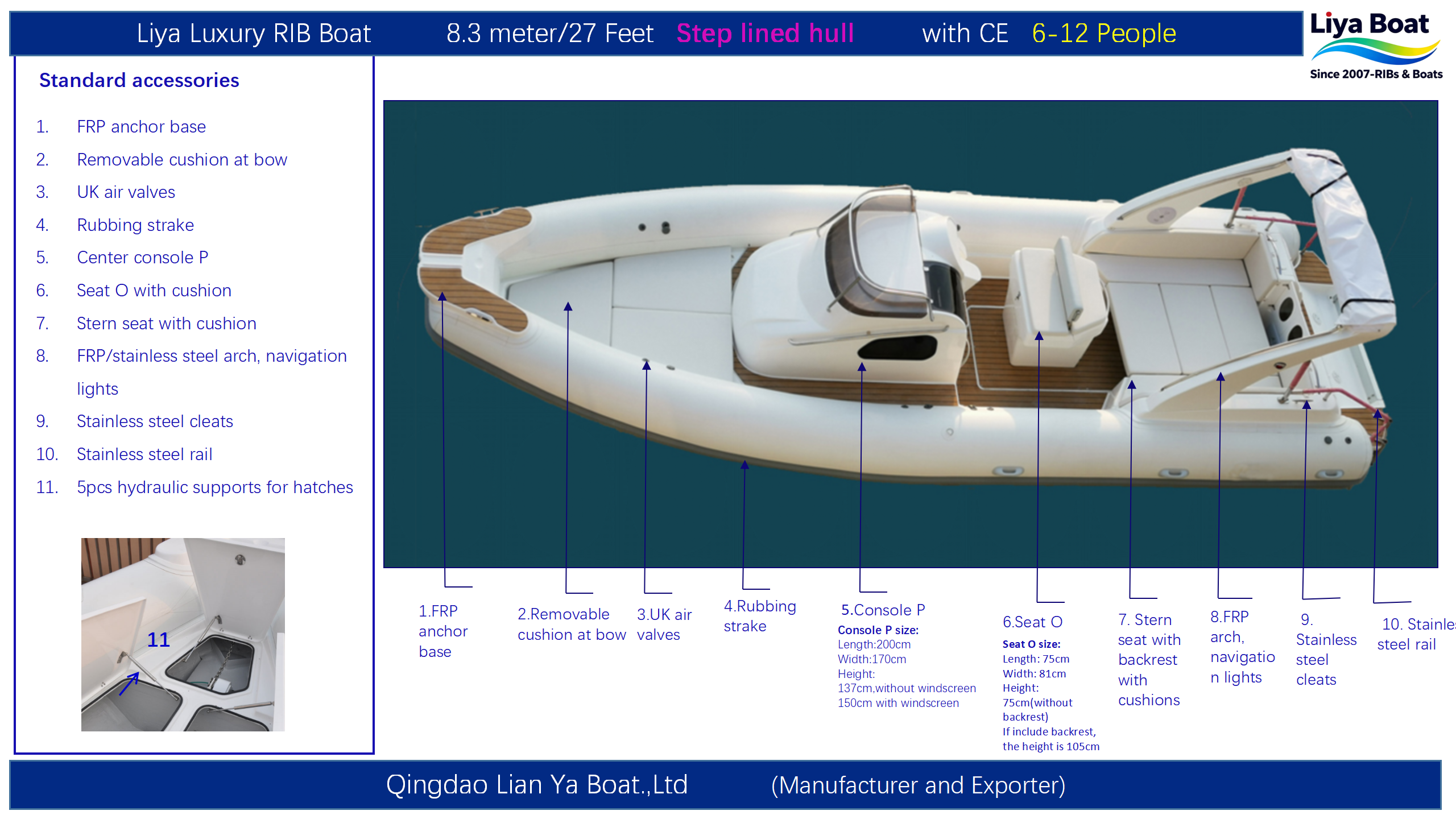

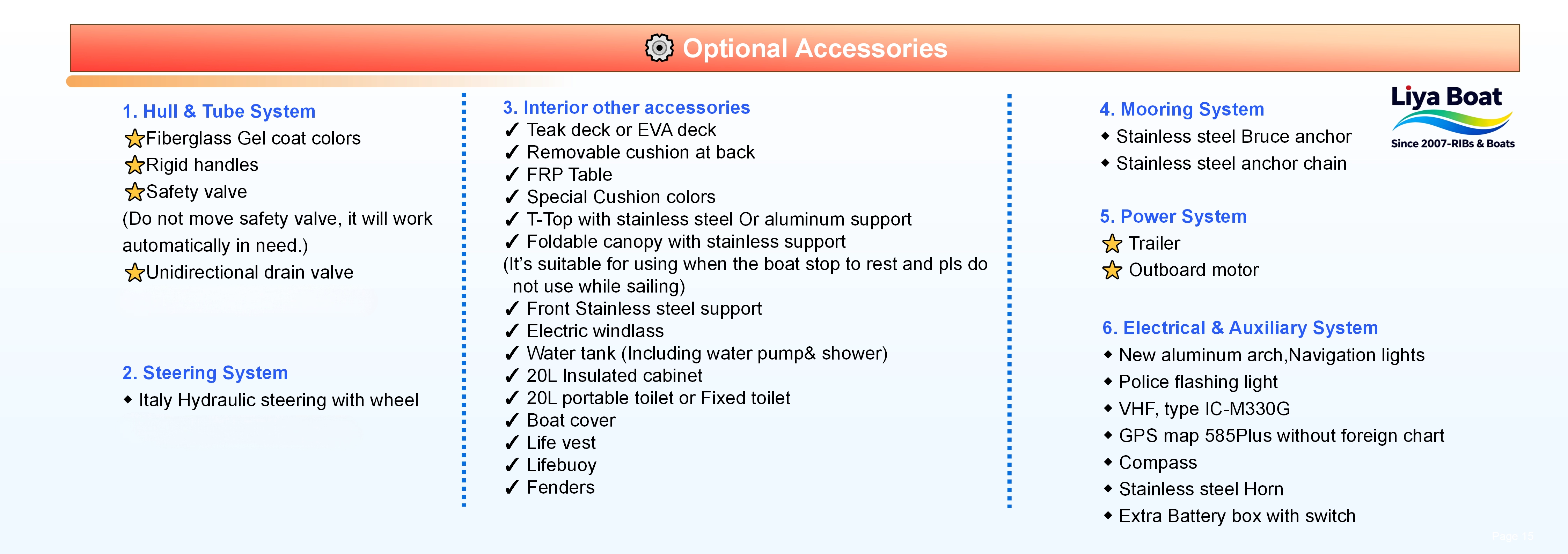

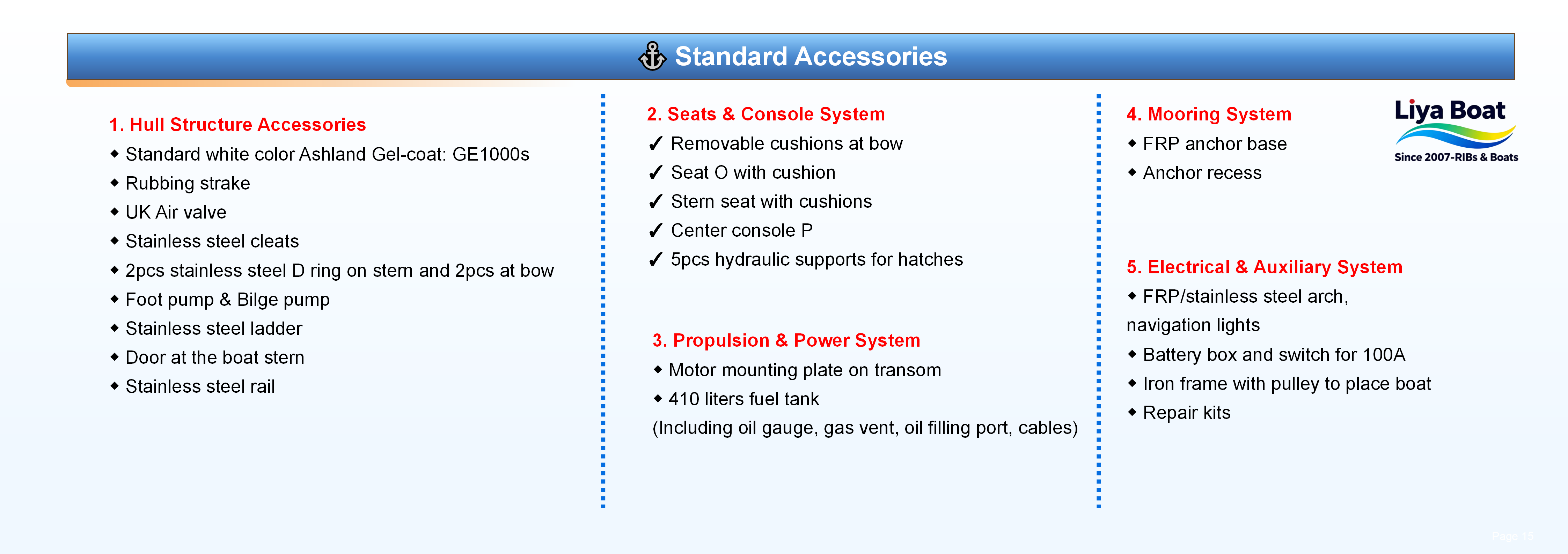

｜Standard & Optional Accessories- 27FT Cabin RIB Boats For Sale

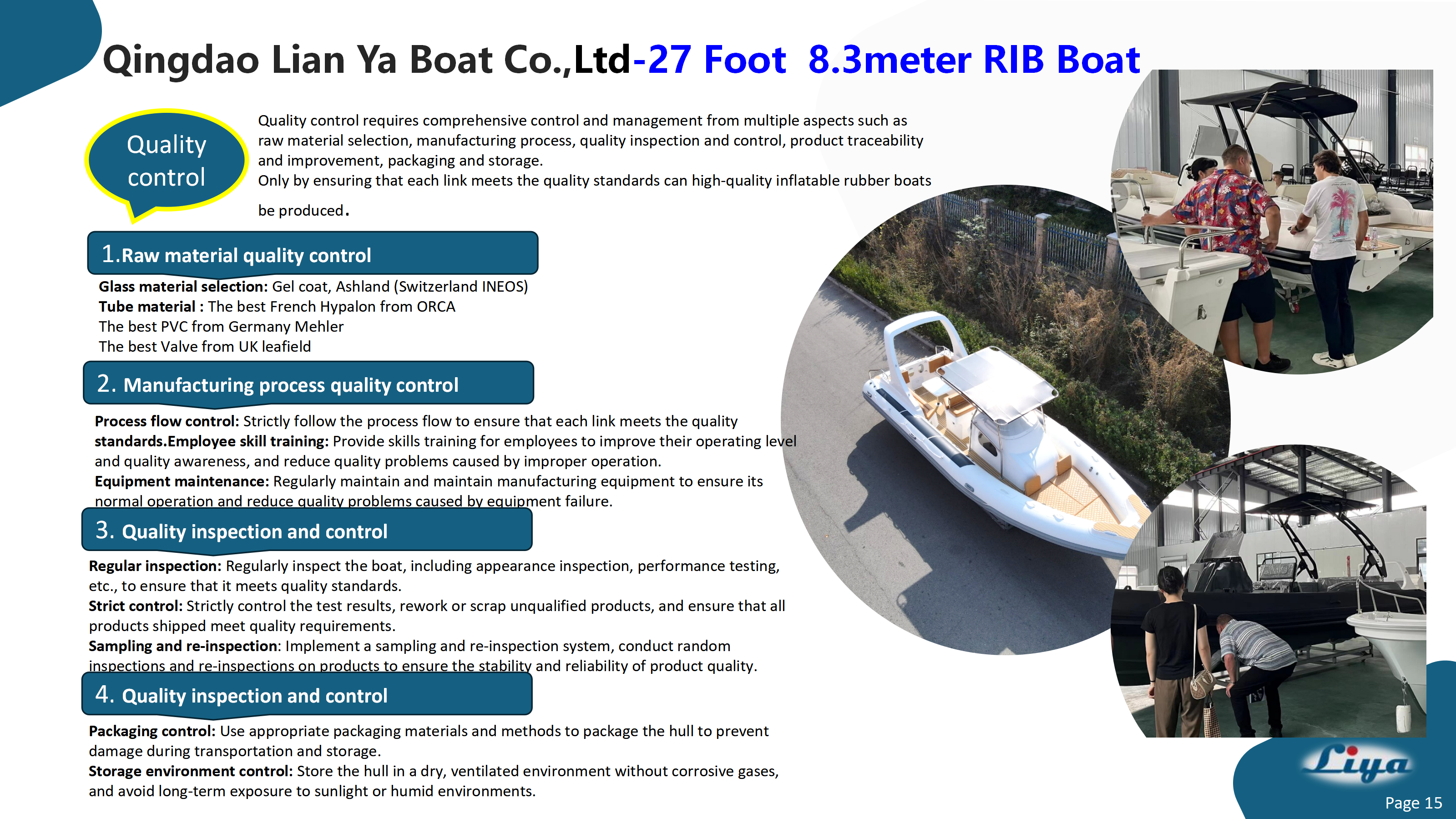

｜Quality Assurance- Liya 27FT Stable Cabin RIB Boat

-Designed base on international standard ISO6185- CE certificate & Produced by ISO Manufacturer

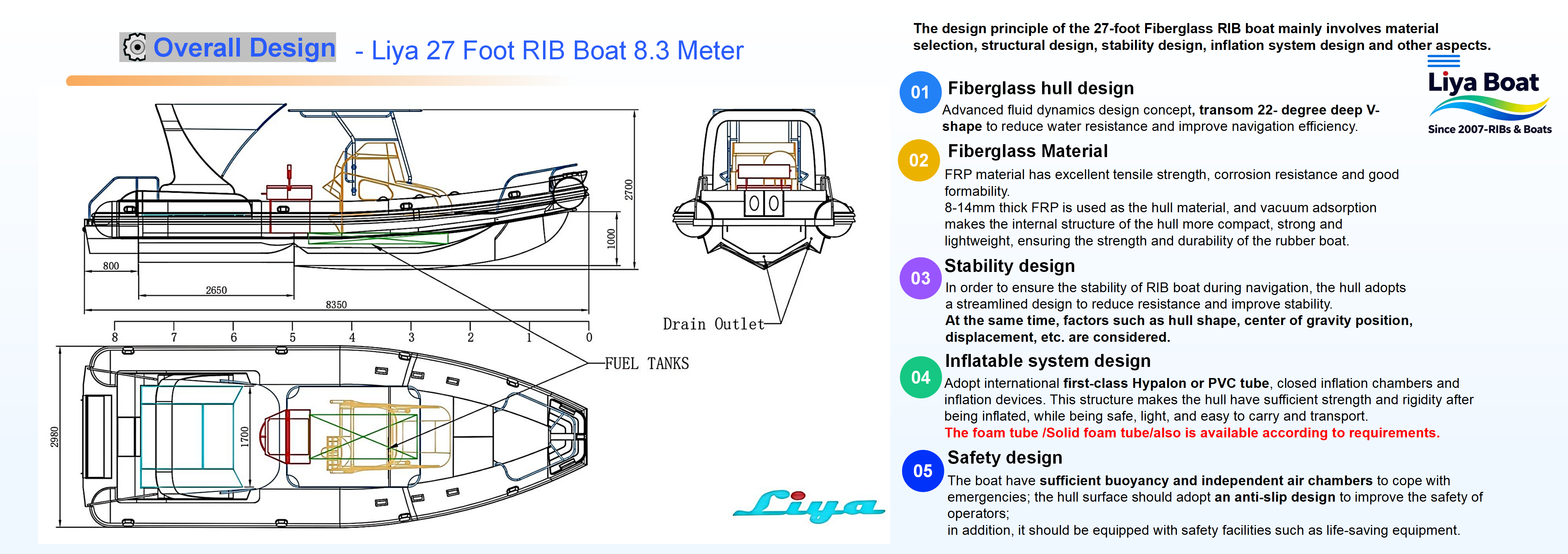

｜Design & Fiberglass Hull

The design principle of the 27-foot semi-rigid inflatable boat mainly involves material selection, structural design, stability design, inflation system design and other aspects.

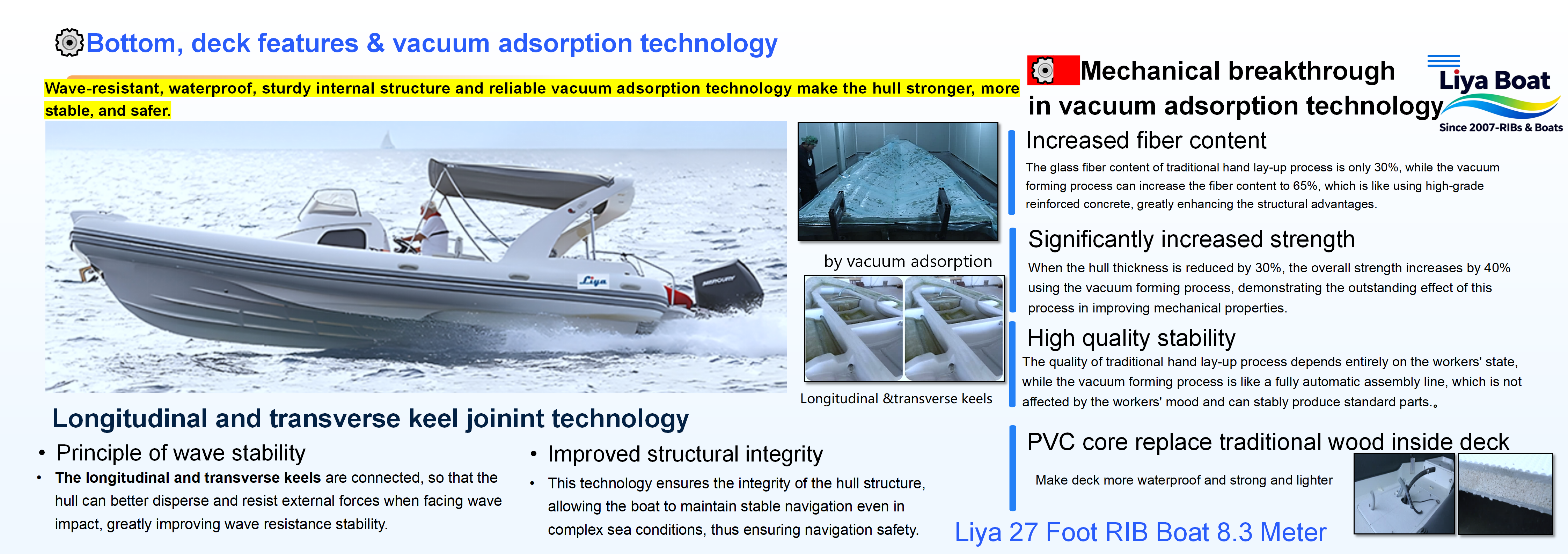

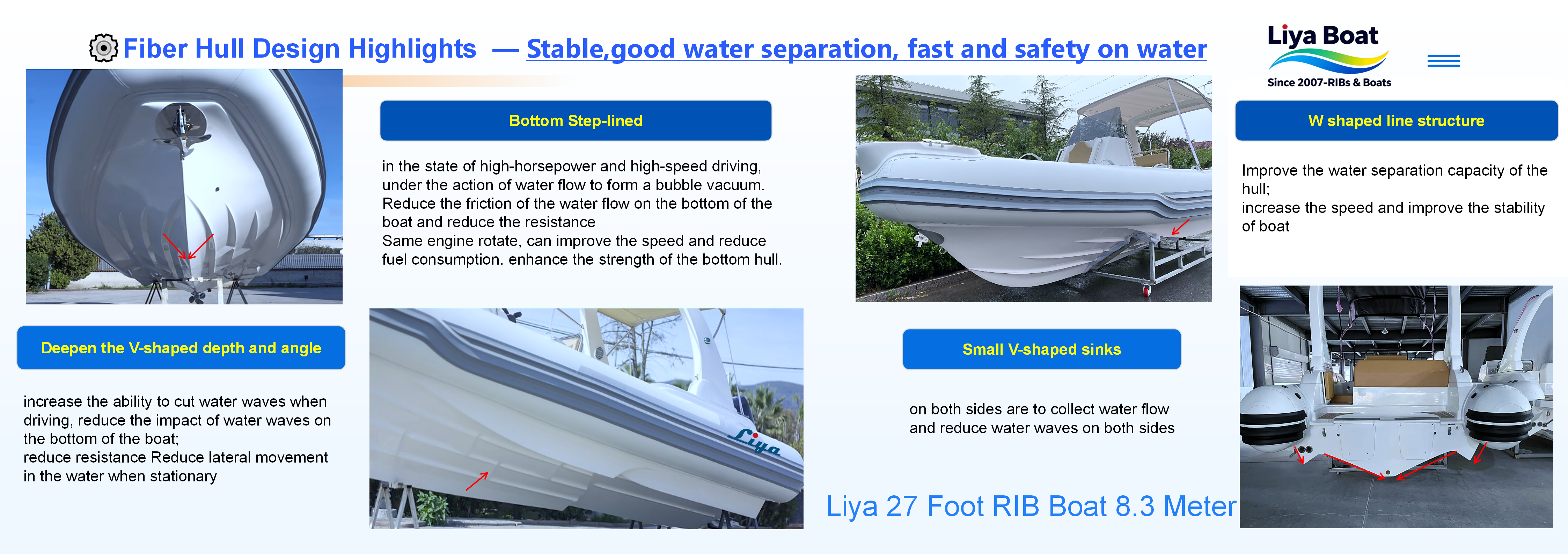

｜Bottom and deck features & Technology

Wave-resistant, waterproof, sturdy internal structure and reliable vacuum adsorption technology make the hull stronger, more stable, and safer.

▍Line classification system & Certificates double insurance

Engineered for Peace of Mind- Double insurance design & international standard certification.

Liya 27FT Italy Style Cabin RIB Boat-Operation & Maintenance

Safety operation procedures

1. Fundamental Mandatory Measures

• Kill Cord (Engine Cut-Off Switch): This is the single most critical safety device. It must be securely attached to the helmsman's person before starting the engine and remain attached at all times while underway. Its sole function is to stop the engine if the helmsman is displaced. Test its function regularly and never operate the boat without it correctly engaged.

• Lifejackets (Personal Flotation Devices - PFDs): While regulations vary, it is strongly advised that all persons on board wear a properly fitted, certified lifejacket at all times when on deck or in the cockpit, especially children and non-swimmers. Stowed lifejackets provide no protection in a sudden emergency.

• Sober Operation: Alcohol and drugs severely impair judgment, balance, and reaction time. The helmsman must abstain completely. All passengers should be made aware of the heightened risks of impairment on the water.

• Effective Lookout & Safe Speed: The helmsman is responsible for maintaining a constant 360-degree watch for other traffic, swimmers, and hazards. Speed must always be appropriate to the conditions: sea state, visibility, traffic density, and proximity to shore. High speed in congested areas or poor conditions is a primary cause of accidents.

2. Pre-Departure Checklist

Conduct these checks systematically before every trip:

• Weather & Planning: Obtain a detailed marine weather forecast (wind, waves, tide). File a float plan with someone ashore detailing your destination, route, and expected return time.

• Boat Condition: Visually inspect the fiberglass hull for new damage. Check the inflatable tube pressure and integrity for signs of abrasion or leaks.

• Engine & Fuel: Check engine oil and coolant levels. Ensure you have sufficient fuel for the journey plus a significant reserve (minimum 1/3). Verify the fuel system for leaks.

• Weight & Balance: Do not exceed the maximum person or weight capacity. Distribute passengers and gear evenly to maintain optimal trim and stability. Avoid overloading the bow or stern.

• Safety Equipment: Verify the presence and condition of all mandatory and recommended safety gear: PFDs, fire extinguisher(s), visual/audible distress signals, first-aid kit, anchor with rode, bilge pump(s), VHF radio, and drinking water.

• Systems Check: Briefly test navigation lights, horn, and VHF radio. Ensure the cabin and deck drains are clear.

3. Operational Procedures Underway

• Passenger Management: Brief all passengers on safety basics: location of equipment, "hold on" points, and behavior. Ensure everyone is seated in designated positions while the boat is planing or in choppy seas.

• Communication: Maintain a listening watch on VHF Channel 16 and use appropriate channels for bridge-to-bridge communication in busy areas.

• Docking & Manoeuvring: Approach docks and other boats at a controlled, slow speed. Be mindful of wind and current. Use brief, gentle throttle inputs when maneuvering in close quarters.

Maintenance and care schedule

Proactive maintenance is vital for safety, reliability, and preserving your boat's value.

After Each Use (Post-Trip)

• Engine Flush: After use in saltwater, connect a freshwater flushing device and run the engine as per the manufacturer's instructions to purge salt from the cooling system.

• Freshwater Rinse: Thoroughly rinse the entire boat—hull, tubes, deck, and console—with fresh water to remove salt, sand, and debris.

• Interior Care: Wipe down the helm, instruments, and seating. Ventilate the cabin and any storage lockers to prevent mildew. Clean the integrated sink and tap if used.

• Mechanical Check: Check engine oil, coolant, and power trim fluid levels. Inspect the propeller for damage. Examine steering system connections and hydraulic lines for wear or leaks.

• Boat Inspection: Check tube pressure. Inspect tube material and hull for new damage, stress cracks, or UV degradation. Test the automatic bilge pump function.

• Battery & Electric: Check battery terminals for corrosion and ensure connections are tight. Verify all electrical systems and lights are operational.

Seasonal / Annual or Every 100-200 Hours

• Professional Engine Service: Adhere strictly to the engine manufacturer’s service intervals for tasks like oil/filter changes, gear lube replacement, spark plug replacement, and water pump impeller inspection. This is best performed by a qualified technician.

• Safety Gear Service: Inspect all lifejackets for wear. Check fire extinguisher pressure gauges and service/charge if needed. Replace expired distress signals.

• Hull & Tube Deep Care: Apply a quality marine wax to the fiberglass hull. Clean tubes with a manufacturer-approved cleaner and apply a UV protectant. Inspect all through-hull fittings and seacocks.

• Anode Inspection: Check and replace sacrificial zinc anodes on the engine(s) and hull if they are more than 50% eroded.

• Fuel System: Add a fuel stabilizer to a full tank or drain the fuel system completely to prevent stale fuel and condensation.

• Engine: Perform end-of-season engine service. Flush with anti-freeze if in freezing climates.

• Water Systems: Completely drain the freshwater tank, integrated sink lines, and any optional toilet/holding tank.

• Tubes & Support: Deflate tubes slightly (to ~80% pressure) to relieve constant tension. Store the boat on a proper support cradle, covered with a breathable cover.
