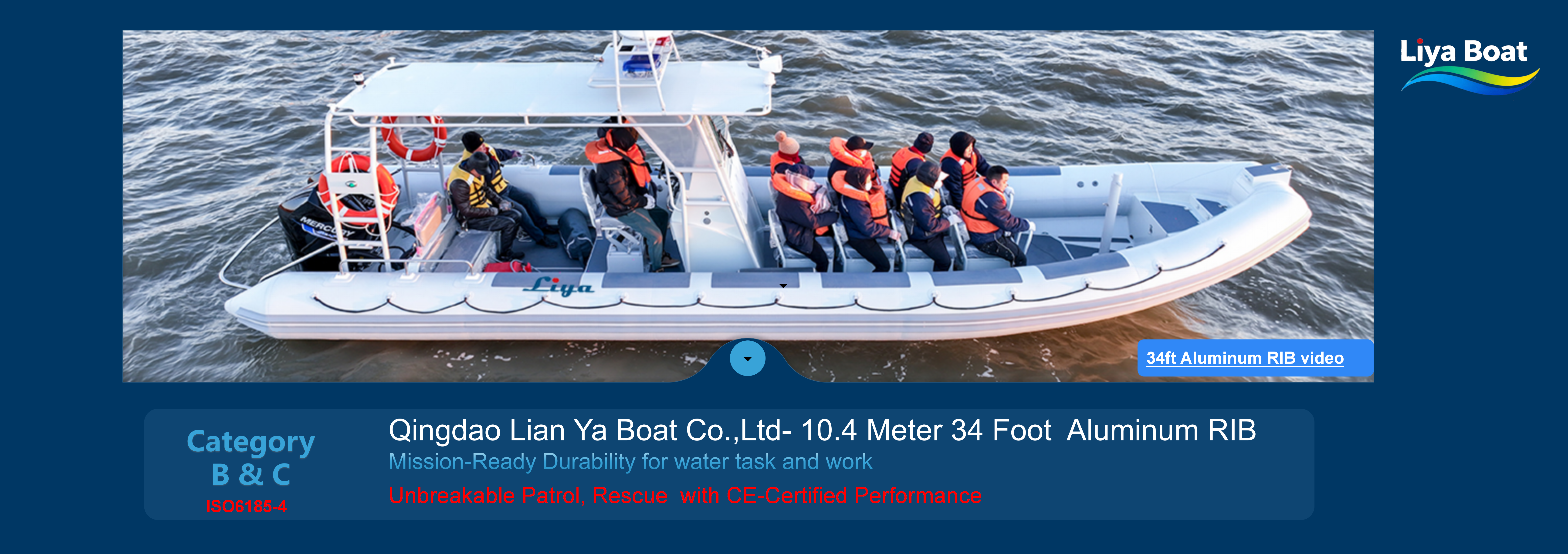

29-34Feet Aluminum hull hypalon RIB
• Power coated Alu hull;
• Deepen the V-shaped depth and angle, increase the ability to cut water waves when driving, reduce the impact of water waves on the bottom of the ship, and reduce
resistance Reduce lateral movement in the water when stationary
• Longitudinal and transverse inside keel jointed configuration make hull strong and stable on big wave water.

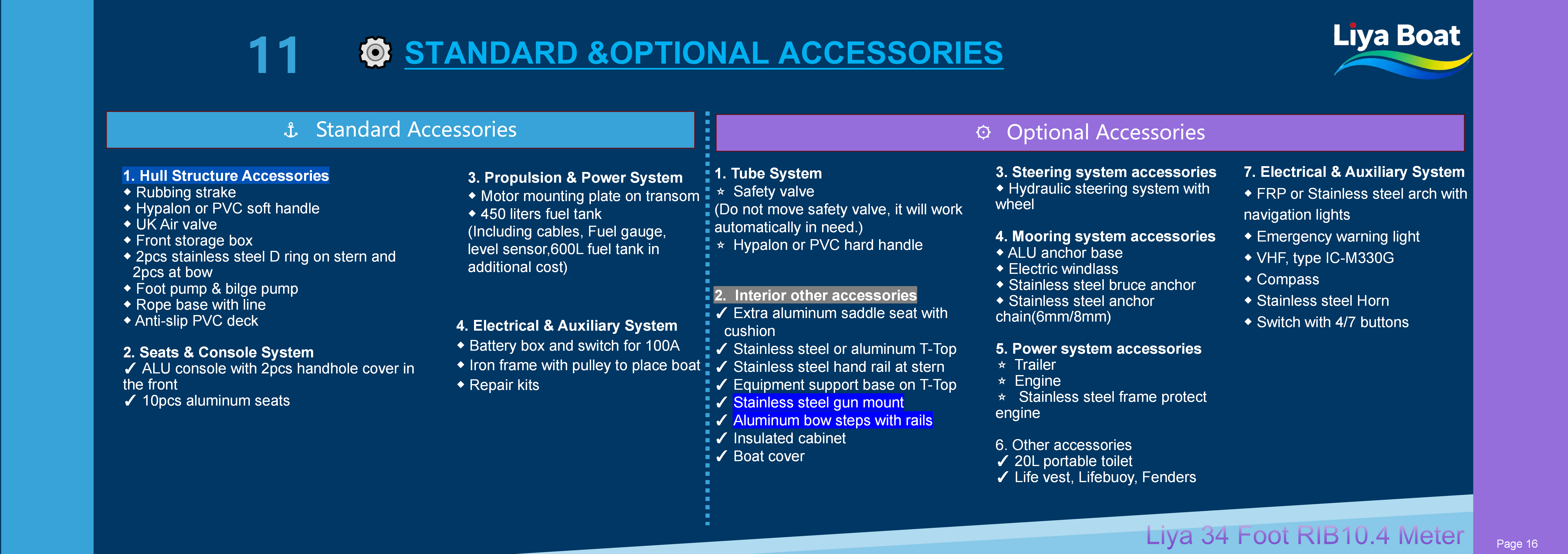

Liya Tube Option:
1. Hypalon/PVC inflatable tube
Tube material type:
Hypalon tube: made of Orca Hypalon from France, this material has UV resistance, high and low temperature resistance, wear resistance, and can prevent fuel, chemical, water, and air leakage.
PVC tube: Made of German PVC, its multi-stage design reduces the vulnerability of punctures.
Safety and design:
Both use British Leafield valves and segmented airtight seals to prevent leaks.
Hypalon wear-resistant strips have been added to protect the cylinder from wear and improve durability and safety.
Inflatable tube warranty: 3-5 years
2. Foam filled solid tube
Core structure:
The dense foam core provides permanent buoyancy, eliminating the risk of air leakage.
Durability advantage:
Designed to resist punctures, cracks, and ruptures.
3. D shaped foam tube: Made of foam with D shape, avaliable also according to customer's requirements.
29-34 Feet Aluminum hull Patrol Boat Tech Specification Data
10 Meter RIB Boat Technology Specification
Dimensions & Shipment
Length overall..................10.4m/34ft
Width overall....................3.04m/10ft
V shape degree................26°
Tube diameter...................0.49-0.58m
40ft HQ container............2pcs
(If hard foam tube need frame to load.)
Capacity
Capacity...............................12-14 people
Max loading.......................1483kg
Net weight.........................1400kg
Airtight compartment....10pcs
Fuel tank.............................450-600 Liters
Category B..........................12 people
Category C..........................14 people

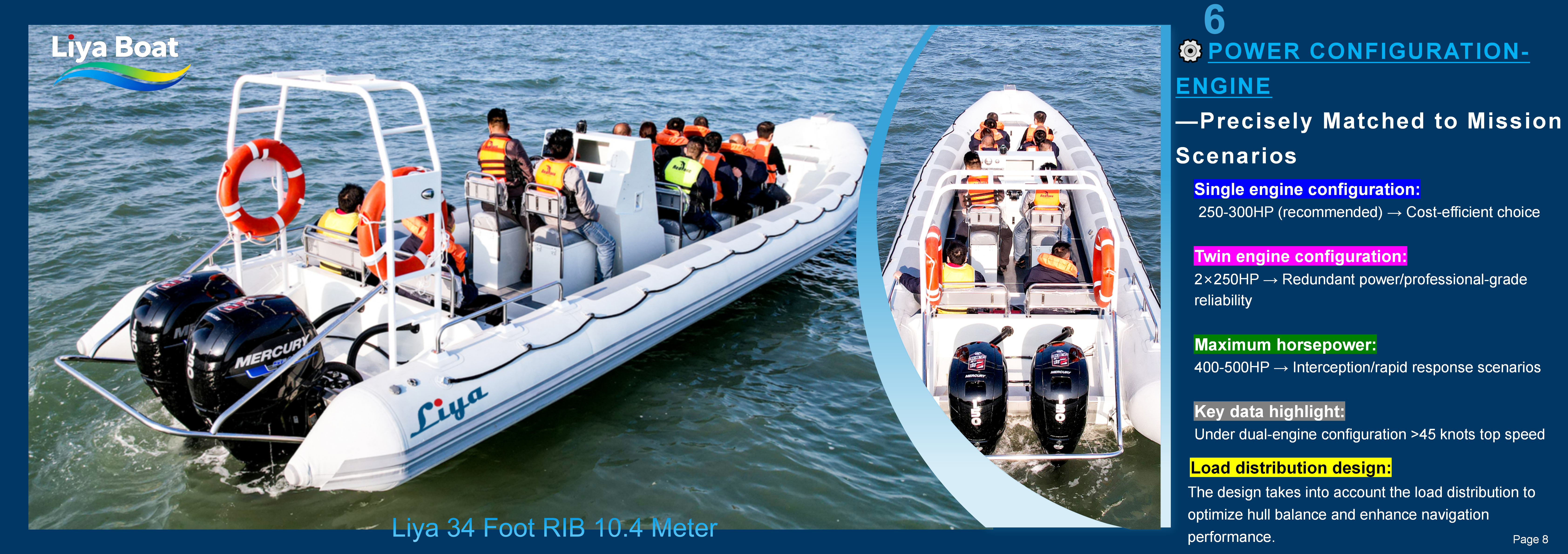

Outboard Engine data
Single engine shaft.........XL25''
Twin engine shaft............XL25''
Recommended power:250-300HP
Max power: 400-500HP or 2x250HP
(If install the maximum hp engine, pls confirm with factory, very important)
9 Meter RIB Boat Technology Specification
Dimensions & Shipment
Length overall..................9.0m/29ft
Inside length.....................8.0m/26ft
Width overall....................3.15m/10.3ft
Inside width.......................1.8m/5.9ft
V shape degree................26°
Tube diameter...................0.49-0.58m
40ft HQ container............2pcs
(If hard foam tube need frame to load.)
Capacity
Capacity...............................14 people
Max loading.......................1800kg
Net weight.........................1400kg
Airtight compartment....10pcs
Fuel tank.............................450-600 Liters
Category C.........................14 people
Outboard Engine data
Single engine shaft.........XL25''
Twin engine shaft............XL25''
Recommended power: 350HP
Max recommend power: 400HP or 2x200HP
Max power: 400HP
(If install the maximum hp engine, pls confirm with factory, very important)
