· PVC core replace traditional wood inside deck , make boat Lighter weight, stronger, and more waterproof;
· Longitudinal and transverse inside keel jointed configuration make fiberglass strong and stable on big wave water.
In the state of high-horsepower and high-speed driving, under the action of water flow to form a bubble vacuum. Reduce the friction of the water flow on the bottom of the boat and reduce the resistance
2. Same engine rotate, can improve the speed and reduce fuel consumption.
3. Enhance the strength of the bottom hull.

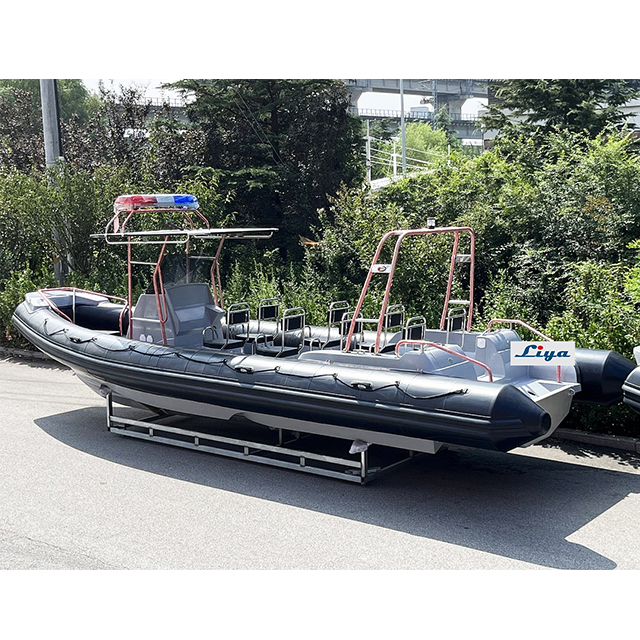

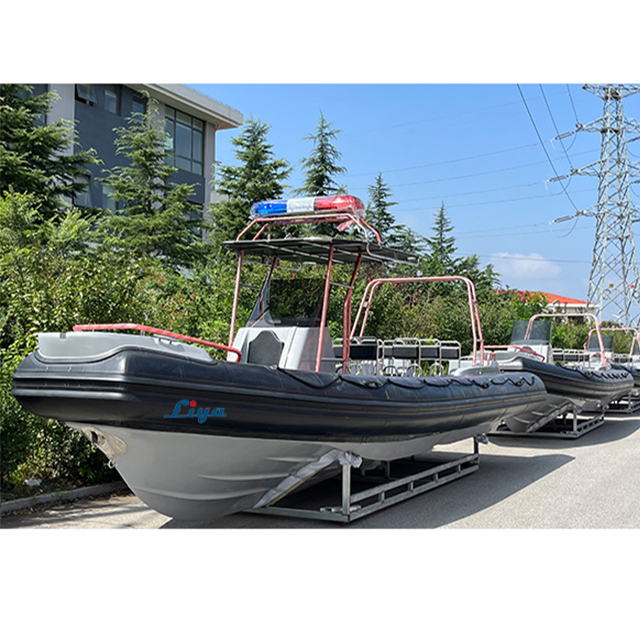

Liya 27feet patrol rib boat with Special Step lined hull make boat fast and stable on water, Bottom
Center console RIB Deepen the V-shaped depth and angle:
1. Increase the ability to cut water waves when driving, reduce the impact of water waves on the bottom of the boat;
2. Reduce resistance Reduce lateral movement in the water when stationary
Tech Specification Data
Full length
830cm/27ft
Full width
300cm/9.9ft
Inside length
810cm/26ft
Inside width
175cm/5.8ft
Tube diameters
55-60cm
Engine Shaft
25 inch
Air chamber No
8
Max Person
6-12
40 HQ Container
2
Max loading
1700kg
V shape degree
22°
Engine Information
Engine type
Outboard
Fuel type
Gas
Fuel capacity
300L-410L
Recommend HP
250HP
Max HP(If install maximum hp engine, confirm with factory, very important for boat)
300HP
Engine shaft
25inch
Number of engine
1 or 2
Standard Accessories:
1. Hypalon or pvc rubbing strake 2. Life line 3. Console E
4. Iron frame with pulley to place boat 5. UK air valves
6. 2pcs stainless steel D ring at stern,2pcs stainless steel D ring at bow
7. Seat D with cushion 8. Motor mounting plate
9.Stainless steel Hand rails at stern 10. Hypalon or pvc soft handles
11. 410L fuel tank oil filling port, gas vent, cables inside
12. Repair Kits 13. Foot pump & Bilge pump
Optional Accessories:
1.Safety valve 2.FRP or Stainless steel arch with navigation lights
2-1.New Aluminum arch with navigation lights
3. Italy Hydraulic steering 4. Battery box with switch
5. Hydraulic piston per piece 6. Front Stainless steel support
7. Boat cover 8. Water tank
9. Water pump & shower 10. Stainless steel or aluminum T-Top
11. Foldable canopy 12. FRP anchor base
13. Electric windlass 14. Stainless steel anchor chain(6-8mm)
