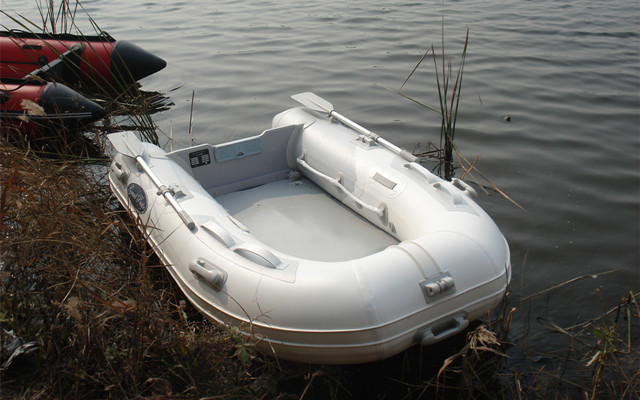

PVC or hypalon inflatable boats are made from multiple air chambers which prevent the entire boats from losing air if a puncture does happen.
It is also called inflatable dinghies, inflatable tenders, rubber boats etc.
It can be made into aluminium floor inflatable boats, marine plywood floor inflatable boats, air deck inflatable boats too.
Liya Tube Option:
1. Hypalon/PVC inflatable tube
Tube material type:
Hypalon tube: made of Orca Hypalon from France, this material has UV resistance, high and low temperature resistance, wear resistance, and can prevent fuel, chemical, water, and air leakage.
PVC tube: Made of German PVC, its multi-stage design reduces the vulnerability of punctures.
Safety and design:
Both use British Leafield valves and segmented airtight seals to prevent leaks.
Hypalon wear-resistant strips have been added to protect the cylinder from wear and improve durability and safety.
Inflatable tube warranty: 3-5 years
2. Foam filled solid tube
Core structure:
The dense foam core provides permanent buoyancy, eliminating the risk of air leakage.
Durability advantage:
Designed to resist punctures, cracks, and ruptures.
Model | UB200 | UB230 | UB250 | UB270 | UB300 | UB330 | UB360 |
Over Length (CM) | 200 | 230 | 250 | 270 | 300 | 330 | 360 |
Over Width (CM) | 126 | 126 | 126 | 150 | 150 | 151 | 170 |
Inside Width(CM) | 61 | 61 | 61 | 68 | 68 | 68 | 80 |
Tube Diam. (CM) | 34 | 36 | 36 | 40 | 40 | 40 | 45 |
Air Chamber | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 |
Max engine (HP) | 3 | 4 | 5 | 8 | 10 | 15 | 20 |
Transom Height | 37±1 | 37±1 | 37±1 | 38±1 | 38±1 | 38±1 | 38±1 |
Max Persons | 2 | 2 | 3 | 3 | 4 | 5 | 5+1 |
Max Loading (KG) | 200 | 200 | 280 | 355 | 465 | 525 | 620 |
N.W (KG) | 24 | 26 | 32 | 50 | 54 | 65 | 66 |
G. W (KG) | 26 | 29 | 35 | 52 | 57 | 68 | 70 |
Packing size (cm) | 113*60*35
| 115*65*45
| 123*75*45
|
Model | UB380 | UB430 | UB470 | UB500 | UB550 | UB600 | UB650 |
OverLength(CM) | 380 | 430 | 470 | 500 | 550 | 600 | 650 |
Over Width (CM) | 170 | 190 | 190 | 220 | 220 | 230 | 230 |
Inside Width(CM) | 80 | 90 | 90 | 110 | 110 | 110 | 110 |
Tube Diam. (CM) | 45 | 50 | 50 | 55 | 55 | 55 | 55 |
Air Chamber | 3+1 | 4+1 | 4+1 | 5+1 | 5+1 | 7+1 | 7+1 |
Max engine (HP) | 25 | 30 | 40 | 70 | 80 | 90 | 90 |
Transom Height | 38±1 | 40±1 | 40±1 | 51±1 | 51±1 | 51±1 | 51±1 |
Max Persons | 6 | 8 | 10 | 12 | 13 | 14 | 16 |
MaxLoading (KG) | 700 | 900 | 1050 | 1350 | 1450 | 1700 | 1800 |
N.W (KG) | 78 | 95 | 124 | 146 | 149 | 190 | 195 |
G. W (KG) | 83 | 105 | 130 | 152 | 155 | 200 | 225 |
Packing size | 123*75*45 | Boat: 140*75*45 Alu.floor:113*75*15 | Boat:160*80*60 Alu. Floor: 113*75*15 |
